Front - R13UH88AO/AQ/AZ/UH9EAO/EAZ Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7518978 Screw

SCREW

Part #: 7518978 Required per assembly: 8
Currently Not Available
2
Polaris 5254999 Disc-Brake Front

DISC-BRAKE FRONT

Part #: 5254999 Required per assembly: 2
Currently Not Available
3
Polaris 7519753 Stud, Wheel

STUD, WHEEL

Part #: 7519753 Required per assembly: 8 Note: Built 10/08/12 and Before
$4.49
$2.80
-
+
Add to cart
4
Polaris 5137387-067 Hub, Wheel, Front, Black

HUB, WHEEL, FRONT, BLACK

Part #: 5137387-067 Required per assembly: 2
Currently Not Available
5
Polaris 1521629-067 Rim, Front, Black

RIM, FRONT, BLACK

Part #: 1521629-067 Required per assembly: 2
Currently Not Available
6
Polaris 5413761 Tire, Front, 26X9r12, [An][As][Av][Az]

TIRE, FRONT, 26X9R12, [AN][AS][AV][AZ]

Part #: 5413761 Required per assembly: 2
Currently Not Available
7
Polaris 1521954 Cap, Rim

CAP, RIM

Part #: 1521954 Required per assembly: 2
Currently Not Available
8

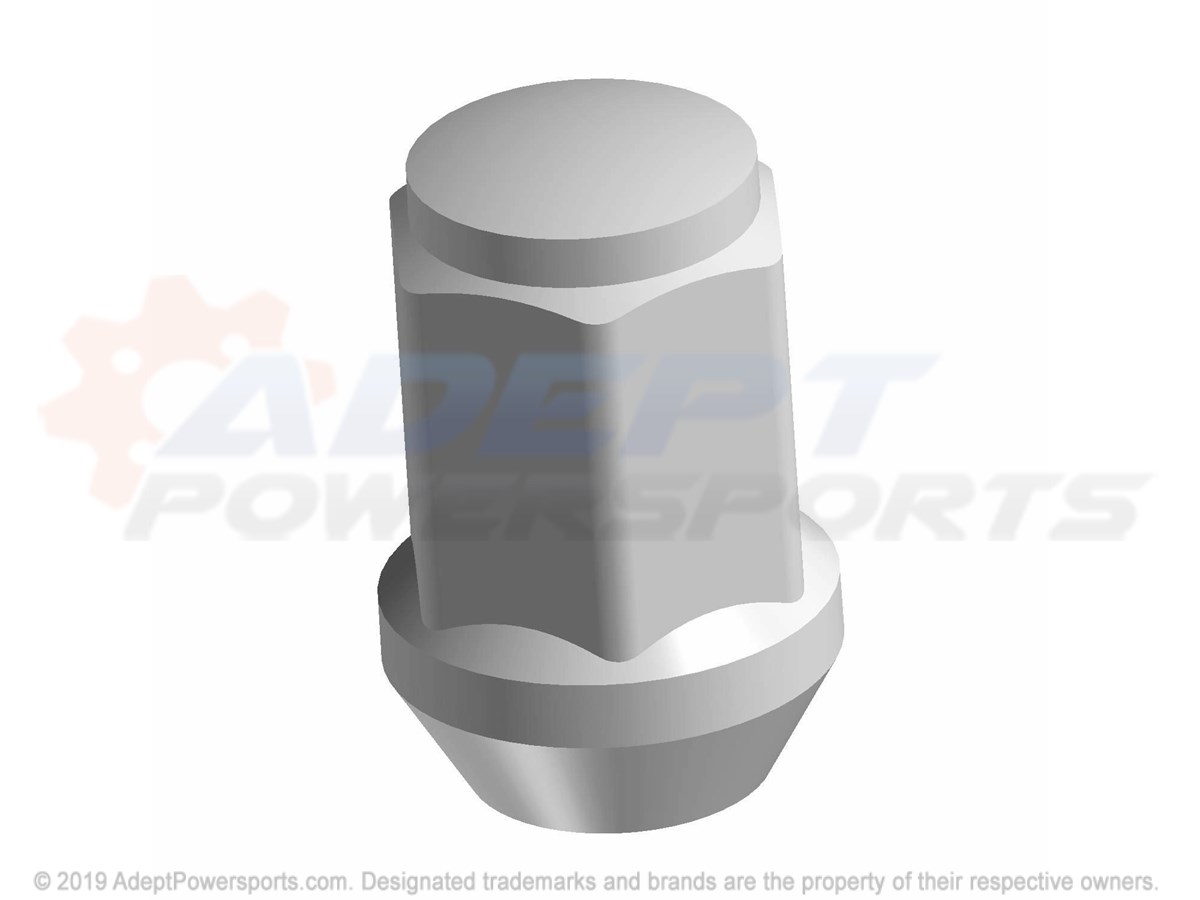

Polaris 7547489 Nut, Wheel

NUT, WHEEL

Part #: 7547489 Required per assembly: 8 Note: Built 10/09/12 and After
Currently Not Available
8
Polaris 7547638 Nut, Lug

NUT, LUG

Part #: 7547638 Required per assembly: 8 Note: Built 10/08/12 and Before
Currently Not Available
9
Polaris 7555796 Washer, Cone

WASHER, CONE

Part #: 7555796 Required per assembly: 4
Currently Not Available
10
Polaris 7547337 Nut, Castle, [4X4]

NUT, CASTLE, [4X4]

Part #: 7547337 Required per assembly: 2 Note: Nut, Castle
$3.99
$2.30
-
+
Add to cart
11
Polaris 7710440 Ring, Retaining

RING, RETAINING

Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining
Currently Not Available
12
Polaris 7661402 Key, Cotter

KEY, COTTER

Part #: 7661402 Required per assembly: 2 Note: Pin, Cotter
Currently Not Available
13
Polaris 1525017 Valve, Rim

VALVE, RIM

Part #: 1525017 Required per assembly: 2
Currently Not Available
14
Polaris 3514699 Bearing-Ball Sealed 44X72x33.1

BEARING-BALL SEALED 44X72X33.1

Part #: 3514699 Required per assembly: 2
Currently Not Available
