OEM Parts Polaris 2013 Polaris RANGER 900 XP ALL OPTIONS R13UH88/UH9E Throttle Pedal - R13uh88/Uh9e All Options

2013 Polaris RANGER 900 XP ALL OPTIONS - R13UH88/UH9E - Throttle Pedal - R13uh88/Uh9e All Options

Throttle Pedal - R13UH88/UH9E All Options Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

RIVET

Part #: 7621323 Required per assembly: 1
$1.99
$1.35
-
+
Add to cart
2

SENSOR-THROTTLE

Part #: 4012657 Required per assembly: 1
Currently Not Available
3

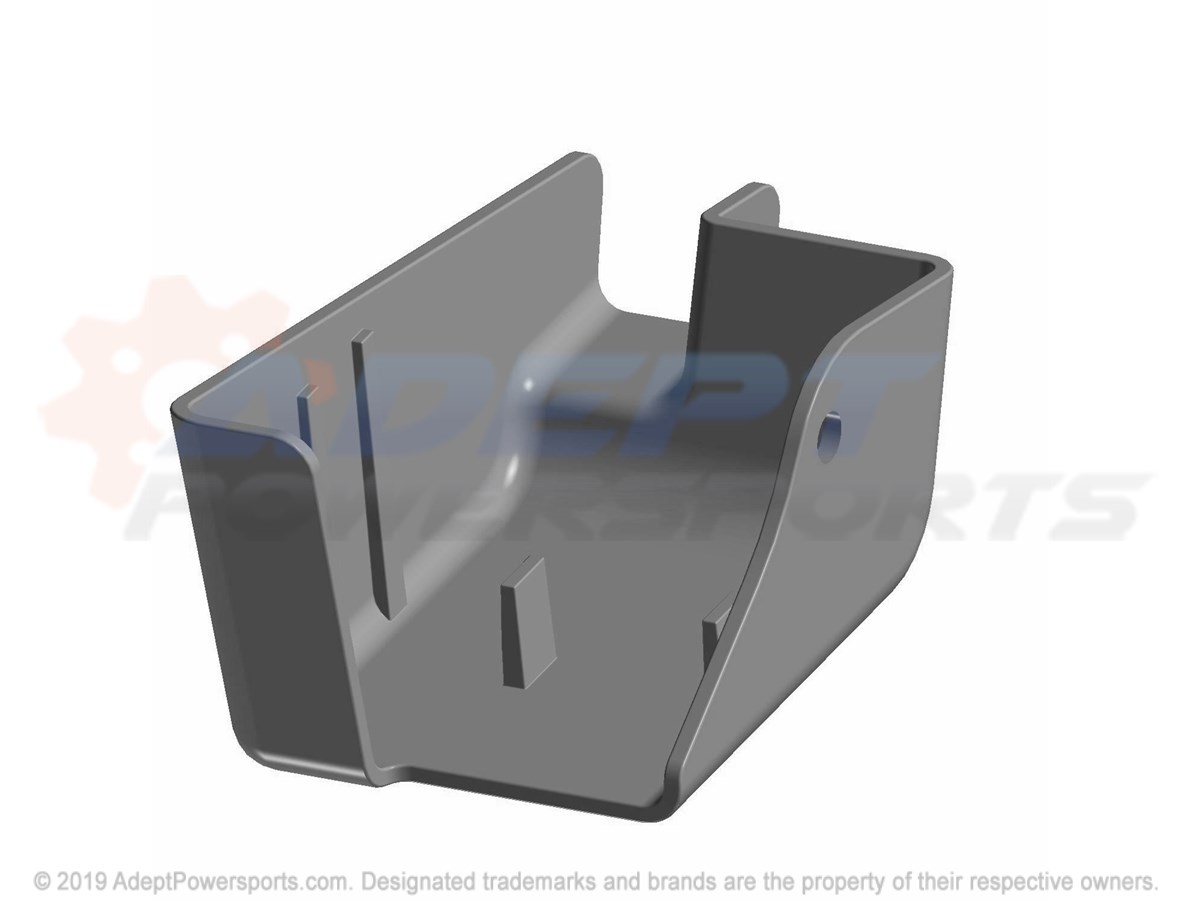

Polaris 5439695-070 Cover, Etc, Black

COVER, ETC, BLACK

Part #: 5439695-070 Required per assembly: 1
Currently Not Available
4

NUT, FLANGE

Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok
Currently Not Available
5
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 1
$2.99
$1.73
-
+
Add to cart
6
Polaris 5813535 Stop-Toe Pedal

STOP-TOE PEDAL

Part #: 5813535 Required per assembly: 1
Currently Not Available
