OEM Parts Polaris 2013 Polaris RANGER 900 XP ALL OPTIONS R13UH88/UH9E Battery, Eps - R13uh88/Uh9e All Options

2013 Polaris RANGER 900 XP ALL OPTIONS - R13UH88/UH9E - Battery, Eps - R13uh88/Uh9e All Options

Battery, Eps - R13UH88/UH9E All Options Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

BATTERY

Part #: 4014132-P Required per assembly: 1 Note: Built 10/02/12 and After
Currently Not Available
1

BATTERY

Part #: 4014132-P Required per assembly: 1 Note: Built 10/01/12 and Before
Currently Not Available
2
Polaris 4014048 Cable, Battery, To, Solenoid

CABLE, BATTERY, TO, SOLENOID

Part #: 4014048 Required per assembly: 1
Currently Not Available
3
Polaris 4013376 Assembly, Cable, Starter, To, Solenoid/Ground

ASSEMBLY, CABLE, STARTER, TO, SOLENOID/GROUND

Part #: 4013376 Required per assembly: 1
Currently Not Available

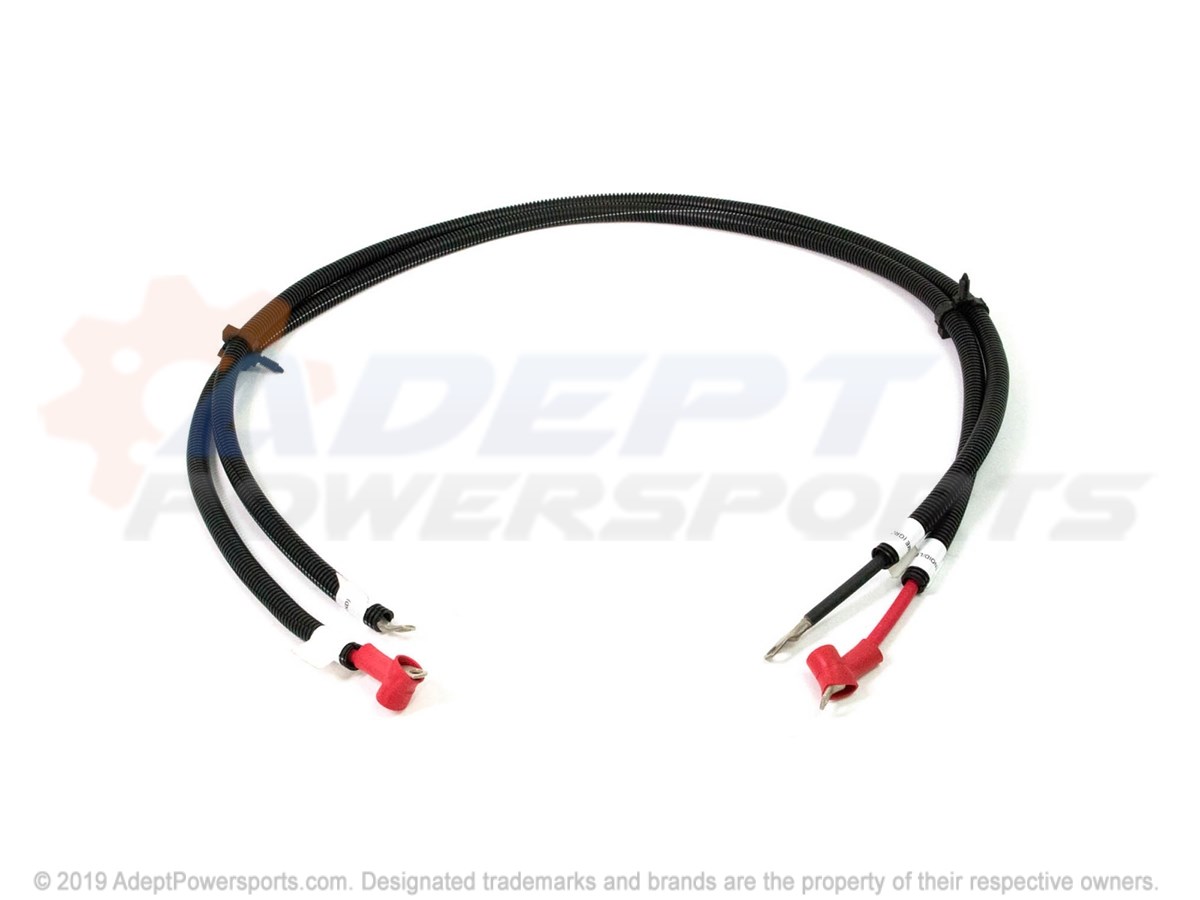

4
Polaris 4014060 Cable, Terminal, Block

CABLE, TERMINAL, BLOCK

Part #: 4014060 Required per assembly: 1
Currently Not Available
5
Polaris 4014049 Cable, Battery, To, Ground

CABLE, BATTERY, TO, GROUND

Part #: 4014049 Required per assembly: 1
Currently Not Available
6
Polaris 4014471 Solenoid, Starter, C1100, W/Washer

SOLENOID, STARTER, C1100, W/WASHER

Part #: 4014471 Required per assembly: 1
Currently Not Available
7

KIT, BATTERY, BOLT

Part #: 2202802 Required per assembly: 1 Note: Kit, Battery Bolt
Currently Not Available
8
Polaris 7518513 Screw

SCREW

Part #: 7518513 Required per assembly: 1
Currently Not Available
9
Polaris 7512026 Screw

SCREW

Part #: 7512026 Required per assembly: 4 Note: Screw
Currently Not Available
10
Polaris 4011892 Block, Terminal

BLOCK, TERMINAL

Part #: 4011892 Required per assembly: 1 Note: Block, Terminal
Currently Not Available
11
Polaris 7518196 Screw

SCREW

Part #: 7518196 Required per assembly: 2
$1.99
$1.15
-
+
Add to cart
12
Polaris 7546601 Nut, Nylok

NUT, NYLOK

Part #: 7546601 Required per assembly: 3 Note: Nut, Nylok
Sold in multiples of 10 only
Currently Not Available
13

TRIM, EDGE, 6FT, BLACK

Part #: 5521131
Currently Not Available
14
Polaris 7519333 Stud

STUD

Part #: 7519333 Required per assembly: 1
Currently Not Available
15
Polaris 7547339 Nut, Flange

NUT, FLANGE

Part #: 7547339 Required per assembly: 1
Currently Not Available
16
Polaris 7547270 Nut, Flange

NUT, FLANGE

Part #: 7547270 Required per assembly: 2 Note: Nut, Hex
Currently Not Available
17

BRACKET, STRAP, BATTERY, BLACK

Part #: 5256611 Required per assembly: 1 Note: Built 10/01/12 and Before
Currently Not Available

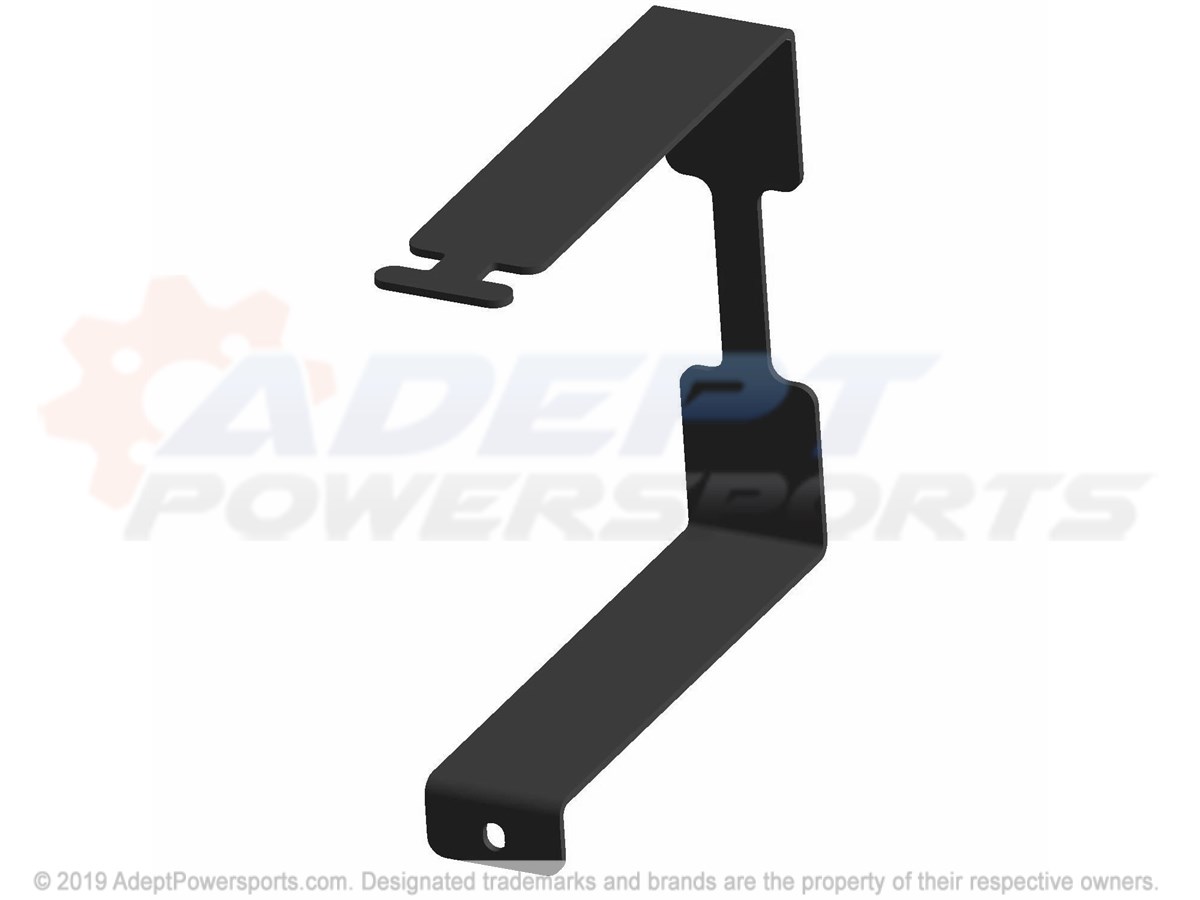

17
Polaris 5257221 Bracket, Strap, Battery

BRACKET, STRAP, BATTERY

Part #: 5257221 Required per assembly: 1 Note: Built 10/02/12 and After
Currently Not Available
