OEM Parts Polaris 2013 Polaris RANGER 900 XP ALL OPTIONS R13UH88/UH9E Exhaust - R13uh88/Uh9e All Options

2013 Polaris RANGER 900 XP ALL OPTIONS - R13UH88/UH9E - Exhaust - R13uh88/Uh9e All Options

Exhaust - R13UH88/UH9E All Options Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1262292 Assembly, Headpipe

ASSEMBLY, HEADPIPE

Part #: 1262292 Required per assembly: 1 Note: Incl. headpipe and all shields and clamps
Currently Not Available
2
Polaris 1262574 Asm-Silencer, Rgr

ASM-SILENCER, RGR

Part #: 1262574 Required per assembly: 1 Note: Incl. 3-5,10-13, all Shields and clamps
Currently Not Available
3
Polaris 1262123 Weld-Spark Arrestor Ava875

WELD-SPARK ARRESTOR AVA875

Part #: 1262123 Required per assembly: 1
Currently Not Available
4

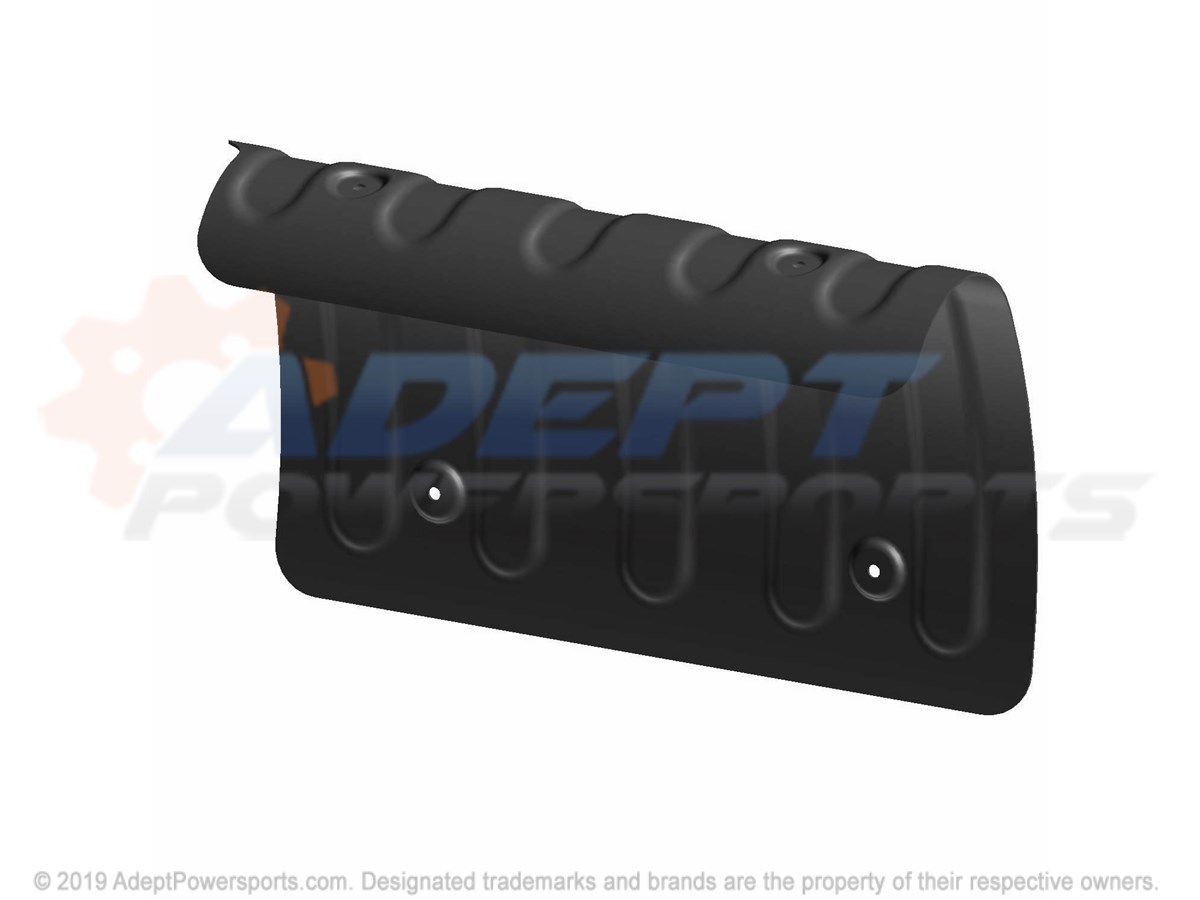

Polaris 5255371 Silencer, Shield

SILENCER, SHIELD

Part #: 5255371 Required per assembly: 1
Currently Not Available
5
Polaris 5438965 Mnt-Isolator

MNT-ISOLATOR

Part #: 5438965 Required per assembly: 3
Currently Not Available
6
Polaris 5813762 Shield, Heat, Foil, Top

SHIELD, HEAT, FOIL, TOP

Part #: 5813762 Required per assembly: 1
Currently Not Available
7
Polaris 5813763 Shield, Heat, Foil, Bottom

SHIELD, HEAT, FOIL, BOTTOM

Part #: 5813763 Required per assembly: 1
Currently Not Available
8
Polaris 3610184 Gasket, Exhaust, Seal

GASKET, EXHAUST, SEAL

Part #: 3610184 Required per assembly: 1
Currently Not Available
9
Polaris 7518984 Screw

SCREW

Part #: 7518984 Required per assembly: 6
Currently Not Available
10
Polaris 7517257 Screw

SCREW

Part #: 7517257 Required per assembly: 1
Currently Not Available
11
Polaris 7518490 Screw

SCREW

Part #: 7518490 Required per assembly: 4 Note: Screw, Flange
Currently Not Available
12
Polaris 7547120 Nut

NUT

Part #: 7547120 Required per assembly: 1
Currently Not Available
13
Polaris 7555935 Washer

WASHER

Part #: 7555935 Required per assembly: 4 Note: Washer, Flat
Currently Not Available
14
Polaris 3610204 Seal, Exhaust

SEAL, EXHAUST

Part #: 3610204 Required per assembly: 1
Currently Not Available
15
Polaris 7041789 Spring-Exhaust

SPRING-EXHAUST

Part #: 7041789 Required per assembly: 2 Note: Spring, Exhaust
$6.99
$4.03
-
+
Add to cart
16
Polaris 7512095 Screw (For Ref. 33 W/O Inserts)

SCREW (FOR REF. 33 W/O INSERTS)

Part #: 7512095 Required per assembly: 2 Note: Screw
Currently Not Available
17
Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 3
$2.99
$1.73
-
+
Add to cart
18
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 4
$2.99
$1.73
-
+
Add to cart
19
Polaris 5257289 Bracket, Box, Close, Off

BRACKET, BOX, CLOSE, OFF

Part #: 5257289 Required per assembly: 1
Currently Not Available
