OEM Parts Polaris 2013 Polaris RANGER 900 XP ALL OPTIONS R13UH88/UH9E Harness, Eps - R13uh88/Uh9e All Options

2013 Polaris RANGER 900 XP ALL OPTIONS - R13UH88/UH9E - Harness, Eps - R13uh88/Uh9e All Options

Harness, Eps - R13UH88/UH9E All Options Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2411731 Harness, Chassis

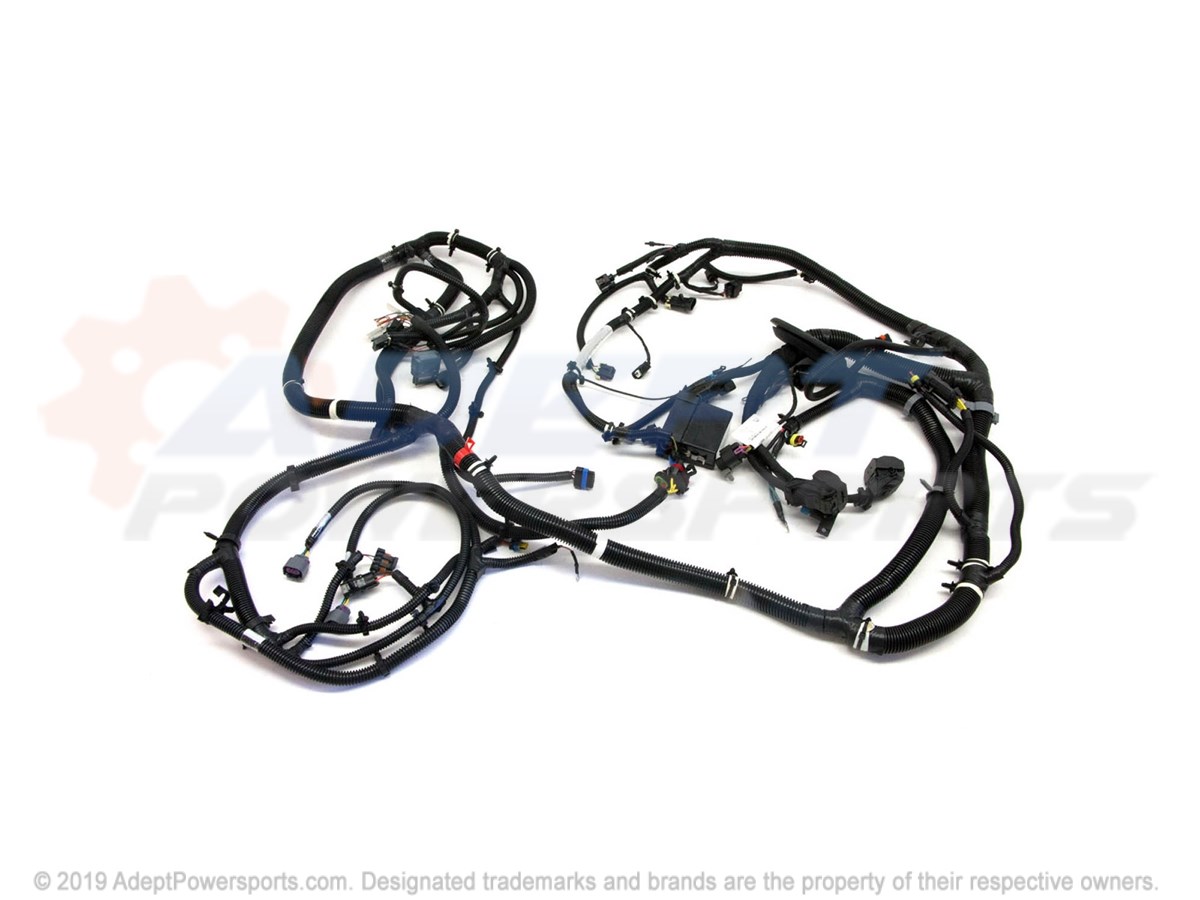

HARNESS, CHASSIS

Part #: 2411731 Required per assembly: 1
Currently Not Available
2
Polaris 2411801 Harness, Box

HARNESS, BOX

Part #: 2411801 Required per assembly: 1
Currently Not Available
3
Polaris 5253675 Plate, Fuse, Mount

PLATE, FUSE, MOUNT

Part #: 5253675 Required per assembly: 1 Note: Plate, Fuse Mount
Currently Not Available
4
Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 4
$2.99
$1.73
-
+
Add to cart
5
Polaris 5414435 Grommet

GROMMET

Part #: 5414435 Required per assembly: 1
Currently Not Available
6

NUT, METRIC

Part #: 7546703 Required per assembly: 2
$1.99
$1.15
-
+
Add to cart
7
Polaris 4012170 Cover, Diagnostic, W/Clip

COVER, DIAGNOSTIC, W/CLIP

Part #: 4012170 Required per assembly: 1
Currently Not Available
8
Polaris 2434016 Fuse, 10Amp

FUSE, 10AMP

Part #: 2434016 Required per assembly: 4 Note: Fuse, 10 AMP, Ignition
Sold in multiples of 10 only
Currently Not Available
9
Polaris 4012811 Fuse-20 Mini Blade 58V(Yellow)

FUSE-20 MINI BLADE 58V(YELLOW)

Part #: 4012811 Required per assembly: 4
Currently Not Available
10
Polaris 2410881 Breaker, Circuit, 20, Amp

BREAKER, CIRCUIT, 20, AMP

Part #: 2410881 Required per assembly: 1
Currently Not Available
11
Polaris 5438758 Cover-Relay/Fuse Center

COVER-RELAY/FUSE CENTER

Part #: 5438758 Required per assembly: 1
Currently Not Available
12
Polaris 2434015 Fuse, Main, 30, Amp

FUSE, MAIN, 30, AMP

Part #: 2434015 Required per assembly: 1 Note: Fuse, 30 AMP, Main
Sold in multiples of 10 only
Currently Not Available
13
Polaris 2410000 Diode, 6, Amp

DIODE, 6, AMP

Part #: 2410000 Required per assembly: 1 Note: Diaode, 6 AMP
Currently Not Available
14
Polaris 4016819 Relay-Spst, 12V, 20A, Epxy, Hfa

RELAY-SPST, 12V, 20A, EPXY, HFA

Part #: 4016819 Required per assembly: 5
Currently Not Available
15
Polaris 7177866 Decal, Relay/Fuse, Box

DECAL, RELAY/FUSE, BOX

Part #: 7177866 Required per assembly: 1
Currently Not Available
16
Polaris 4014226 Ferrite

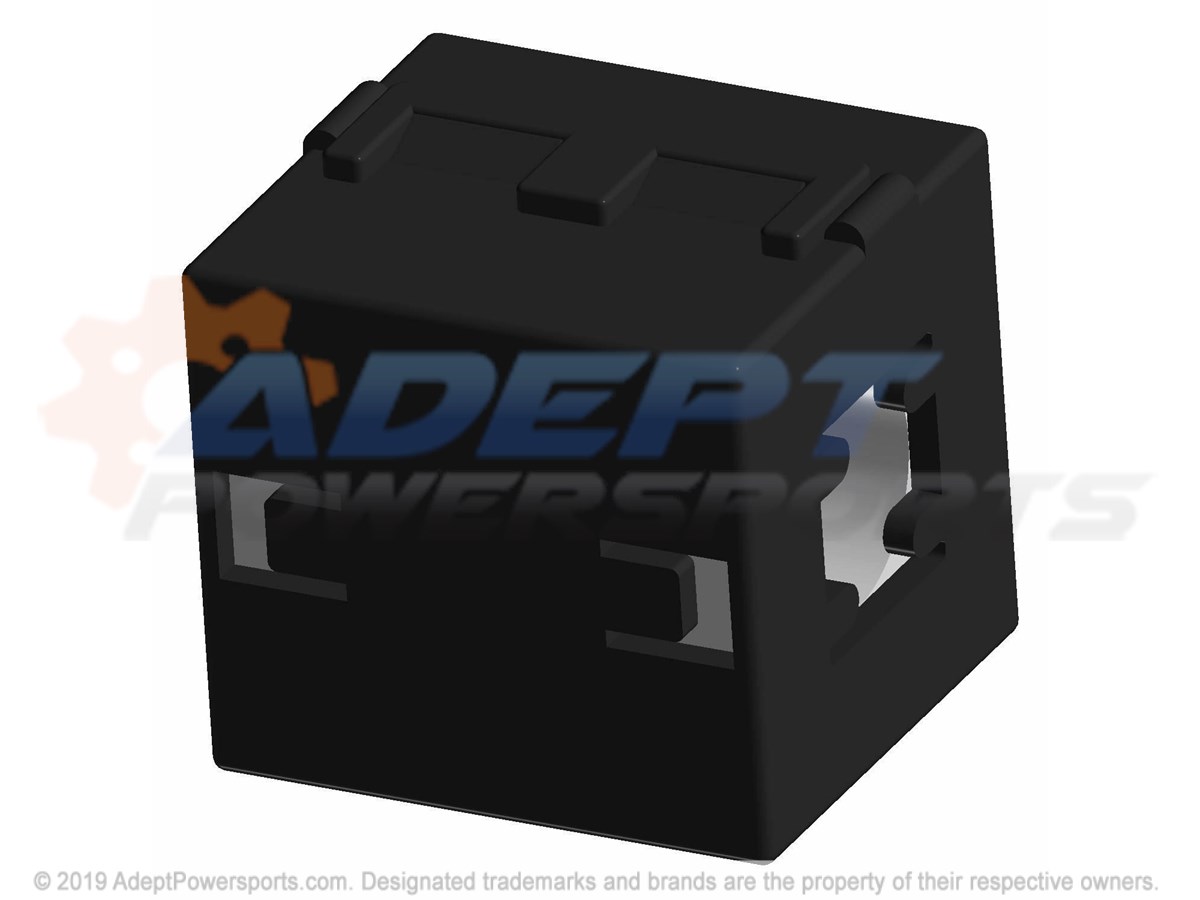

FERRITE

Part #: 4014226 Required per assembly: 1
Currently Not Available
