Main Frame - R13UH88/UH9E All Options Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

FRAME, MAIN, MATTE, BLACK

Part #: 2205201 Required per assembly: 1
Currently Not Available
2

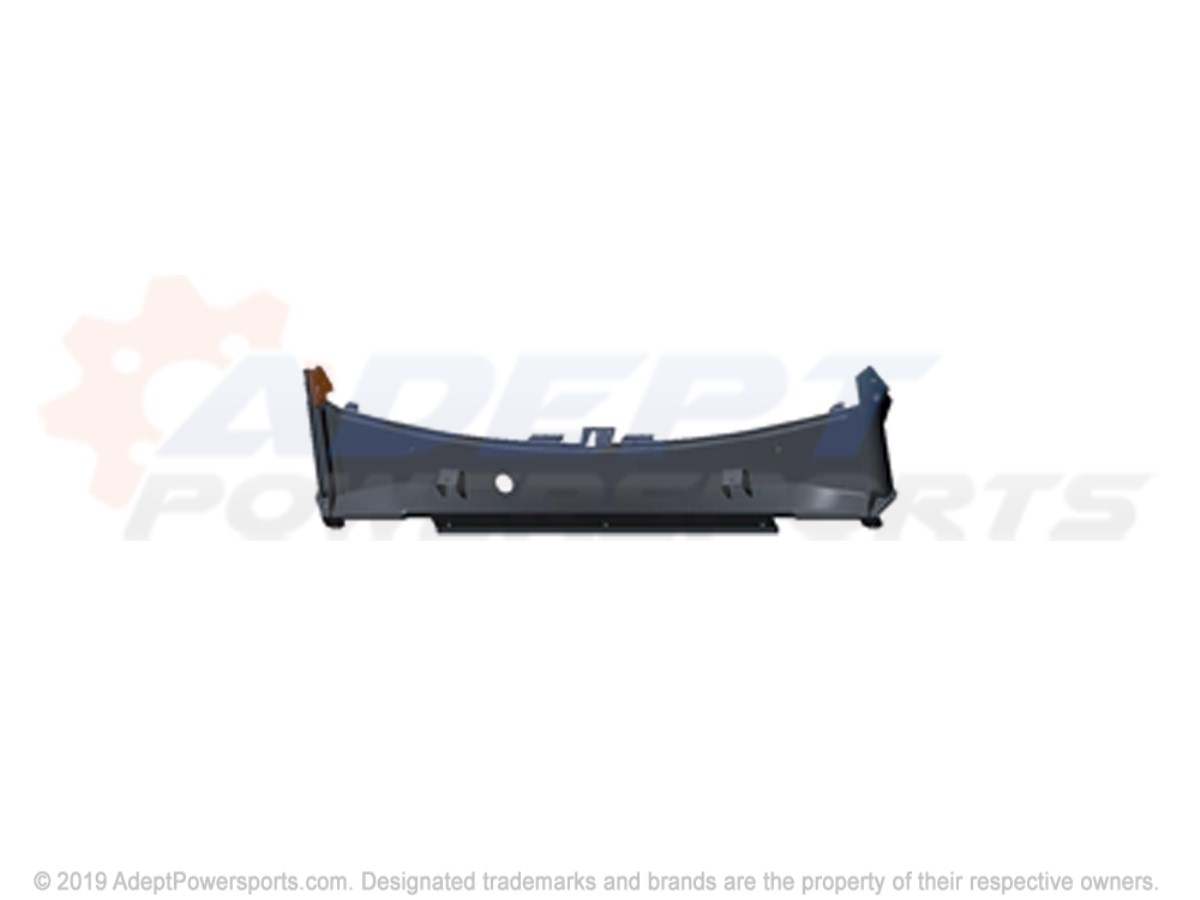

Polaris 1019513-329 Base, Cab/Seat, Matte, Black

BASE, CAB/SEAT, MATTE, BLACK

Part #: 1019513-329 Required per assembly: 1
Currently Not Available
3
Polaris 1018295-329 Support, Cab, Rear, Matte, Black

SUPPORT, CAB, REAR, MATTE, BLACK

Part #: 1018295-329 Required per assembly: 1
Currently Not Available
4
Polaris 1018089-329 Support, Floor, Lh, Black

SUPPORT, FLOOR, LH, BLACK

Part #: 1018089-329 Required per assembly: 1
Currently Not Available
5
Polaris 1018090-329 Support, Floor, Rh, Black

SUPPORT, FLOOR, RH, BLACK

Part #: 1018090-329 Required per assembly: 1
Currently Not Available
6
Polaris 1018086-458 Support, Windshield, Matte, Black

SUPPORT, WINDSHIELD, MATTE, BLACK

Part #: 1018086-458 Required per assembly: 1
Currently Not Available
7
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 8 Note: Bolt, Flange
Currently Not Available
8
Polaris 7519059 Screw

SCREW

Part #: 7519059 Required per assembly: 10
Currently Not Available
9
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 18 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
10
Polaris 7519363 Screw

SCREW

Part #: 7519363 Required per assembly: 8
Currently Not Available
11

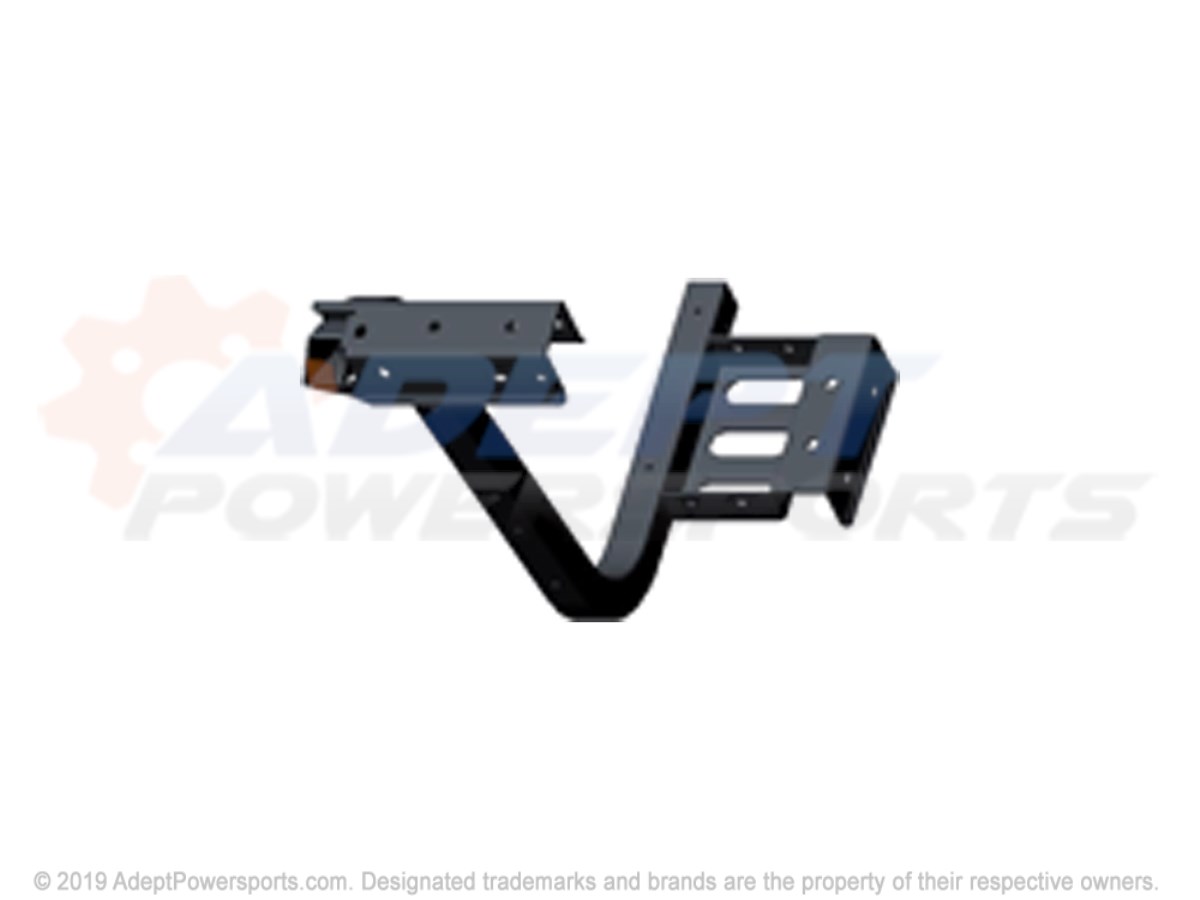

Polaris 1019087-329 Rocket, Lh, Black

ROCKET, LH, BLACK

Part #: 1019087-329 Required per assembly: 1
Currently Not Available
12

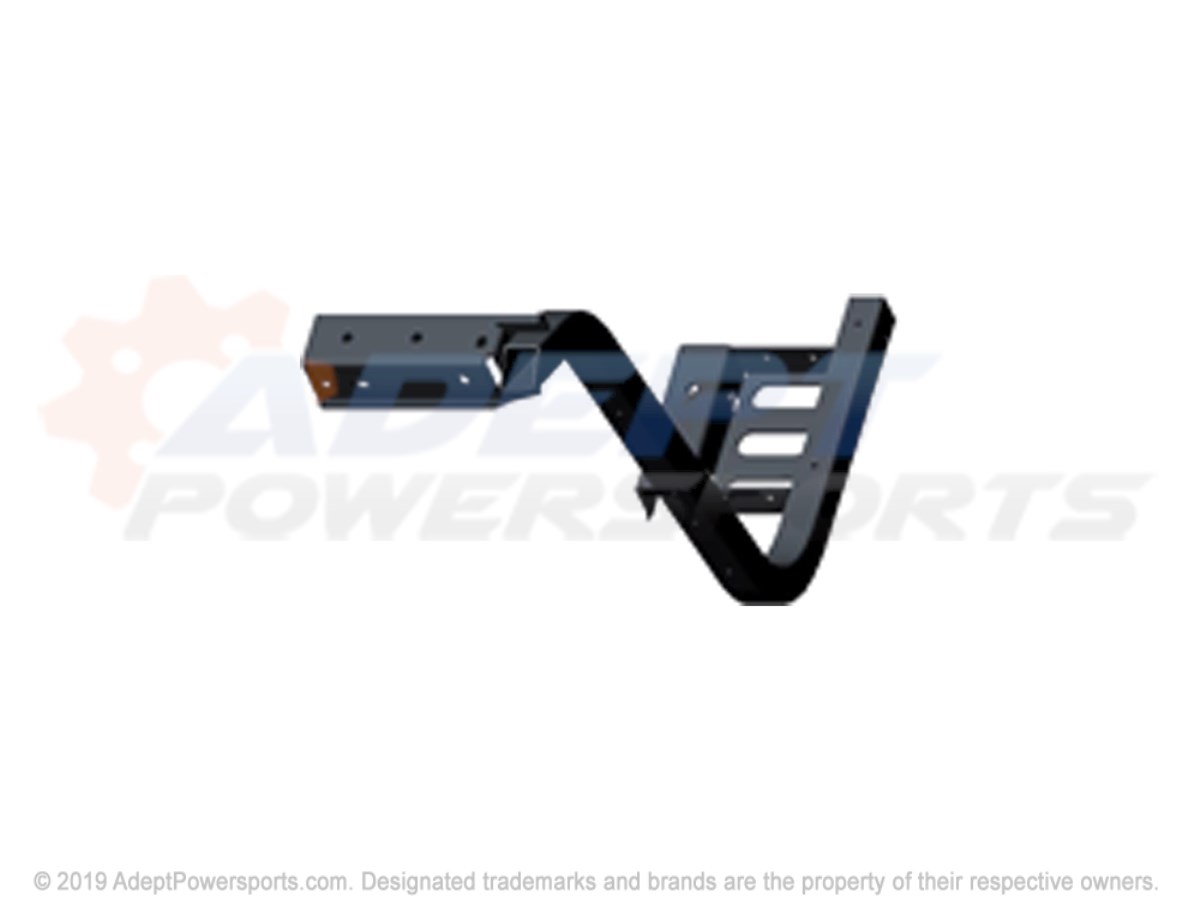

Polaris 1019088-329 Rocket, Rh, Black

ROCKET, RH, BLACK

Part #: 1019088-329 Required per assembly: 1
Currently Not Available
13
Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 6
$2.99
$1.73
-
+
Add to cart
14
Polaris 5414440 Grommet, Electrical

GROMMET, ELECTRICAL

Part #: 5414440 Required per assembly: 1
Currently Not Available
