Brake Pedal And Master Cylinder - A14mh5eaa/Eac/Eaj replacement parts for 2014 Polaris Sportsman 570 EFI EPS

OEM Parts Polaris 2014 Polaris Sportsman 570 EFI EPS Brake Pedal And Master Cylinder - A14mh5eaa/Eac/Eaj

Brake Pedal and Master Cylinder - A14MH5EAA/EAC/EAJ Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, RESERVOIR, BRAKE, REAR Part #: 1911224 Required per assembly: 1 Note: INCL. CAP, 3,4 Currently Not Available
2	ASM-M/CYL BRAKE FOOT 1/2" CLVS Part #: 1911688 Required per assembly: 1 Note: INCL. HOSE, CLAMPS Currently Not Available

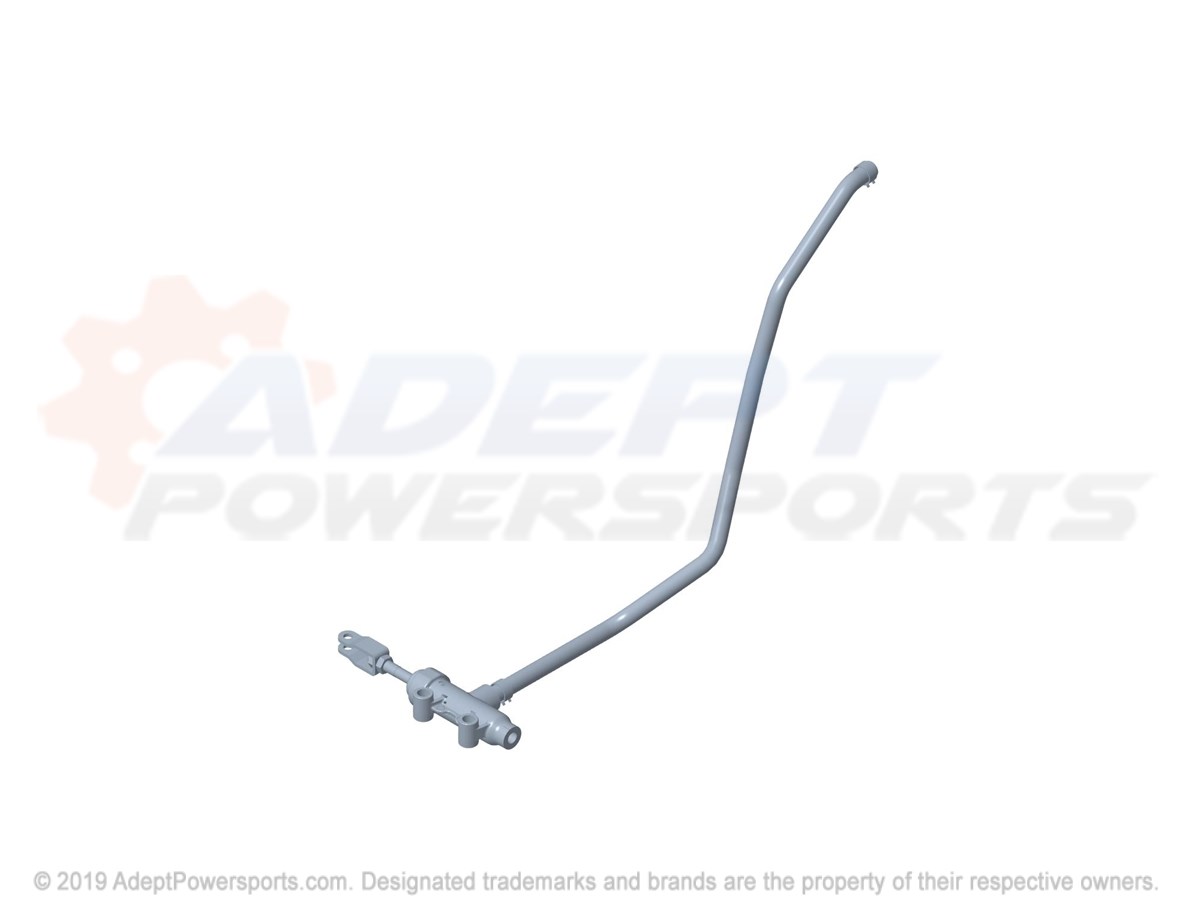

2	ASSEMBLY, MASTER, CYLINDER, BRAKE, FOOT, [BUILT, 8/13/13, AND, AFTER] Part #: 1912301 Required per assembly: 1 Note: INCL. HOSE, CLAMPS Currently Not Available
3	DIAPHRAGM, RESERVOIR, BRAKE Part #: 5413262 Required per assembly: 1 Currently Not Available
4	ING, RESERVOIR, BRAKE Part #: 5437041 Required per assembly: 1 Currently Not Available
5	NUT Part #: 7542153 Required per assembly: 2 Note: Nut, Flanged, Nylok ~~$3.47~~ $2.30 - + Add to cart
6	HOSE, RESERVOIR Part #: 1911267-790 Required per assembly: 1 Currently Not Available
7	SCREW Part #: 7512126 Required per assembly: 2 ~~$3.99~~ $2.30 - + Add to cart
8	COTTER PIN Part #: 7661401 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
9	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available
9	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available
10	BUSHING-PEDAL PIVOT Part #: 5433189 Required per assembly: 2 Note: Bushing, Pedal Pivot Currently Not Available
10	BUSHING-PEDAL PIVOT Part #: 5433189 Required per assembly: 2 Note: Bushing, Pedal Pivot Currently Not Available

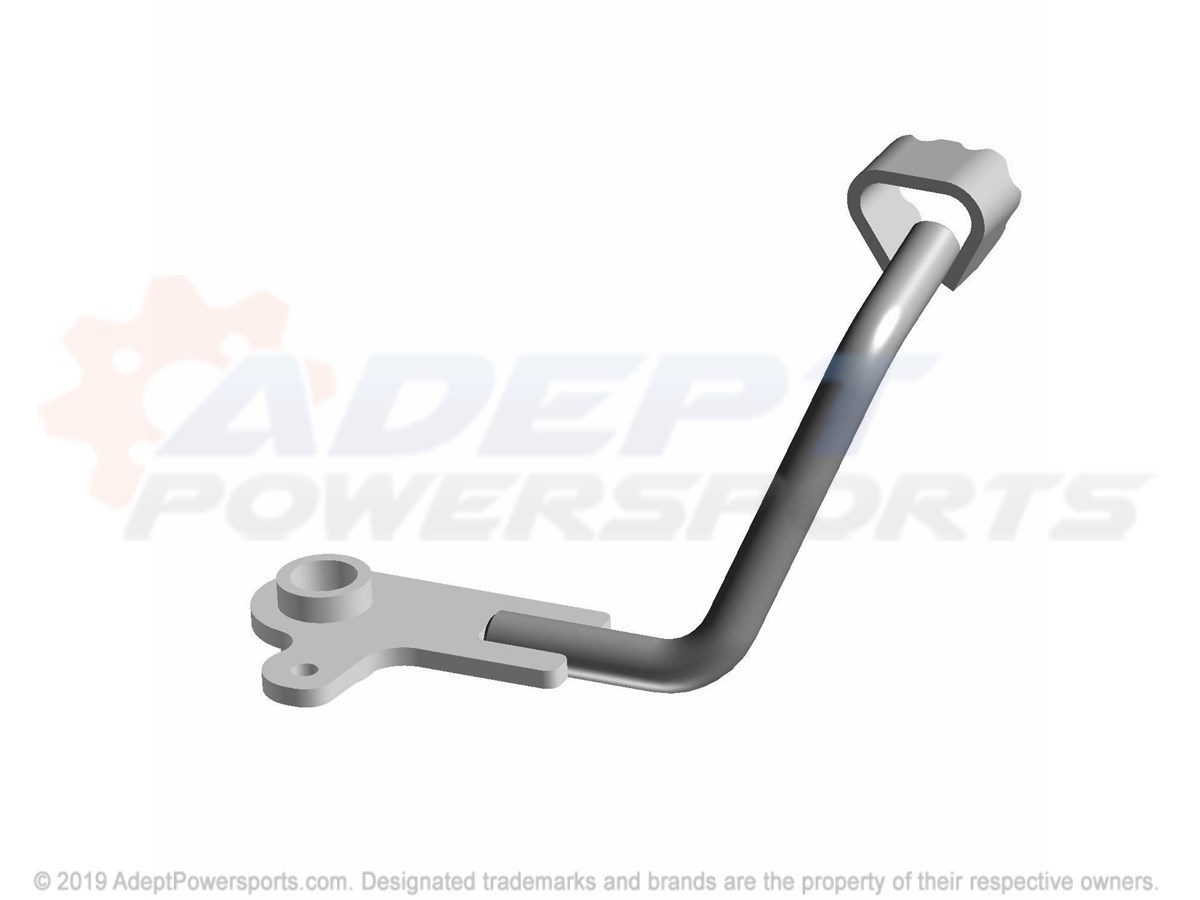

11	WELD-BRAKE PEDAL BLK Part #: 1911657-067 Required per assembly: 1 Currently Not Available
12	SPRING, TORSION, BRAKE Part #: 7041750 Required per assembly: 1 Currently Not Available
13	SCREW Part #: 7517312 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
14	CLAMP, HOSE Part #: 7080003 Required per assembly: 2 Note: Clamp, Hose, Red Currently Not Available
15	PIN, CLEVIS Part #: 7661830 Required per assembly: 1 Note: Pin, Clevis Currently Not Available
16	PIN, COTTER Part #: 7661900 Required per assembly: 1 Currently Not Available
