Front Strut - A14mh5eaa/Eac/Eaj replacement parts for 2014 Polaris Sportsman 570 EFI EPS

OEM Parts Polaris 2014 Polaris Sportsman 570 EFI EPS Front Strut - A14mh5eaa/Eac/Eaj

Front Strut - A14MH5EAA/EAC/EAJ Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, HUBSTRUT, LH Part #: 1822825 Required per assembly: 1 Note: INCL. 9,10,21,22,23 Currently Not Available
1	ASSEMBLY, HUBSTRUT, RH Part #: 1822826 Required per assembly: 1 Note: INCL. 9,10,21,22,23 Currently Not Available
2	WASHER, SPRING, RETAINER Part #: 5211115 Required per assembly: 2 $2.99 $1.73 - + Add to cart
3	CLAMP, CABLE, Part #: 7080367 Required per assembly: 2 Note: Clamp, Cable Currently Not Available
4	NUT Part #: 7542324 Required per assembly: 4 Currently Not Available
4	NUT Part #: 7542324 Required per assembly: 4 Currently Not Available
5	SCREW, CAP Part #: 7512365 Required per assembly: 4 $4.79 $1.73 - + Add to cart
6	LOCK WASHER Part #: 7552901 Required per assembly: 4 $1.99 $1.15 - + Add to cart
7	WASHER STEEL Part #: 7558402 Required per assembly: 12 $1.34 $0.97 - + Add to cart
7	WASHER STEEL Part #: 7558402 Required per assembly: 12 $1.34 $0.97 - + Add to cart
7	WASHER STEEL Part #: 7558402 Required per assembly: 12 $1.34 $0.97 - + Add to cart
7	WASHER STEEL Part #: 7558402 Required per assembly: 12 $1.34 $0.97 - + Add to cart
8	NUT Part #: 7547104 Required per assembly: 2 $2.99 $1.73 - + Add to cart
9	BEARING Part #: 3514634 Required per assembly: 2 Note: Bearing 35X64X37MM [Built 5/02/07 and After] Currently Not Available
10	RING, RET., 2.500, INTERNAL Part #: 7710507 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
11	STRUT-FRONT, 18X30MM, 184.7MM, LT Part #: 7041762 Required per assembly: 2 Note: Strut, Front Currently Not Available
12	BOLT Part #: 7512312 Required per assembly: 4 $2.99 $1.73 - + Add to cart
13	BUMPER Part #: 5412665 Required per assembly: 2 Currently Not Available

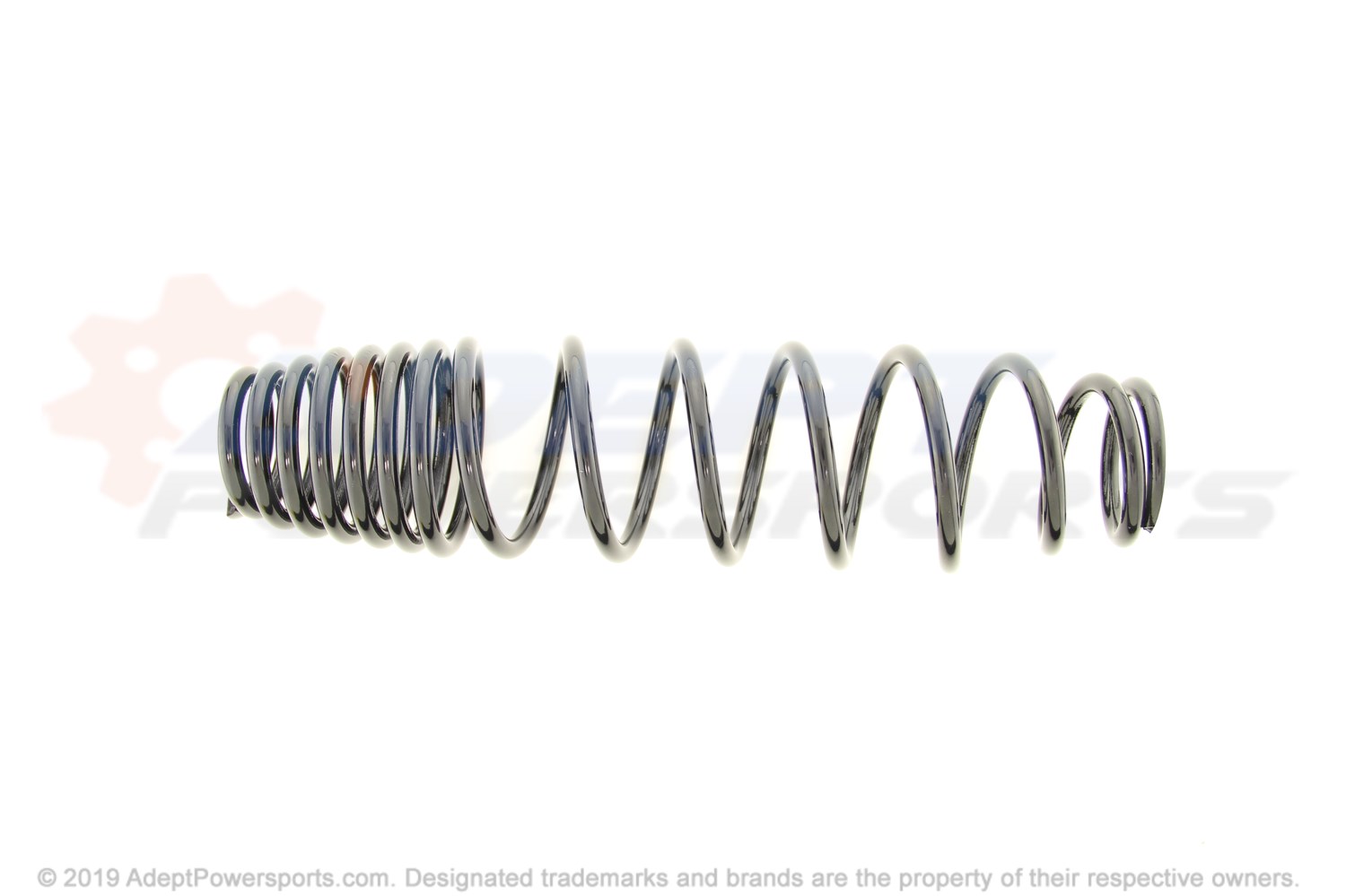

14	SPRING, COMPRESSION, BLACK Part #: 7043247-067 Required per assembly: 2 Currently Not Available
15	REATAINER-SPRING, STRUT Part #: 5243364 Required per assembly: 2 Note: Retainer, Spring Currently Not Available
16	PIVOT, BALL, BOTTOM Part #: 5432871 Required per assembly: 2 Currently Not Available
17	SPACER-1/2-20, STRUT Part #: 5132062 Required per assembly: 2 Note: Spacer Currently Not Available
18	PIVOT, BALL, TOP Part #: 5432872 Required per assembly: 2 Currently Not Available
19	SPACER, RUBBER Part #: 5810291 Required per assembly: 2 $3.99 $2.30 - + Add to cart
20	WASHER Part #: 7555749 Required per assembly: 2 $2.99 $1.73 - + Add to cart
21	BRKT BALL JOINT Part #: 5211121 Required per assembly: 2 Currently Not Available
22	BOLT, SOCKET Part #: 7512284 Required per assembly: 4 $2.99 $1.73 - + Add to cart
23	JOINT, BALL, GREASELESS Part #: 7061158 Required per assembly: 2 Currently Not Available
24	NUT, NYLOK, THIN Part #: 7542344 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
