OEM Parts Polaris 2014 Polaris Sportsman 570 EFI EPS Controls, Throttle Asm. And Cable - A14mh5eaa/Eac/Eaj

2014 Polaris Sportsman 570 EFI EPS A14MH5EAA/EAC/EAJ - Controls, Throttle Asm. And Cable - A14mh5eaa/Eac/Eaj

Controls, Throttle Asm. and Cable - A14MH5EAA/EAC/EAJ Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description

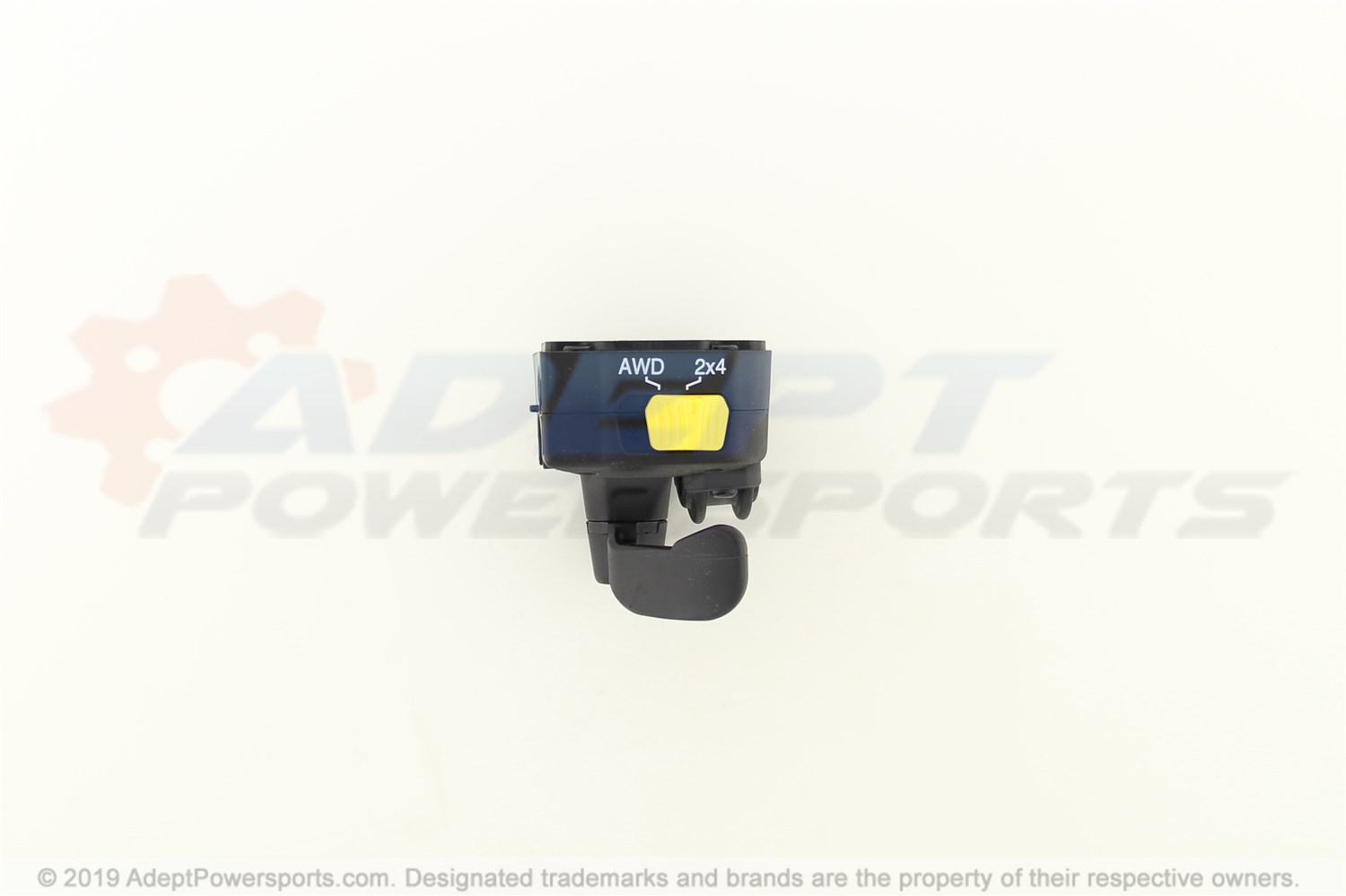

1

ASSEMBLY, RHC, 2, POSITION

Part #: 2010403 Required per assembly: 1 Note: INCL. 2
Currently Not Available
2

ASM-THROTTLE CLAMP

Part #: 2010191 Required per assembly: 1 Note: INCL. CLAMP, WASHERS, SCREWS
Currently Not Available

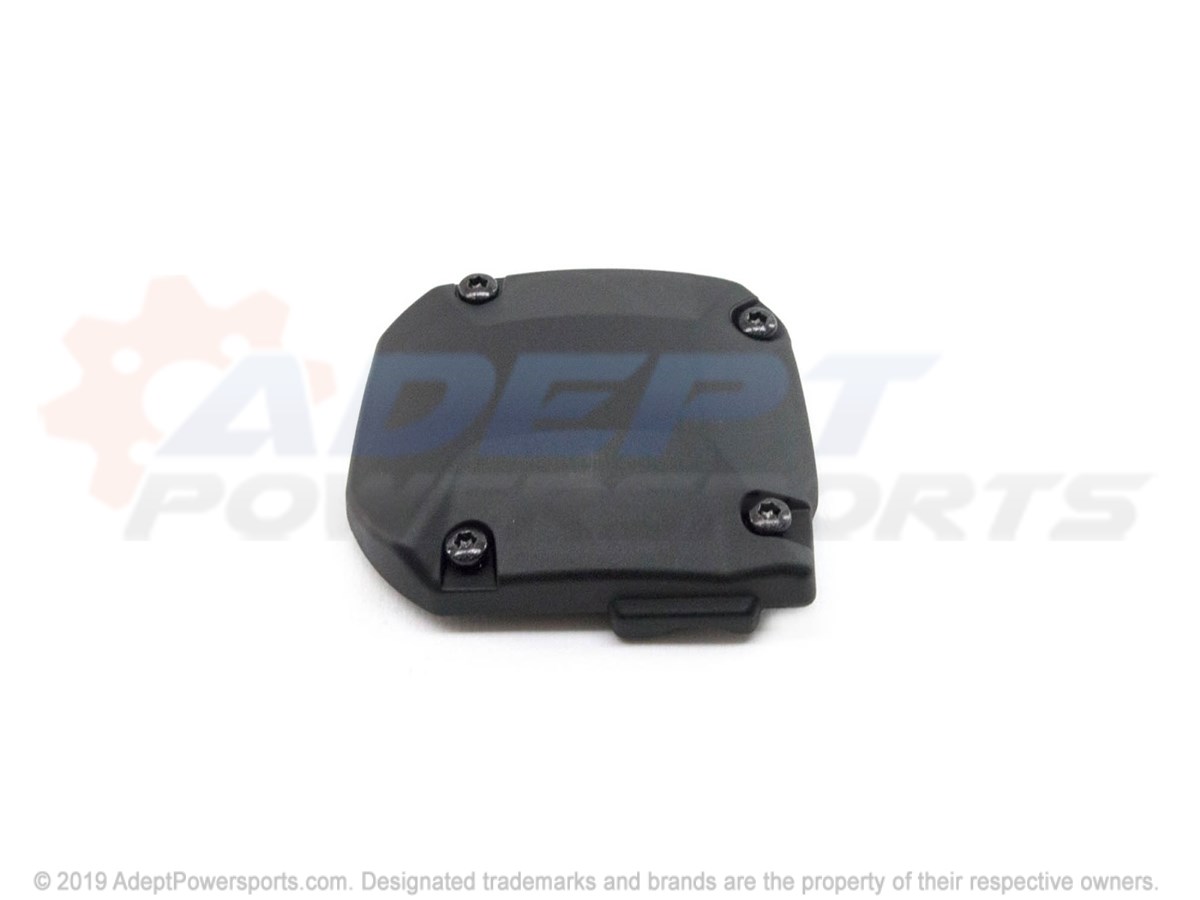

3

COVER, CONTROL, RH

Part #: 5438268 Required per assembly: 1 Note: INCL. SCREWS
Currently Not Available
4

SEAL-RHC, THROTTLE, CONTROL

Part #: 5417577 Required per assembly: 1
Currently Not Available

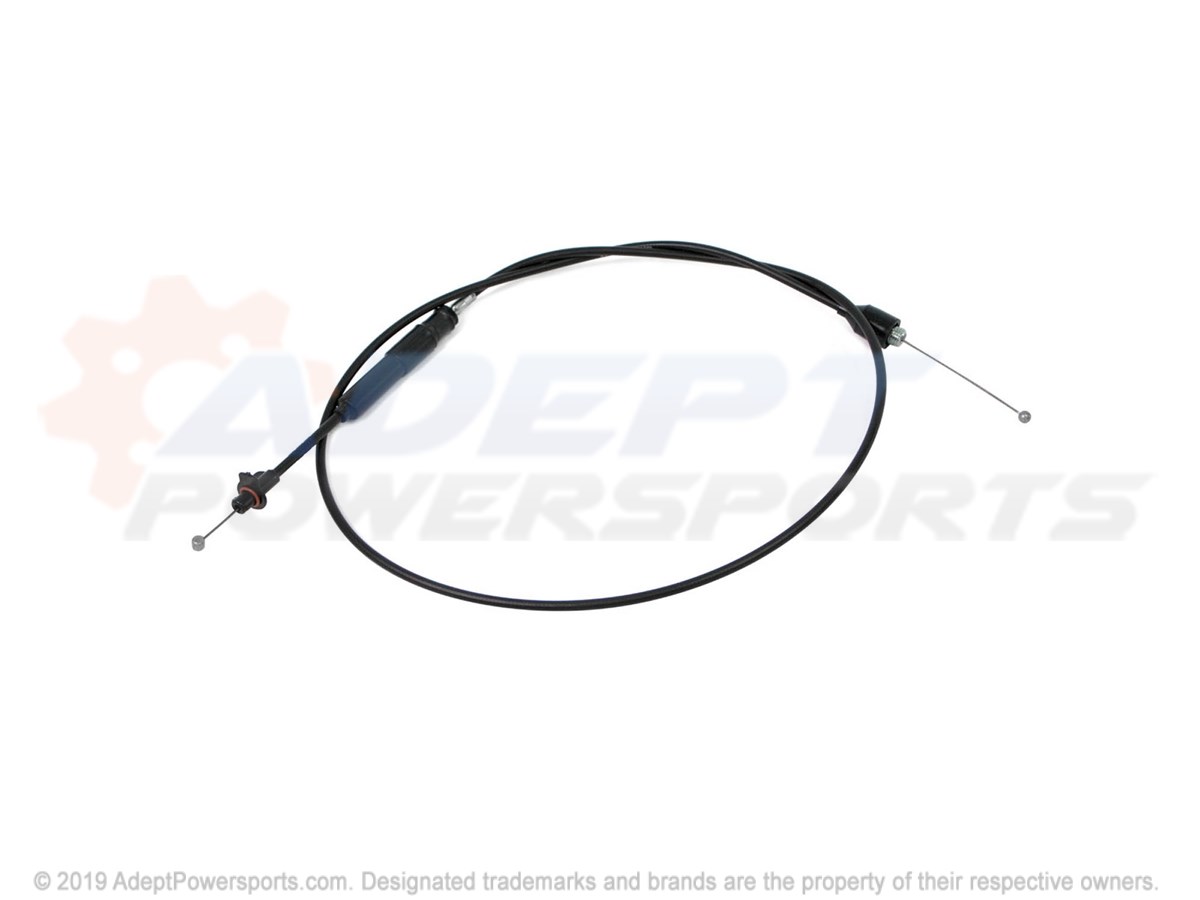

5

CABLE, THROTTLE

Part #: 7081860 Required per assembly: 1 Note: INCL. 6
Currently Not Available
6

O RING

Part #: 5410193 Required per assembly: 1 Note: O-Ring
Currently Not Available
