Cooling System - A14mh5eaa/Eac/Eaj replacement parts for 2014 Polaris Sportsman 570 EFI EPS

OEM Parts Polaris 2014 Polaris Sportsman 570 EFI EPS Cooling System - A14mh5eaa/Eac/Eaj

Cooling System - A14MH5EAA/EAC/EAJ Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CAP, PRESSURE Part #: 1240508 Required per assembly: 1 Currently Not Available
2	ASM-RADIATOR, 324X300, VGT Part #: 1241477 Required per assembly: 1 Currently Not Available
3	ASSEMBLY, GROMMET, AND, INSERT Part #: 5413155 Required per assembly: 2 Currently Not Available
4	HOSE, ENGINE, LOWER Part #: 5414805 Required per assembly: 1 Currently Not Available
5	HOSE, BYPASS, FORMED Part #: 5414806 Required per assembly: 1 Currently Not Available
6	CONNECTOR-TEE 1X1X0.5 Part #: 7052530 Required per assembly: 1 Currently Not Available
7	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 1 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available
8	CLAMP-HOSE SPRING 20MM Part #: 7081719 Required per assembly: 1 Currently Not Available
9	ASM-FAN AND MOTOR TRIPAC SGL Part #: 2411330 Required per assembly: 1 Currently Not Available

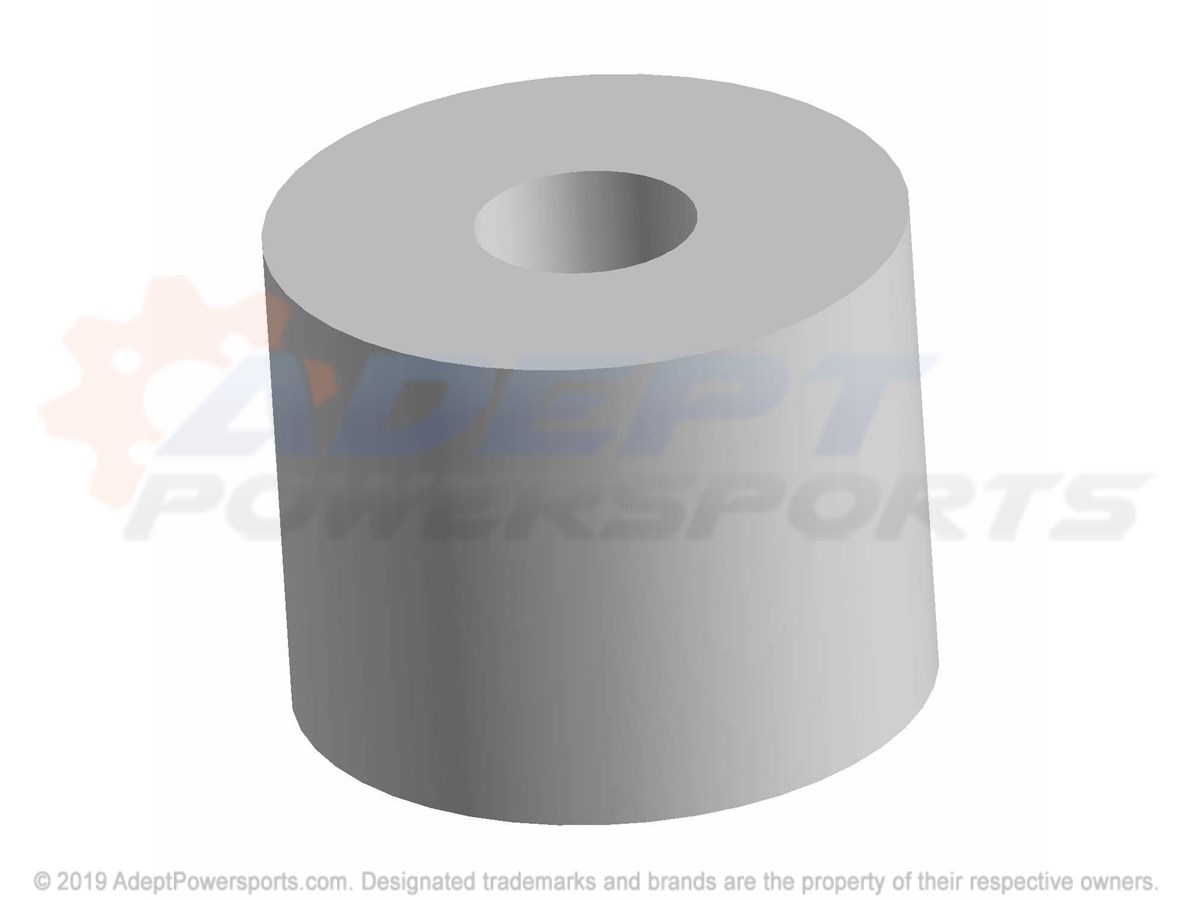

10	SPACER Part #: 5137361 Required per assembly: 4 Currently Not Available
11	NECK, FILLER Part #: 5412402 Required per assembly: 1 Currently Not Available
12	HOSE-FILLER NECK Part #: 5414228 Required per assembly: 1 Currently Not Available
13	HOSE-RADIATOR, UPPER Part #: 5417381 Required per assembly: 1 Currently Not Available
14	HOSE, RADIATOR, LOWER Part #: 5414765 Required per assembly: 1 Currently Not Available
15	CONDUIT, FLEX Part #: 5521793-51 Required per assembly: 2 Note: 1.00 ID, PE, 51CM Currently Not Available
16	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 4 Currently Not Available
16	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 4 Currently Not Available
16	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 4 Currently Not Available
16	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 4 Currently Not Available
17	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 1 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available
18	SCREW, FLANGE Part #: 7516827 Required per assembly: 4 Note: Screw, Flange Currently Not Available
19	TANK, SURGE Part #: 5436936 Required per assembly: 1 Currently Not Available
20	FITTING, 90, DEGREE, ("J", MODEL, ONLY) Part #: 7052065 Required per assembly: 1 Note: FITTING,90 DEGREE $11.99 $6.90 - + Add to cart
21	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Currently Not Available
22	FUEL, LINE, 1/8, ID, 600, CM. Part #: 8360009-600 Currently Not Available

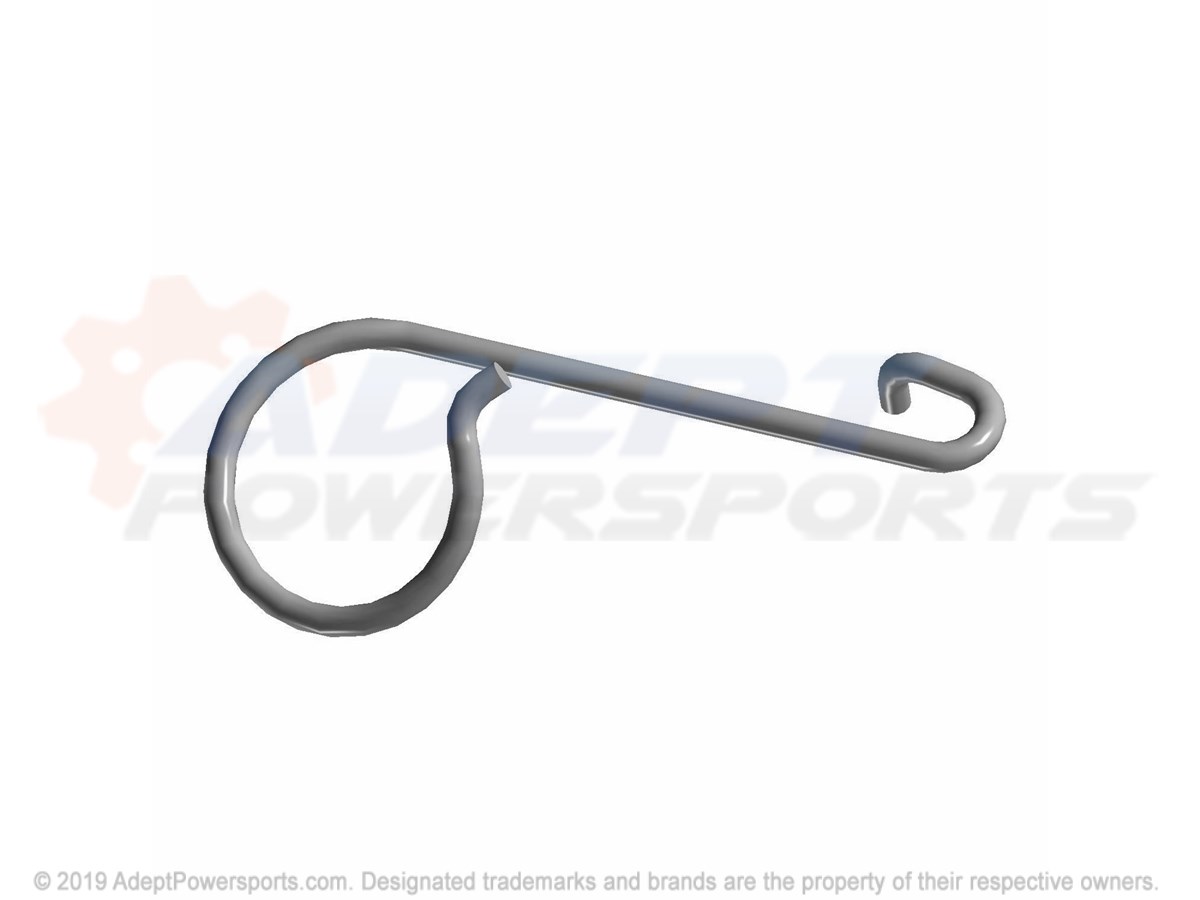

23	SPRING, COOLANT, HOSE, GUIDE Part #: 5338063 Required per assembly: 1 Currently Not Available
24	BUSHING, MT, LOW, RED Part #: 5410584 Required per assembly: 2 Currently Not Available
25	CAP, OVERFLOW, BOTTLE, W/FITTING Part #: 5437635 Required per assembly: 1 Currently Not Available
26	GASKET Part #: 5810279 Required per assembly: 1 $4.99 $2.92 - + Add to cart
27	STRAP, BLACK, WEATHER-RESIST. Part #: 7080492 Required per assembly: 1 Currently Not Available
28	CLAMP, HOSE Part #: 7081174 Required per assembly: 2 Currently Not Available
28	CLAMP, HOSE Part #: 7081174 Required per assembly: 2 Currently Not Available
29	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw $2.99 $1.73 - + Add to cart
29	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw $2.99 $1.73 - + Add to cart
30	SCREW Part #: 7515179 Required per assembly: 2 Note: Screw $3.99 $2.30 - + Add to cart
31	SCREW Part #: 7517386 Required per assembly: 1 Note: Screw $2.99 $1.73 - + Add to cart
32	CLAMP, HOSE Part #: 7080474 Required per assembly: 1 Note: Clamp, Hose $9.44 $6.81 - + Add to cart
