OEM Parts Polaris 2014 Polaris Sportsman 570 EFI EPS Storage, Front - A14mh5eaa/Eac/Eaj

2014 Polaris Sportsman 570 EFI EPS A14MH5EAA/EAC/EAJ - Storage, Front - A14mh5eaa/Eac/Eaj

Storage, Front - A14MH5EAA/EAC/EAJ Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASM-RACK, FRONT, W/PLUGS, BLK

Part #: 2636440-070 Required per assembly: 1
Currently Not Available
2

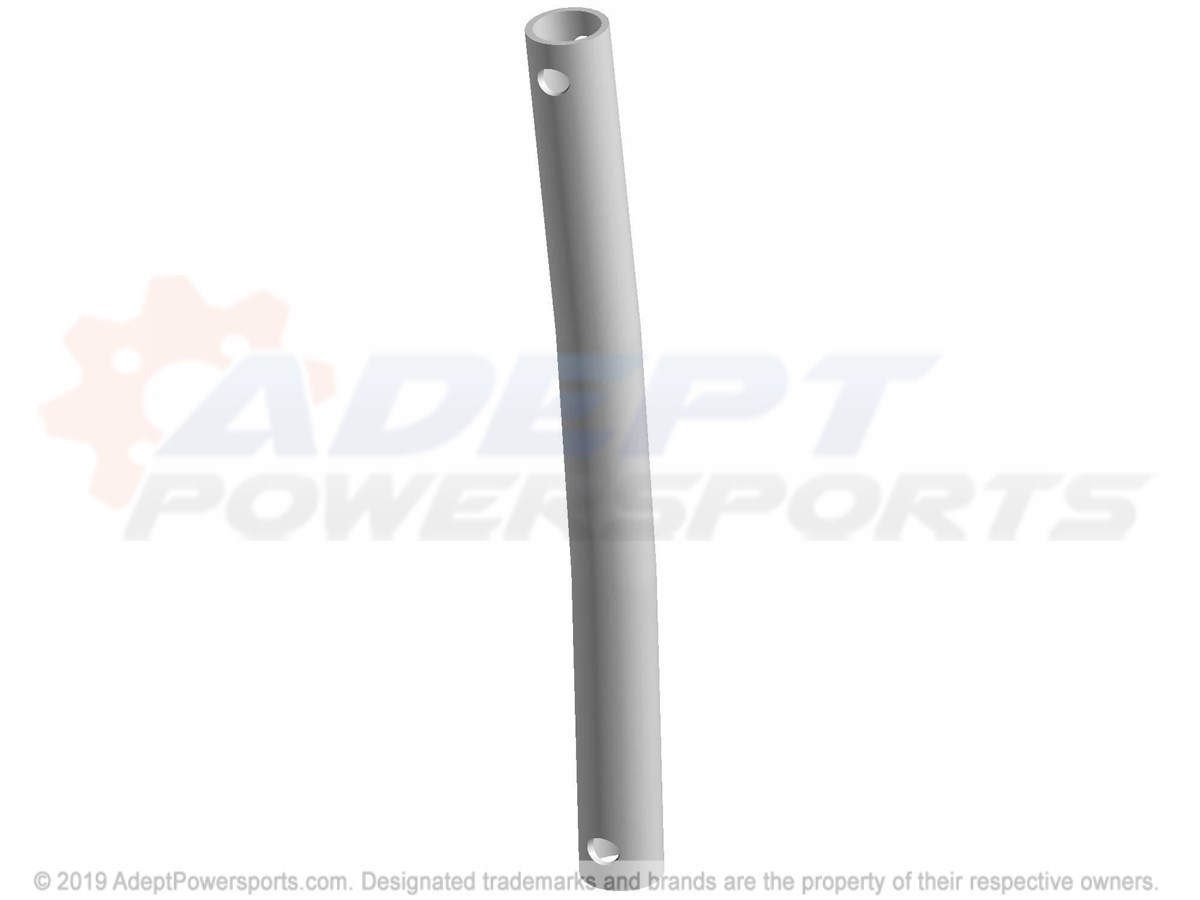

TUBE, SUPPORT, RACK, FRONT, MATTE, BLACK

Part #: 5258093-458 Required per assembly: 2
Currently Not Available
3

SCR-TXTH-M6X1.0X50 8.8 ZPB

Part #: 7519220 Required per assembly: 4
Currently Not Available
4

NUT

Part #: 7547274 Required per assembly: 4 Note: Nut, Flange
Currently Not Available
5

PIN-PIVOT RACK

Part #: 4013425 Required per assembly: 2
Currently Not Available
6

BRKT-PIVOT, RACK, E-COAT

Part #: 5259854-329 Required per assembly: 1
Currently Not Available
7

SEAL-BOX, CAB, FRONT

Part #: 5526448 Required per assembly: 1
Currently Not Available
8

CABLE-COVER BOX PRE-COIL

Part #: 7081741 Required per assembly: 2
Currently Not Available
9

SCREW

Part #: 7518238 Required per assembly: 2
$3.79
$1.73
-
+
Add to cart
10

LATCH-RUBBER, LOWER

Part #: 7082654 Required per assembly: 2
Currently Not Available
11

RIVET

Part #: 7621334 Required per assembly: 4
$2.68
$1.93
-
+
Add to cart
12

SCREW

Part #: 7517685 Required per assembly: 2 Note: Screw
Currently Not Available
