OEM Parts Polaris 2014 Polaris Sportsman 570 EFI EPS Starter Drive - A14mh5eaa/Eac/Eaj

2014 Polaris Sportsman 570 EFI EPS A14MH5EAA/EAC/EAJ - Starter Drive - A14mh5eaa/Eac/Eaj

Starter Drive - A14MH5EAA/EAC/EAJ Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASM-SPRAG CLUTCH HUB STARTER

Part #: 1204884 Required per assembly: 1
Currently Not Available
2

ASSEMBLY, GEAR, STARTER

Part #: 1204683 Required per assembly: 1
Currently Not Available
3

PIN-SOLID, STARTER, TQ, LIMITGEAR

Part #: 3023967 Required per assembly: 1
Currently Not Available
4

STARTER, 1-CYL

Part #: 4014909 Required per assembly: 1
Currently Not Available
5

GEAR, FREEWHEEL, 1, WAY, CLUTCH

Part #: 6230561 Required per assembly: 1
Currently Not Available
6

SCREW

Part #: 7517431 Required per assembly: 3
Currently Not Available
7

STUD-DOUBLE END M6X1.0X25/10

Part #: 7519237 Required per assembly: 1
Currently Not Available
8

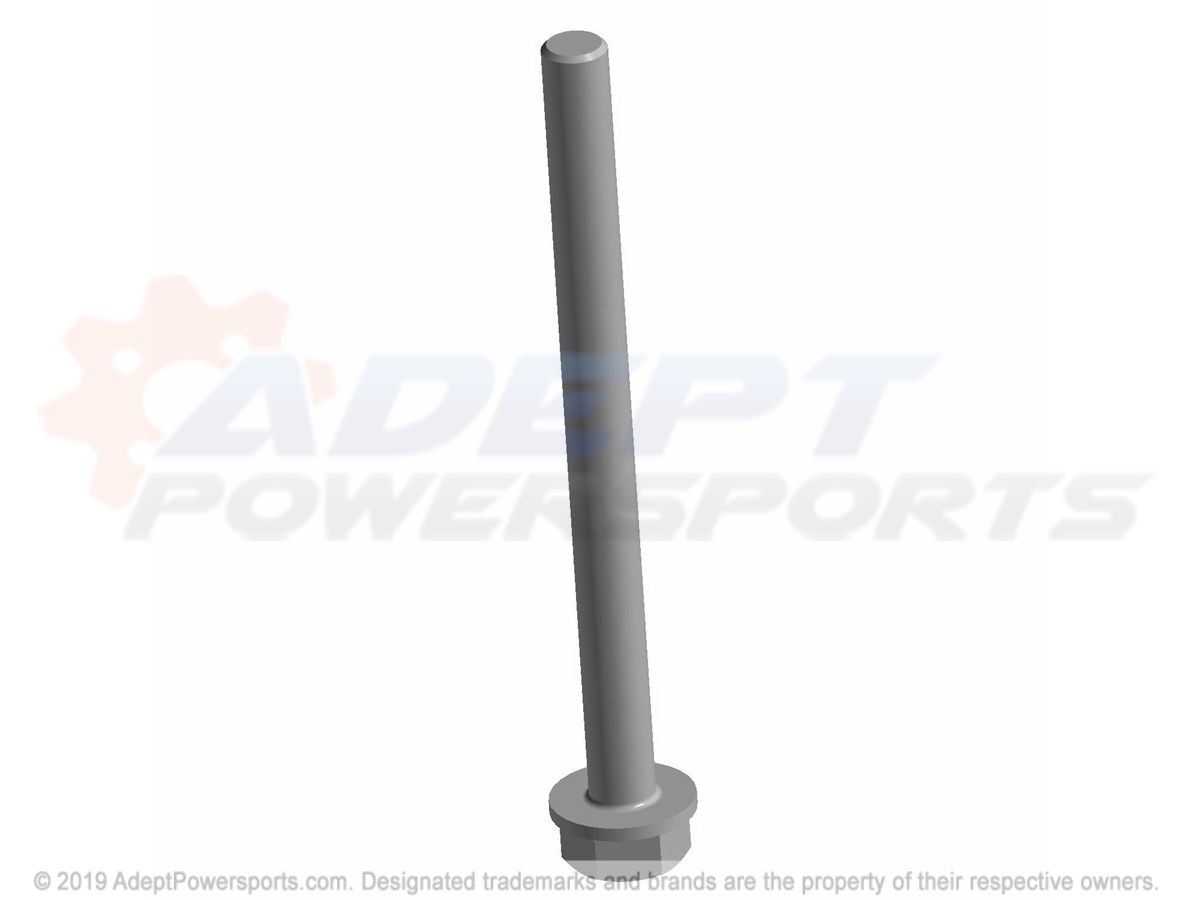

SCR-M6X1X75 HX/FL

Part #: 7518755 Required per assembly: 1
Currently Not Available
