Front Gearcase - A14mh5eaa/Eac/Eaj replacement parts for 2014 Polaris Sportsman 570 EFI EPS

OEM Parts Polaris 2014 Polaris Sportsman 570 EFI EPS Front Gearcase - A14mh5eaa/Eac/Eaj

Front Gearcase - A14MH5EAA/EAC/EAJ Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-GEARCASE, FRONT, 12, POCKET Part #: 1337140 Required per assembly: 1 Note: INCL. ALL Currently Not Available
2	ASM-COVER, OUTPUT Part #: 3236663 Required per assembly: 1 Note: INCL. CONNECTOR ASSEMBLY, OUTPUT COVER, PLASTIC CLIP, THRUST BUTTON ASM., 4WD COIL, THRUST PLATE, O-RING, GROMMET, SCREW, OIL SEAL, DOWEL PINS, HEAT SHRINK TUBING $584.99 $369.33 - + Add to cart
3	K-OUTPUT, HUB, OST Part #: 3236672 Required per assembly: 1 Note: INCL. HUB ASM. FEMALE, HUB ASM. MALE Currently Not Available
3	K-OUTPUT, HUB, OST Part #: 3236672 Required per assembly: 1 Note: INCL. HUB ASM. FEMALE, HUB ASM. MALE Currently Not Available
4	KIT, BOLT Part #: 3234405 Required per assembly: 1 Note: INCL. SCREWS Currently Not Available
5	KIT-REPAIR, SEAL Part #: 3236669 Required per assembly: 1 Note: INCL. ALL SEALS Currently Not Available
5	KIT-REPAIR, SEAL Part #: 3236669 Required per assembly: 1 Note: INCL. ALL SEALS Currently Not Available
5	KIT-REPAIR, SEAL Part #: 3236669 Required per assembly: 1 Note: INCL. ALL SEALS Currently Not Available
5	KIT-REPAIR, SEAL Part #: 3236669 Required per assembly: 1 Note: INCL. ALL SEALS Currently Not Available
6	PLATE, ARMATURE Part #: 3234407 Required per assembly: 1 Currently Not Available
7	SCREW, SET Part #: 3234408 Required per assembly: 1 Note: Set, Screw Currently Not Available
8	ASSEMBLY, THRUST, BUTTON Part #: 3234594 Required per assembly: 1 Note: Asm., Thrust Button [Incl. Seal] Currently Not Available
9	PLATE-THRUST DU Part #: 3235183 Required per assembly: 1 Currently Not Available
10	BEARING Part #: 3234390 Required per assembly: 3 Currently Not Available
10	BEARING Part #: 3234390 Required per assembly: 3 Currently Not Available
10	BEARING Part #: 3234390 Required per assembly: 3 Currently Not Available
10	BEARING Part #: 3234390 Required per assembly: 3 Currently Not Available
11	ROLLER Part #: 3234393 Required per assembly: 1 Note: INCL. COMPLETE SET OF ROLLERS $3.99 $2.58 - + Add to cart
12	ASM-ROLL CAGE AL(T) Part #: 3235262 Required per assembly: 1 Note: HIGH PERFORMANCE ACCESSORY Currently Not Available
12	ASM-ROLL CAGE Part #: 3234907 Required per assembly: 1 Note: INCL. CAGE AND COMPLETE SET OF CLIPS Currently Not Available
13	ASSEMBLY, GEARCASE Part #: 3234411 Required per assembly: 1 Note: INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL Currently Not Available
14	ASSEMBLY, DRAIN, PLUG, MAGNETIC Part #: 3234412 Required per assembly: 1 Note: Asm., Plug, Drain Currently Not Available

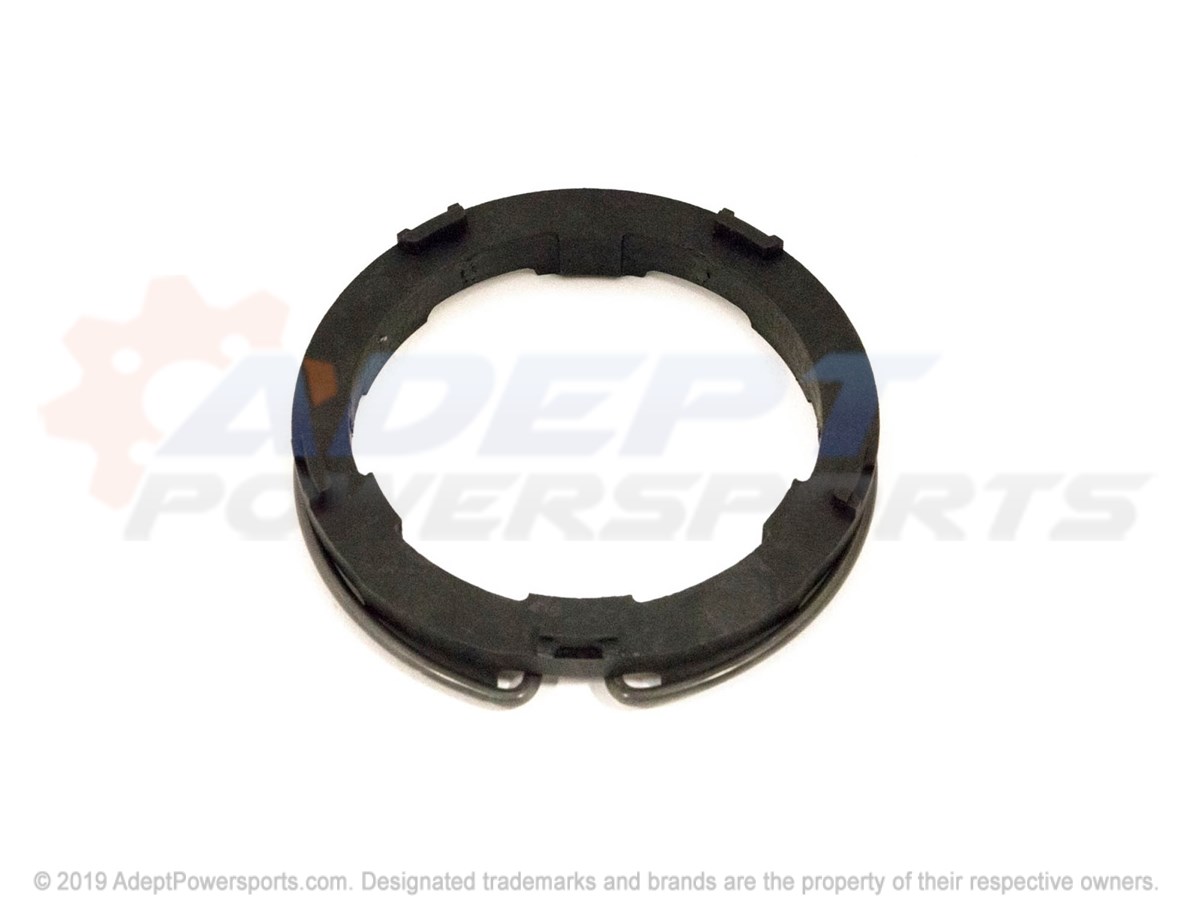

15	KIT-SPRING Part #: 3234908 Required per assembly: 1 Note: INCL. SPRING RETAINER, TORSION SPRING Currently Not Available
16	PLUG, OIL, FILL Part #: 3233942 Required per assembly: 1 Currently Not Available
17	RING, RETAINING Part #: 3234416 Required per assembly: 1 Currently Not Available
18	RING-RETAINING EXTERNAL BOW Part #: 3235177 Required per assembly: 1 Currently Not Available
19	ASM-RING & PINION GEAR NON ADC Part #: 3235189 Required per assembly: 1 Note: INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN Currently Not Available
