Brake Lines And Master Cylinder - R151dpd1aa/2D (700043) replacement parts for 2015 Polaris Ranger HST

OEM Parts Polaris 2015 Polaris Ranger HST Brake Lines And Master Cylinder - R151dpd1aa/2D (700043)

Brake Lines and Master Cylinder - R151DPD1AA/2D (700043) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CLAMP, CABLE Part #: 7080499 Required per assembly: 2 Currently Not Available
2	CLAMP, HOSE Part #: 7080683 Required per assembly: 3 Currently Not Available

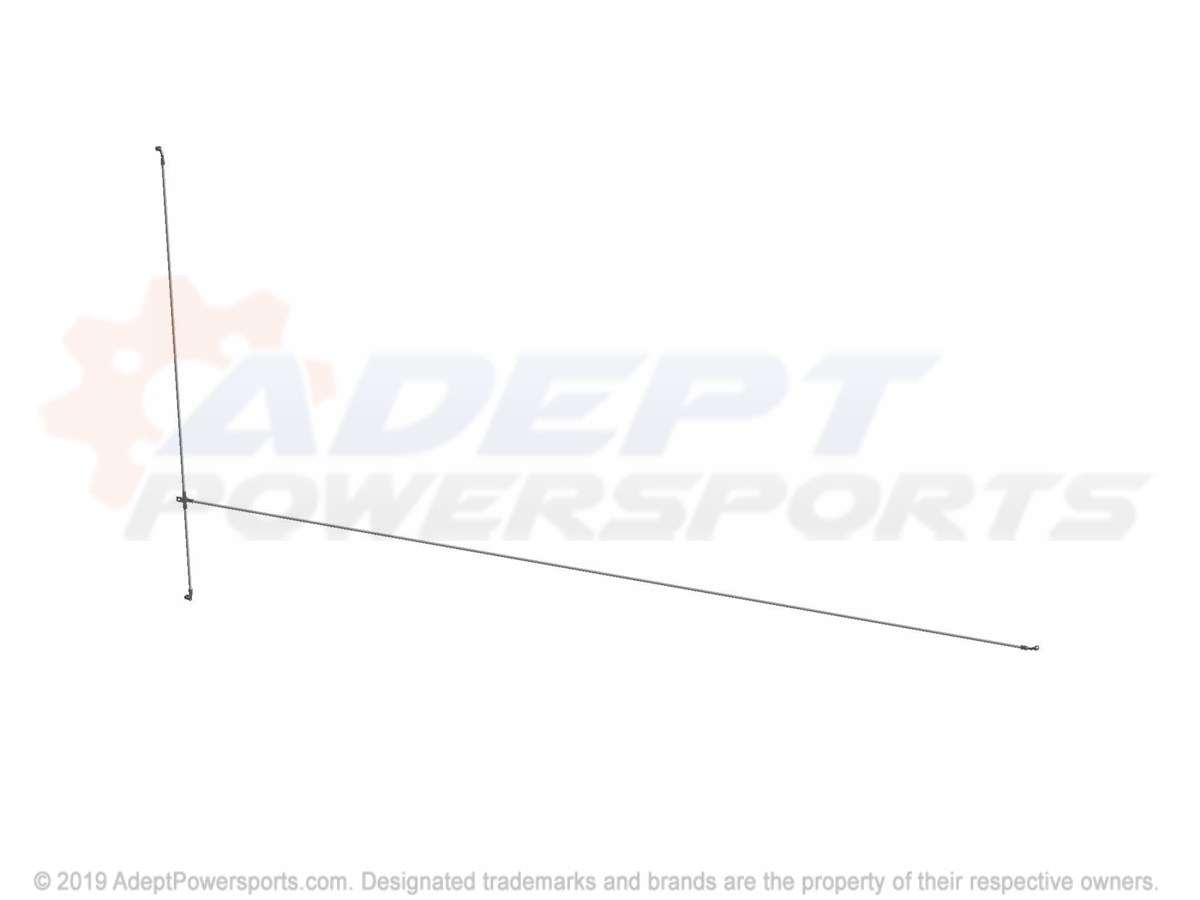

3	LINE-BRK, 3WAY, 123", 20B, 90B, 90B Part #: 1912417 Required per assembly: 1 Currently Not Available
4	ASSEMBLY, MASTER, CYLINDER Part #: 1912463 Required per assembly: 1 Note: INCL. 16,22,26-28 Currently Not Available
5	LINE, BRAKE, FRONT, LH Part #: 1911734 Required per assembly: 1 Currently Not Available
6	LINE, BRAKE, FRONT, RH Part #: 1911735 Required per assembly: 1 Currently Not Available
7	BOLT, BANJO Part #: 1910958 Required per assembly: 1 Currently Not Available
8	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
9	SWITCH Part #: 4014225 Required per assembly: 1 Currently Not Available
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
11	RIVET Part #: 7621472 Required per assembly: 3 Note: Rivet ~~$2.68~~ $1.93 - + Add to cart
12	SCREW Part #: 7518558 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
13	CLIP, SILENCER, Part #: 7670102 Required per assembly: 13 Note: Clip Currently Not Available
14	RETAINER-BRAKE LINE 1" Part #: 5439192 Required per assembly: 4 Currently Not Available
15	RIVET Part #: 7621323 Required per assembly: 6 ~~$1.99~~ $1.35 - + Add to cart
16	KIT-ASM M/C TANDEM 3/4" TOSO Part #: 2204117 Required per assembly: 1 Currently Not Available
17	BOLT Part #: 7518760 Required per assembly: 4 Note: Bolt Currently Not Available
18	CLIP-ROUTING Part #: 7081496 Required per assembly: 1 Currently Not Available
19	SCRAPER-BRAKE FRONT Part #: 5438948 Required per assembly: 2 Currently Not Available
20	SCREW Part #: 7516823 Required per assembly: 4 Currently Not Available
21	CLIP-ROUTING Part #: 7670109 Required per assembly: 2 Note: Clip, Routing Currently Not Available
22	KIT-BOOT DUST M/C TOSO Part #: 2204121 Required per assembly: 1 Currently Not Available
23	SHIELD, MASTER, CYLINDER Part #: 5251507 Required per assembly: 1 Currently Not Available
24	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
25	SCREW, FLANGE Part #: 7519298 Required per assembly: 2 Currently Not Available
26	KIT-CAP M/C TOSO Part #: 2204118 Required per assembly: 1 Currently Not Available
27	KIT-NUT CLEVIS M/C TOSO Part #: 2204120 Required per assembly: 2 Currently Not Available
28	KIT-CLEVIS M/C TOSO Part #: 2204119 Required per assembly: 1 Currently Not Available
29	SCREW Part #: 7518529 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart
