Main Frame - R151dpd1aa/2D (49Brutusframe15) replacement parts for 2015 Polaris Ranger HST

OEM Parts Polaris 2015 Polaris Ranger HST Main Frame - R151dpd1aa/2D (49Brutusframe15)

Main Frame - R151DPD1AA/2D (49BRUTUSFRAME15) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-FRAME, DE-DION, BLK Part #: 1021098-458 Required per assembly: 1 Currently Not Available
2	BASE, CAB/SEAT, MATTE, BLACK Part #: 1019513-329 Required per assembly: 1 Currently Not Available

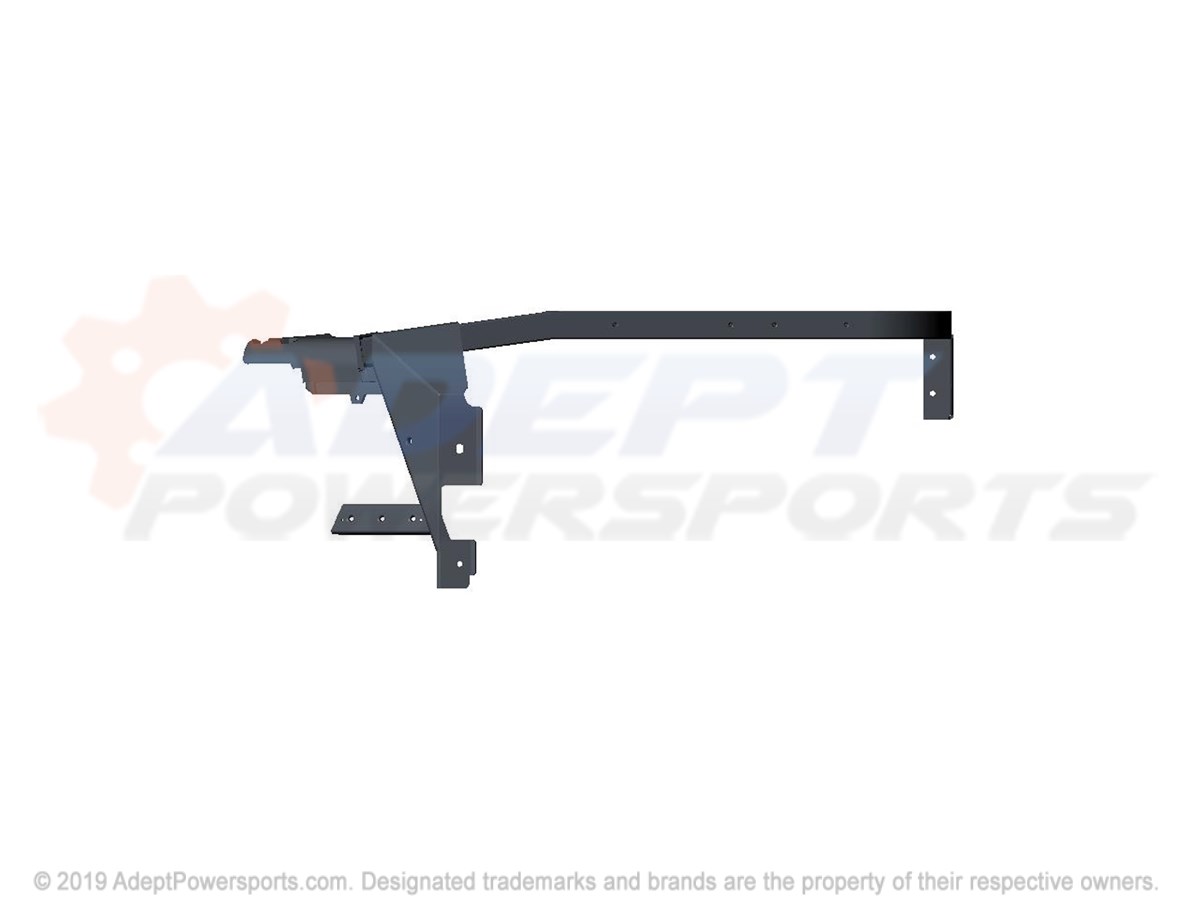

3	SUPPORT, CAB, REAR, MATTE, BLACK Part #: 1018295-329 Required per assembly: 1 Currently Not Available

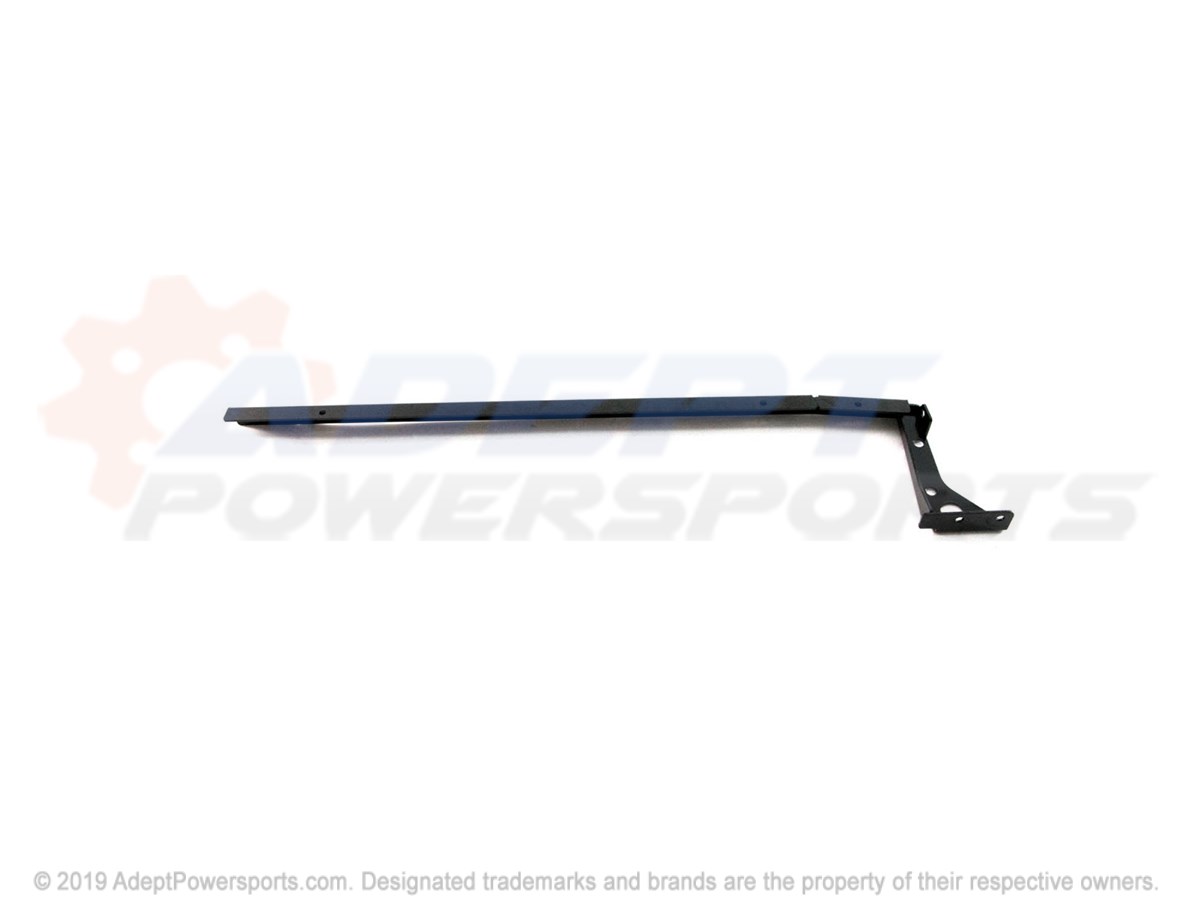

4	WELD-FLOOR, SUPPORT, LH, BLK Part #: 1020577-458 Required per assembly: 1 Currently Not Available

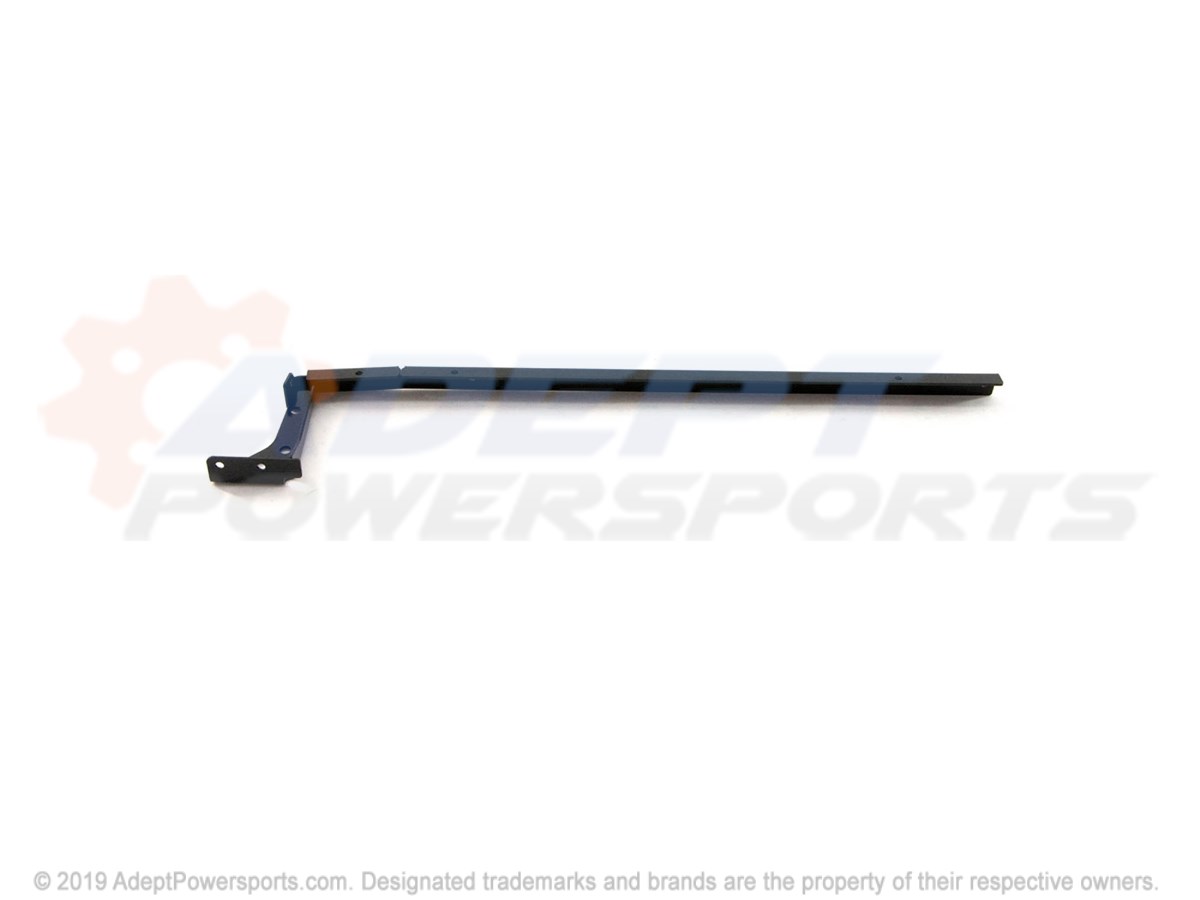

5	WELD-FLOOR, SUPPORT, RH, BLK Part #: 1020578-458 Required per assembly: 1 Currently Not Available

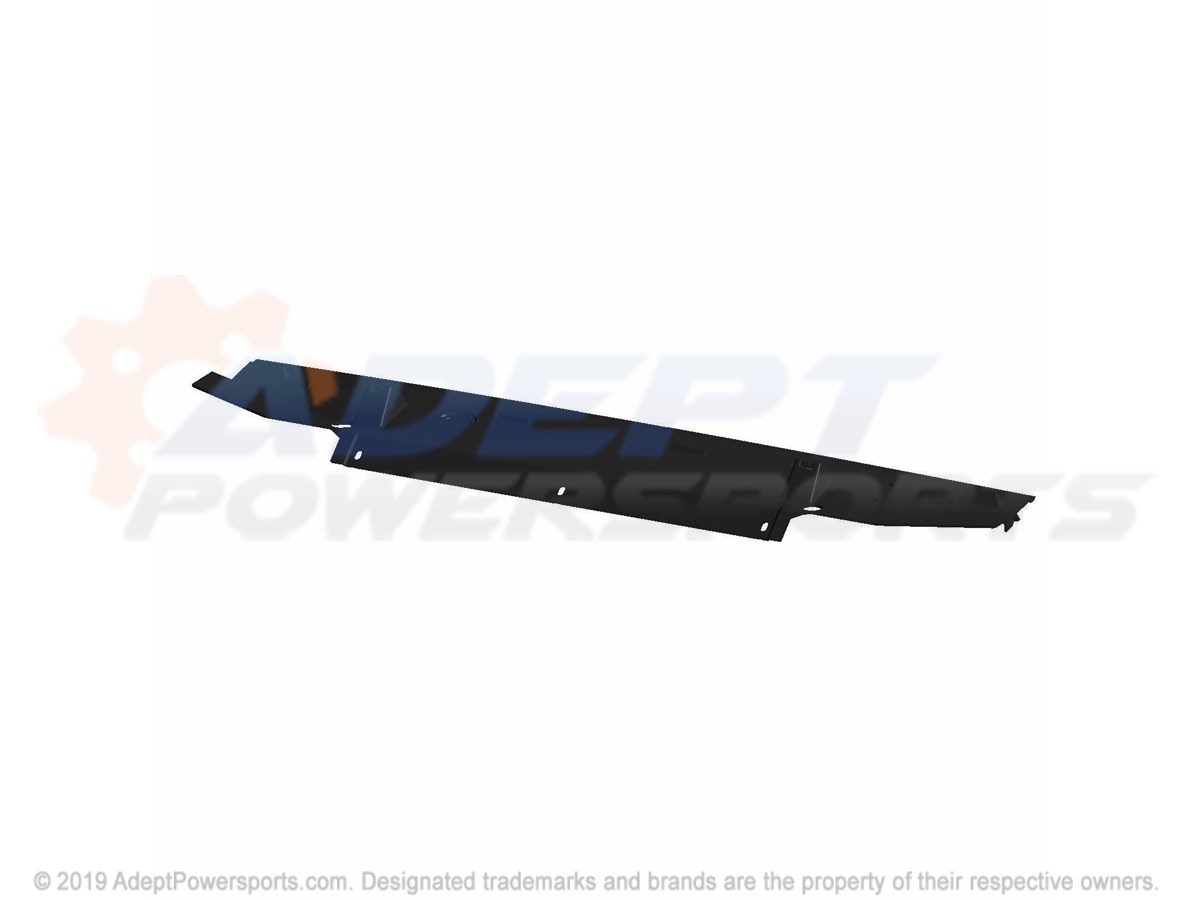

6	PLATE, WINDSHIELD, MOUNT, LOWER, BLACK Part #: 5450344-070 Required per assembly: 1 Currently Not Available

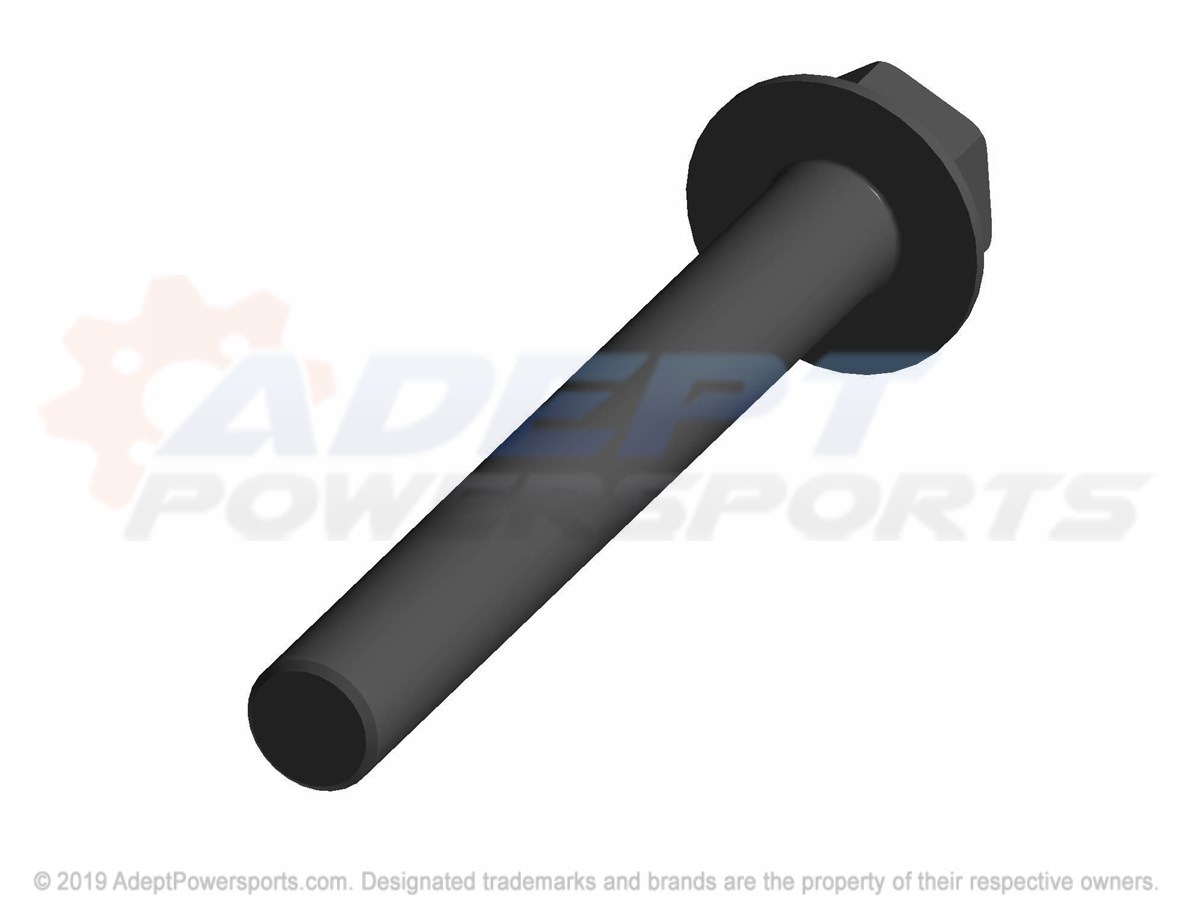

7	SCREW Part #: 7518555 Required per assembly: 22 Note: Bolt, Flange Currently Not Available
8	SCREW Part #: 7519059 Required per assembly: 6 Currently Not Available
9	NUT, FLANGE Part #: 7547333 Required per assembly: 8 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
10	SCREW Part #: 7519363 Required per assembly: 2 Currently Not Available
11	ROCKET, LH, BLACK Part #: 1019087-329 Required per assembly: 1 Currently Not Available
12	ROCKET, RH, BLACK Part #: 1019088-329 Required per assembly: 1 Currently Not Available
13	SCREW Part #: 7518529 Required per assembly: 19 ~~$2.99~~ $1.73 - + Add to cart
14	GROMMET, ELECTRICAL Part #: 5414440 Required per assembly: 1 Currently Not Available

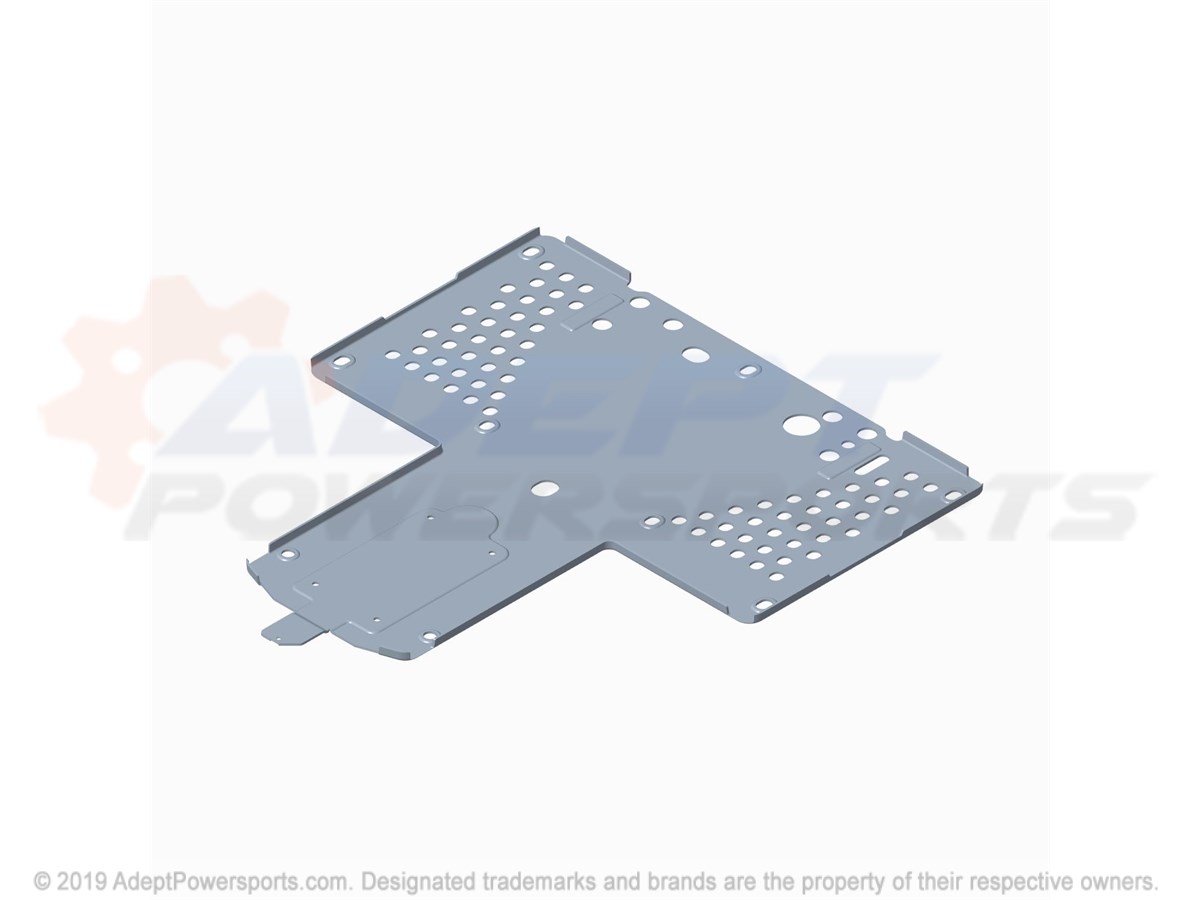

15	PLATE, SKID, BLACK Part #: 5438878-070 Required per assembly: 1 Currently Not Available
16	WASHER, FLAT Part #: 7556153 Required per assembly: 6 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
17	WASHER, DOMED Part #: 5220646 Required per assembly: 9 Currently Not Available

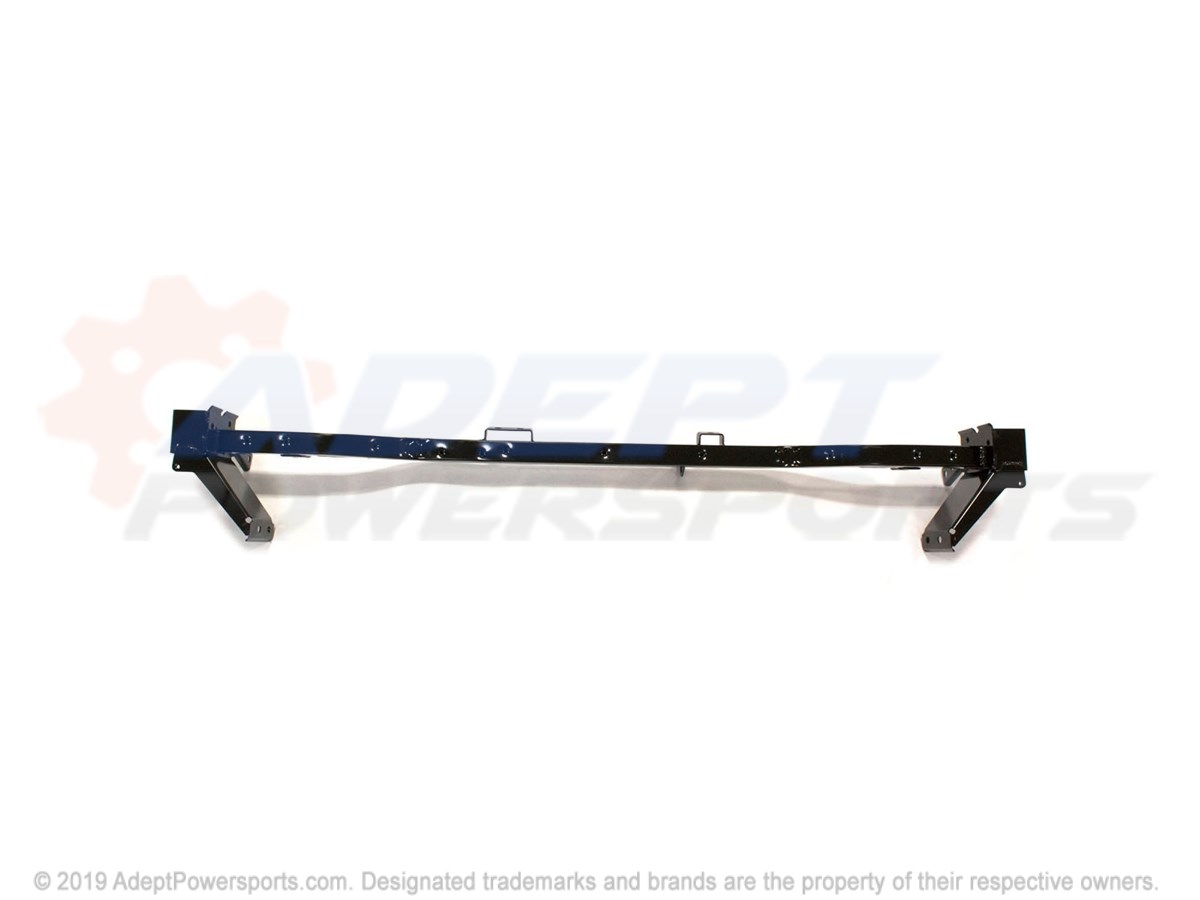

18	BRKT-BRACE, REAR, BLK Part #: 5260619-329 Required per assembly: 1 Currently Not Available
19	BRKT-PLATE, CTR, PIN, MT, TTN Part #: 5260353 Required per assembly: 1 Currently Not Available
20	U-TYPE, SPEED, NUT Part #: 7081305 Required per assembly: 6 Note: Clip, U Speed Nut [Built 12/07/09 and Before] Currently Not Available
21	RIVET Part #: 7661855 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
