Dash Controls - R151dpd1aa/2D (49Brutuscontrols14) replacement parts for 2015 Polaris Ranger HST

OEM Parts Polaris 2015 Polaris Ranger HST Dash Controls - R151dpd1aa/2D (49Brutuscontrols14)

Dash Controls - R151DPD1AA/2D (49BRUTUSCONTROLS14) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

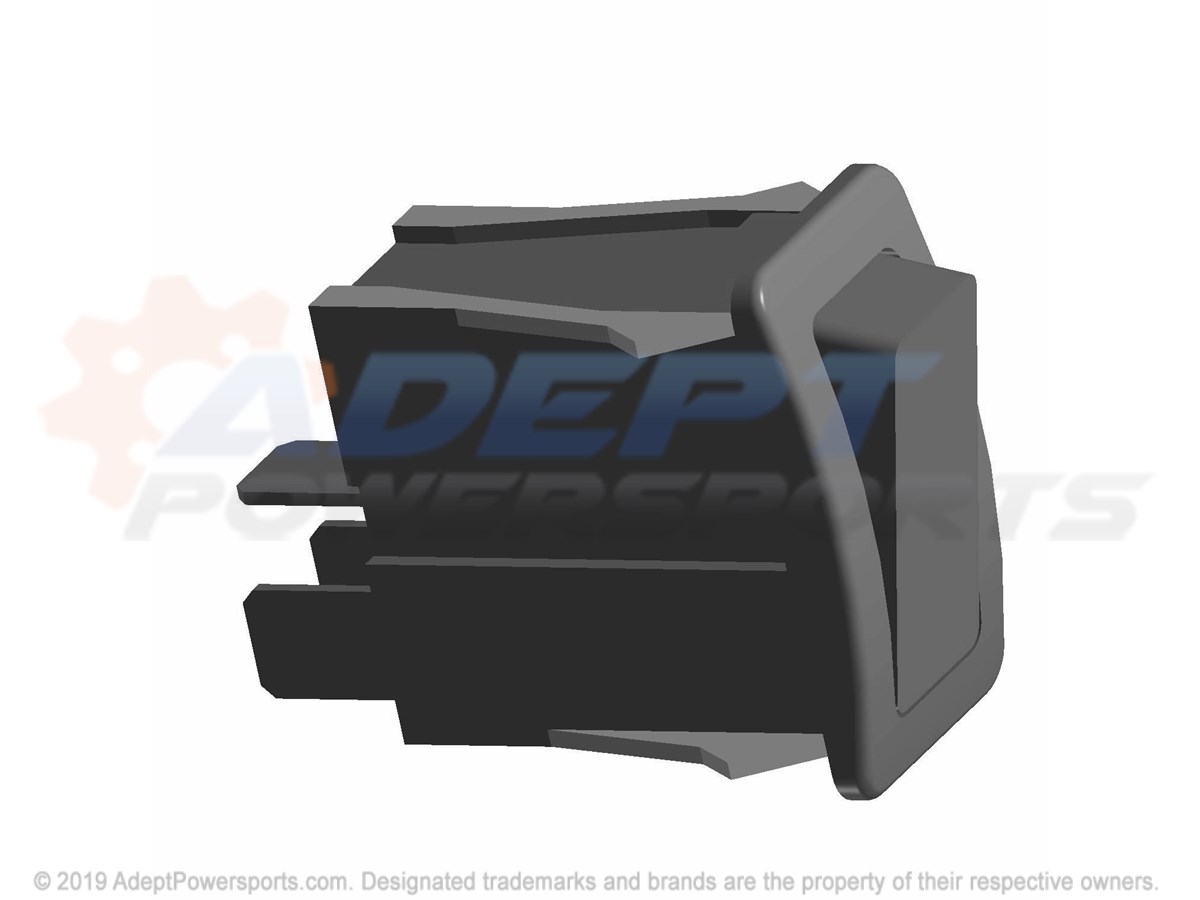

1	SWITCH, HEADLIGHT Part #: 4011115 Required per assembly: 1 Currently Not Available
2	SWITCH, KEY Part #: 4012165 Required per assembly: 1 Note: 3 position. Comes with 2 keys. 6 Pin Currently Not Available
3	RECEPTACLE, POD, MOUNT, 12V Part #: 4012393 Required per assembly: 2 Currently Not Available
4	SWITCH-AWD Part #: 4012747 Required per assembly: 1 Currently Not Available
5	SWITCH, ROCKER Part #: 3120178 Required per assembly: 1 Note: 2D Currently Not Available

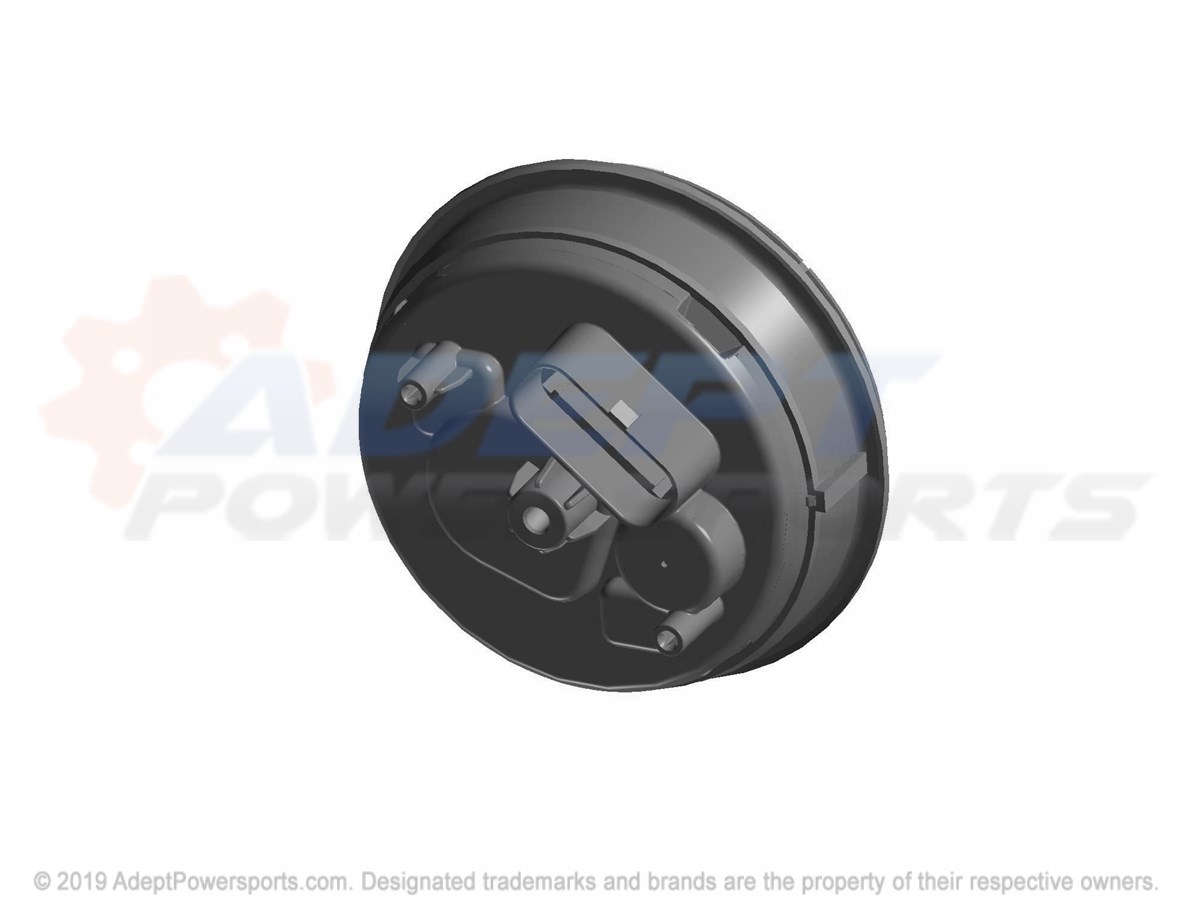

6	ASM-CLUSTER, CPIA3, OSPS, HPU Part #: 3280635 Required per assembly: 1 Note: INCL. 7 Currently Not Available
7	MOUNT, RUBBER Part #: 5412138 Required per assembly: 1 ~~$34.97~~ $23.00 - + Add to cart
8	BEZEL-INSTRUMENT CLUSTER Part #: 5438945 Required per assembly: 1 Currently Not Available
9	SWITCH-BOX, LIFT, MOMENTARY Part #: 4014840 Required per assembly: 1 Note: 2D Currently Not Available
9	PLUG, HOLE, ROCKER, SWITCH Part #: 5434192 Required per assembly: 1 Note: 1D Currently Not Available
10	CONTROL, HVAC Part #: 3120177 Required per assembly: 1 Note: 2D Currently Not Available
