Oil Pan - R151dpd1aa/2D (49Brutusoilpan15dsl) replacement parts for 2015 Polaris Ranger HST

OEM Parts Polaris 2015 Polaris Ranger HST Oil Pan - R151dpd1aa/2D (49Brutusoilpan15dsl)

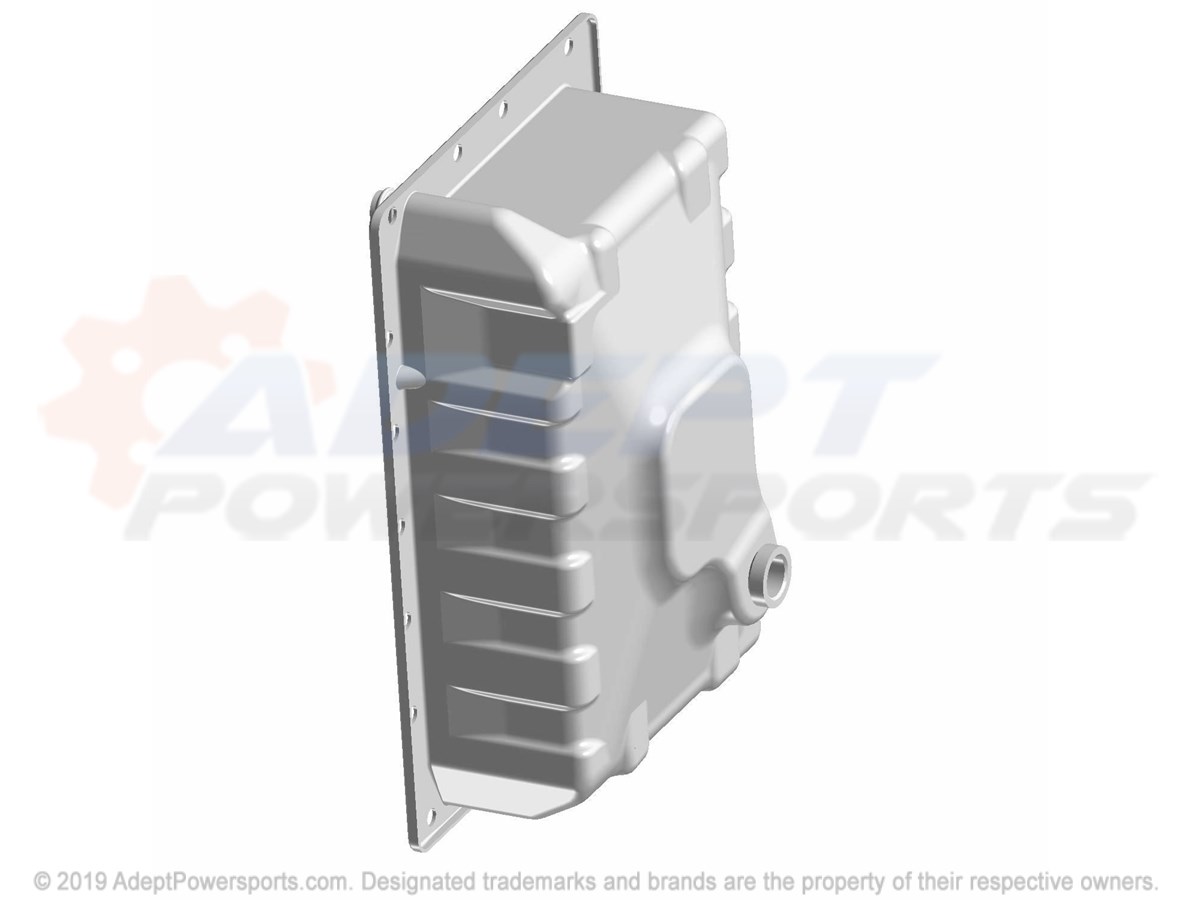

Oil Pan - R151DPD1AA/2D (49BRUTUSOILPAN15DSL) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	OIL SUMP ASSEMBLY POLARIS Part #: 3040327 Required per assembly: 1 Currently Not Available
2	OR 116-SILICONE RUBBER Part #: 3040002 Required per assembly: 1 Currently Not Available
3	HEX FLANG HEAD SCREW M6X12 Part #: 3040021 Required per assembly: 1 Currently Not Available
4	OIL RETURN PIPE Part #: 3040210 Required per assembly: 1 Currently Not Available
5	O-RINGD.8X3FOR OIL RETURN PIPE Part #: 3040010 Required per assembly: 1 Currently Not Available
6	COPPER WASHER 18X24X1 Part #: 3040096 Required per assembly: 1 Currently Not Available
7	PLUG M18X1.5 Part #: 3040196 Required per assembly: 1 Currently Not Available
8	GASKET Part #: 3040304 Required per assembly: 1 Currently Not Available
