Rocker Arm And Valves - R151dpd1aa/2D (49Brutusrckrarm15dsl) replacement parts for 2015 Polaris Ranger HST

OEM Parts Polaris 2015 Polaris Ranger HST Rocker Arm And Valves - R151dpd1aa/2D (49Brutusrckrarm15dsl)

Rocker Arm and Valves - R151DPD1AA/2D (49BRUTUSRCKRARM15DSL) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RETAINER W/HALF COLLETS Part #: 3040274 Required per assembly: 6 Currently Not Available
2	VALVE SPRING Part #: 3040273 Required per assembly: 6 Currently Not Available
3	WASHER 19X25X1 Part #: 3040149 Required per assembly: 6 Currently Not Available

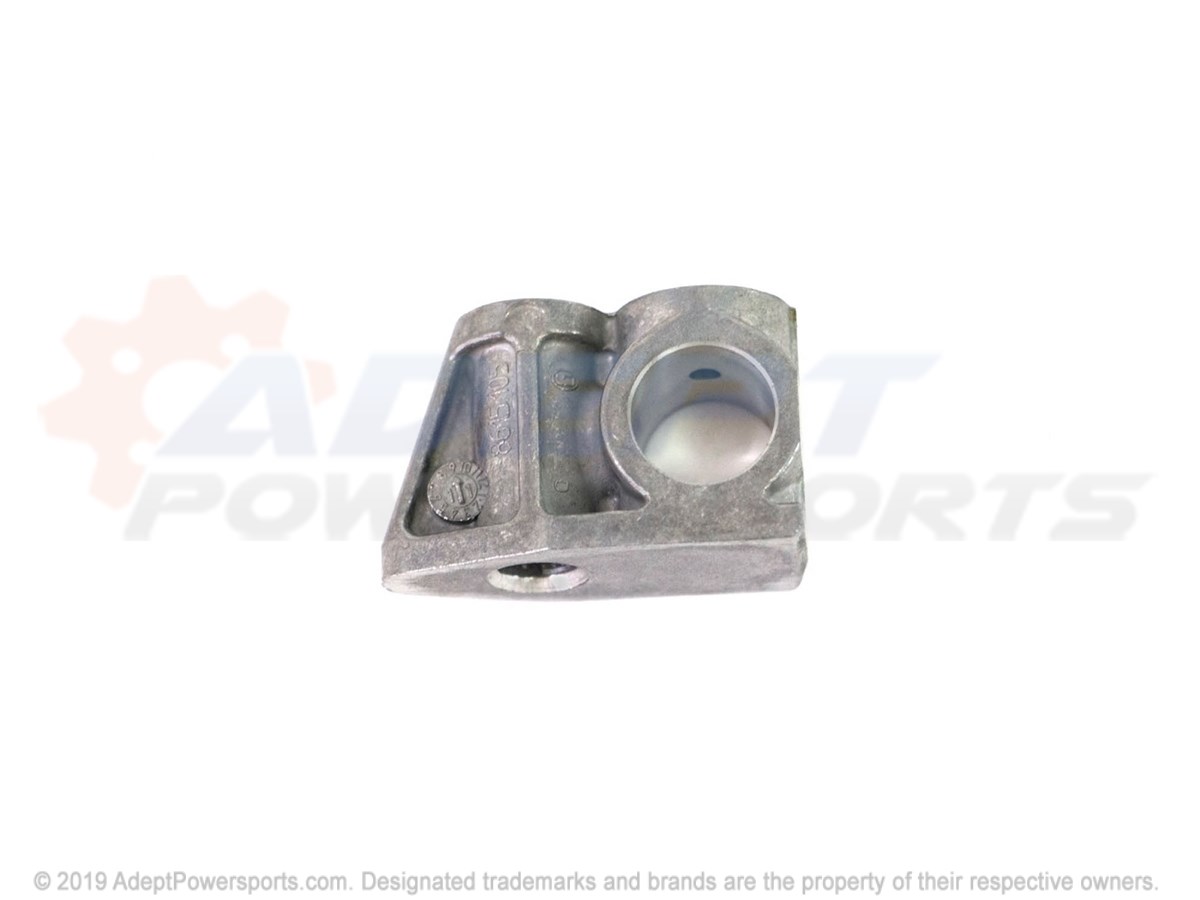

4	ROCKER ARM ASSEMBLY Part #: 3040115 Required per assembly: 1 Note: INCL. SHAFT, 7-15 Currently Not Available
4	ROCKER ARM SHAFT Part #: 3040270 Required per assembly: 1 Currently Not Available
5	NUT M10X1.5 Part #: 3040056 Required per assembly: 4 Currently Not Available
6	WASHER 10.2X19X1 Part #: 3040148 Required per assembly: 4 Currently Not Available
7	NUT M6-CI.8 TYPE 1 ISO Part #: 3040053 Required per assembly: 6 Currently Not Available
8	ADJ. SCREW Part #: 3040265 Required per assembly: 6 Currently Not Available
9	ROCKER ARM SHAFT SUPPORT Part #: 3040269 Required per assembly: 4 Currently Not Available
10	ROCKER ARM INLET/EXHAUST Part #: 3040264 Required per assembly: 6 Currently Not Available
11	INJ PUMP ROCKER ARM Part #: 3040268 Required per assembly: 3 Currently Not Available
12	NUT Part #: 3040267 Required per assembly: 3 Currently Not Available
13	ADJ. SCREW Part #: 3040266 Required per assembly: 3 Currently Not Available
14	LOCKPIN 4X14 Part #: 3040271 Required per assembly: 1 Currently Not Available
15	PLUG DIAM 11 Part #: 3040272 Required per assembly: 2 Currently Not Available
16	STUD 10X45 Part #: 3040133 Required per assembly: 4 Currently Not Available
17	VALVE STEM SEAL Part #: 3040086 Required per assembly: 6 Currently Not Available
18	INTAKE VALVE Part #: 3040213 Required per assembly: 3 Currently Not Available
19	EXHAUST VALVE Part #: 3040215 Required per assembly: 3 Currently Not Available
