Connecting Rod And Piston Set - R151dpd1aa/2D (49Brutusconrod15dsl) replacement parts for 2015 Polaris Ranger HST

OEM Parts Polaris 2015 Polaris Ranger HST Connecting Rod And Piston Set - R151dpd1aa/2D (49Brutusconrod15dsl)

Connecting Rod and Piston Set - R151DPD1AA/2D (49BRUTUSCONROD15DSL) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PISTON SET +1MM Part #: 3040303 Required per assembly: 3 Note: INCL. RINGS Currently Not Available
1	PISTON SET +0.5MM Part #: 3040302 Required per assembly: 3 Note: INCL. RINGS Currently Not Available
1	PISTON SET STD Part #: 3040239 Required per assembly: 3 Note: INCL. RINGS Currently Not Available

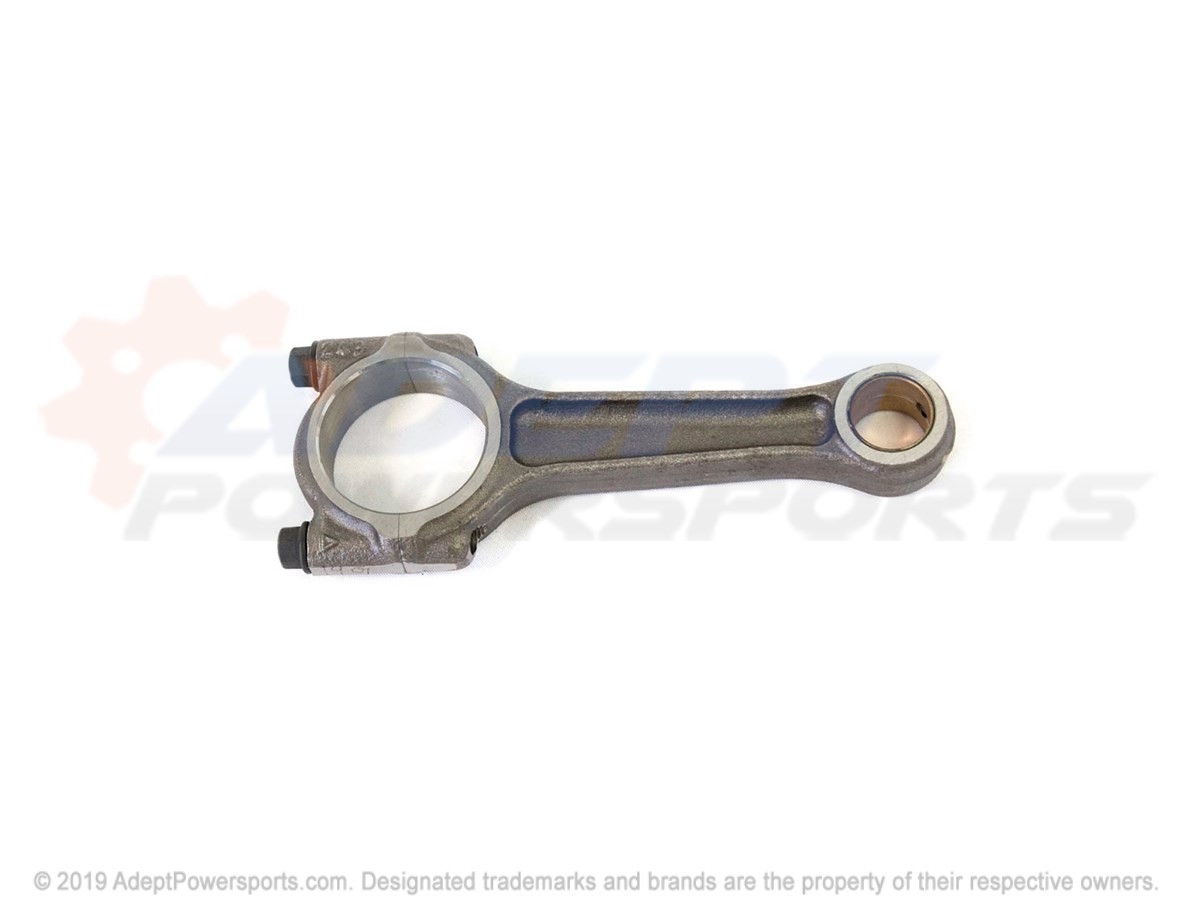

2	COMPLETE STEEL CON ROD Part #: 3040017 Required per assembly: 3 Note: INCL. 5 Currently Not Available
3	RING SET STD Part #: 3040238 Required per assembly: 3 Note: SET OF 3 RINGS Currently Not Available
3	RING SET +1MM Part #: 3040301 Required per assembly: 3 Note: SET OF 3 RINGS Currently Not Available
3	RING SET +0.5MM Part #: 3040300 Required per assembly: 3 Note: SET OF 3 RINGS Currently Not Available
4	BUSHING-0, 50 Part #: 3040242 Required per assembly: 3 Currently Not Available
4	BUSHING-0, 25 Part #: 3040241 Required per assembly: 3 Currently Not Available
4	BUSHING STD Part #: 3040240 Required per assembly: 3 Currently Not Available
5	SCREW M8X1X42 Part #: 3040243 Required per assembly: 6 Currently Not Available
