OEM Parts Polaris 2016 Polaris Slingshot All Options Driven Sprocket, Belt And Guard - T16aas/Aap All Options (500012)

2016 Polaris Slingshot All Options T16AAS/AAP - Driven Sprocket, Belt And Guard - T16aas/Aap All Options (500012)

Driven Sprocket, Belt and Guard - T16AAS/AAP All Options (500012) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1333384-650 Asm-Spkt, 62T, 7, Deg, Titanium

ASM-SPKT, 62T, 7, DEG, TITANIUM

Part #: 1333384-650 Required per assembly: 1
Currently Not Available
2

NUT

Part #: 7547831 Required per assembly: 2 Note: BUILT WITH VIN#57XAASFA7G5111226 AND AFTER
Sold in multiples of 2 only
Currently Not Available
2

NUT

Part #: 7547831 Required per assembly: 1 Note: BUILT WITH VIN#57XAASFA7G5111225 AND BEFORE
Sold in multiples of 2 only
Currently Not Available
3

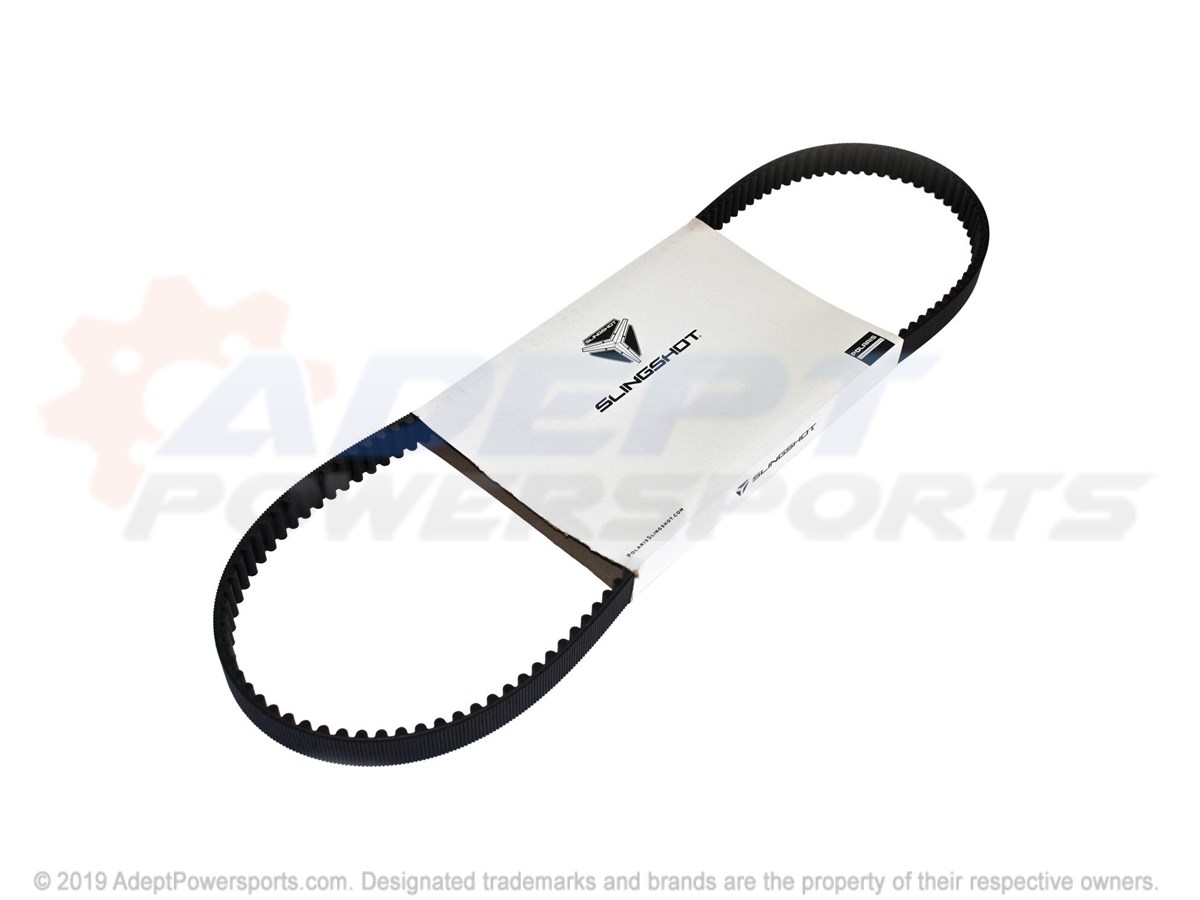

Polaris 3211184 Belt, Drive, 36Mm, 147T

BELT, DRIVE, 36MM, 147T

Part #: 3211184 Required per assembly: 1
Currently Not Available
4

SCR-TXBH-M6X1.0X15 8.8 ZB3 SH

Part #: 7520011 Required per assembly: 3
Currently Not Available
5

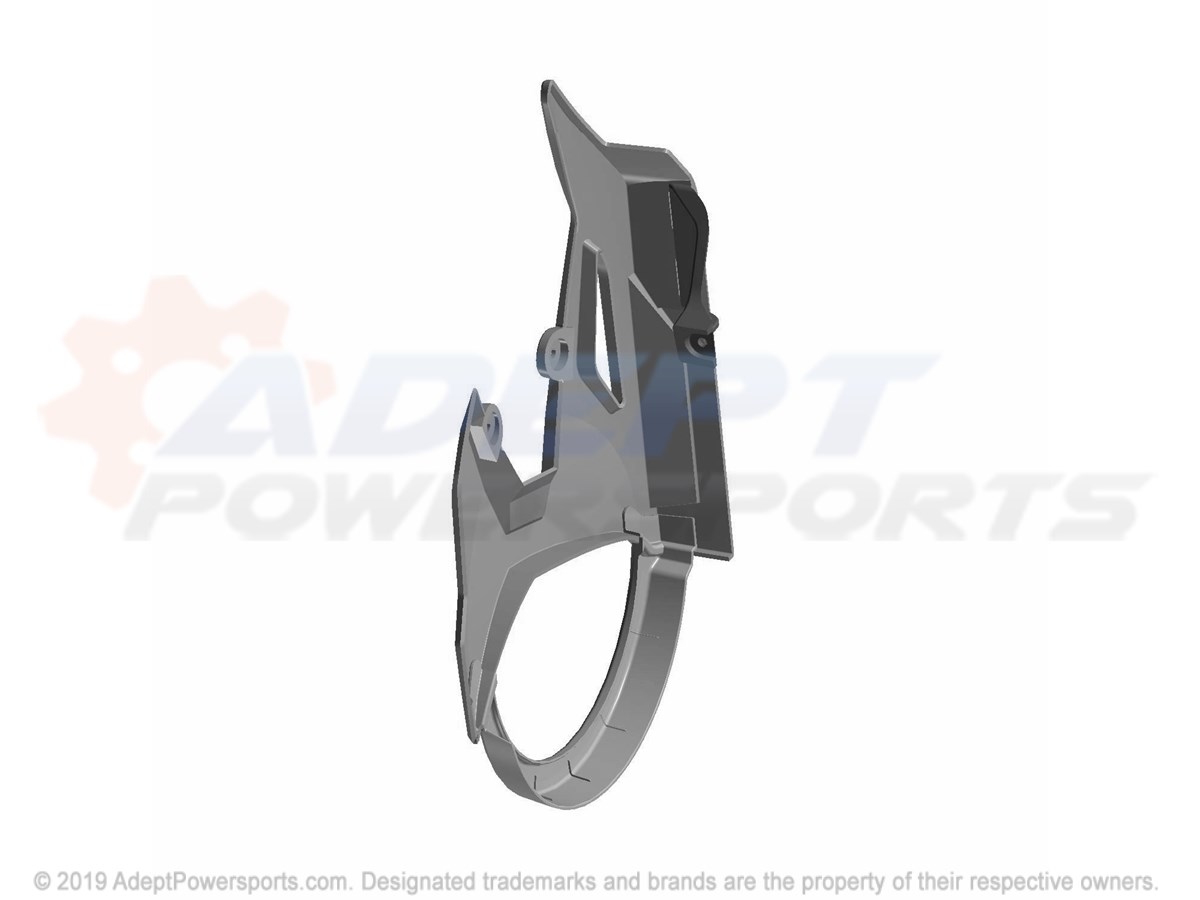

Polaris 2635536 Asm-Belt Guard

ASM-BELT GUARD

Part #: 2635536 Required per assembly: 1
Currently Not Available
6

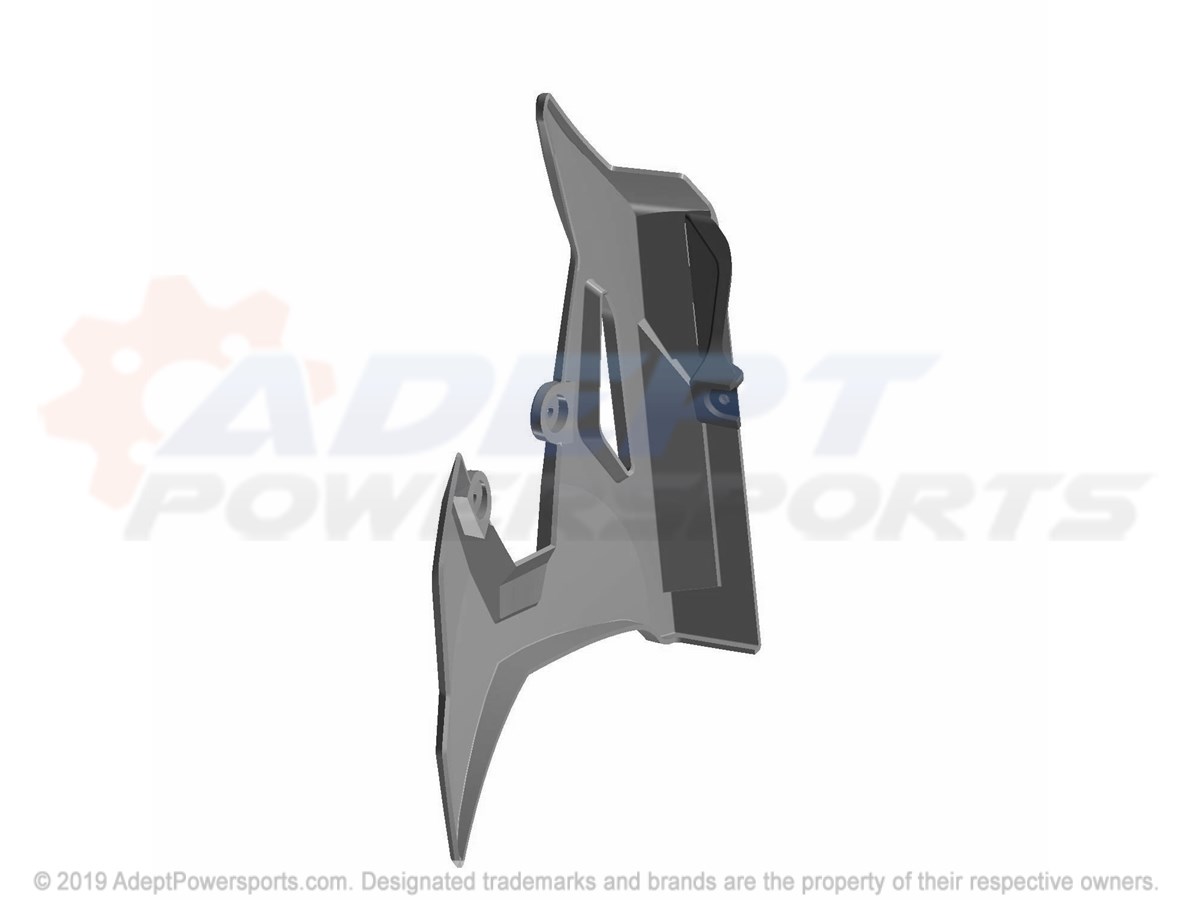

Polaris 2635991 Assembly, Belt, Guard, Intl, [Incl, 7]

ASSEMBLY, BELT, GUARD, INTL, [INCL, 7]

Part #: 2635991 Required per assembly: 1 Note: INTL ONLY
Currently Not Available
7

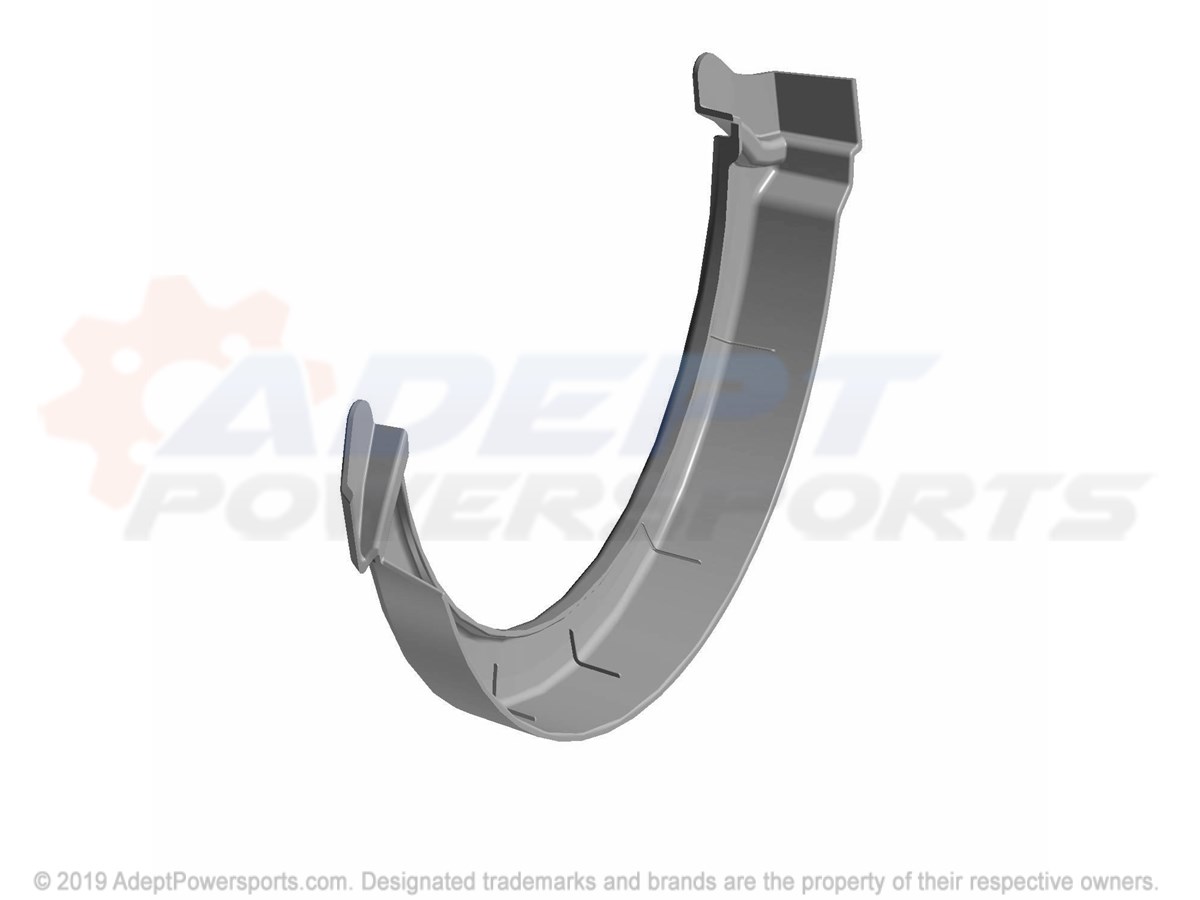

Polaris 5452651 Guard, Sprocket, Intl

GUARD, SPROCKET, INTL

Part #: 5452651 Required per assembly: 1 Note: INTL ONLY
Currently Not Available
