OEM Parts Polaris 2016 Polaris Slingshot All Options Master Cylinder Asm. - T16aas/Aap All Options (49Slingshotbrakemc214sling)

2016 Polaris Slingshot All Options T16AAS/AAP - Master Cylinder Asm. - T16aas/Aap All Options (49Slingshotbrakemc214sling)

Master Cylinder Asm. - T16AAS/AAP All Options (49SLINGSHOTBRAKEMC214SLING) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASM-MASTR, CYLD, 22MM, DUAL, CAP

Part #: 1911776 Required per assembly: 1
Currently Not Available
2

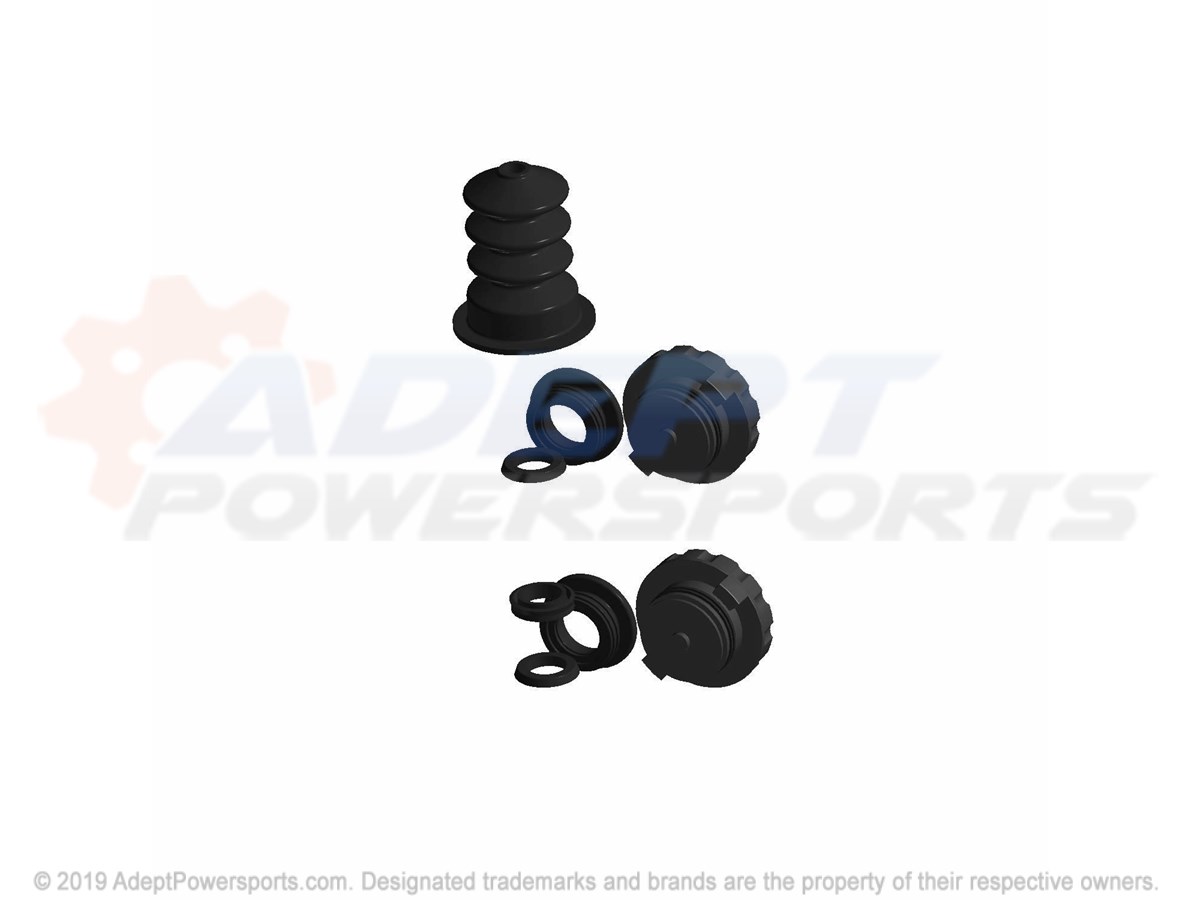

Polaris 2205616 Kit-Master, Cyl., Brake

KIT-MASTER, CYL., BRAKE

Part #: 2205616 Required per assembly: 1 Note: INCL. CAPS, SEALS, AND BOOT
Currently Not Available
3

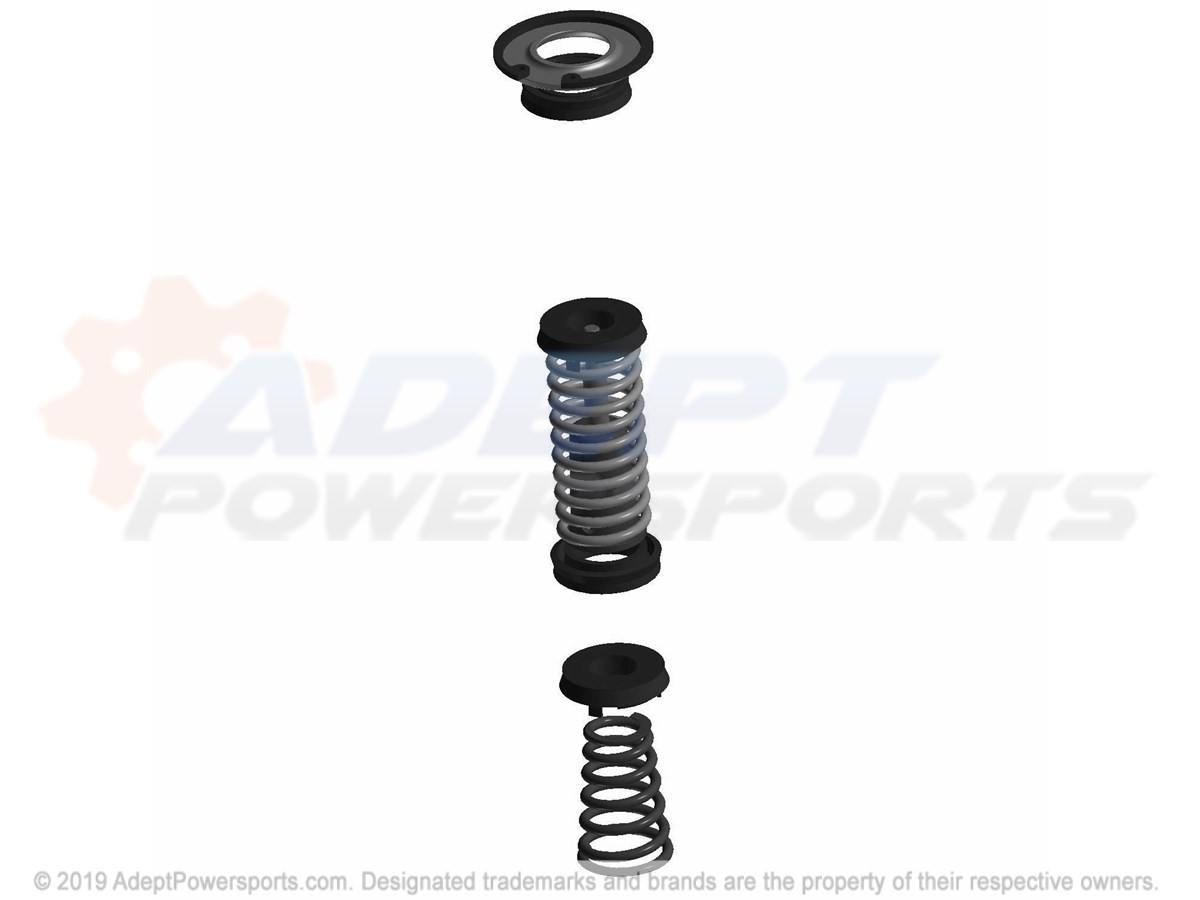

Polaris 2205833 Kit-Rebuild, Master, Cyl

KIT-REBUILD, MASTER, CYL

Part #: 2205833 Required per assembly: 1
Currently Not Available
4

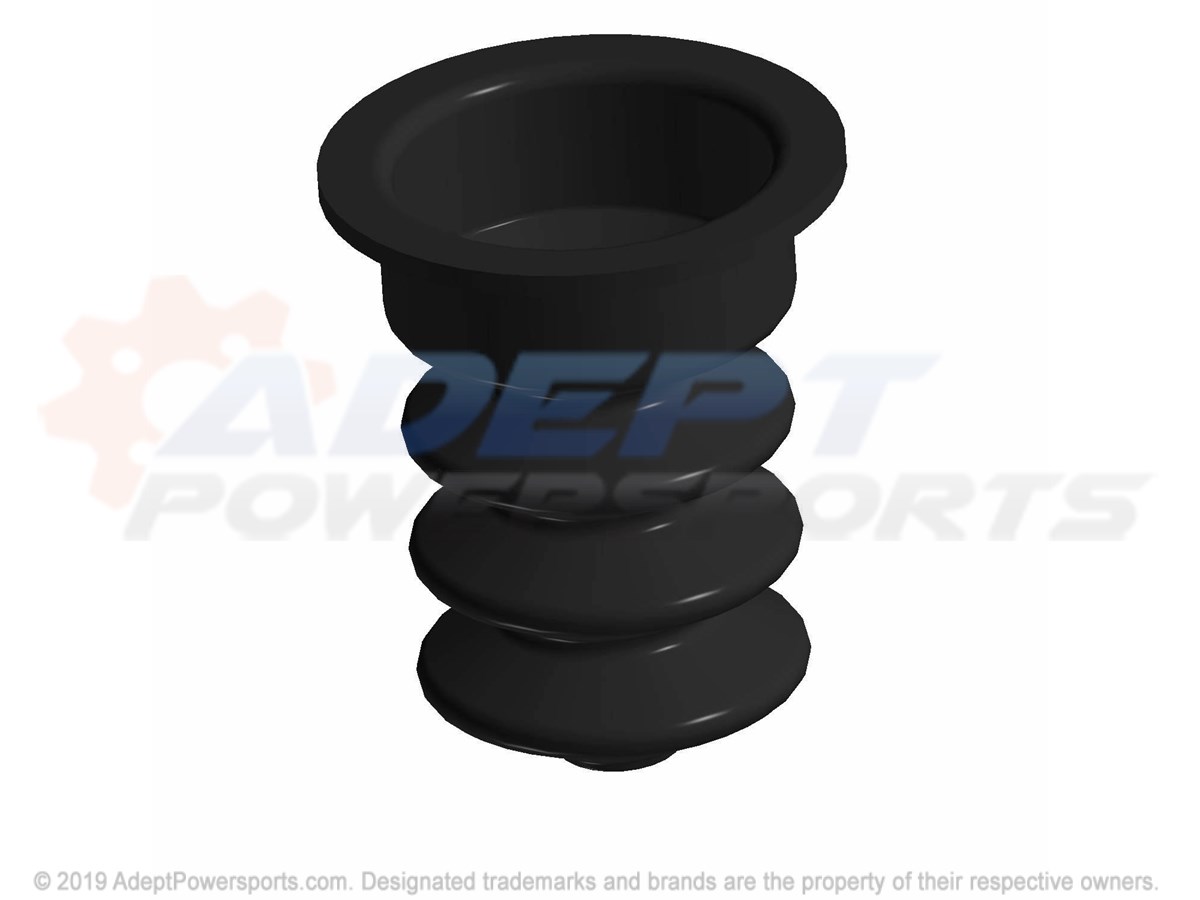

Polaris 5415432 Boot-Master, Cyl

BOOT-MASTER, CYL

Part #: 5415432 Required per assembly: 1
Currently Not Available
5

PIN-MASTER, CYL

Part #: 5139815 Required per assembly: 1
Currently Not Available
6

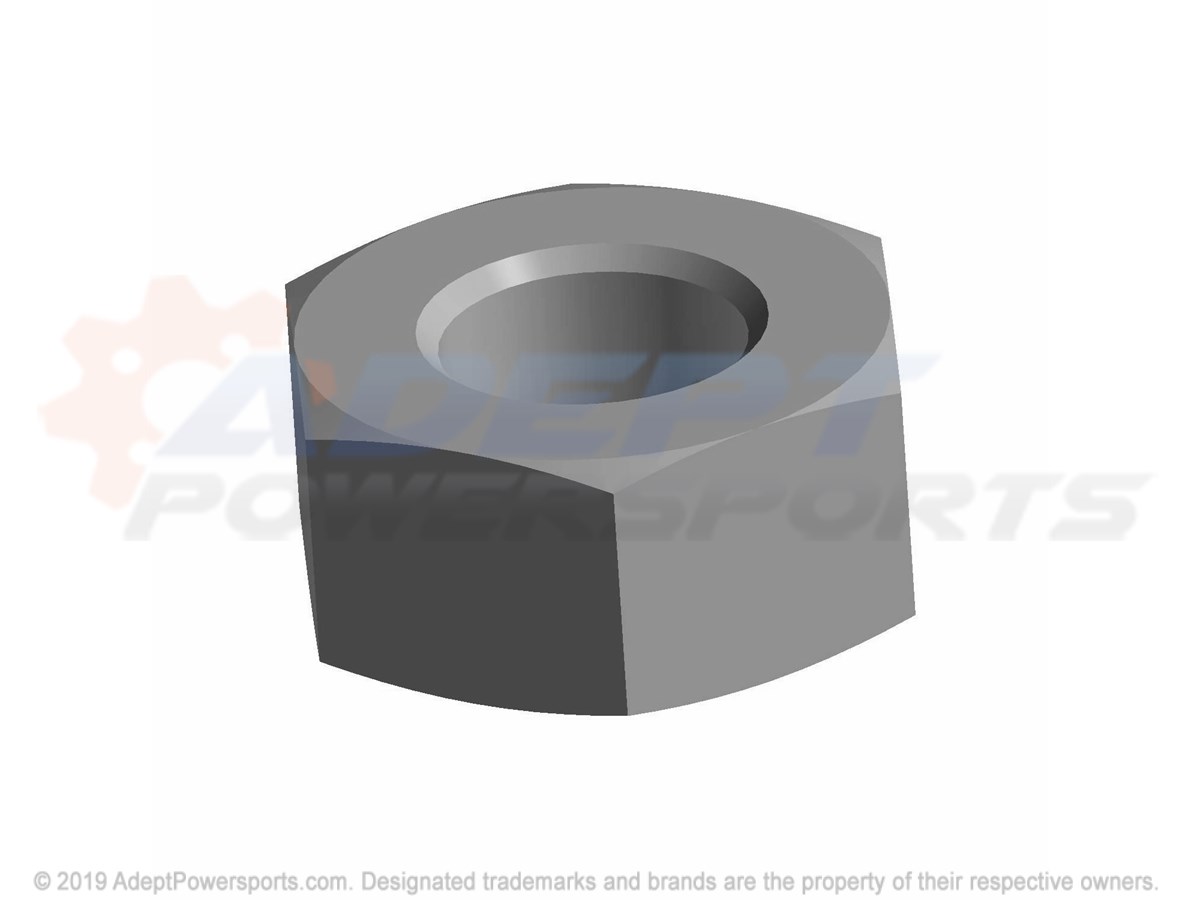

Polaris 7547767 Jam, Nut, Master, Cyl

JAM, NUT, MASTER, CYL

Part #: 7547767 Required per assembly: 2
Currently Not Available
7

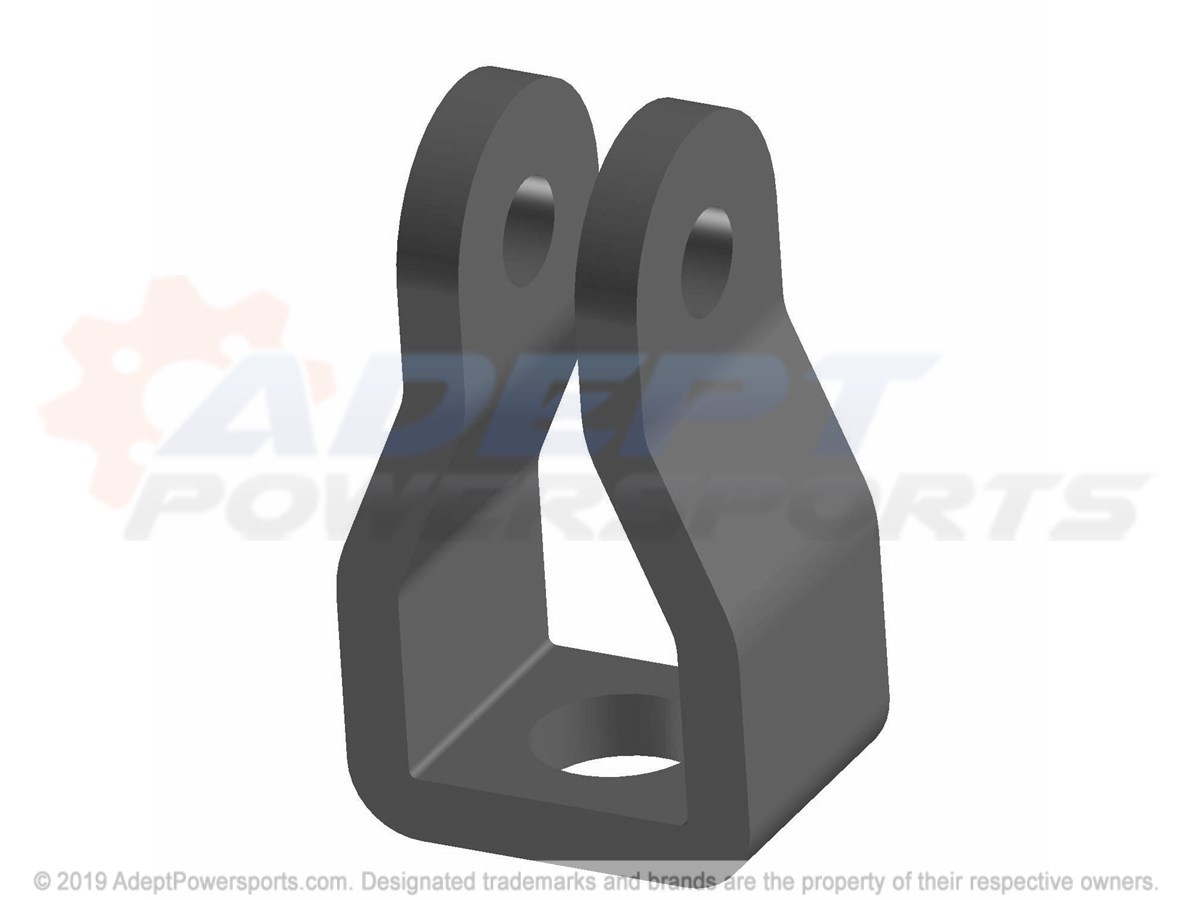

Polaris 5260490 Clevis, Master, Cyl

CLEVIS, MASTER, CYL

Part #: 5260490 Required per assembly: 1
Currently Not Available
