2016 Polaris Slingshot All Options T16AAS/AAP - Rear Asm. - T16aas/Aap All Options (49Slingshotsusprr14sling)

Rear Asm. - T16AAS/AAP All Options (49SLINGSHOTSUSPRR14SLING) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

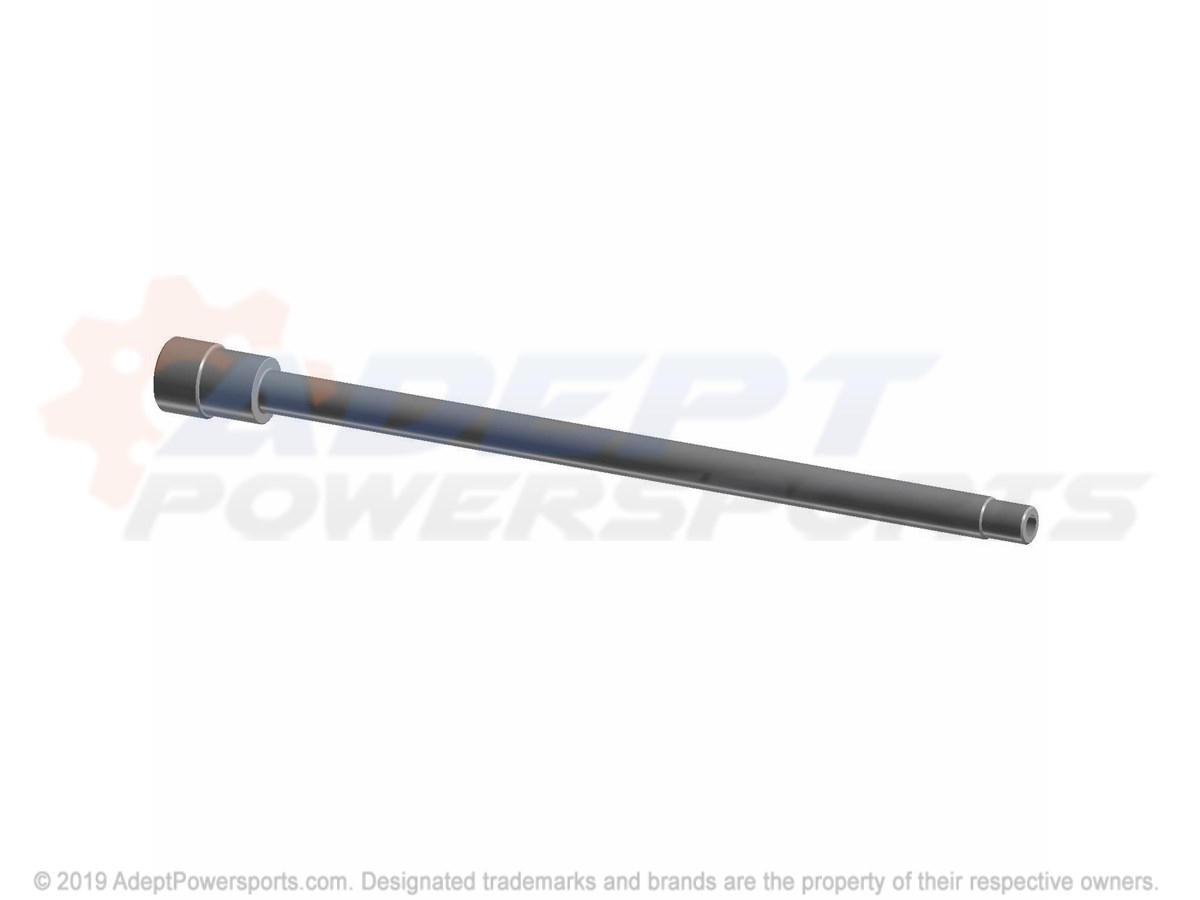

Polaris 5139316 Shaft-Pivot, Hollow

SHAFT-PIVOT, HOLLOW

Part #: 5139316 Required per assembly: 1
Currently Not Available
2

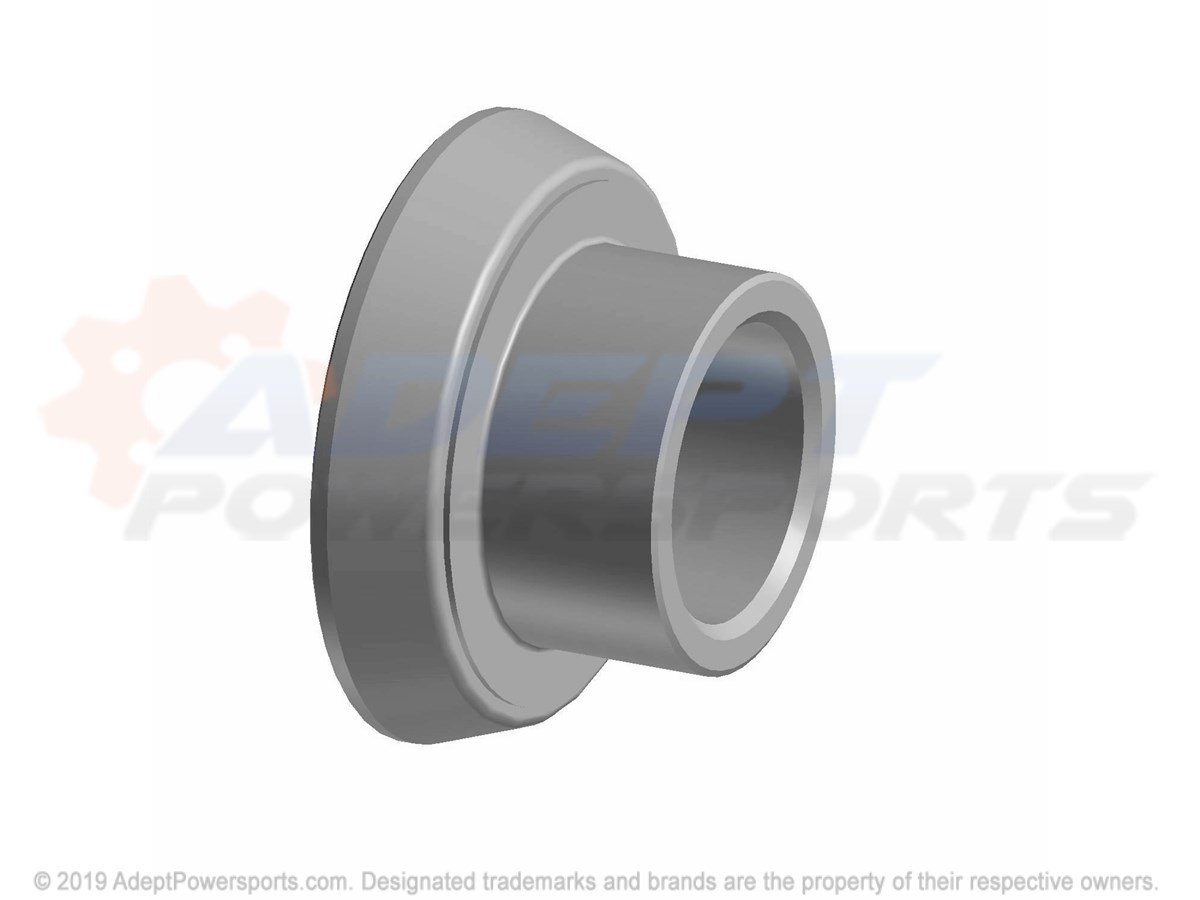

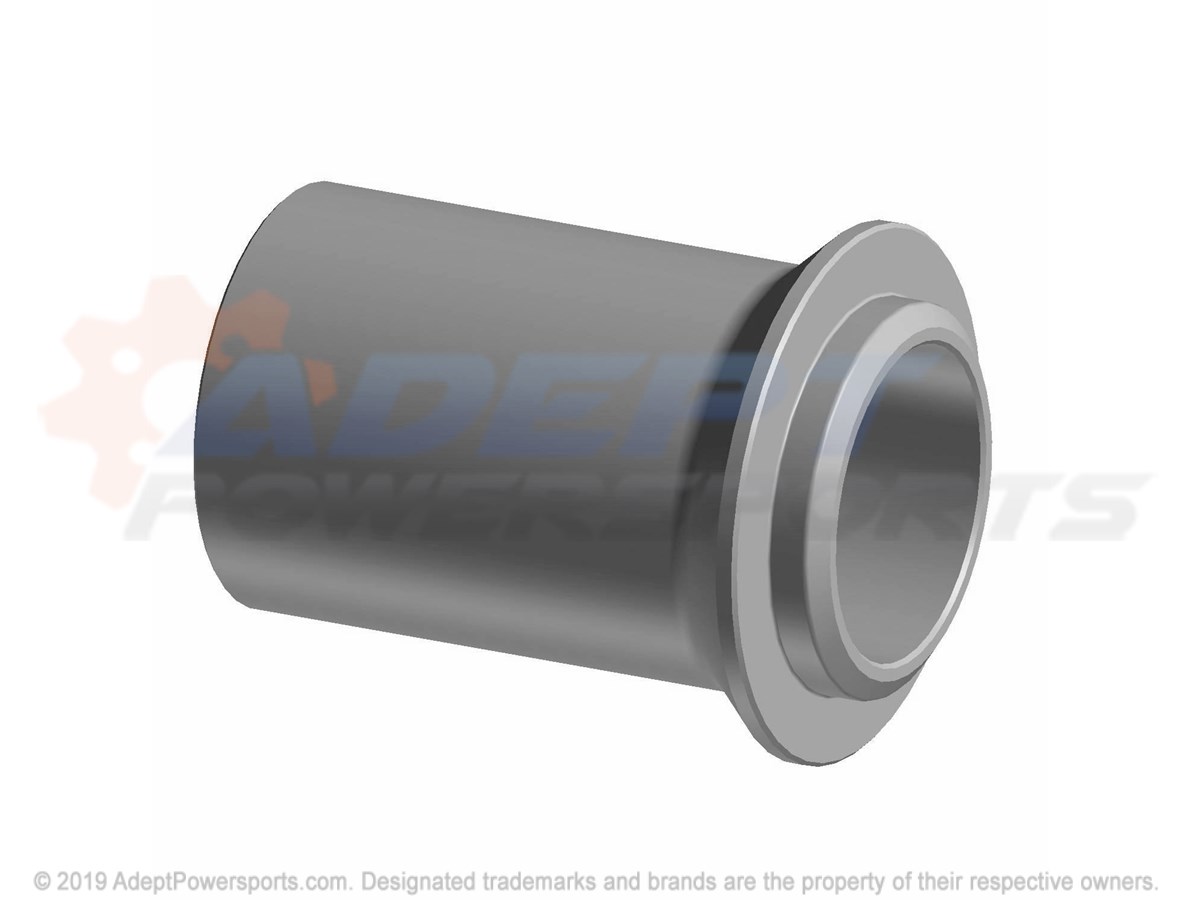

Polaris 3514759 Bushing-Pivot, Ball

BUSHING-PIVOT, BALL

Part #: 3514759 Required per assembly: 2
Currently Not Available
3
Polaris 7710681 Ring-Rtng, Dho-62

RING-RTNG, DHO-62

Part #: 7710681 Required per assembly: 1
Currently Not Available
4

BEARING-BALL, PIVOT

Part #: 3514761 Required per assembly: 2
Currently Not Available
5

GROMMET-SWINGARM, SMALL

Part #: 5414601 Required per assembly: 1
Currently Not Available
6
Polaris 5137900 Pivot-Needle, Bushing

PIVOT-NEEDLE, BUSHING

Part #: 5137900 Required per assembly: 1
Currently Not Available
7

GROMMET-SWINGARM, LARGE

Part #: 5414602 Required per assembly: 1
Currently Not Available
8

BEARING-NEEDLE, PIVOT

Part #: 3514762 Required per assembly: 1
Currently Not Available
9

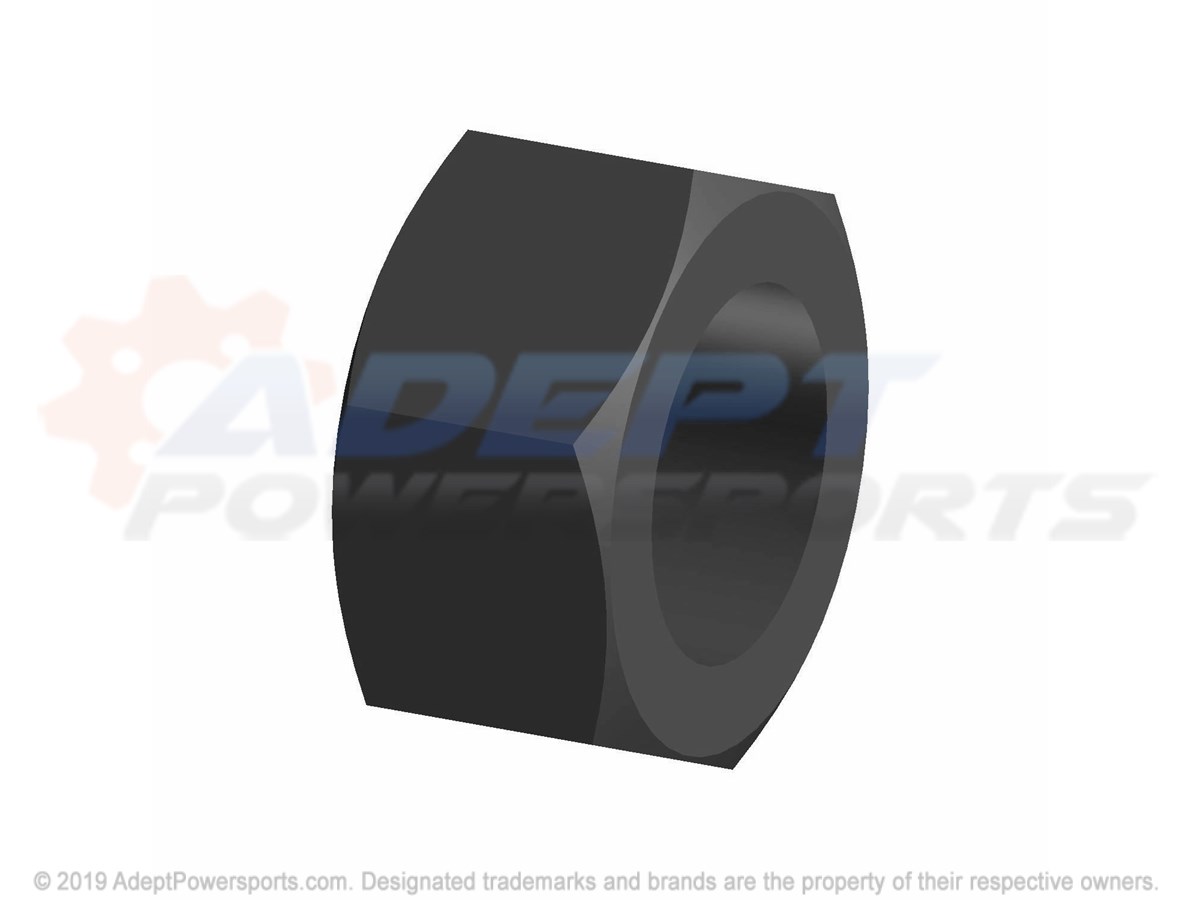

Polaris 7547618 Nut-M20x1.5, Flng, Znc

NUT-M20X1.5, FLNG, ZNC

Part #: 7547618 Required per assembly: 1
Currently Not Available
10
Polaris 7520212 Scr-Hxfl-M10x1.5X55 10.0 Zpb

SCR-HXFL-M10X1.5X55 10.0 ZPB

Part #: 7520212 Required per assembly: 4
Currently Not Available
11

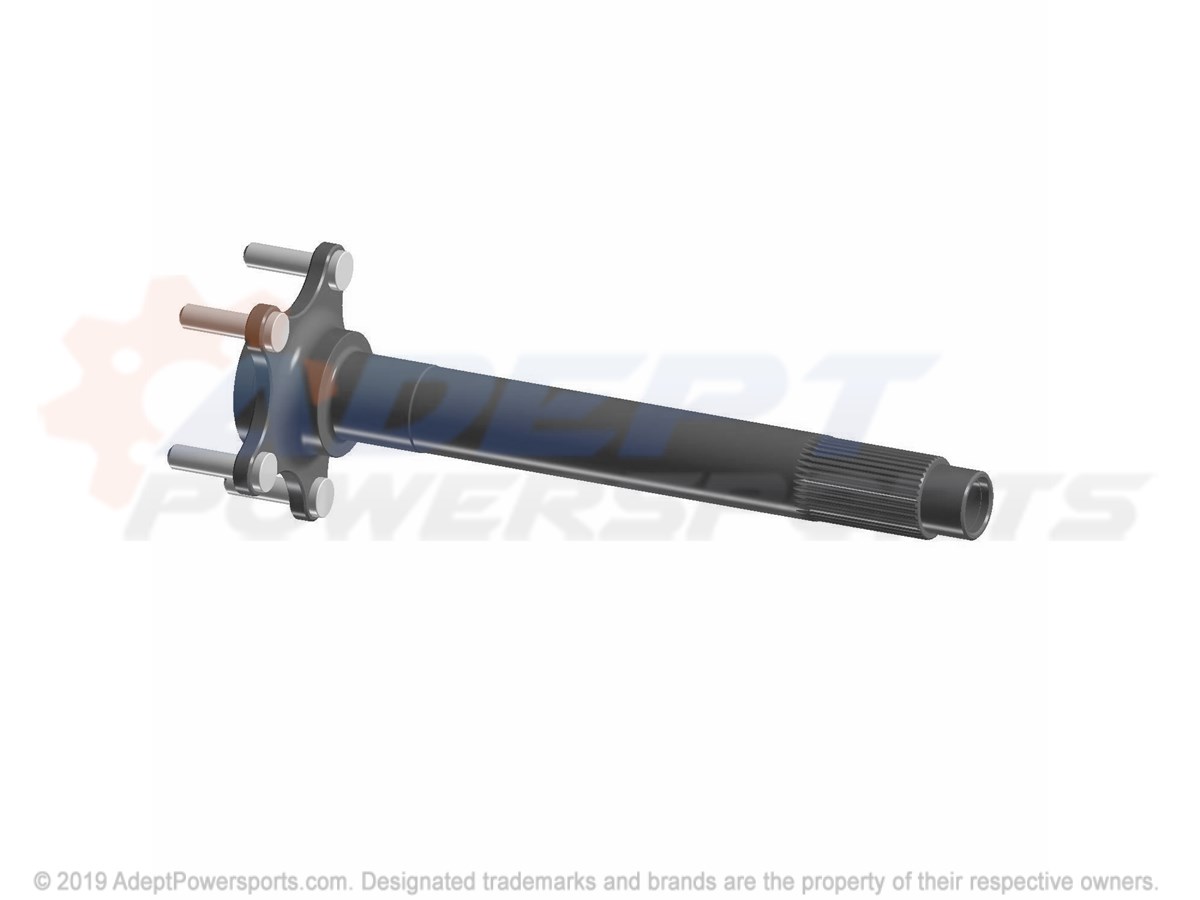

Polaris 1323435 Asm-Axle, Rear

ASM-AXLE, REAR

Part #: 1323435 Required per assembly: 1
Currently Not Available
12

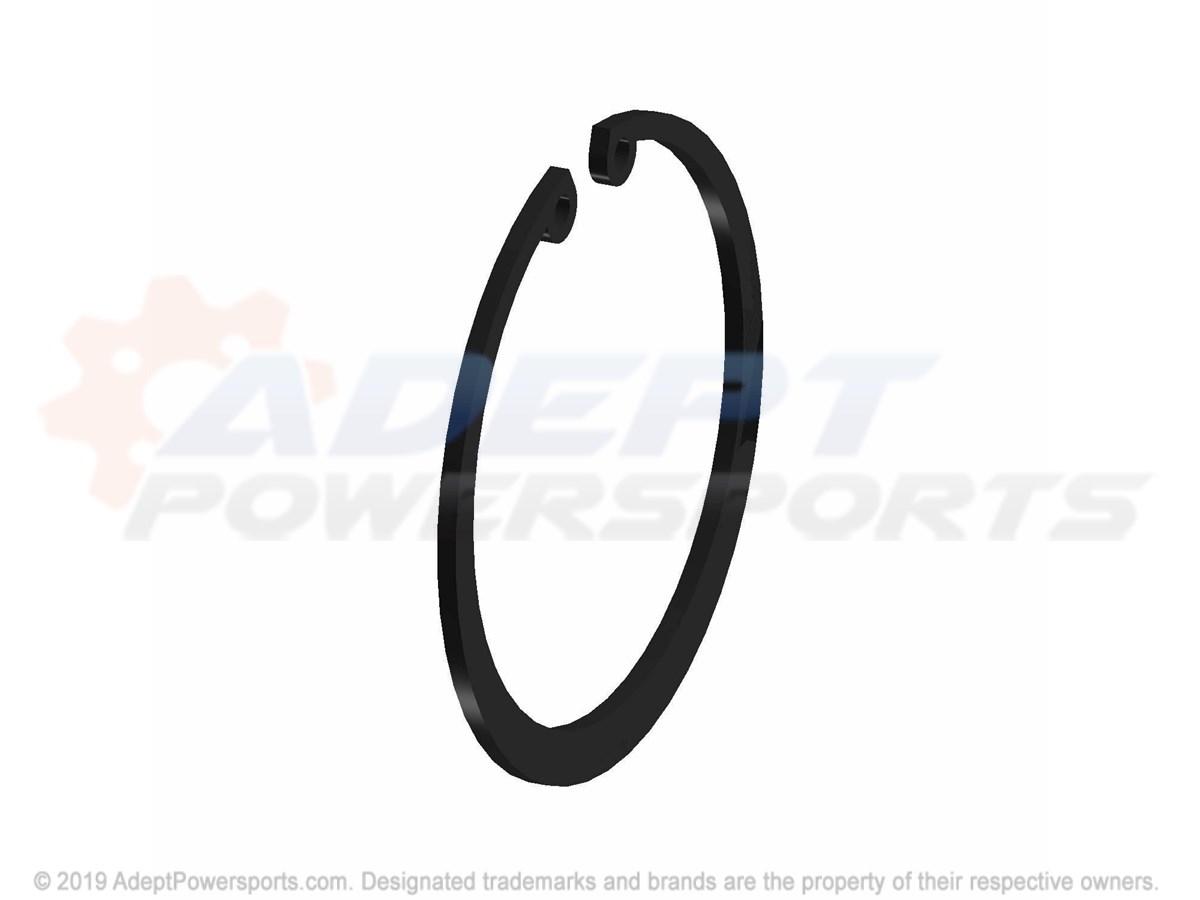

Polaris 7710693 Ring-Rtg, Dho, 80

RING-RTG, DHO, 80

Part #: 7710693 Required per assembly: 1
Currently Not Available
13

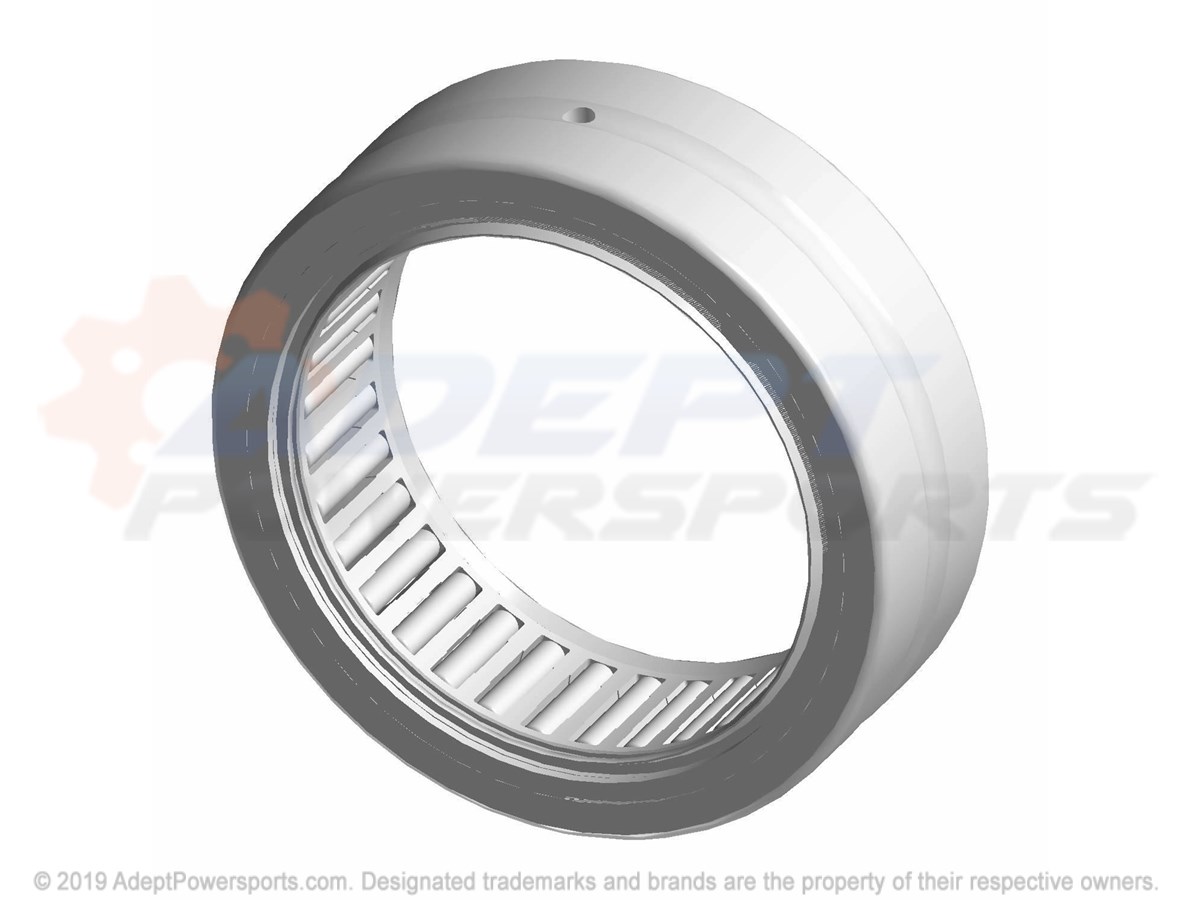

Polaris 3514773 Bearing-Wheel, Rear

BEARING-WHEEL, REAR

Part #: 3514773 Required per assembly: 1
Currently Not Available
14

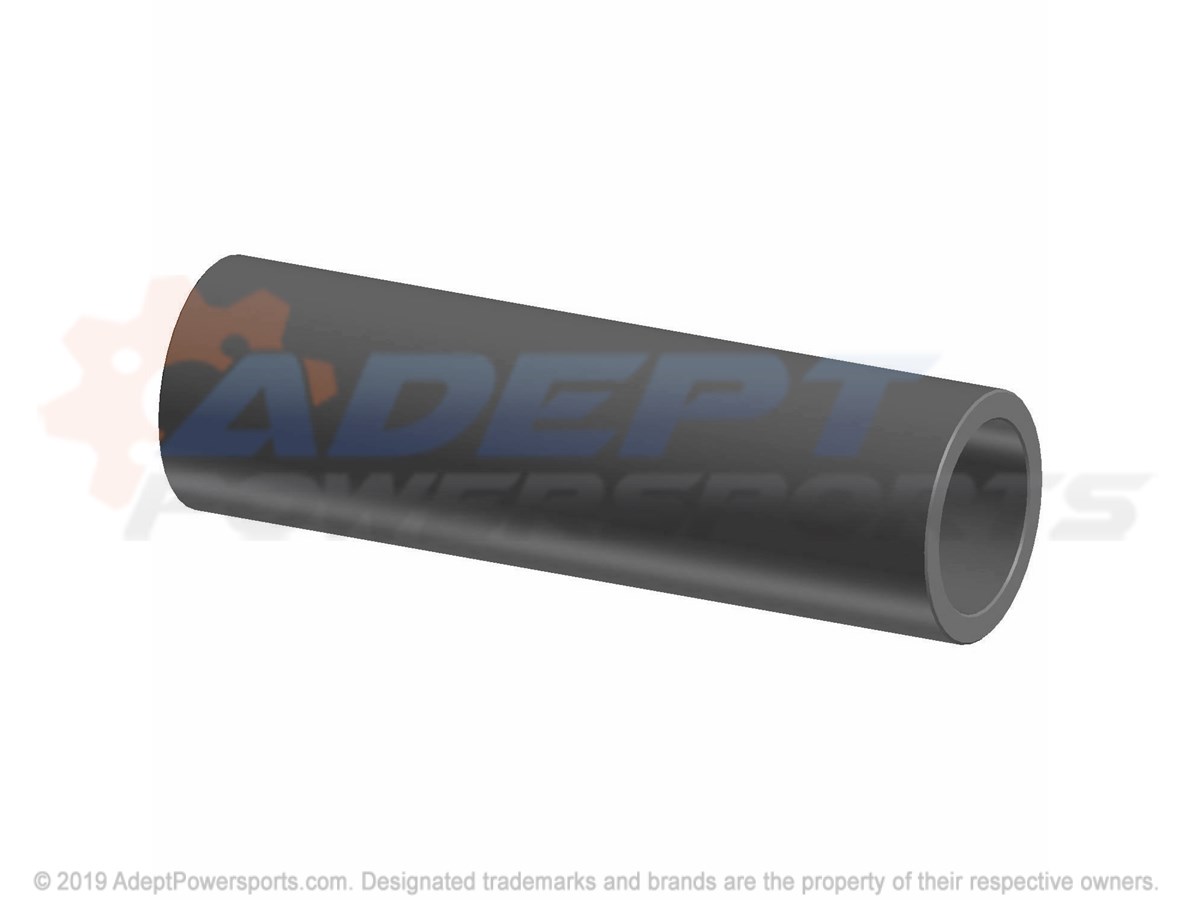

Polaris 5140098 Spacer-Axle, Alum

SPACER-AXLE, ALUM

Part #: 5140098 Required per assembly: 1
Currently Not Available
15

K-SWINGARM, SLS, TITANIUM, GREY

Part #: 2207085-650 Required per assembly: 1
Currently Not Available
15

K-SWINGARM, SLS, NUCLEAR, SNSET

Part #: 2207085-698 Required per assembly: 1 Note: LE
Currently Not Available
16
Polaris 7520117 Nut-Hxfl-M10x1.5 8 Zb3 Nyl

NUT-HXFL-M10X1.5 8 ZB3 NYL

Part #: 7520117 Required per assembly: 3
Currently Not Available
17
Polaris 3514760 Bearing-Rear Sprocket

BEARING-REAR SPROCKET

Part #: 3514760 Required per assembly: 1
Currently Not Available
18

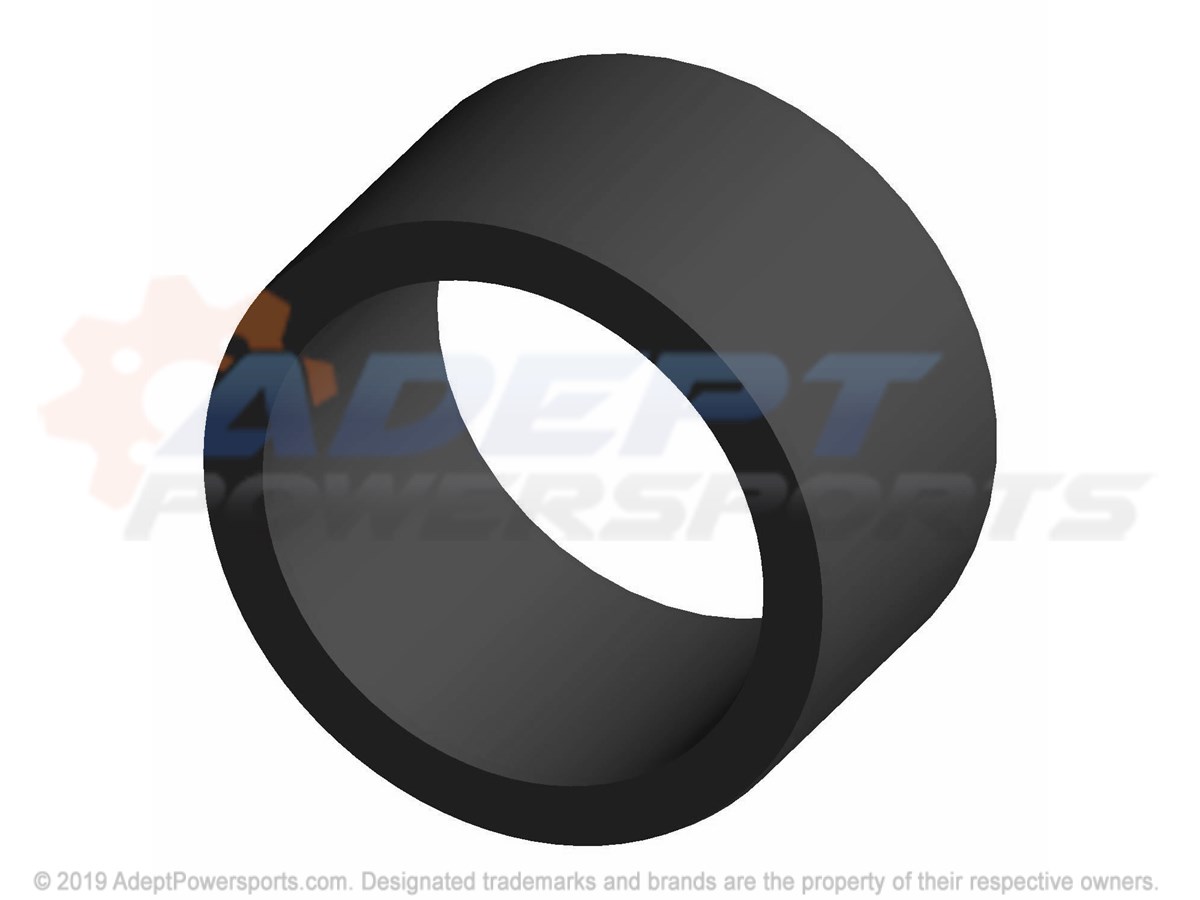

Polaris 5142328 Race-Bearing, Axle

RACE-BEARING, AXLE

Part #: 5142328 Required per assembly: 1
Currently Not Available
19

REAR, SHOCK-CLEVIS, 18", BLK

Part #: 5139609-266 Required per assembly: 1 Note: BASE
Currently Not Available
19

REAR, SHOCK-CLEVIS, 20", BLK

Part #: 5139610-266 Required per assembly: 1 Note: PREMIUM
Currently Not Available
20

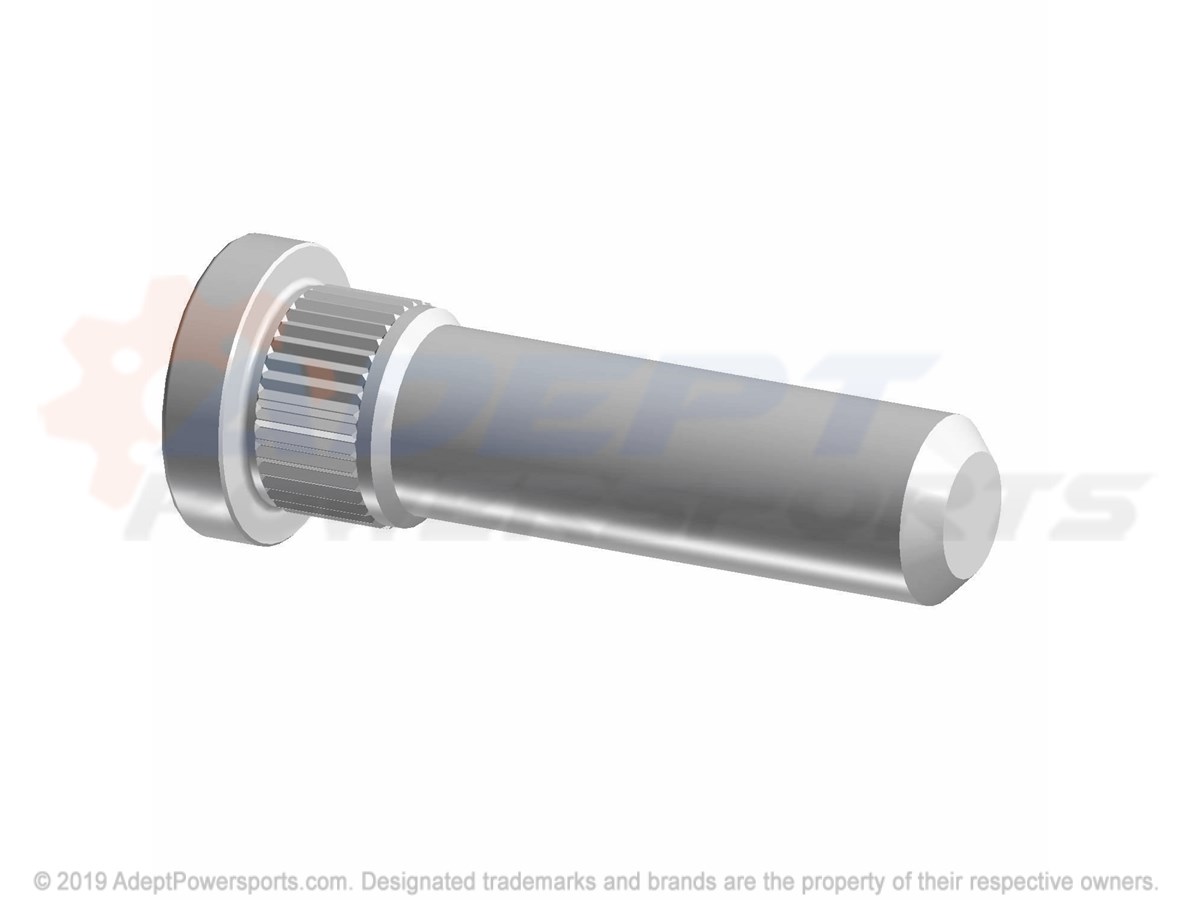

Polaris 7519649 Stud-Rear Wheel

STUD-REAR WHEEL

Part #: 7519649 Required per assembly: 5
Currently Not Available
