Front Asm. - T16aas/Aap All Options (500006) replacement parts for 2016 Polaris Slingshot All Options

OEM Parts Polaris 2016 Polaris Slingshot All Options Front Asm. - T16aas/Aap All Options (500006)

Front Asm. - T16AAS/AAP All Options (500006) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	MOUNT-CABLE Part #: 5258502 Required per assembly: 4 Currently Not Available
2	SCREW Part #: 7517704 Required per assembly: 8 Currently Not Available
3	ASM-ARM, CONTROL, UPPER, LH Part #: 1020182 Required per assembly: 1 Note: INCL. 1,2,7,8 Currently Not Available
3	ASM-ARM, CONTROL, UPPER, RH Part #: 1020195 Required per assembly: 1 Currently Not Available
4	SCREW Part #: 7519016 Required per assembly: 2 Currently Not Available

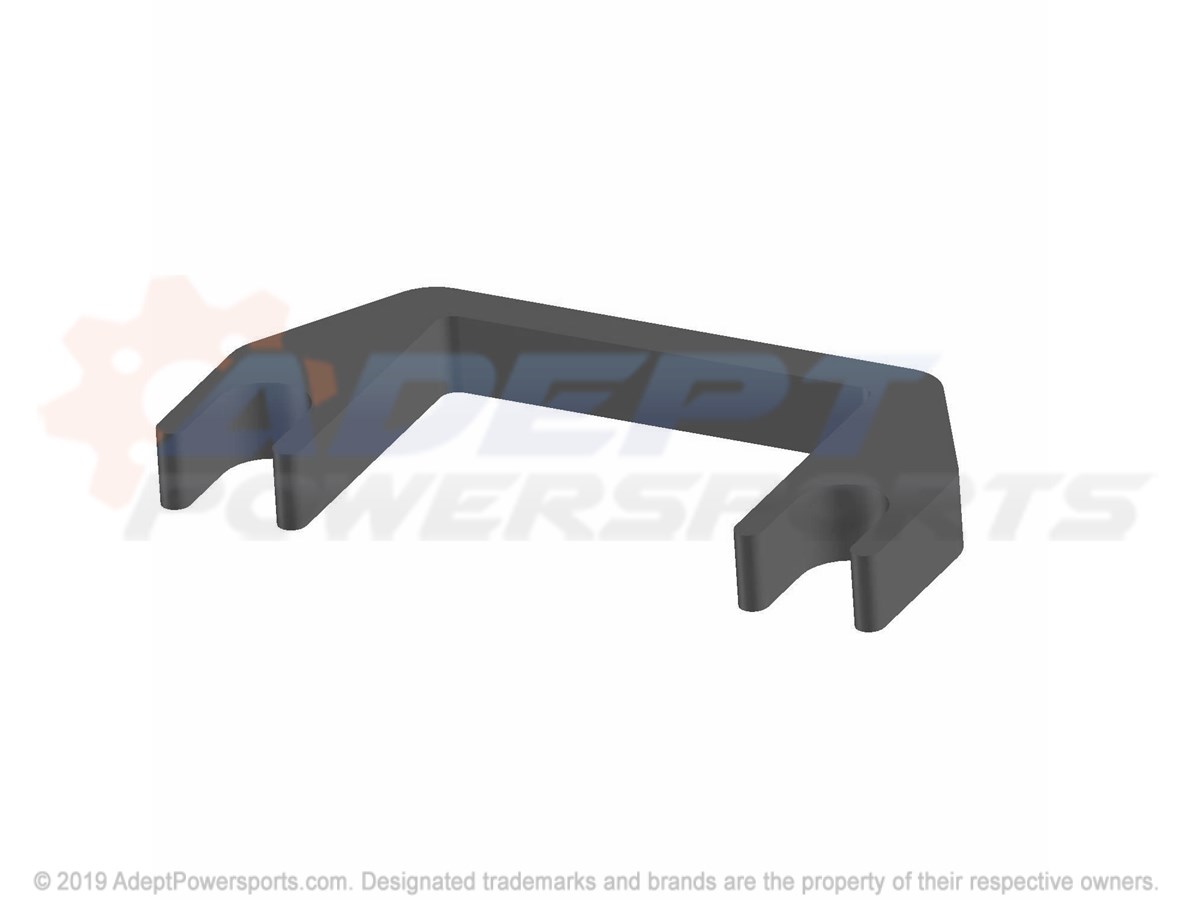

5	SHIM-ALIGNMENT, 1MM, ALUM Part #: 5260616 Currently Not Available
5	SHIM-ALIGNMENT, 10MM, ALUM Part #: 5260617 Currently Not Available
5	SHIM-ALIGNMENT, 20MM, ALUM Part #: 5260618 Required per assembly: 2 Currently Not Available
6	SCREW Part #: 7518941 Required per assembly: 4 Currently Not Available
7	RING, RETAINING Part #: 7710716 Required per assembly: 2 Currently Not Available
8	BALL-JOINT, TAPER, S24MM Part #: 7061324 Required per assembly: 2 Currently Not Available
9	NUT, NYLOK Part #: 7547334 Required per assembly: 4 Currently Not Available
10	SCR-M10X1.5X55, 8.8, HXFLG Part #: 7519726 Required per assembly: 4 Currently Not Available
11	NUT-HEX-M10X1.5 10 ZB3 NYL Part #: 7547746 Required per assembly: 8 Currently Not Available
13	SCR-HXFL-M12X1.25X50 10.9 ZB3 Part #: 7520003 Required per assembly: 8 Currently Not Available
14	KNUCKLE, LH Part #: 5139939 Required per assembly: 1 Currently Not Available
14	KNUCKLE, RH Part #: 5139940 Required per assembly: 1 Currently Not Available
15	HUB-FRONT Part #: 3515108 Required per assembly: 2 Currently Not Available
16	SCREW Part #: 7518644 Required per assembly: 12 Currently Not Available
17	BALL-JOINT, TAPERED, LWR, TENS Part #: 7061202 Required per assembly: 2 Currently Not Available
18	MOUNT-SHOCK Part #: 5258500 Required per assembly: 2 Currently Not Available
19	SCREW Part #: 7518878 Required per assembly: 4 Currently Not Available

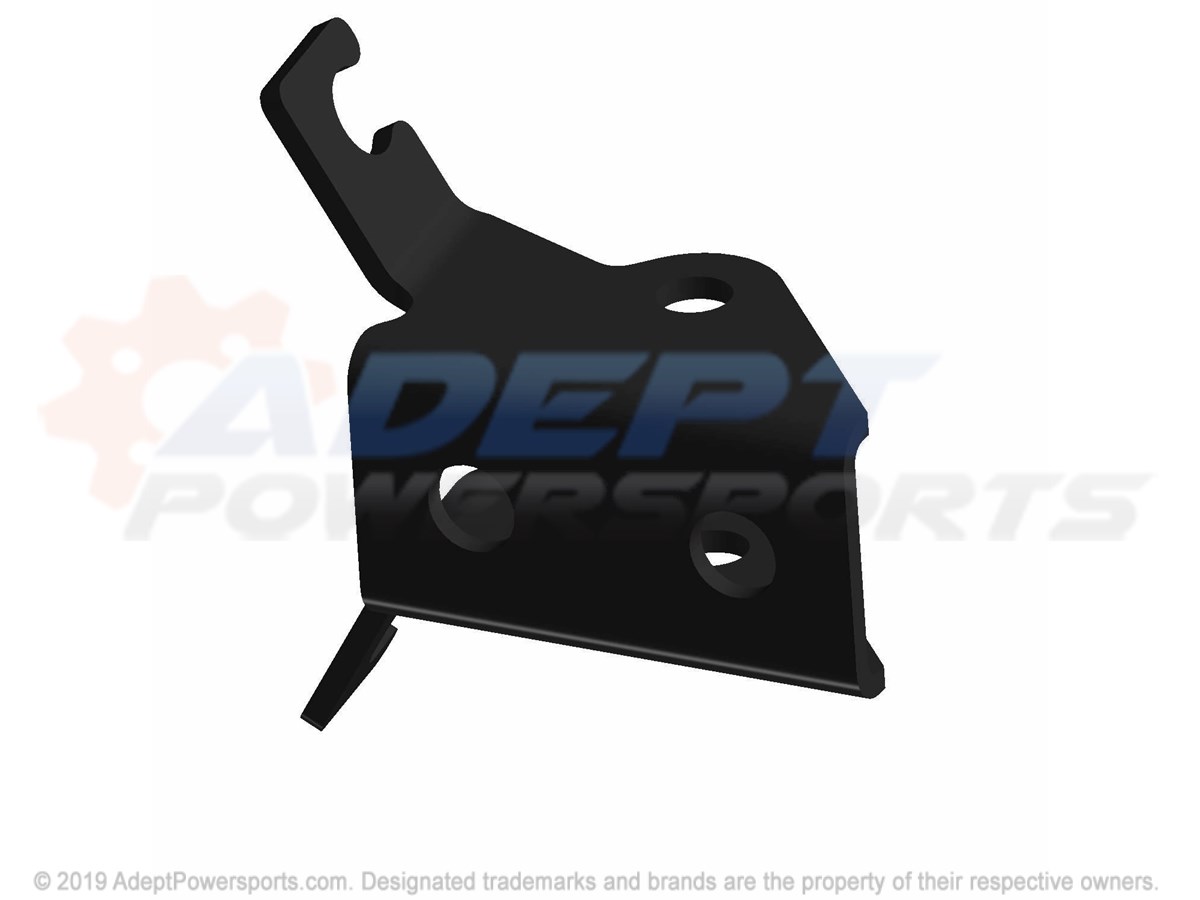

20	MOUNT-BRAKE LINE Part #: 5258501 Required per assembly: 2 Currently Not Available
21	ASM-ARM, CONTROL, LOWER, LH Part #: 1020183 Required per assembly: 1 Note: INCL. 2,4,7,17-20 Currently Not Available
21	ASM-ARM, CONTROL, LOWER, RH Part #: 1020184 Required per assembly: 1 Note: INCL. 2,4,7,17-20 Currently Not Available

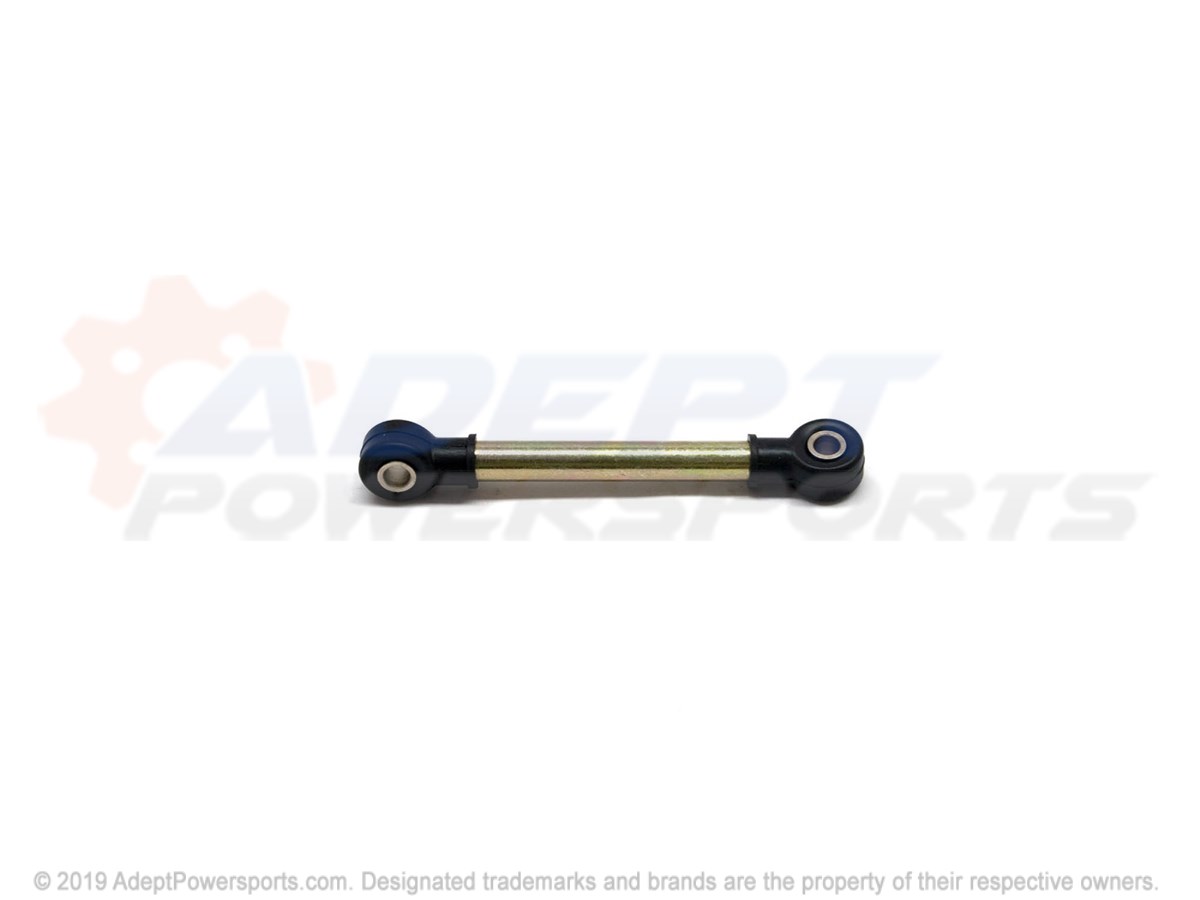

22	ASM-LINKAGE, STABILIZER, BAR Part #: 1543385 Required per assembly: 2 Currently Not Available
23	BAR-ANTI, ROLL, E-COAT, BLK Part #: 5339984-329 Required per assembly: 1 Currently Not Available
24	BUSHING-SWAY, BAR, 1.25, 11% Part #: 5451257 Required per assembly: 4 Currently Not Available
25	SCR-HXFL-M10X1.5X45 8.8 ZPB Part #: 7520013 Required per assembly: 2 Currently Not Available
26	SCR-HEXHD, M8X20, ZINC, 0600088 Part #: 7518097 Required per assembly: 8 Currently Not Available
27	BRKT-CAP SWAY BAR 1.25" Part #: 5632497 Required per assembly: 2 Currently Not Available
