OEM Parts Polaris 2016 Polaris Slingshot All Options Rear Asm., Upper - T16aas/Aap All Options (500005)

2016 Polaris Slingshot All Options T16AAS/AAP - Rear Asm., Upper - T16aas/Aap All Options (500005)

Rear Asm., Upper - T16AAS/AAP All Options (500005) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Currently Not Available
2
Polaris 7512026 Screw

SCREW

Part #: 7512026 Note: Screw
Currently Not Available
3

COVER-RH, FRONT, HOOP, T-METALLIC

Part #: 5450029-602 Required per assembly: 1
Currently Not Available
3

COVER-RH, FRONT, HOOP, BLK, PRL

Part #: 5450029-666 Required per assembly: 1
Currently Not Available
3

COVER-RH, FRONT, HOOP, SS, R-PEARL

Part #: 5450029-676 Required per assembly: 1
Currently Not Available
4
Polaris 5450031-602 Cover-Rh, Rear, Hoop, T-Metallic

COVER-RH, REAR, HOOP, T-METALLIC

Part #: 5450031-602 Required per assembly: 1
Currently Not Available
4
Polaris 5450031-666 Cover-Rh, Rear, Hoop, Blk, Prl

COVER-RH, REAR, HOOP, BLK, PRL

Part #: 5450031-666 Required per assembly: 1
Currently Not Available
4
Polaris 5450031-676 Cover-Rh, Rear, Hoop, Ss, R-Pearl

COVER-RH, REAR, HOOP, SS, R-PEARL

Part #: 5450031-676 Required per assembly: 1
Currently Not Available
5
Polaris 5450045-602 Cover-Lh, Front, Hoop, T-Metallic

COVER-LH, FRONT, HOOP, T-METALLIC

Part #: 5450045-602 Required per assembly: 1
Currently Not Available
5
Polaris 5450045-666 Cover-Lh, Front, Hoop, Blk, Prl

COVER-LH, FRONT, HOOP, BLK, PRL

Part #: 5450045-666 Required per assembly: 1
Currently Not Available
5
Polaris 5450045-676 Cover-Lh, Front, Hoop, Ss, R-Pearl

COVER-LH, FRONT, HOOP, SS, R-PEARL

Part #: 5450045-676 Required per assembly: 1
Currently Not Available
6
Polaris 5450030-602 Cover, Lh, Rear, Hoop, T-Metallic

COVER, LH, REAR, HOOP, T-METALLIC

Part #: 5450030-602 Required per assembly: 1
Currently Not Available
6
Polaris 5450030-666 Cover, Lh, Rear, Hoop, Blk, Prl

COVER, LH, REAR, HOOP, BLK, PRL

Part #: 5450030-666 Required per assembly: 1
Currently Not Available
6
Polaris 5450030-676 Cover, Lh, Rear, Hoop, Ss, Rd-Pearl

COVER, LH, REAR, HOOP, SS, RD-PEARL

Part #: 5450030-676 Required per assembly: 1
Currently Not Available
7

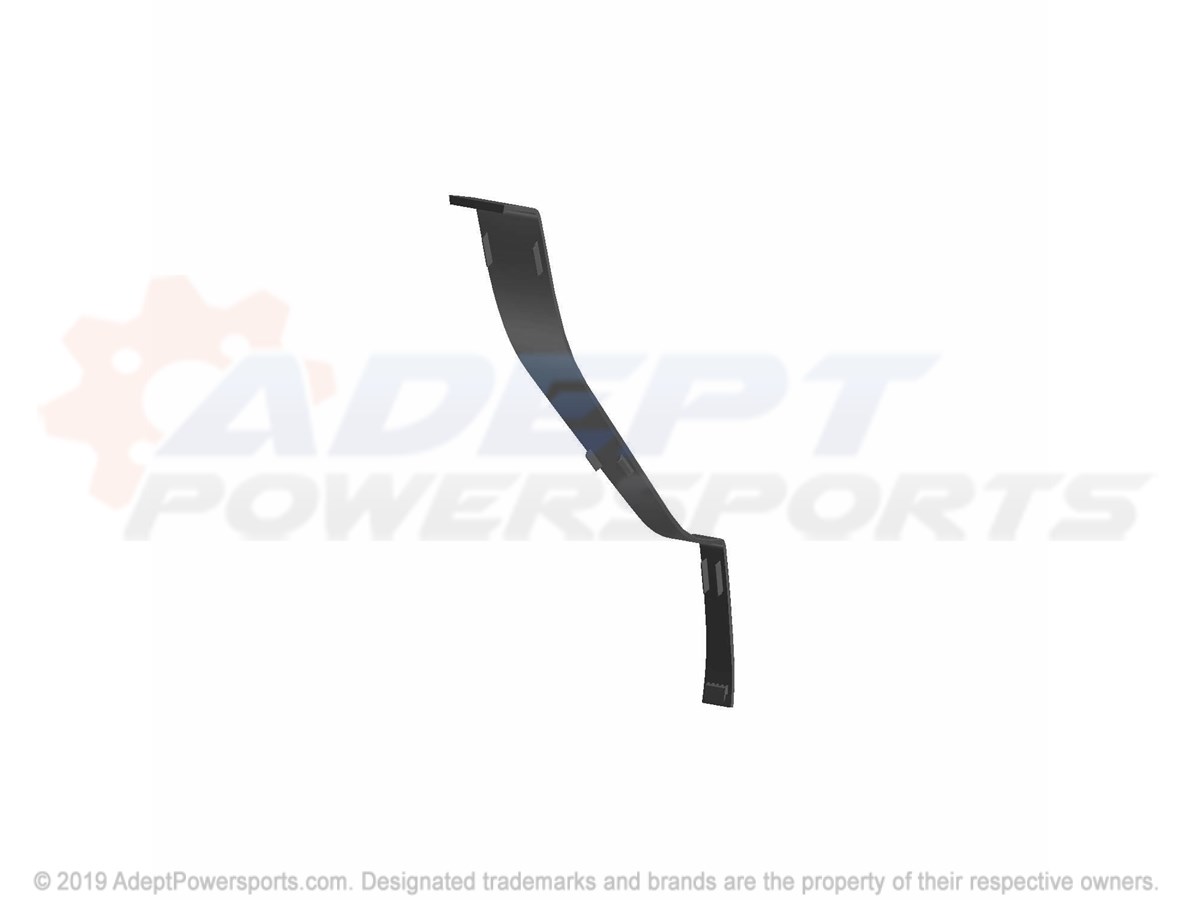

Polaris 5452313 Trim-Chmsl, Upper

TRIM-CHMSL, UPPER

Part #: 5452313 Required per assembly: 1
Currently Not Available
8

SCREW, M4, TXBH

Part #: 7518518
Currently Not Available
9
Polaris 7547324 Nut

NUT

Part #: 7547324
Currently Not Available
10

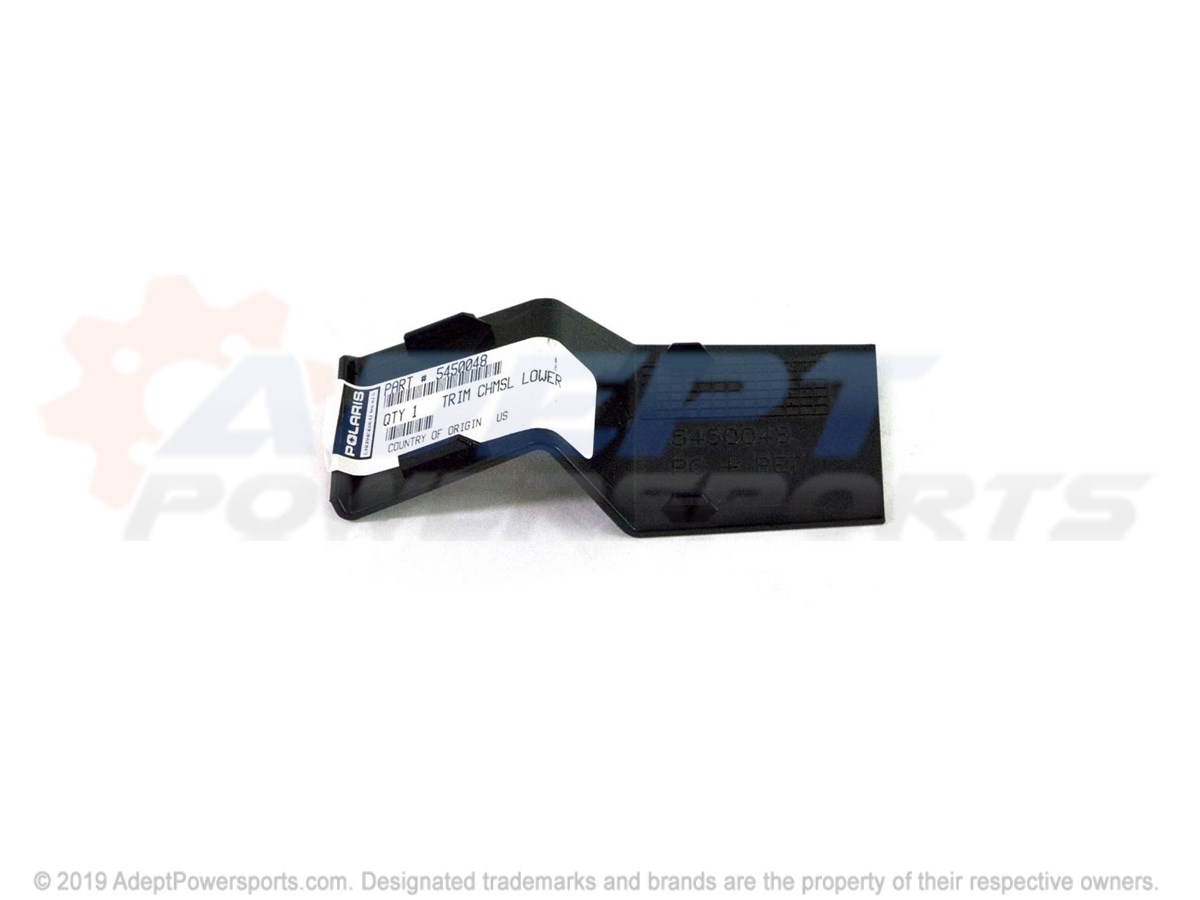

Polaris 5450048 Trim-Chmsl, Lower

TRIM-CHMSL, LOWER

Part #: 5450048 Required per assembly: 1
Currently Not Available
11

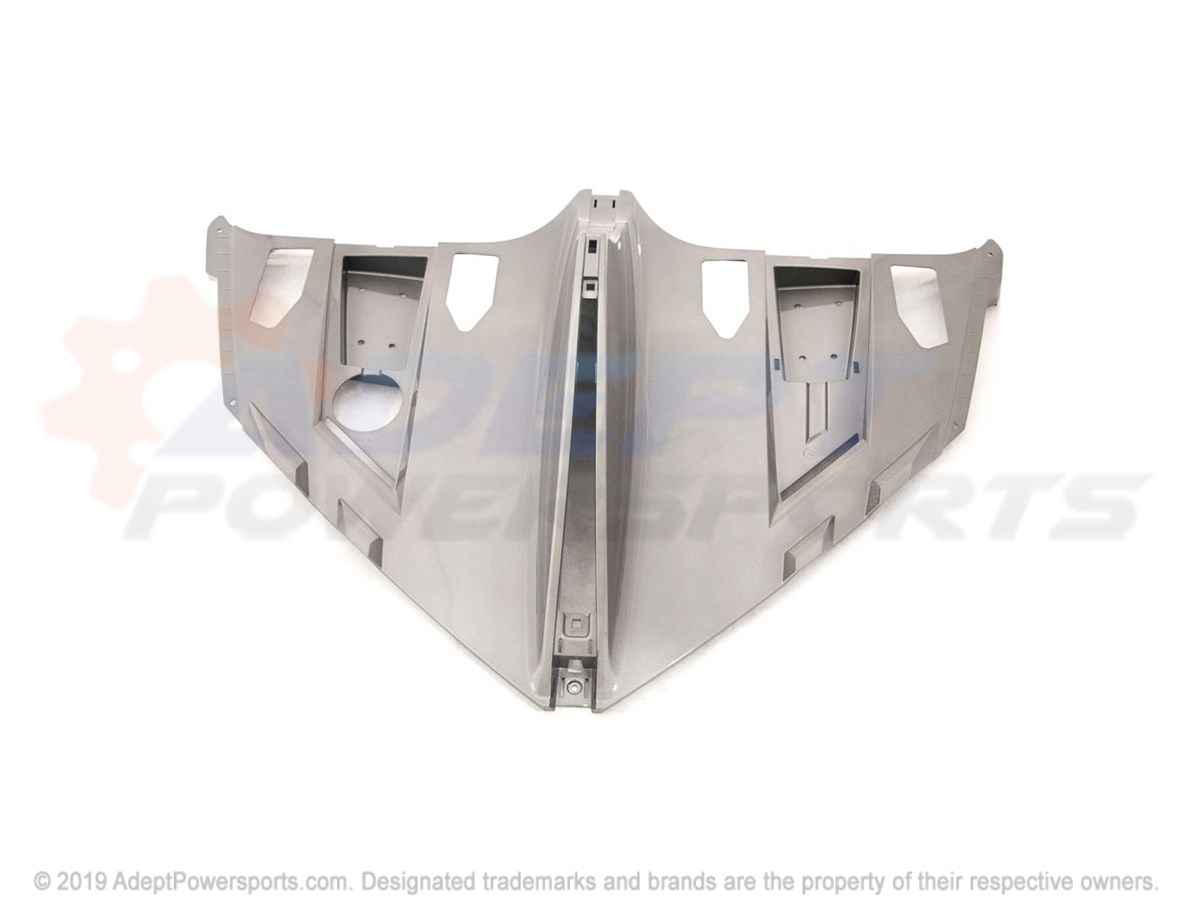

Polaris 5439966-602 Deck-Rear, Top, Titanium, Metalic

DECK-REAR, TOP, TITANIUM, METALIC

Part #: 5439966-602 Required per assembly: 1
Currently Not Available
11

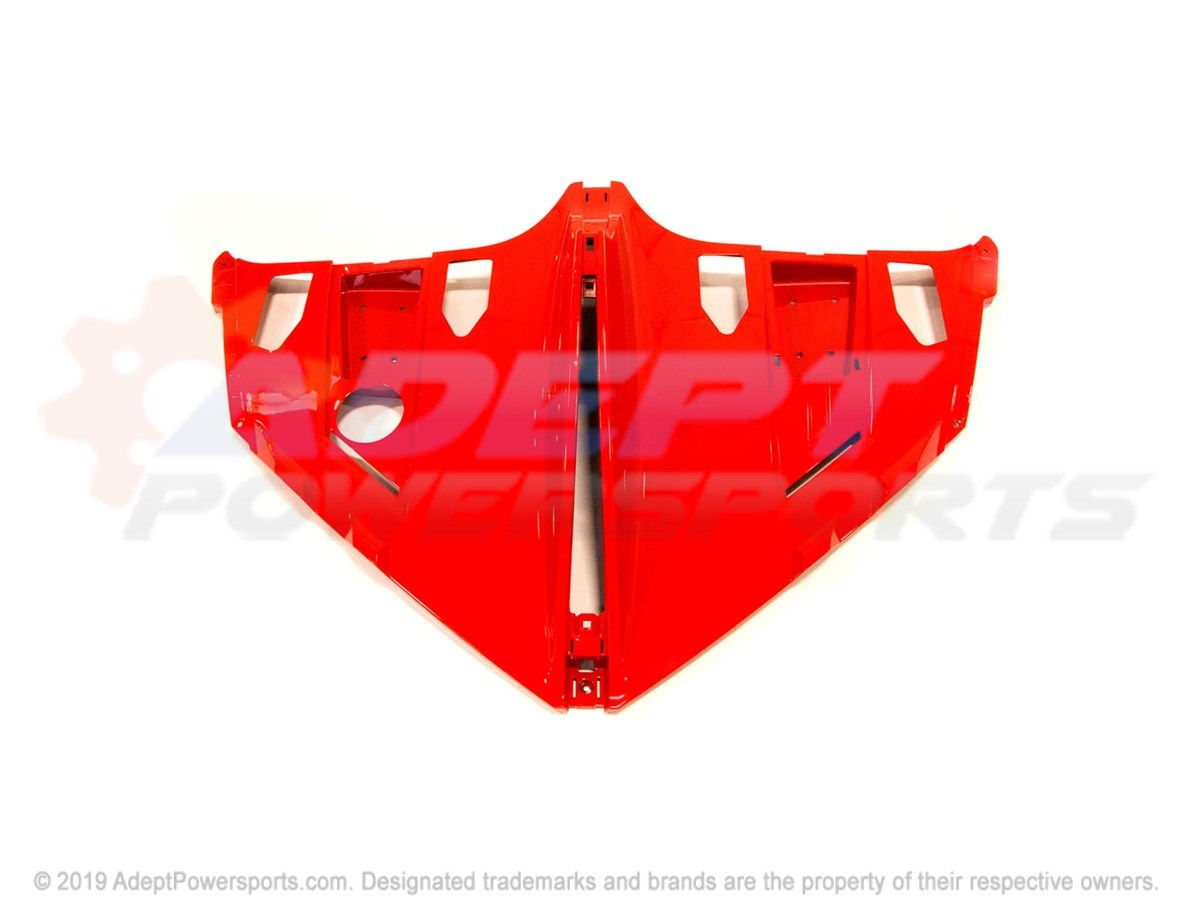

Polaris 5439966-676 Deck-Rear, Top, Slingshot, Rd-Prl

DECK-REAR, TOP, SLINGSHOT, RD-PRL

Part #: 5439966-676 Required per assembly: 1
Currently Not Available
11
Polaris 5458805-666 Deck-Rear, Top, Blk, Prl

DECK-REAR, TOP, BLK, PRL

Part #: 5458805-666 Required per assembly: 1
Currently Not Available
12

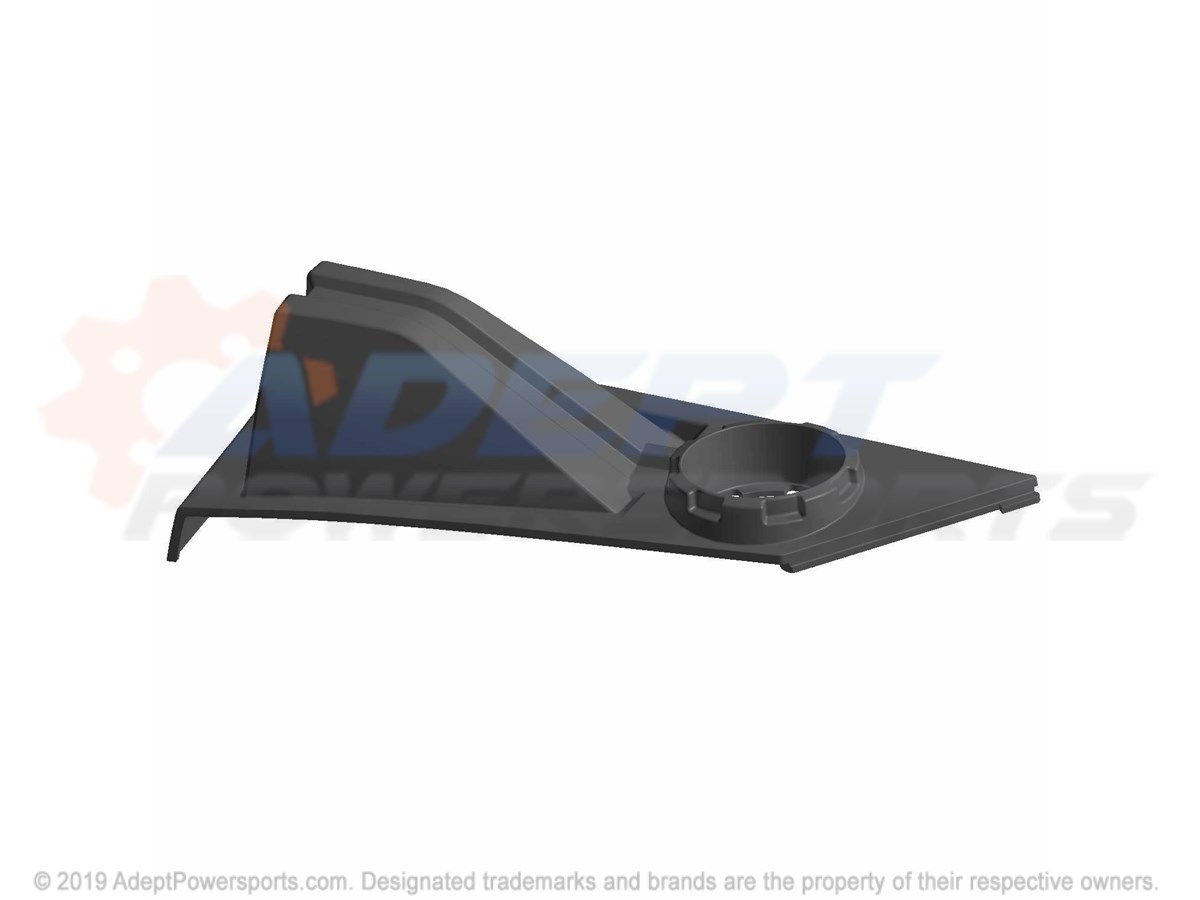

Polaris 5452130 Panel-Rear, Hump, Deck, Lh

PANEL-REAR, HUMP, DECK, LH

Part #: 5452130 Required per assembly: 1
Currently Not Available
13

PANEL-REAR, HUMP, DECK, RH

Part #: 5439968 Required per assembly: 1
Currently Not Available
