OEM Parts Polaris 2016 Polaris Slingshot All Options Seat And Seat Belt Mounting - T16aas/Aap All Options (49Slingshotseat14sling)

2016 Polaris Slingshot All Options T16AAS/AAP - Seat And Seat Belt Mounting - T16aas/Aap All Options (49Slingshotseat14sling)

Seat and Seat Belt Mounting - T16AAS/AAP All Options (49SLINGSHOTSEAT14SLING) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

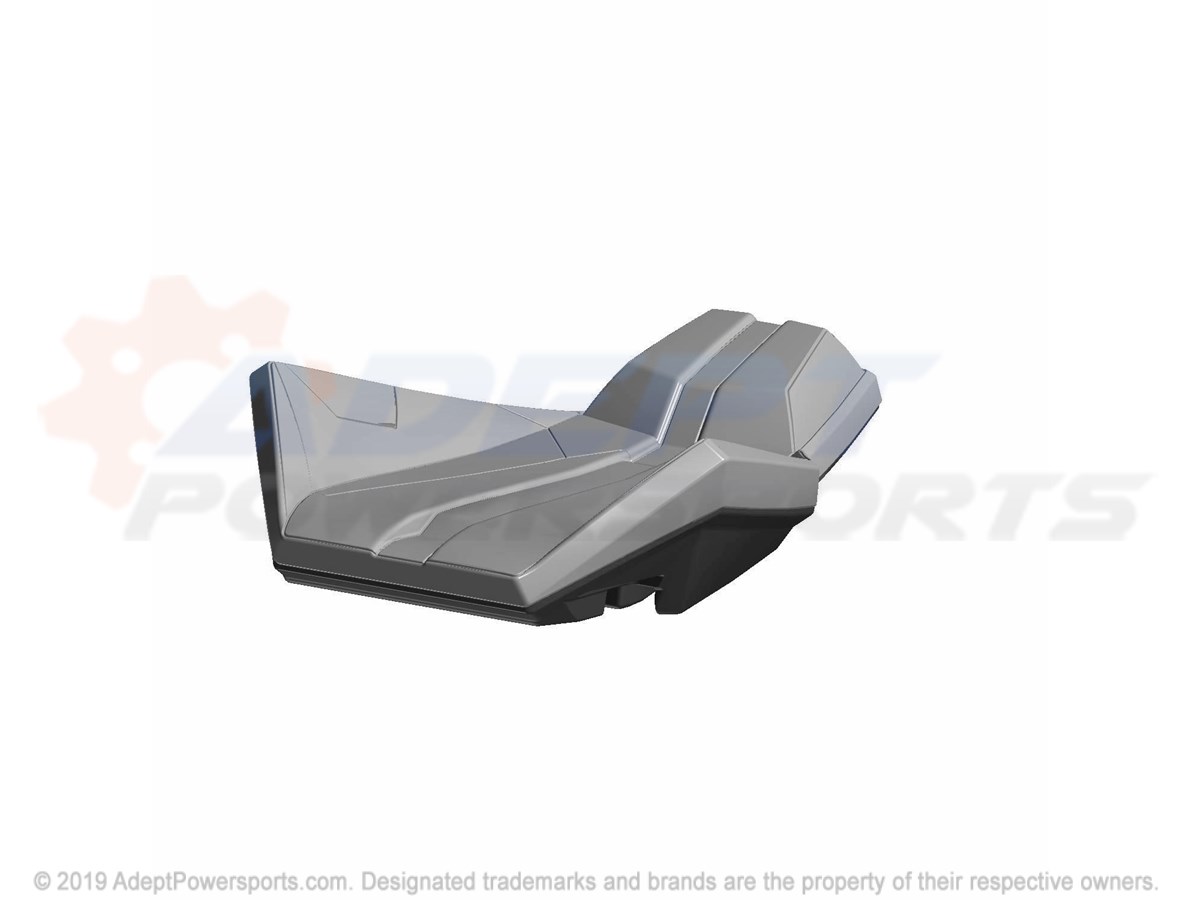

Polaris 2685152-1415 Cushion-Seat, Bottom, T.Met/Blk

CUSHION-SEAT, BOTTOM, T.MET/BLK

Part #: 2685152-1415 Required per assembly: 2
Currently Not Available
1
Polaris 2685152-1417 Cushion-Seat, Bottom, Fb.Red/Blk

CUSHION-SEAT, BOTTOM, FB.RED/BLK

Part #: 2685152-1417 Required per assembly: 2
Currently Not Available
2

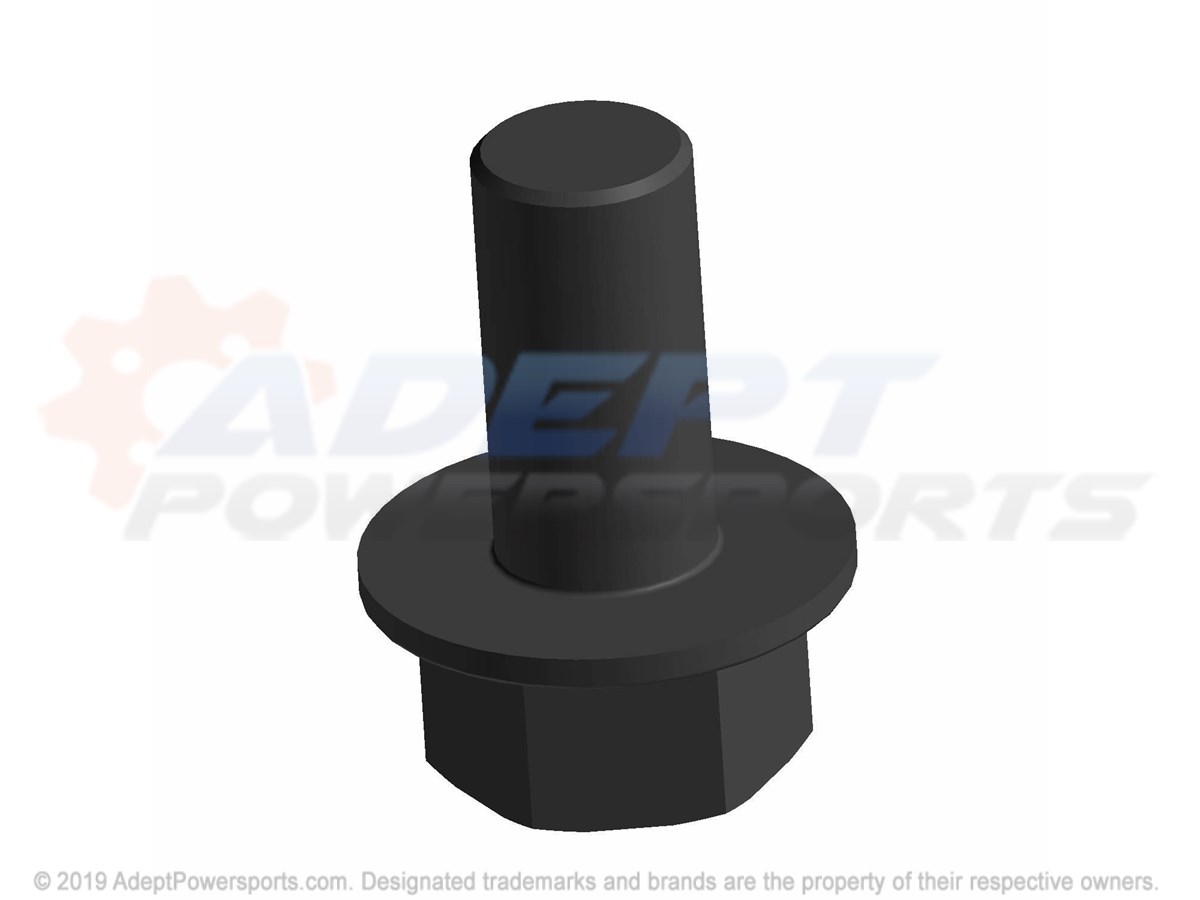

BOLT

Part #: 7512520 Required per assembly: 2
Currently Not Available
3

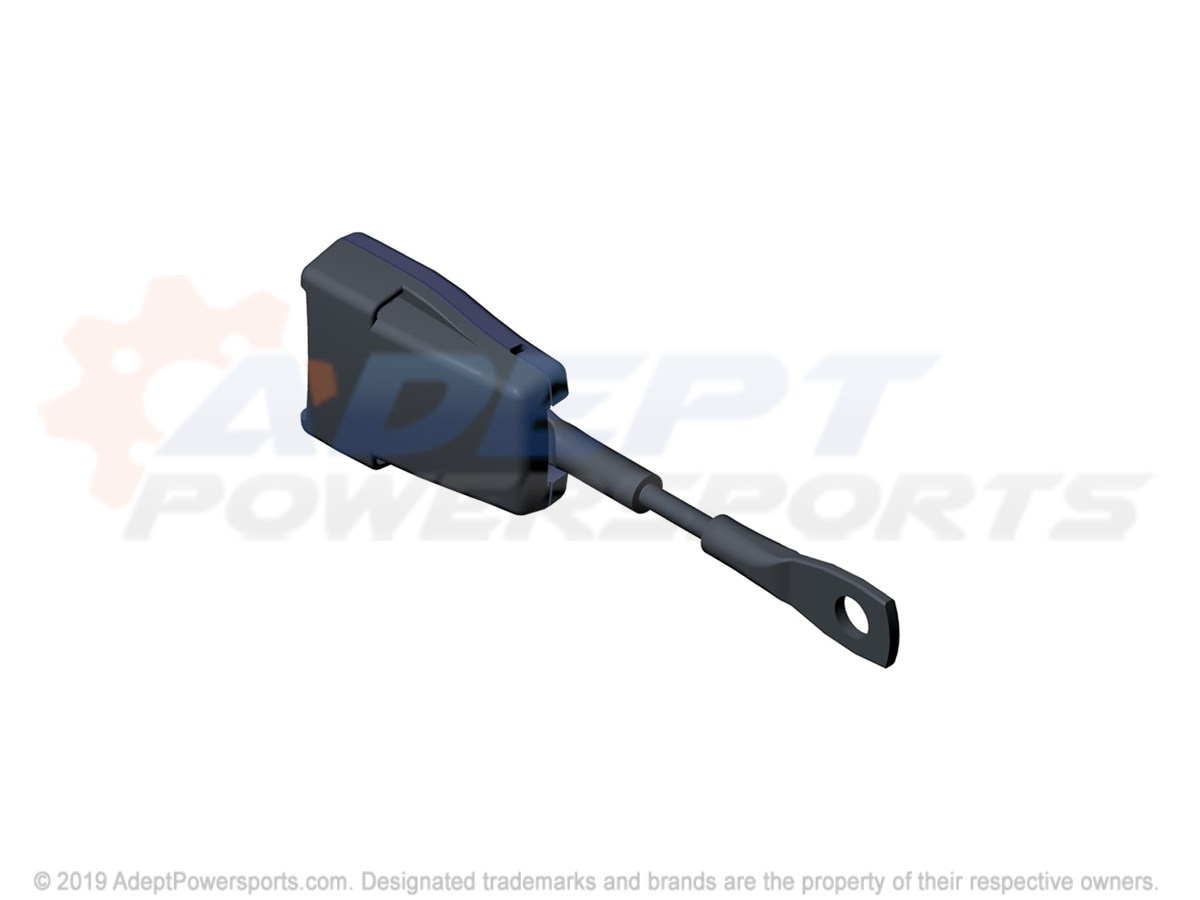

Polaris 2635731 Asm-Seat, Buckle, Pass

ASM-SEAT, BUCKLE, PASS

Part #: 2635731 Required per assembly: 1
Currently Not Available
4

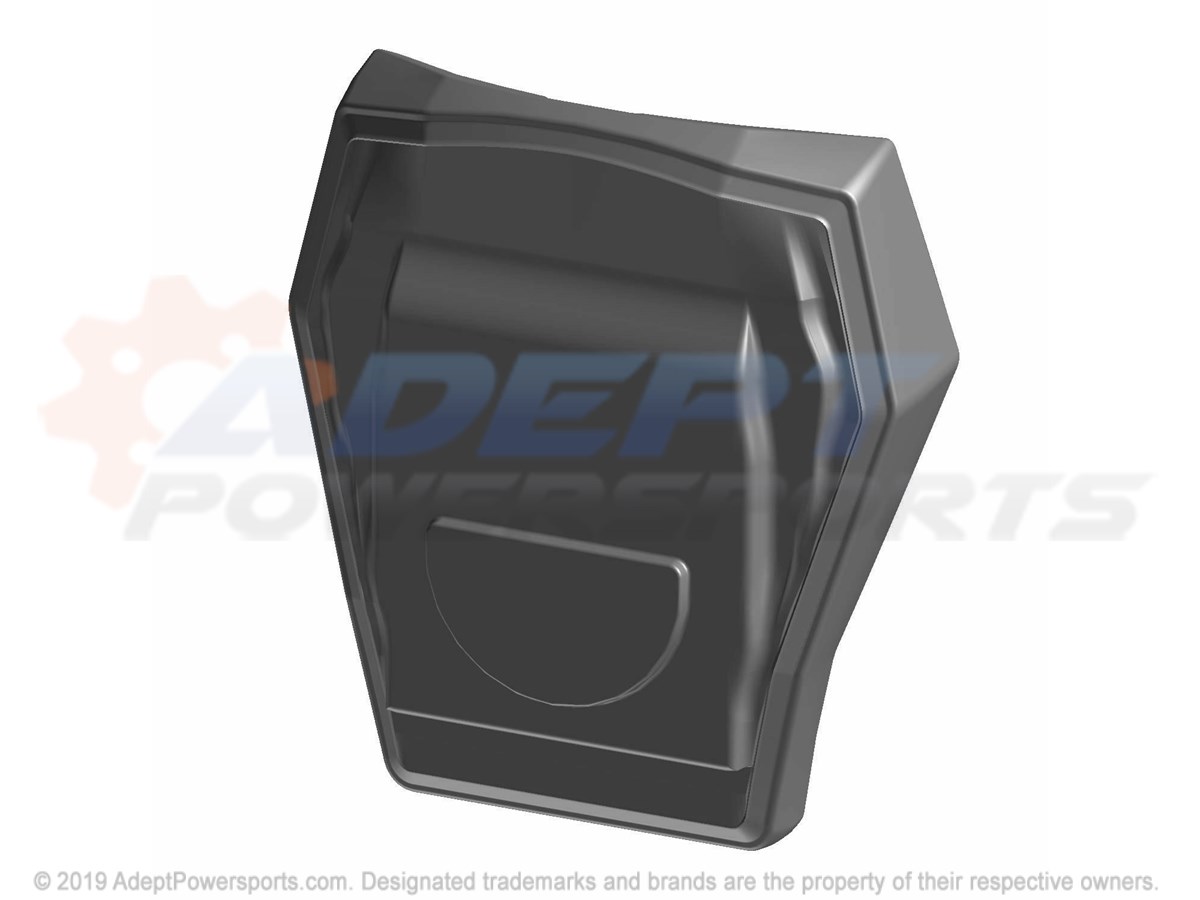

Polaris 2685153-1415 Cushion-Seat, Back, T.Met/Blk

CUSHION-SEAT, BACK, T.MET/BLK

Part #: 2685153-1415 Required per assembly: 2
Currently Not Available
4
Polaris 2685153-1417 Cushion-Seat, Back, Fb.Red/Blk

CUSHION-SEAT, BACK, FB.RED/BLK

Part #: 2685153-1417 Required per assembly: 2
Currently Not Available
5
Polaris 7519770 Screw

SCREW

Part #: 7519770 Required per assembly: 2
Currently Not Available
6
Polaris 5813829 Washer-Seatbelt Rubber

WASHER-SEATBELT RUBBER

Part #: 5813829 Required per assembly: 2
Currently Not Available
7

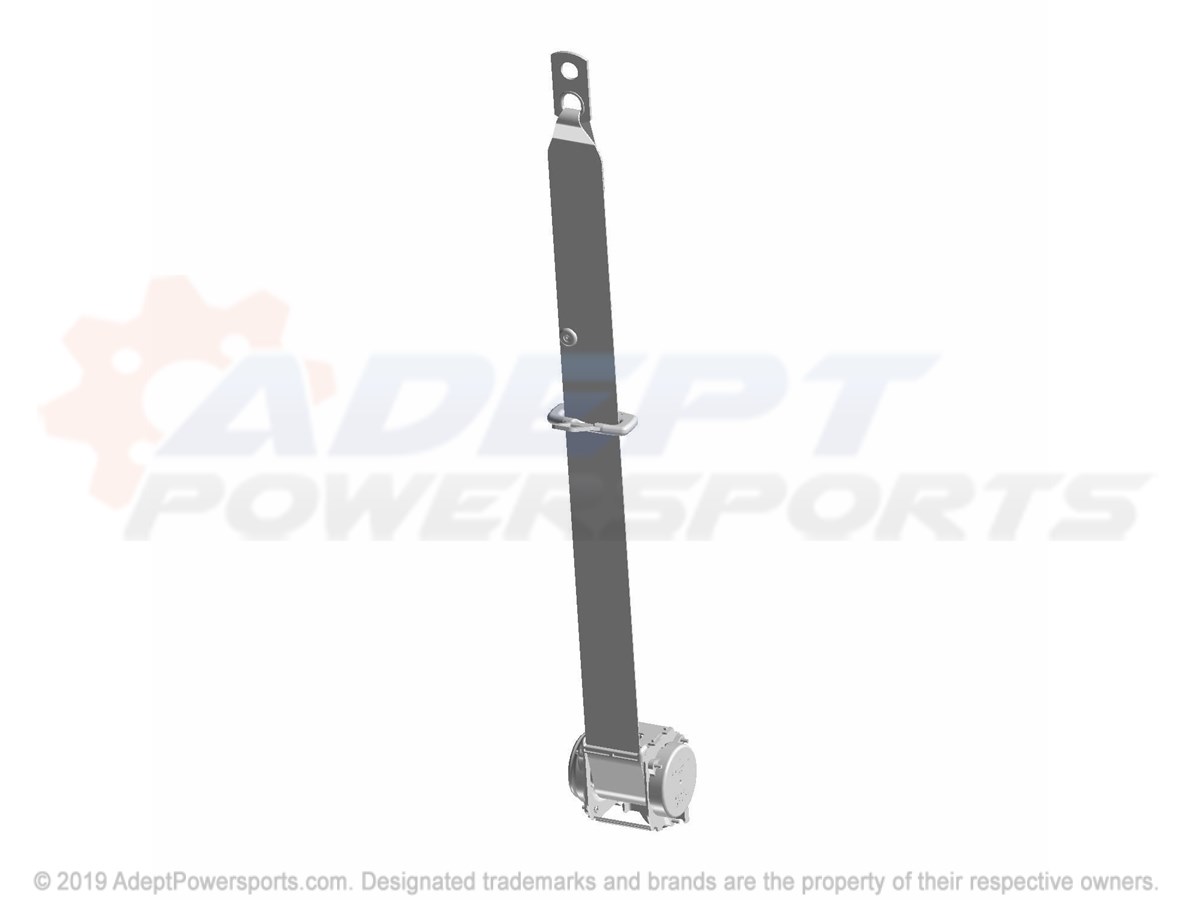

ASM-SEAT BELT

Part #: 2635442 Required per assembly: 2
Currently Not Available
7
Polaris 2635992 Assembly, Seat, Belt, Intl

ASSEMBLY, SEAT, BELT, INTL

Part #: 2635992 Required per assembly: 2 Note: INTL ONLY
Currently Not Available
8

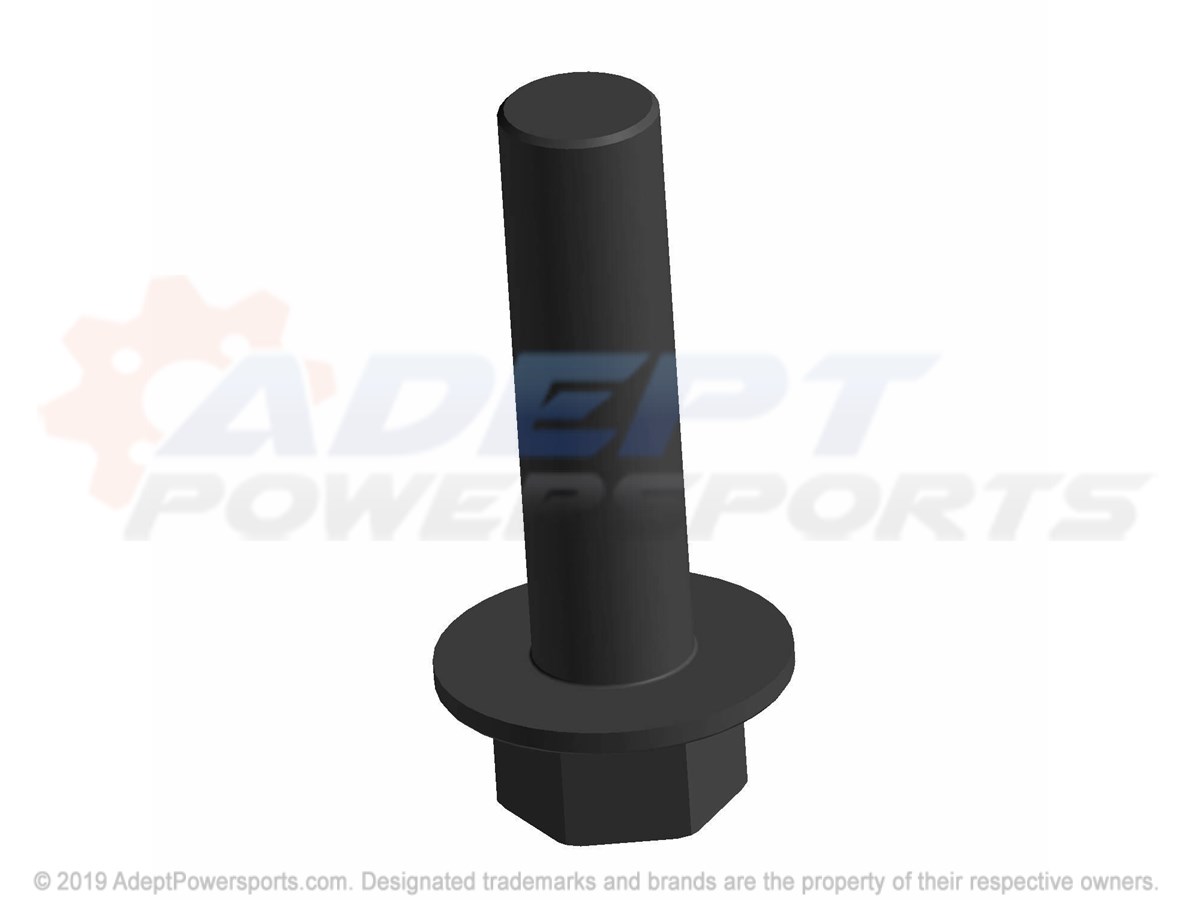

Polaris 7519787 Scr-Hxfl-M10x1.5X20, Cl8.8, Zpb

SCR-HXFL-M10X1.5X20, CL8.8, ZPB

Part #: 7519787 Required per assembly: 8
$6.99
$4.03
-
+
Add to cart
9

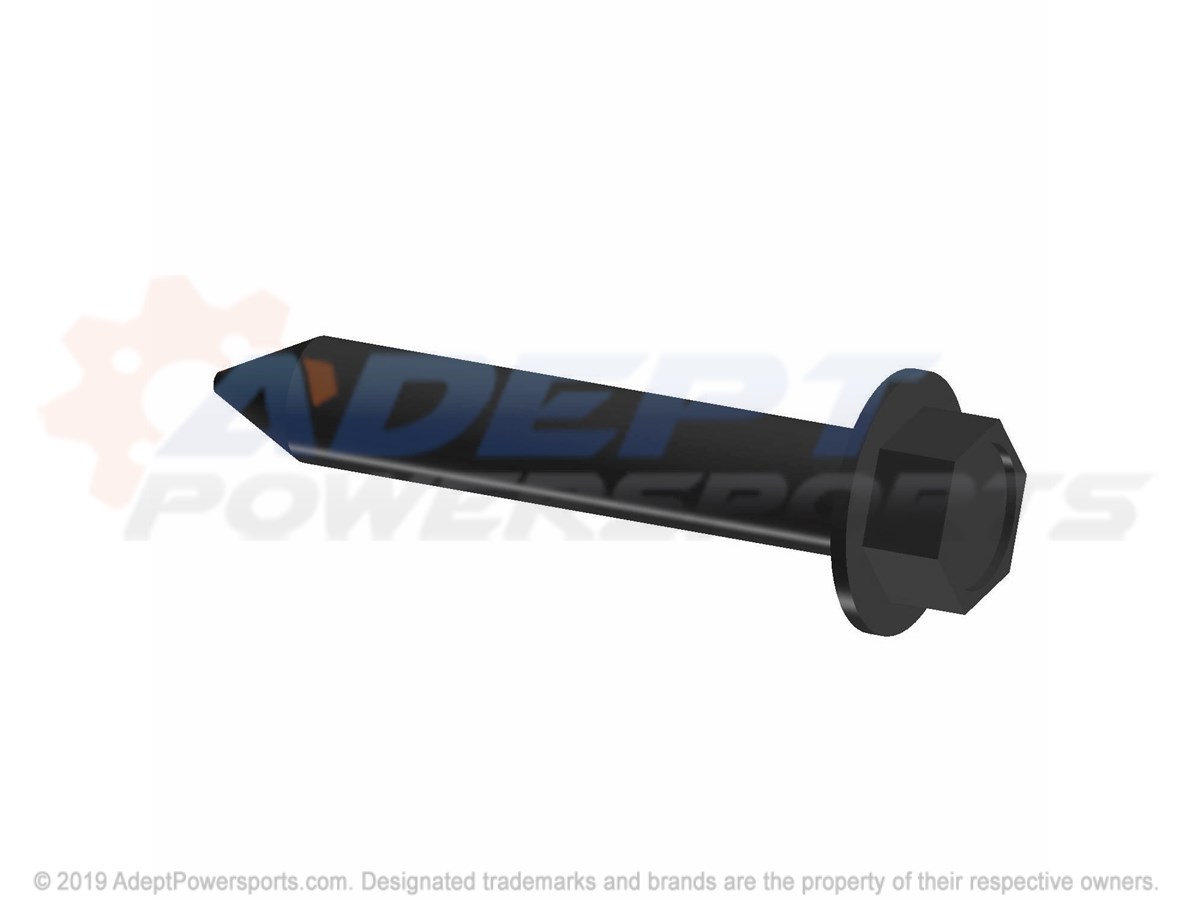

Polaris 7519989 Scr-Hxfl-M6x35, Zincblk.0003

SCR-HXFL-M6X35, ZINCBLK.0003

Part #: 7519989 Required per assembly: 20
Currently Not Available
10
Polaris 7519768 Scr-M12x1.75X45mm, Hxhdflg

SCR-M12X1.75X45MM, HXHDFLG

Part #: 7519768 Required per assembly: 1
Currently Not Available
11
Polaris 7518473 Screw, Flange

SCREW, FLANGE

Part #: 7518473 Required per assembly: 1
Currently Not Available
12

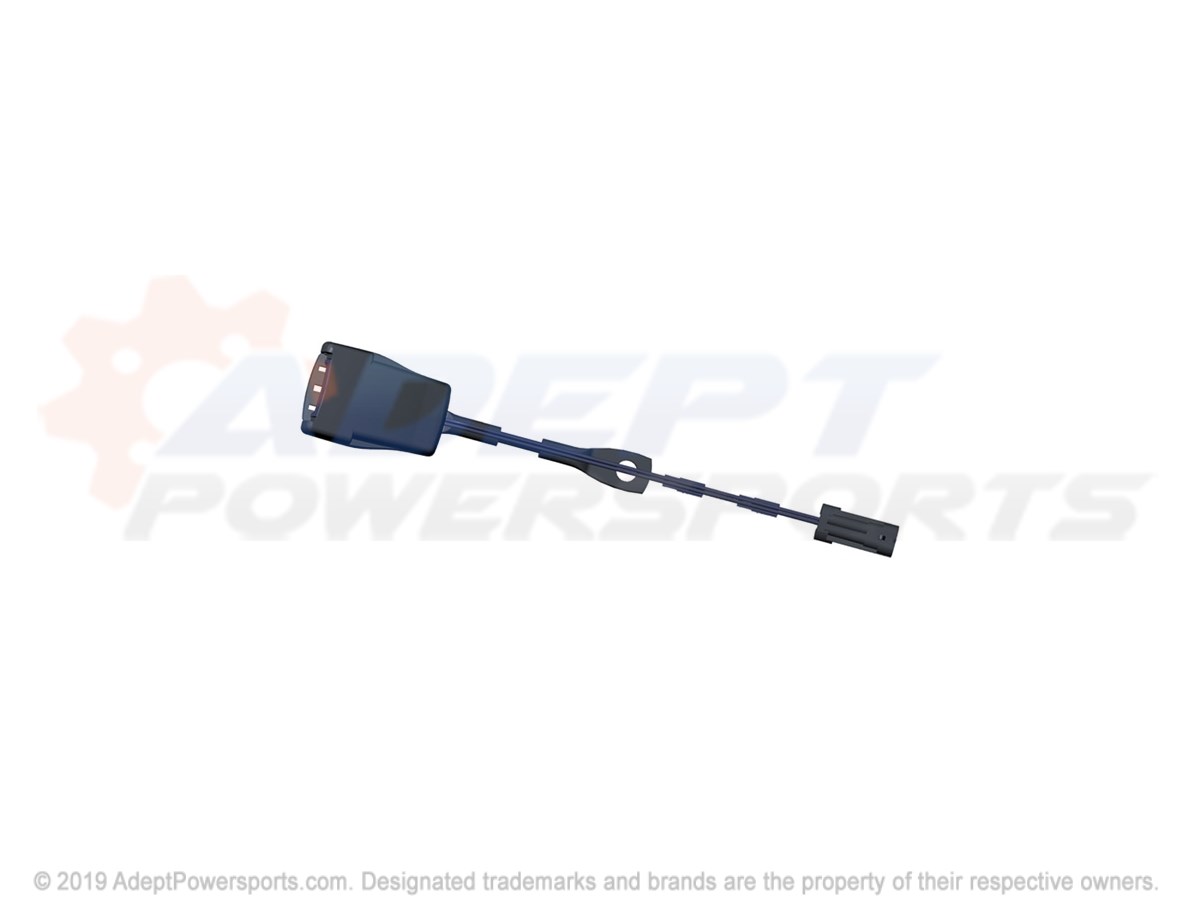

Polaris 2635730 Asm-Seat, Buckle, Drvr

ASM-SEAT, BUCKLE, DRVR

Part #: 2635730 Required per assembly: 1
Currently Not Available
13

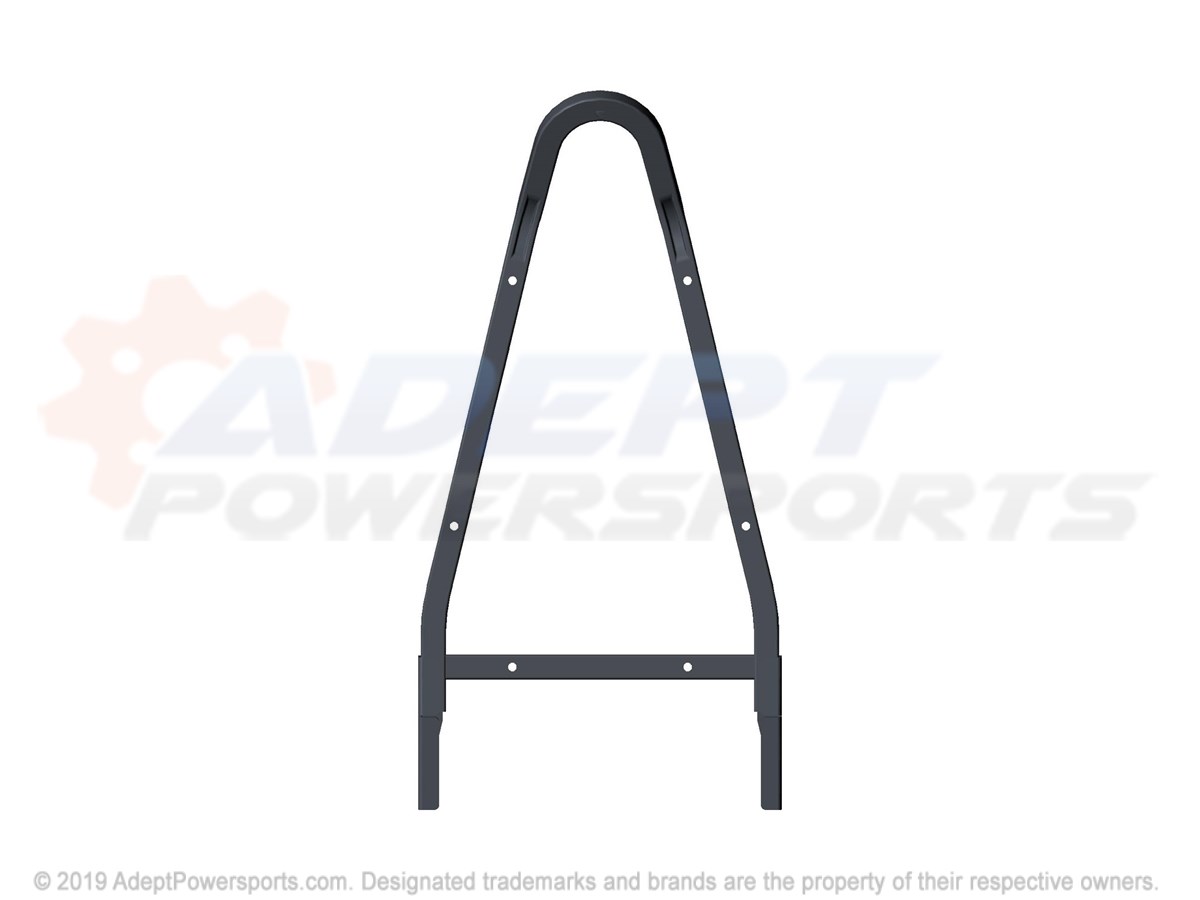

Polaris 1018787 Weld-Frame, Seat, Back

WELD-FRAME, SEAT, BACK

Part #: 1018787 Required per assembly: 2
Currently Not Available
14

WELD-FRAME, SEAT, BTM, RH

Part #: 1024855 Required per assembly: 1
Currently Not Available
15

WELD-FRAME, SEAT, BTM, LH

Part #: 1024854 Required per assembly: 1
Currently Not Available
16
Polaris 7519803 Scr-Hxfl-M10x1.5X30, Cl8.8, Zpb

SCR-HXFL-M10X1.5X30, CL8.8, ZPB

Part #: 7519803 Required per assembly: 8
$6.99
$4.03
-
+
Add to cart
