Box Mounting And Latch - R17b1pd1aa/2P (701608) replacement parts for 2017 Polaris Ranger HST (R07)

OEM Parts Polaris 2017 Polaris Ranger HST (R07) Box Mounting And Latch - R17b1pd1aa/2P (701608)

BOX MOUNTING AND LATCH - R17B1PD1AA/2P (701608) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-BOX, FRAME, BLK Part #: 1020924-329 Required per assembly: 1 Currently Not Available
2	WELD-BOX, LATCH, M.BLK Part #: 1020411-458 Required per assembly: 1 Note: 1P Currently Not Available
3	BUMPER, BOX Part #: 5414343 Required per assembly: 2 ~~$5.99~~ $3.45 - + Add to cart
4	BUSHING, BOX, LATCH Part #: 5434226 Required per assembly: 6 Note: 1P Currently Not Available
4	BUSHING, BOX, LATCH Part #: 5434226 Required per assembly: 6 Note: 1P Currently Not Available
5	SPRING-LATCH Part #: 7044324 Required per assembly: 1 Note: 1P Currently Not Available
6	SPRING-LATCH Part #: 7044325 Required per assembly: 1 Note: 1P Currently Not Available
7	SCREW Part #: 7517793 Required per assembly: 3 Note: 1P Currently Not Available
8	RIVET Part #: 7621460 Required per assembly: 2 ~~$3.97~~ $3.16 - + Add to cart
9	NUT, FLANGE Part #: 7547317 Required per assembly: 3 Note: 1P Currently Not Available
10	SHOCK, BOX, DUMP Part #: 7043906 Required per assembly: 1 Note: 1P Currently Not Available
10	SHOCK, BOX, DUMP Part #: 7043906 Required per assembly: 1 Note: 1P Currently Not Available
10	ACTUATOR-BOX LIFT Part #: 4015887 Required per assembly: 1 Note: 2P Currently Not Available
10	ACTUATOR-BOX LIFT Part #: 4015887 Required per assembly: 1 Note: 2P Currently Not Available
11	SCREW Part #: 7518555 Required per assembly: 6 Note: Bolt, Flange Currently Not Available
12	SCREW Part #: 7519722 Required per assembly: 4 Currently Not Available
13	SCREW Part #: 7519650 Required per assembly: 3 Currently Not Available
14	SCREW Part #: 7519363 Required per assembly: 2 Currently Not Available
15	NUT, FLANGE Part #: 7547333 Required per assembly: 2 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
16	CLIP-HITCHPIN .148X3 1/16 Part #: 7661067 Required per assembly: 2 Note: Clip Currently Not Available
17	PIN, CLEVIS Part #: 7661878 Required per assembly: 2 Currently Not Available
18	WASHER Part #: 7556329 Required per assembly: 7 Currently Not Available

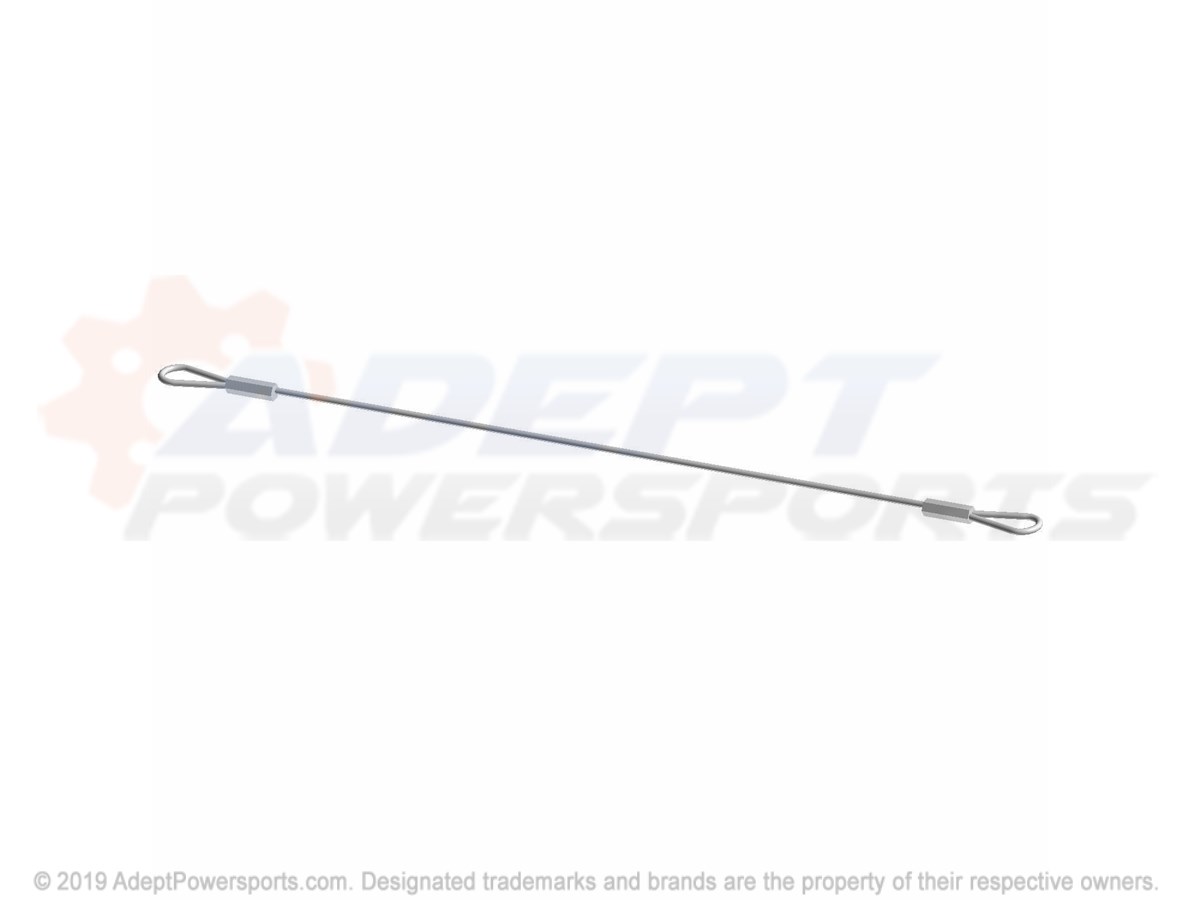

19	CABLE-DUMP, BED, LIMITER, SPLY Part #: 7082288 Required per assembly: 1 Note: 1P Currently Not Available
20	WASHER Part #: 7555721 Required per assembly: 1 Note: 1P ~~$2.99~~ $1.73 - + Add to cart
