Rear - R17b1pd1aa/2P (701038) replacement parts for 2017 Polaris Ranger HST (R07)

OEM Parts Polaris 2017 Polaris Ranger HST (R07) Rear - R17b1pd1aa/2P (701038)

REAR - R17B1PD1AA/2P (701038) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	LINK, UPPER, MATTE, BLACK Part #: 1018392-458 Required per assembly: 1 Currently Not Available
2	SHAFT, PIVOT Part #: 5138794 Required per assembly: 2 Currently Not Available
3	BUSHING Part #: 5439874 Required per assembly: 12 Currently Not Available
3	BUSHING Part #: 5439874 Required per assembly: 12 Currently Not Available
4	BOLT Part #: 7518566 Required per assembly: 2 Currently Not Available
5	NUT, FLANGE Part #: 7547333 Required per assembly: 7 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
5	NUT, FLANGE Part #: 7547333 Required per assembly: 7 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
5	NUT, FLANGE Part #: 7547333 Required per assembly: 7 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
6	WASHER, FLAT Part #: 7556153 Required per assembly: 6 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
6	WASHER, FLAT Part #: 7556153 Required per assembly: 6 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
6	WASHER, FLAT Part #: 7556153 Required per assembly: 6 Note: Washer ~~$3.99~~ $2.30 - + Add to cart

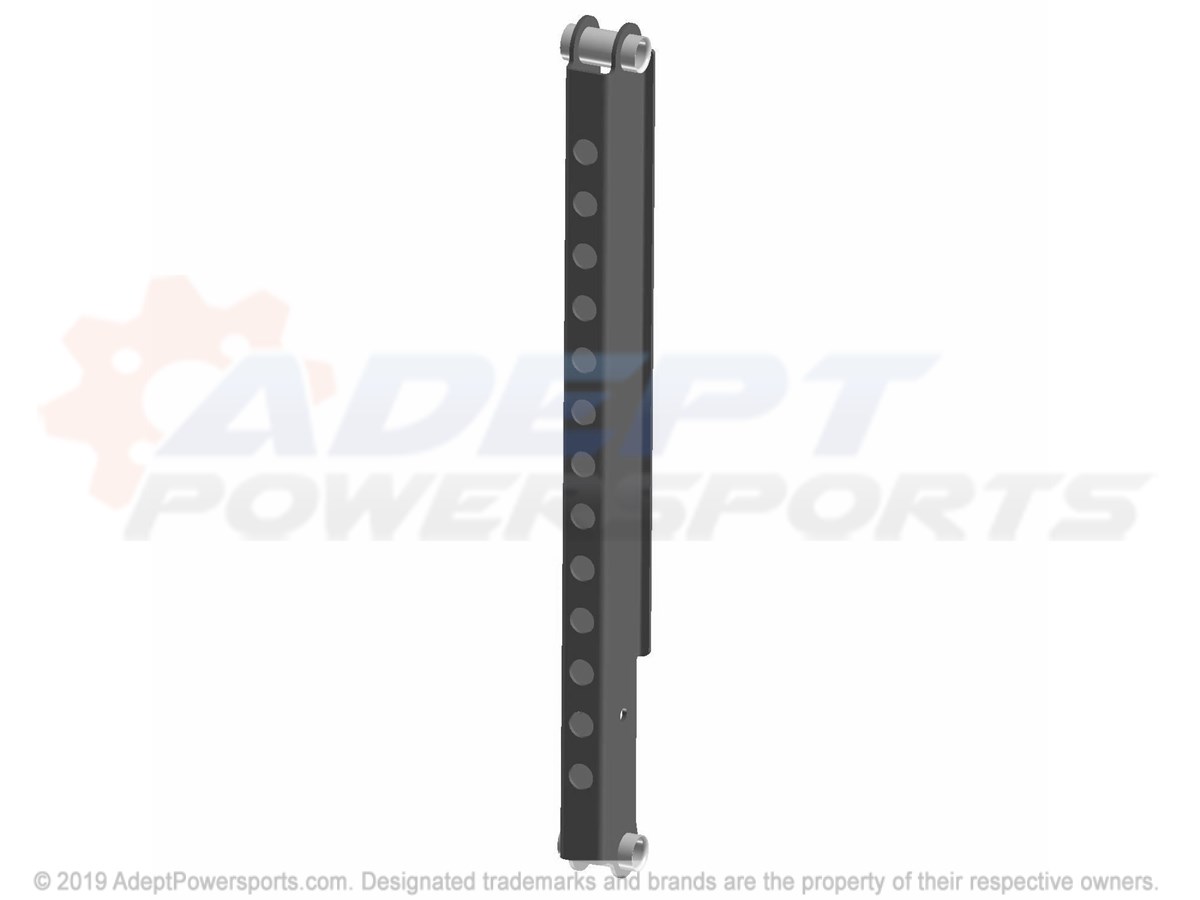

7	WELD-LOWER, LINK, BLK Part #: 1023203-458 Required per assembly: 2 Currently Not Available
8	SHAFT, PIVOT Part #: 5138797 Required per assembly: 4 Currently Not Available
8	SHAFT, PIVOT Part #: 5138797 Required per assembly: 4 Currently Not Available
9	FITTING, LUBE. Part #: 7080424 Required per assembly: 6 Note: Fitting, Lubrication Currently Not Available
10	SCREW Part #: 7519043 Required per assembly: 4 Note: Bolt Currently Not Available
10	SCREW Part #: 7519043 Required per assembly: 4 Note: Bolt Currently Not Available

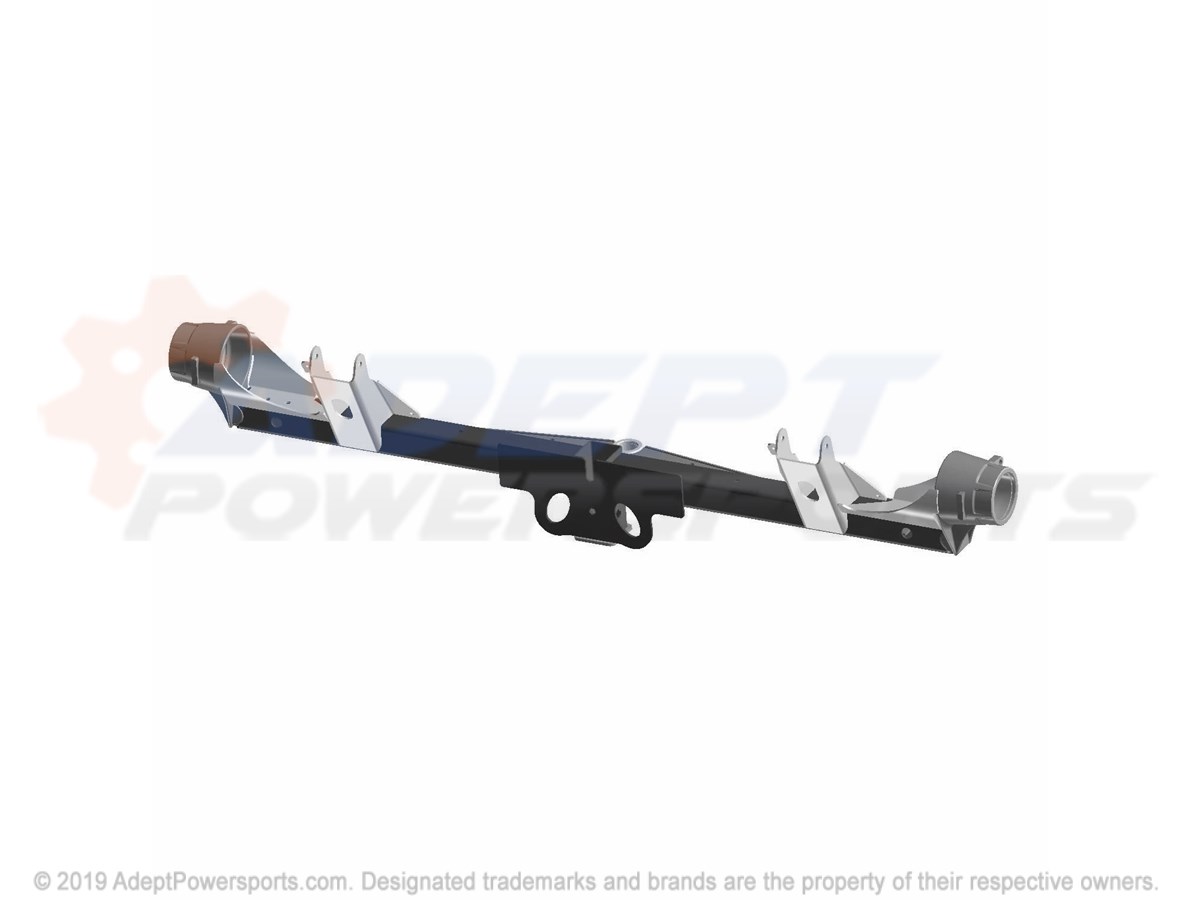

11	WELD-REAR, AXLE, BLK Part #: 1022812-458 Required per assembly: 1 Currently Not Available
12	BEARING, CARRIER, WHEEL Part #: 3514635 Required per assembly: 2 Note: Bearing, Carrier, Wheel Currently Not Available
13	BEARING, SPHERICAL, LOWER Part #: 2204229 Required per assembly: 1 Currently Not Available
14	RING, RETAINING Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
15	RING, RETAINING Part #: 7710539 Required per assembly: 1 Currently Not Available
16	SCREW Part #: 7519903 Required per assembly: 1 Currently Not Available
17	NUT Part #: 7547423 Required per assembly: 1 Currently Not Available
