TIMING PULLEY, TIMING BELT, JOCKEY PULLEY - R17B1PD1AA/2P (49BRUTUSTIMING15DSL) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 3040229 Required per assembly: 1 Currently Not Available
2	WASHER 11X33X5 Part #: 3040147 Required per assembly: 1 Currently Not Available
3	NUT M10X1.5 Part #: 3040056 Required per assembly: 1 Currently Not Available
4	WASHER 10.5X32X4 Part #: 3040142 Required per assembly: 1 Currently Not Available
5	STUD M10X70 Part #: 3040134 Required per assembly: 1 Currently Not Available
6	BELT TENSIONER Part #: 3040069 Required per assembly: 1 Currently Not Available

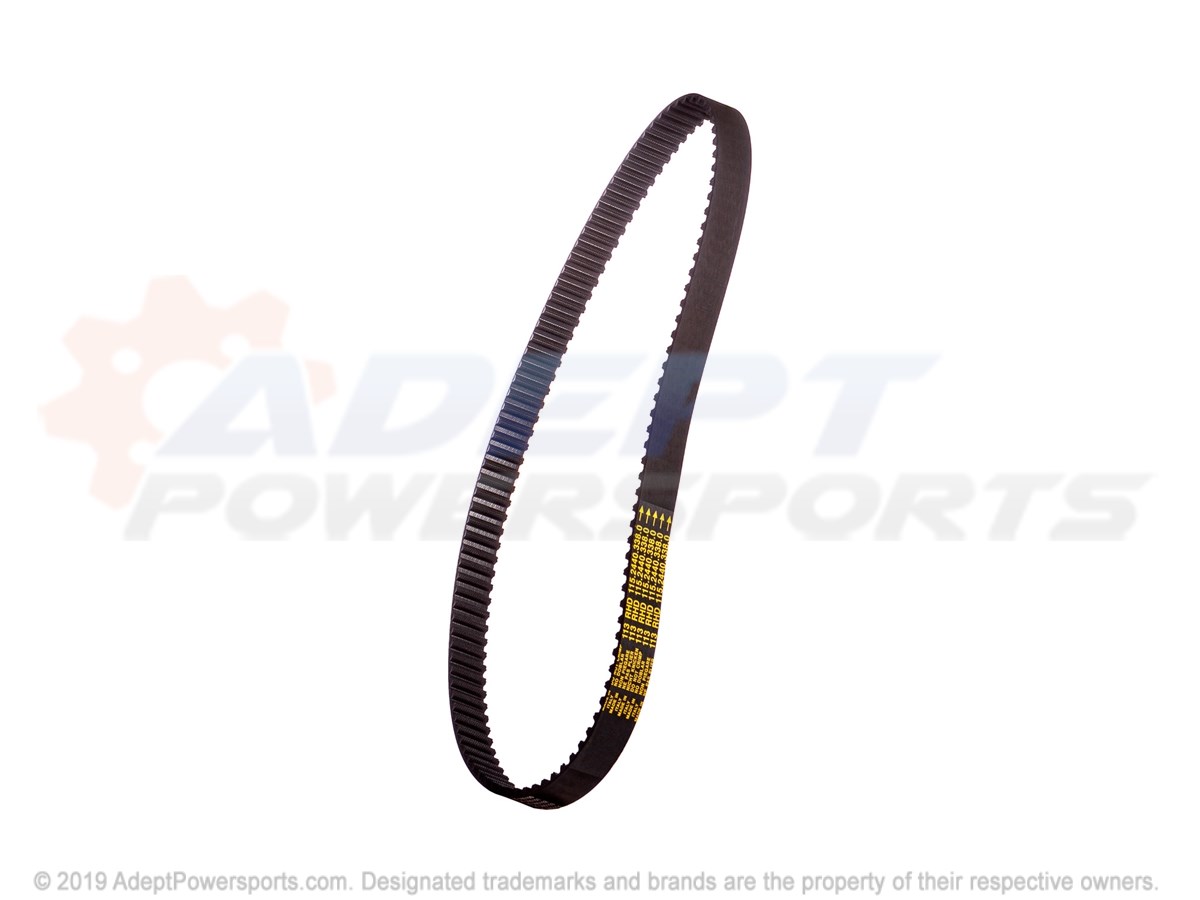

7	TIMING BELT Part #: 3040043 Required per assembly: 1 Currently Not Available
8	TIMING DRIVING PULLEY Part #: 3040136 Required per assembly: 1 Currently Not Available
9	TIMING DRIVEN PULLEY Part #: 3040138 Required per assembly: 1 Currently Not Available
