Steering - R17b1pd1aa/2P (700663) replacement parts for 2017 Polaris Ranger HST (R07)

OEM Parts Polaris 2017 Polaris Ranger HST (R07) Steering - R17b1pd1aa/2P (700663)

STEERING - R17B1PD1AA/2P (700663) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

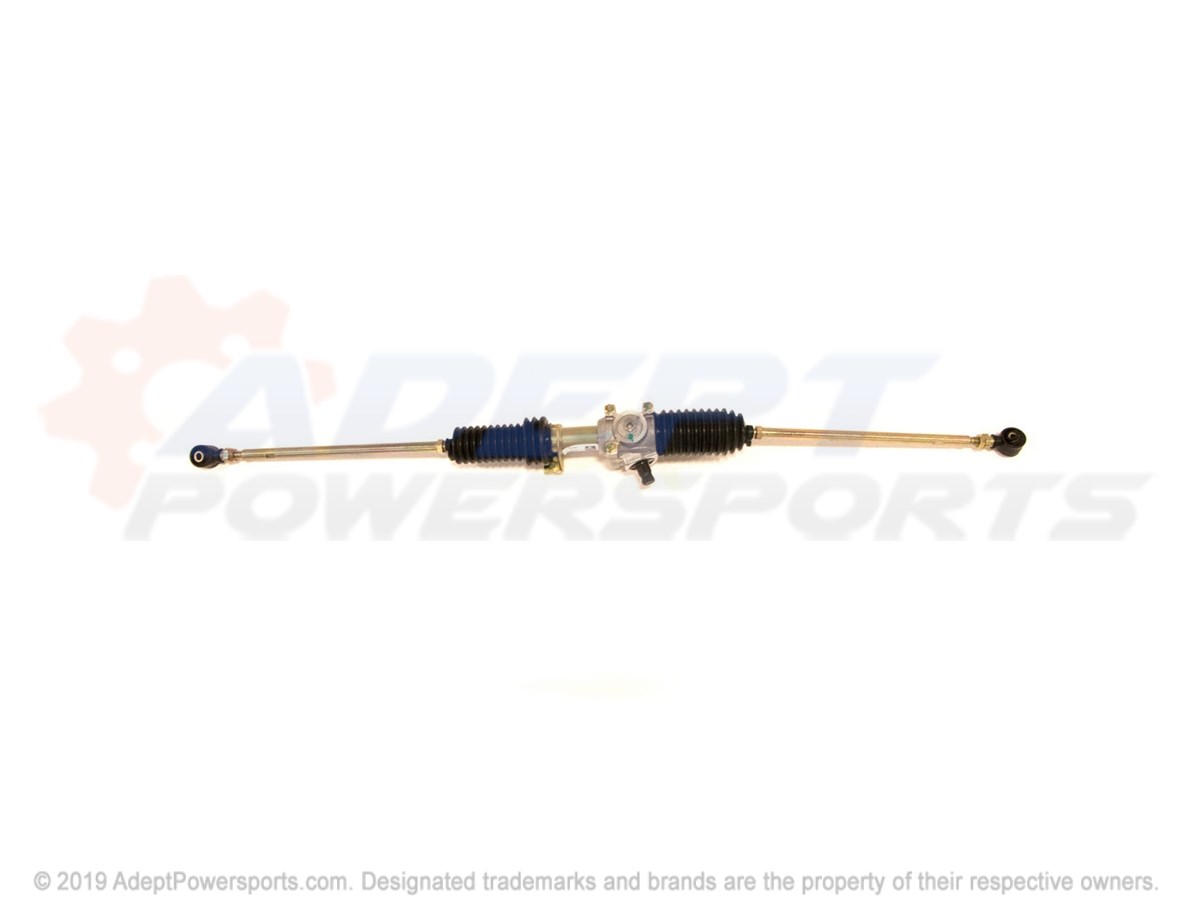

1	ASSEMBLY, GEAR, BOX, STEERING Part #: 1823902 Required per assembly: 1 Note: INCL. 2-7 Currently Not Available
2	BOOT, DRIVER, SIDE, RACK Part #: 5412012 Required per assembly: 1 $74.99 $36.99 - + Add to cart
3	BOOT, PASSENGER, SIDE, RACK Part #: 5412013 Required per assembly: 1 Currently Not Available
4	BALL-JOINT, 8MM, 5140 Part #: 7061220 Required per assembly: 2 Currently Not Available
5	NUT, LH, JAM Part #: 7547028 Required per assembly: 2 Note: Nut, Jam, LH $3.99 $2.30 - + Add to cart
6	CLAMP, BOOT, SMALL Part #: 7080978 Required per assembly: 2 $4.79 $2.30 - + Add to cart
7	CLAMP, BOOT, LARGE Part #: 7080979 Required per assembly: 2 Currently Not Available

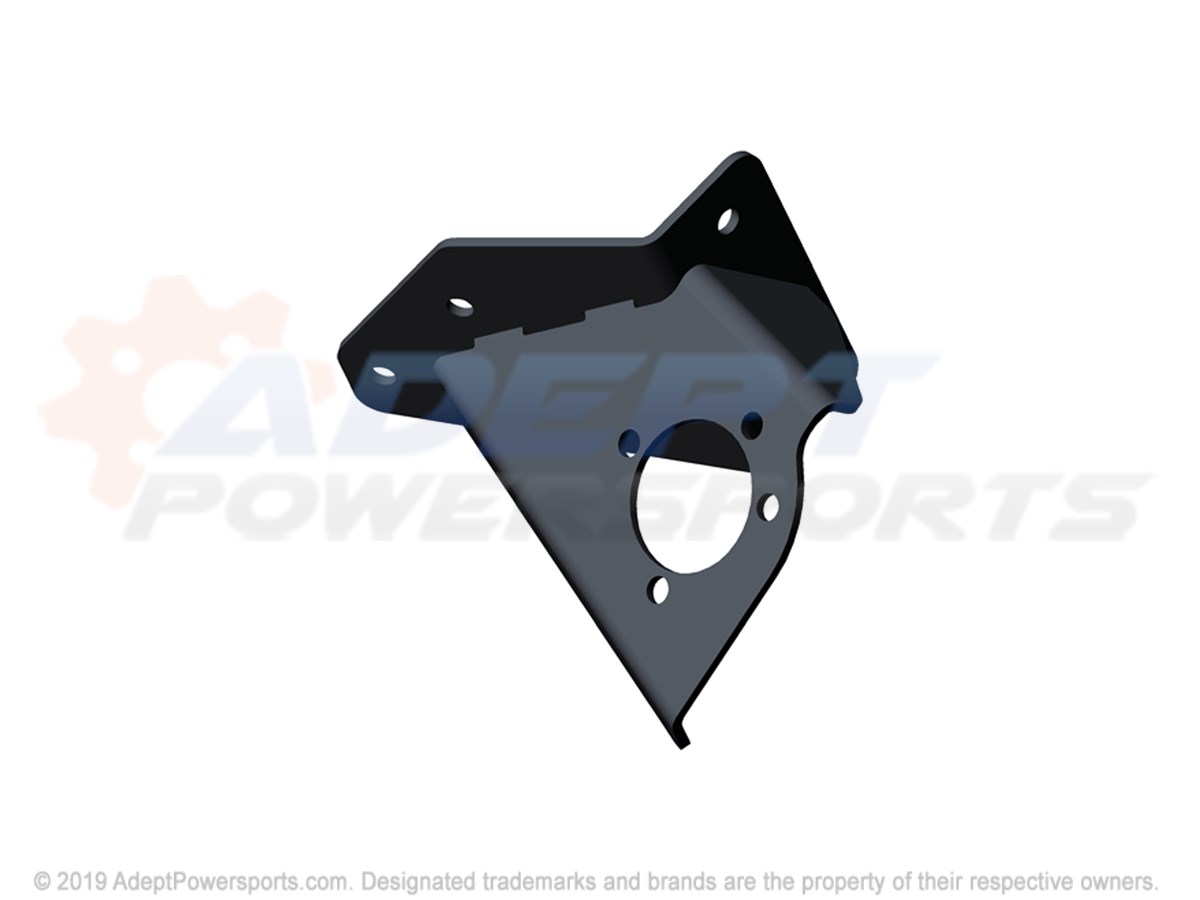

8	MOUNT, HYDRAULIC, STEERING, BLACK Part #: 1018694-329 Required per assembly: 1 Currently Not Available
9	BOLT Part #: 7517909 Required per assembly: 2 Note: Bolt Currently Not Available
10	NUT, FLANGE Part #: 7547332 Required per assembly: 9 Note: Nut, Nylok Currently Not Available
10	NUT, FLANGE Part #: 7547332 Required per assembly: 9 Note: Nut, Nylok Currently Not Available
10	NUT, FLANGE Part #: 7547332 Required per assembly: 9 Note: Nut, Nylok Currently Not Available
10	NUT, FLANGE Part #: 7547332 Required per assembly: 9 Note: Nut, Nylok Currently Not Available
11	NUT, NYLOK Part #: 7547385 Required per assembly: 1 Currently Not Available
12	PIN COTTER Part #: 7661203 Required per assembly: 2 $1.99 $1.15 - + Add to cart
13	ASM-TILT, STEERING, RVTD, M10, BLK Part #: 1824420-458 Required per assembly: 1 Note: INCL. 21 Currently Not Available
14	SCREW Part #: 7518665 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
15	NUT, FLANGE Part #: 7547333 Required per assembly: 2 Note: M10 x 1.25 $3.74 $2.23 - + Add to cart
16	ASSEMBLY, SHOCK, OIL, LOCKING Part #: 7044098 Required per assembly: 1 Currently Not Available
17	BOLT-SHOULDER, M8-15, M6X1.0-BLK Part #: 7519980 Required per assembly: 2 Currently Not Available
18	CAP-STEERING WHEEL Part #: 5438865 Required per assembly: 1 Currently Not Available
19	NUT, METRIC Part #: 7546703 Required per assembly: 2 $1.99 $1.15 - + Add to cart
20	WHEEL, STEERING Part #: 1823622 Required per assembly: 1 Currently Not Available
21	BUSHING, STEERING Part #: 7556675 Required per assembly: 2 Currently Not Available
21	BUSHING, STEERING Part #: 7556675 Required per assembly: 2 Currently Not Available
22	SHAFT, STEERING, UPPER Part #: 1823891 Required per assembly: 1 Currently Not Available

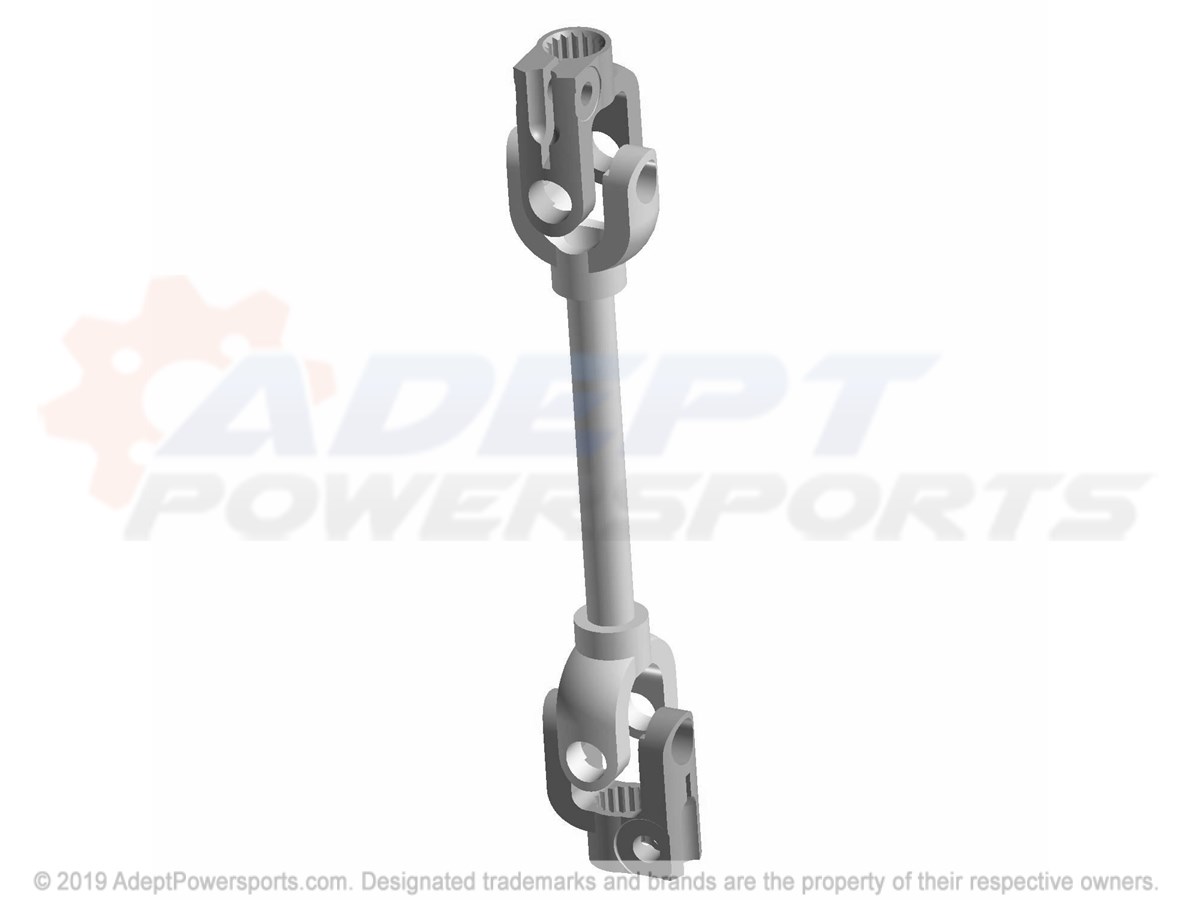

23	SHAFT, STEERING, LOWER, W/JOINTS Part #: 1823966 Required per assembly: 1 Currently Not Available
24	SCREW Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
25	SCREW Part #: 7519052 Required per assembly: 2 Currently Not Available
25	SCREW Part #: 7519052 Required per assembly: 2 Currently Not Available
26	SCREW Part #: 7519645 Required per assembly: 4 Currently Not Available
27	NUT-HEX-M16X2 8 ZC NYL Part #: 7547506 Required per assembly: 1 Currently Not Available
28	FITTING Part #: 3120010 Required per assembly: 1 Currently Not Available

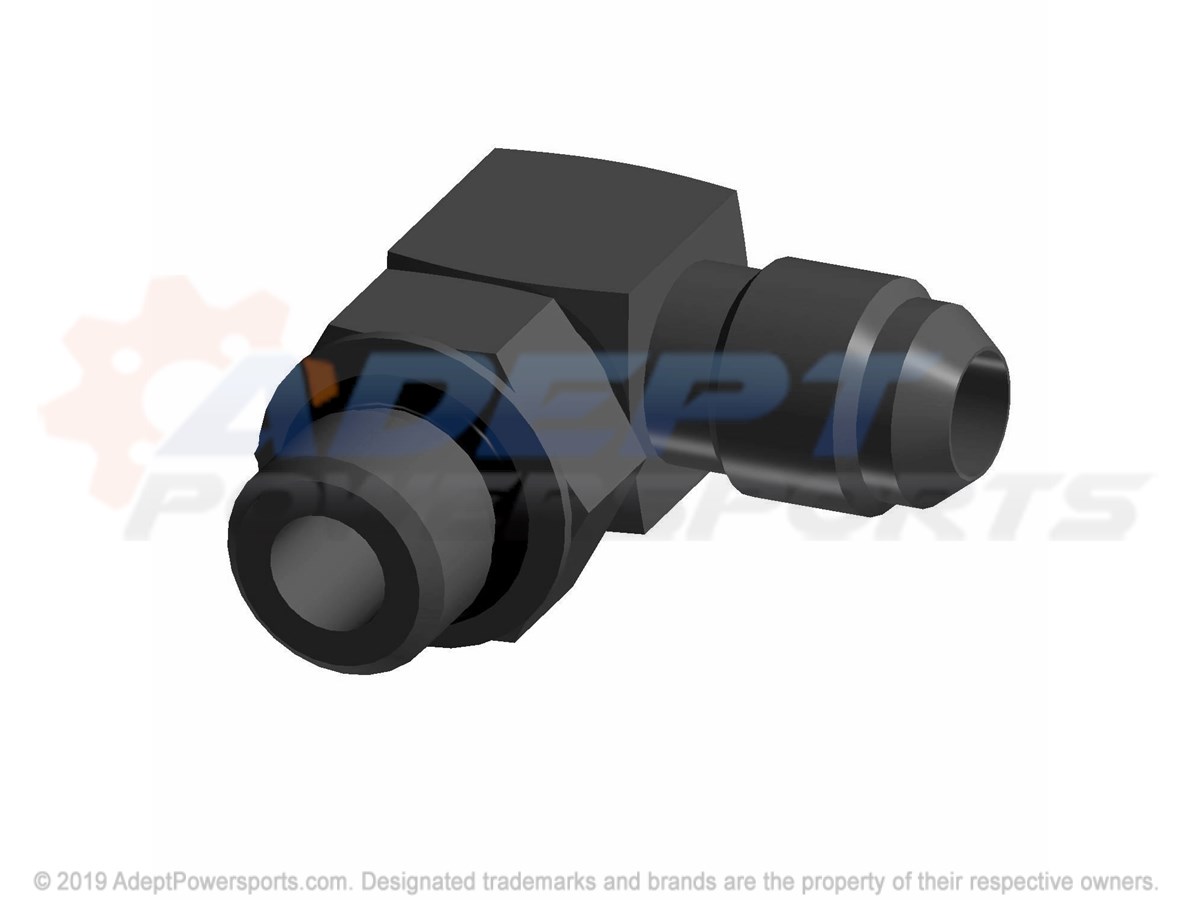

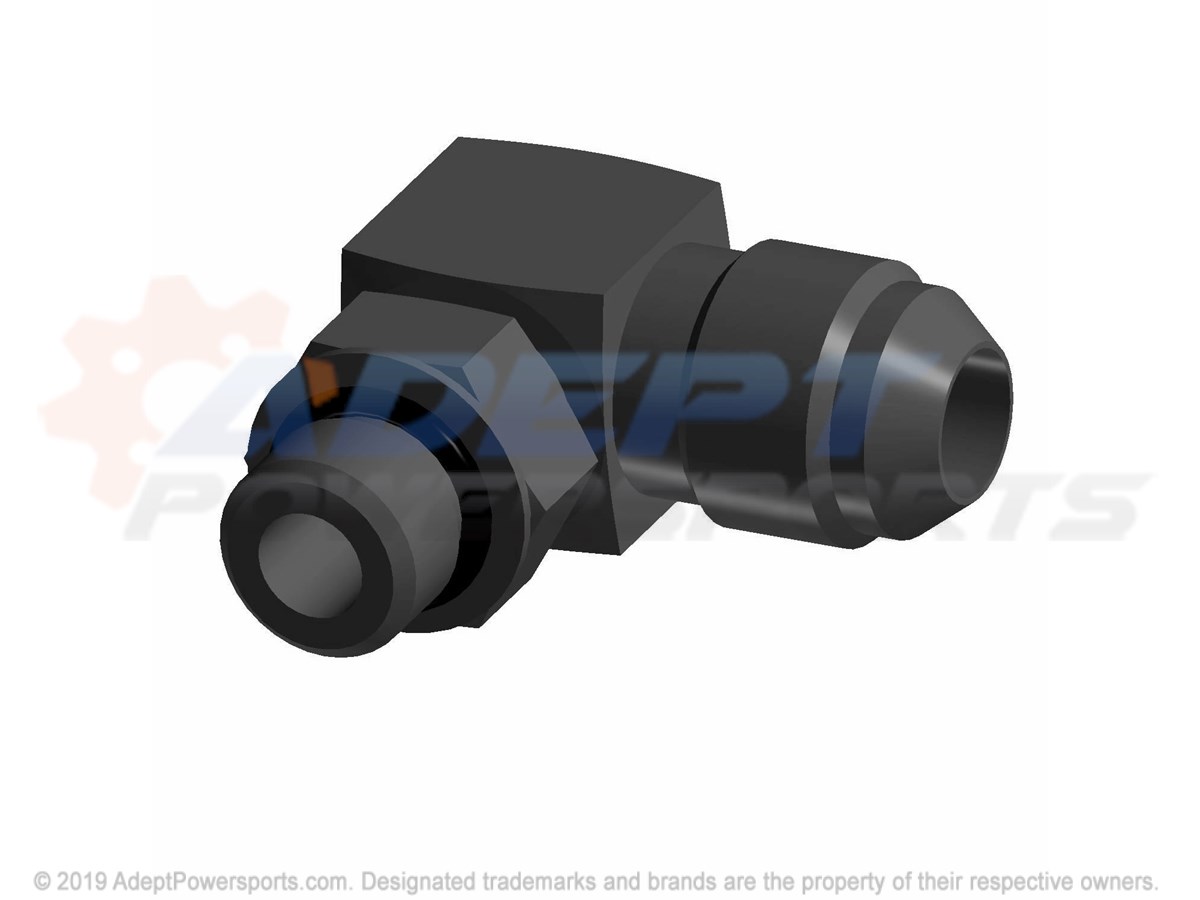

29	FITTING, 90, DEGREE Part #: 3120083 Required per assembly: 1 Currently Not Available

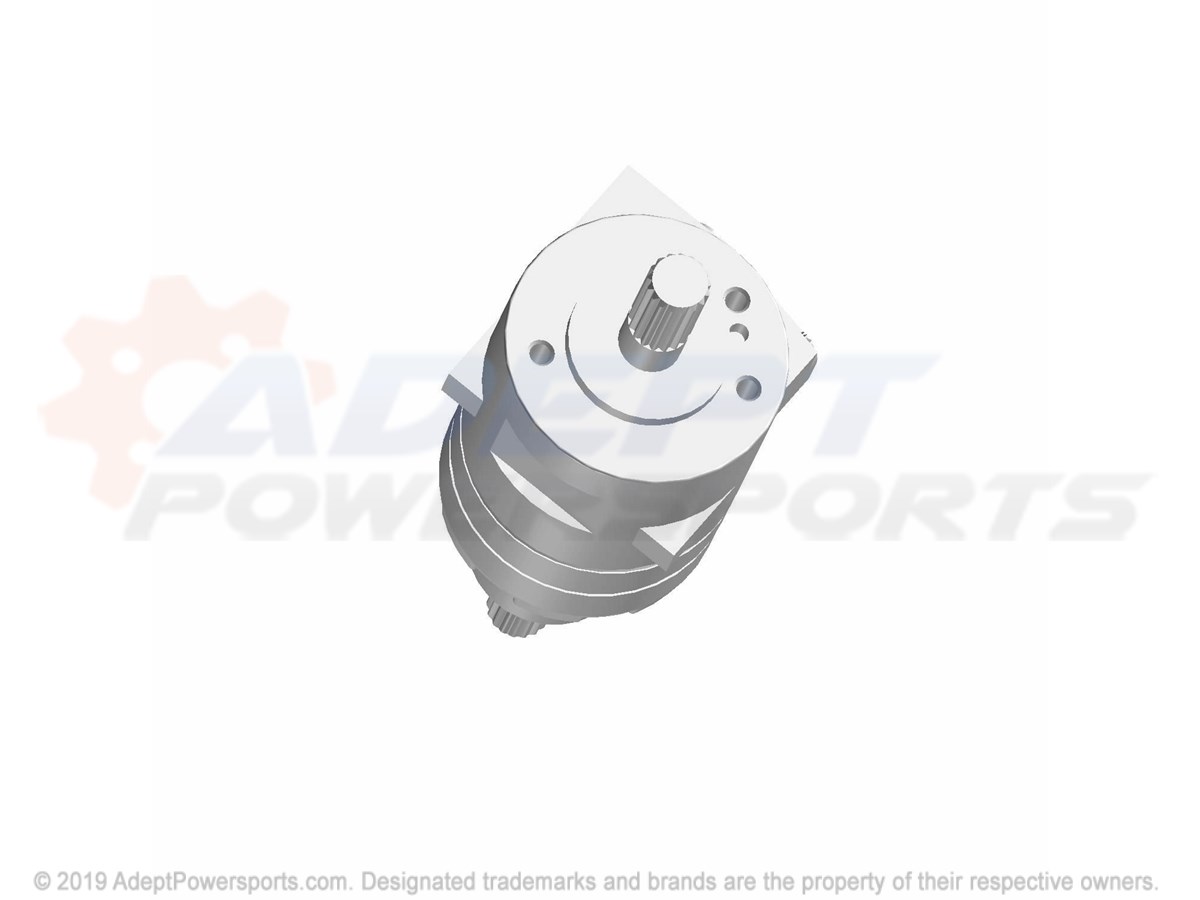

30	GENERATOR, TORQUE Part #: 3120064 Required per assembly: 1 Currently Not Available
31	FITTING Part #: 3120092 Required per assembly: 1 Currently Not Available
32	NUT-M10X1.25-HX-LOCK-Y Part #: 7547177 Required per assembly: 2 Note: Nut Currently Not Available
33	SCREW Part #: 7518644 Required per assembly: 1 Currently Not Available
