Cargo Box - R17b1pd1aa/2P (49Brutuscargo13) replacement parts for 2017 Polaris Ranger HST (R07)

OEM Parts Polaris 2017 Polaris Ranger HST (R07) Cargo Box - R17b1pd1aa/2P (49Brutuscargo13)

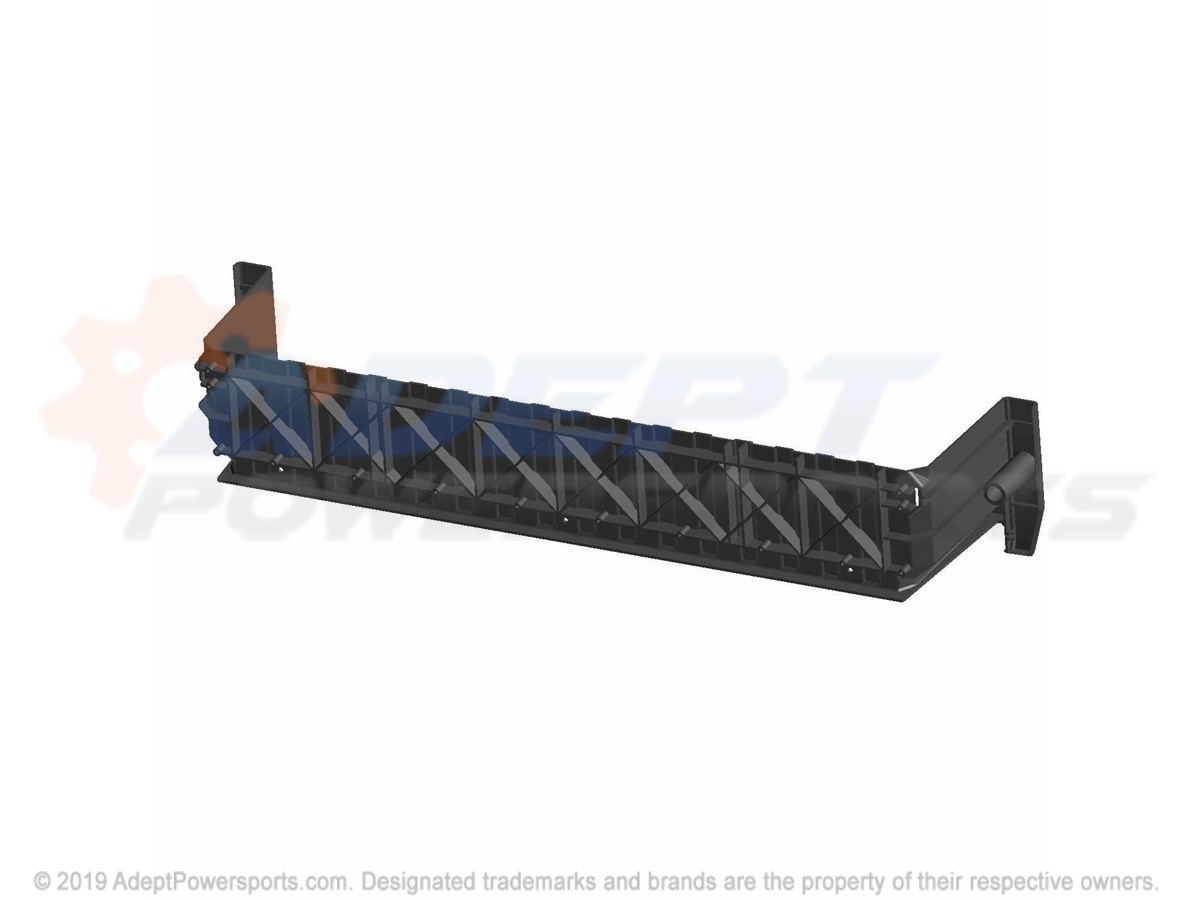

CARGO BOX - R17B1PD1AA/2P (49BRUTUSCARGO13) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-BOX, LONG, BLK Part #: 2636097-070 Required per assembly: 1 Note: INCL. ALL Currently Not Available
2	WELD-TAILGATE, SUPPORT, LH, BLK Part #: 1021456-067 Required per assembly: 1 Currently Not Available
3	WELD-TAILGATE, SUPPORT, RH, BLK Part #: 1021458-067 Required per assembly: 1 Currently Not Available
4	SCREW Part #: 7519731 Required per assembly: 28 Currently Not Available
4	SCREW Part #: 7519731 Required per assembly: 28 Currently Not Available
4	SCREW Part #: 7519731 Required per assembly: 28 Currently Not Available
5	BOX, LONG, BLACK Part #: 5439207-070 Required per assembly: 1 Currently Not Available
6	PANEL, BOX, LONG, LH, BLACK Part #: 5439210-070 Required per assembly: 1 Currently Not Available
7	PANEL, BOX, LONG, RH, BLACK Part #: 5439211-070 Required per assembly: 1 Currently Not Available
8	BRACKET, BOX, TIE, DOWN Part #: 5255204 Required per assembly: 4 Currently Not Available
9	BUMPER, RECESS Part #: 5414486 Required per assembly: 4 Currently Not Available
10	LATCH, SLAM, TAILGATE Part #: 7081568 Required per assembly: 2 Note: Latch, Slam, Tailgate Currently Not Available
11	NUT Part #: 7547274 Required per assembly: 2 Note: Nut, Flange Currently Not Available
12	SCREW Part #: 7519205 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
13	SCREW Part #: 7519045 Required per assembly: 2 Currently Not Available
14	SCREW Part #: 7519942 Required per assembly: 2 Currently Not Available
