Hydraulics - R17b1pd1aa/2P (700656) replacement parts for 2017 Polaris Ranger HST (R07)

OEM Parts Polaris 2017 Polaris Ranger HST (R07) Hydraulics - R17b1pd1aa/2P (700656)

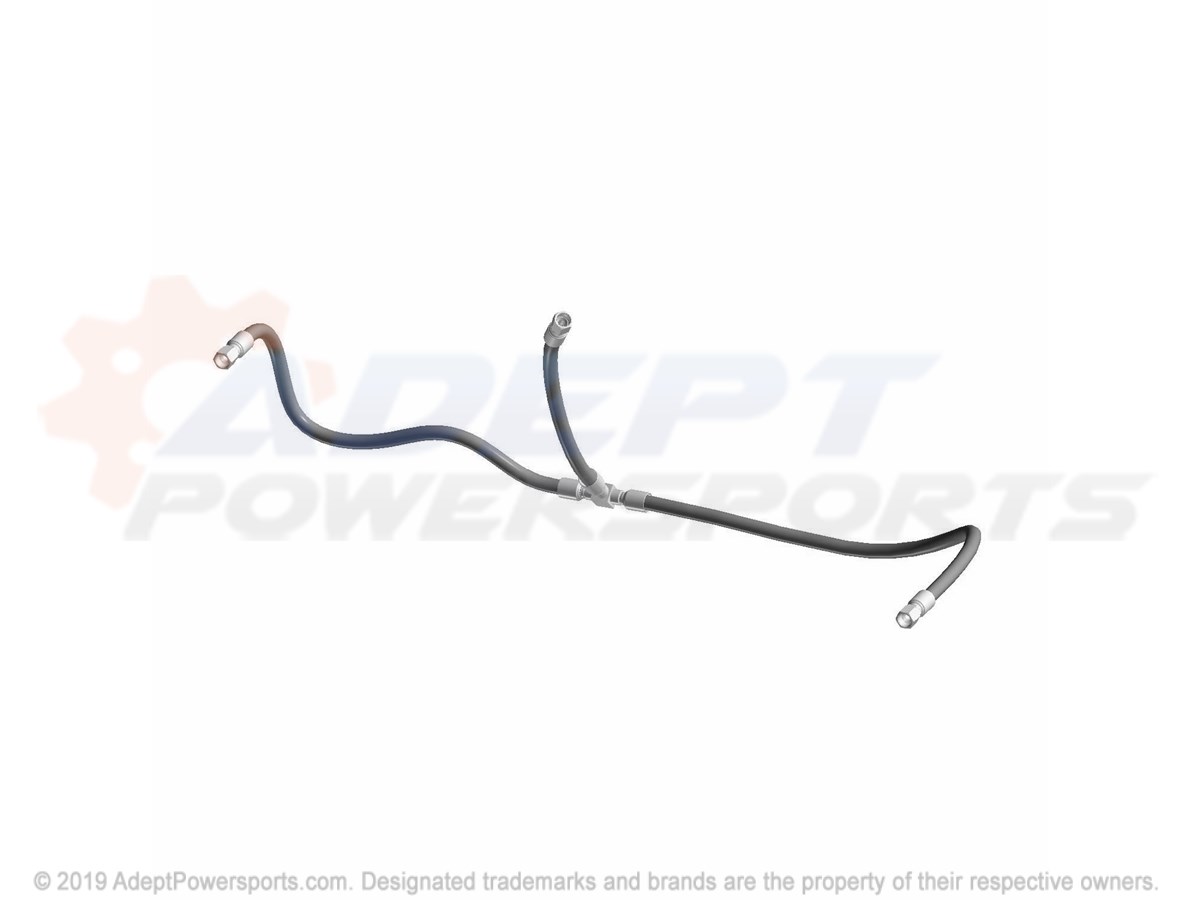

HYDRAULICS - R17B1PD1AA/2P (700656) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	GROMMET, FRONT Part #: 3120099 Required per assembly: 1 Currently Not Available
1	GROMMET, FRONT Part #: 3120099 Required per assembly: 1 Currently Not Available
2	GROMMET, BASE Part #: 3120100 Required per assembly: 1 Currently Not Available
3	CLIP-PLASTIC, DART, BLACK Part #: 7670141 Required per assembly: 4 Note: Sold in multiples of 10 only Currently Not Available
4	BRACKET, GROMMET Part #: 3120101 Required per assembly: 1 Currently Not Available
5	HOSE, MANIFOLD Part #: 3120207 Required per assembly: 1 Currently Not Available
6	SCREW Part #: 7518529 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart
7	GROMMET, TOP Part #: 3120132 Required per assembly: 1 Note: 2P Currently Not Available
8	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 1 Note: Cable Tie Currently Not Available
