Hydrostat Mounting And Lines - R17b1pd1aa/2P (49Brutushydrostat15) replacement parts for 2017 Polaris Ranger HST (R07)

OEM Parts Polaris 2017 Polaris Ranger HST (R07) Hydrostat Mounting And Lines - R17b1pd1aa/2P (49Brutushydrostat15)

HYDROSTAT MOUNTING AND LINES - R17B1PD1AA/2P (49BRUTUSHYDROSTAT15) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FOAM Part #: 3120056 Required per assembly: 1 Currently Not Available
2	HOSE-DRIVEN MOTOR-MANIFOLD Part #: 3120810 Required per assembly: 1 Currently Not Available
3	HOSE-DRIVEN MOTOR-TANK Part #: 3120809 Required per assembly: 1 Currently Not Available

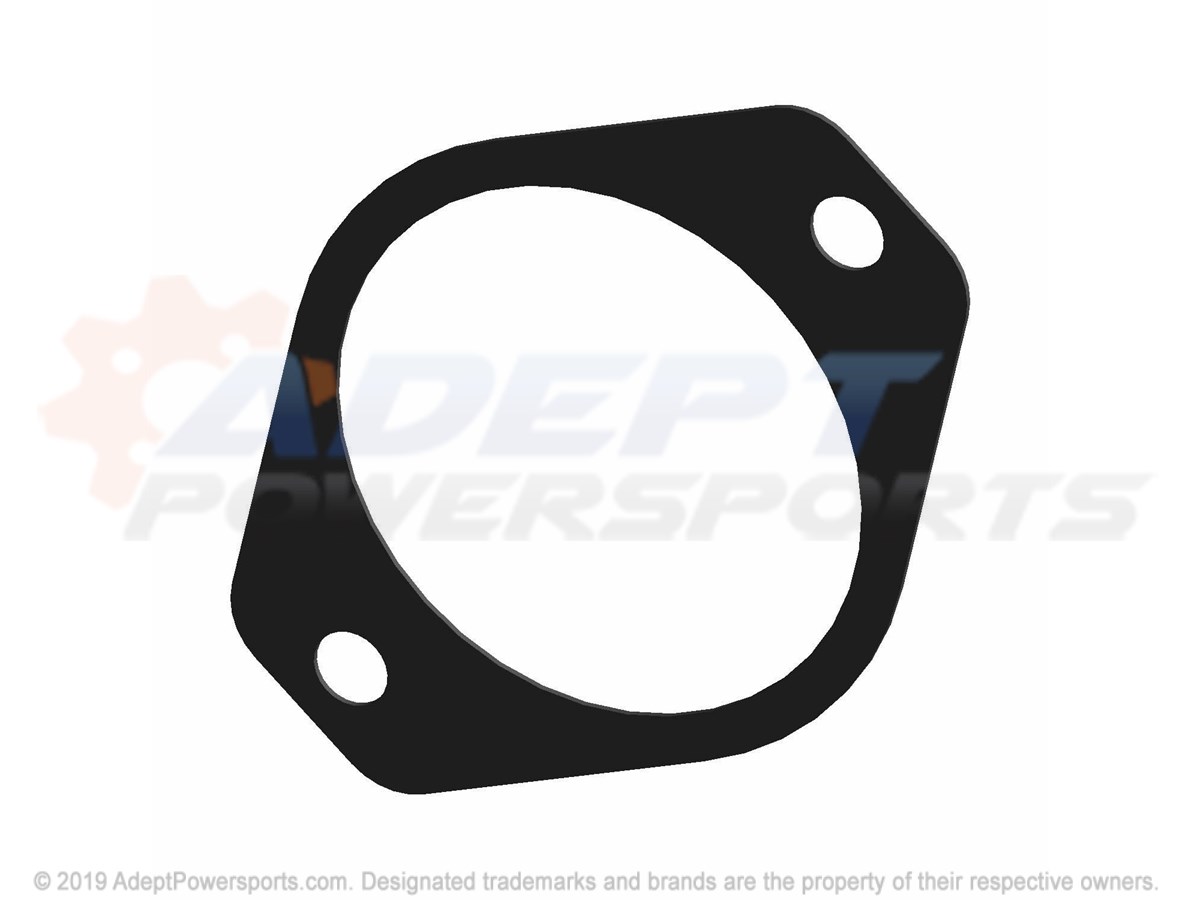

4	GASKET, MOTOR, DRIVEN Part #: 3120086 Required per assembly: 1 Currently Not Available
5	HOSE, PUMP, MOTOR Part #: 3120095 Required per assembly: 2 Currently Not Available
6	SCREW Part #: 7519729 Required per assembly: 2 Currently Not Available
7	HOSE, MANIFOLD Part #: 3120164 Required per assembly: 1 Currently Not Available
8	SCREW Part #: 7519145 Required per assembly: 2 Currently Not Available
9	SCREW Part #: 7519730 Required per assembly: 2 Currently Not Available
10	HOSE, MANIFOLD/TORQUE, GEN Part #: 3120173 Required per assembly: 1 Currently Not Available

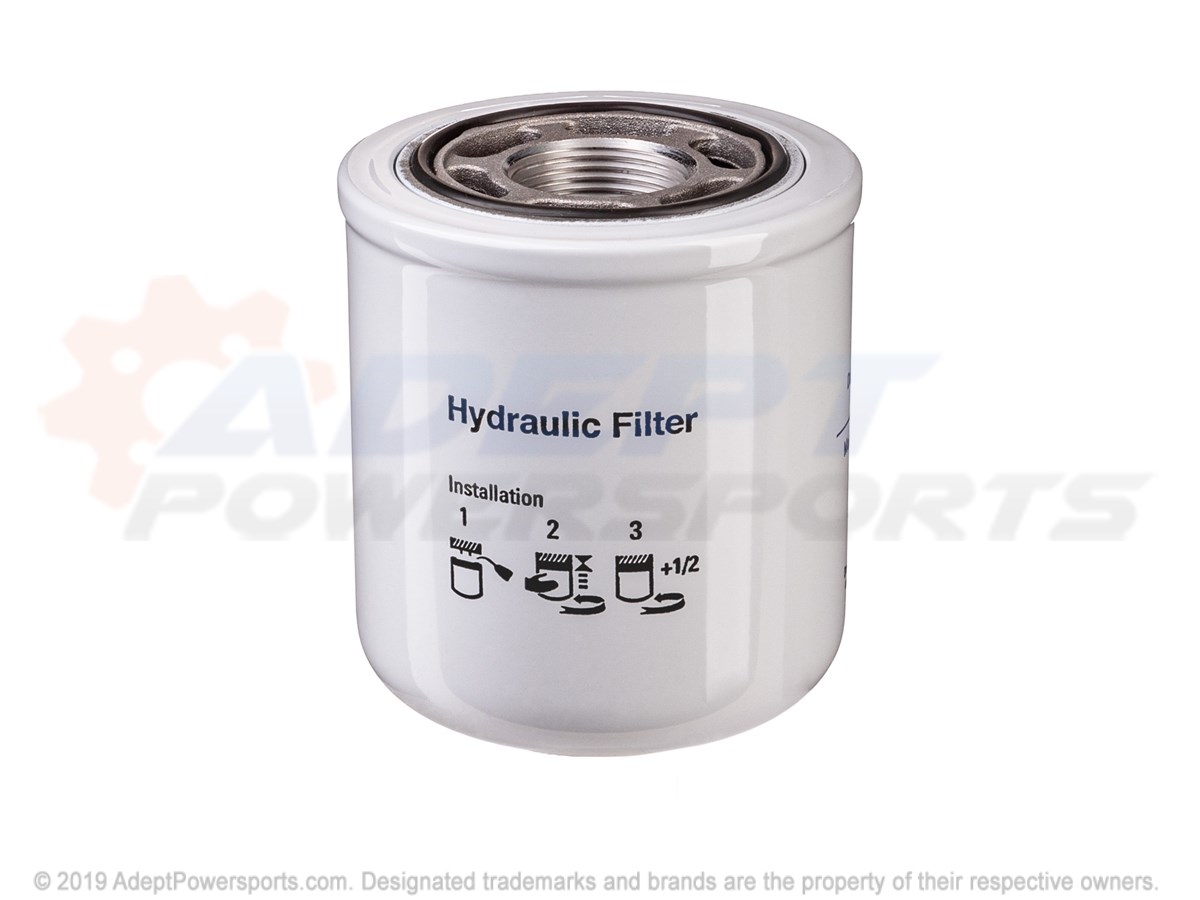

11	FILTER, HYDRAULIC, OIL Part #: 3120212 Required per assembly: 1 Currently Not Available
11	ASSEMBLY, FILTER, HYDRAULIC Part #: 3120042 Required per assembly: 1 Note: INCL FILTER Currently Not Available
12	SENDER, HYDRAULIC, TEMP Part #: 3120043 Required per assembly: 1 Currently Not Available
13	FITTING Part #: 3120069 Required per assembly: 1 Currently Not Available
14	FITTING Part #: 3120070 Required per assembly: 1 Currently Not Available
15	HOSE-FILTER-COOLER Part #: 3120812 Required per assembly: 1 Currently Not Available
16	SCR-HEXFLGHD M10X16 0600086 Part #: 7517951 Required per assembly: 2 Currently Not Available
17	HOSE-MANIFOLD-TORQUE GEN Part #: 3120811 Required per assembly: 1 Currently Not Available
18	FITTING Part #: 3120010 Required per assembly: 1 Currently Not Available
19	FITTING Part #: 3120020 Required per assembly: 1 Currently Not Available
20	FITTING Part #: 3120049 Required per assembly: 1 Currently Not Available
21	TANK, HYDRAULIC, OIL Part #: 3120057 Required per assembly: 1 Currently Not Available
22	SCREEN, OIL, TANK Part #: 3120058 Required per assembly: 1 Currently Not Available
23	CAP, HYDRAULIC Part #: 3120059 Required per assembly: 1 Currently Not Available
24	GAUGE, BALL Part #: 3120060 Required per assembly: 1 Currently Not Available

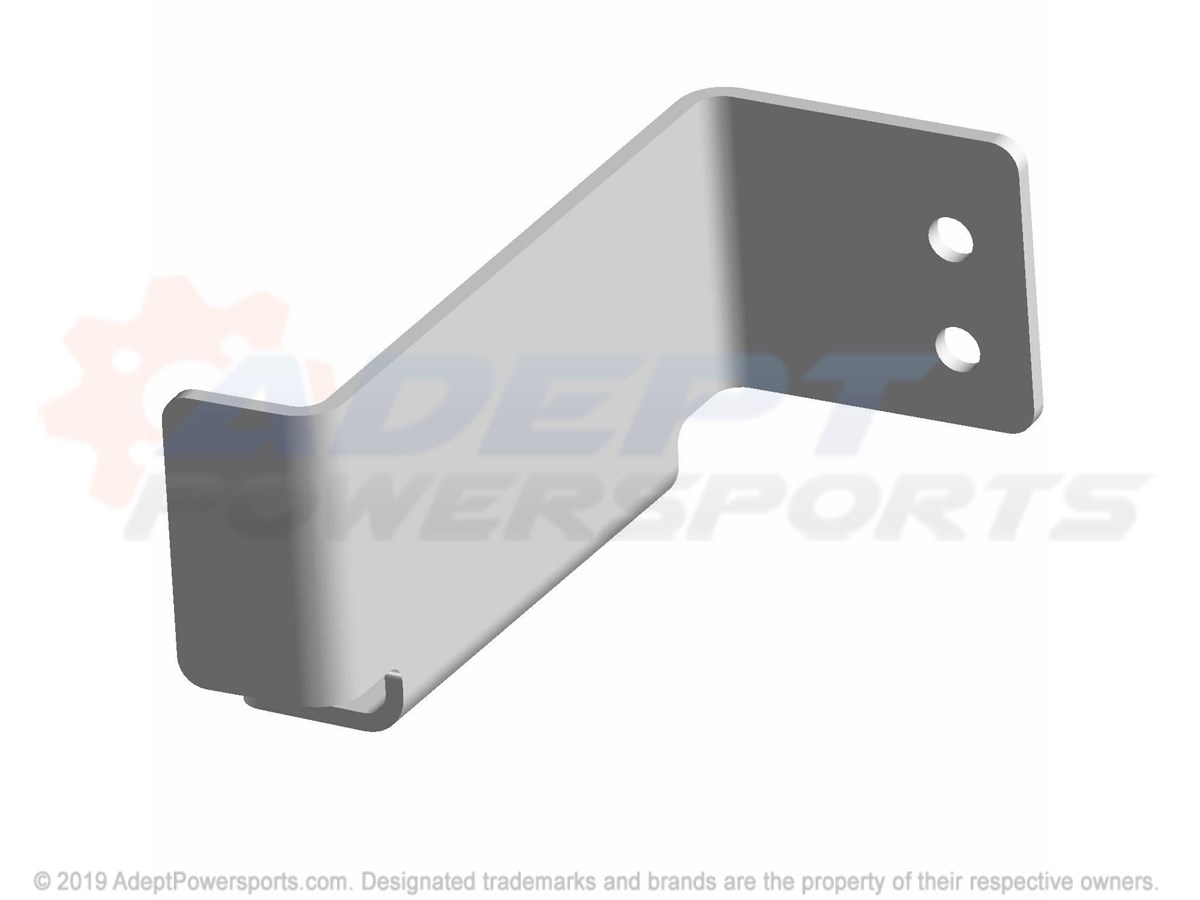

25	BRACKET, TANK, MOUNT Part #: 3120061 Required per assembly: 1 Currently Not Available
26	HOSE-FILTER, PUMP Part #: 3120837 Required per assembly: 1 Currently Not Available
27	CLAMP, HOSE Part #: 7081825 Required per assembly: 2 Currently Not Available
28	SCREW Part #: 7518637 Required per assembly: 2 Currently Not Available
29	NUT, FLANGE Part #: 7547339 Required per assembly: 2 Currently Not Available
30	HOSE-HYD, 5/8, IN, X, 311, MM Part #: 3120838 Required per assembly: 1 Currently Not Available
31	FITTING Part #: 3120010 Required per assembly: 2 Currently Not Available
32	FITTING Part #: 3120049 Required per assembly: 2 Currently Not Available
33	VALVE-MANIFOLD Part #: 3120895 Required per assembly: 1 Currently Not Available
34	FITTING Part #: 3120088 Required per assembly: 1 Currently Not Available
35	HOSE-PUMP, VALVE Part #: 3120842 Required per assembly: 1 Currently Not Available
