OEM Parts Polaris 2020 Polaris Scrambler XP 1000 55" (R05) Footwells

2020 Polaris Scrambler XP 1000 55" (R05) A20SGE95AK - Footwells

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

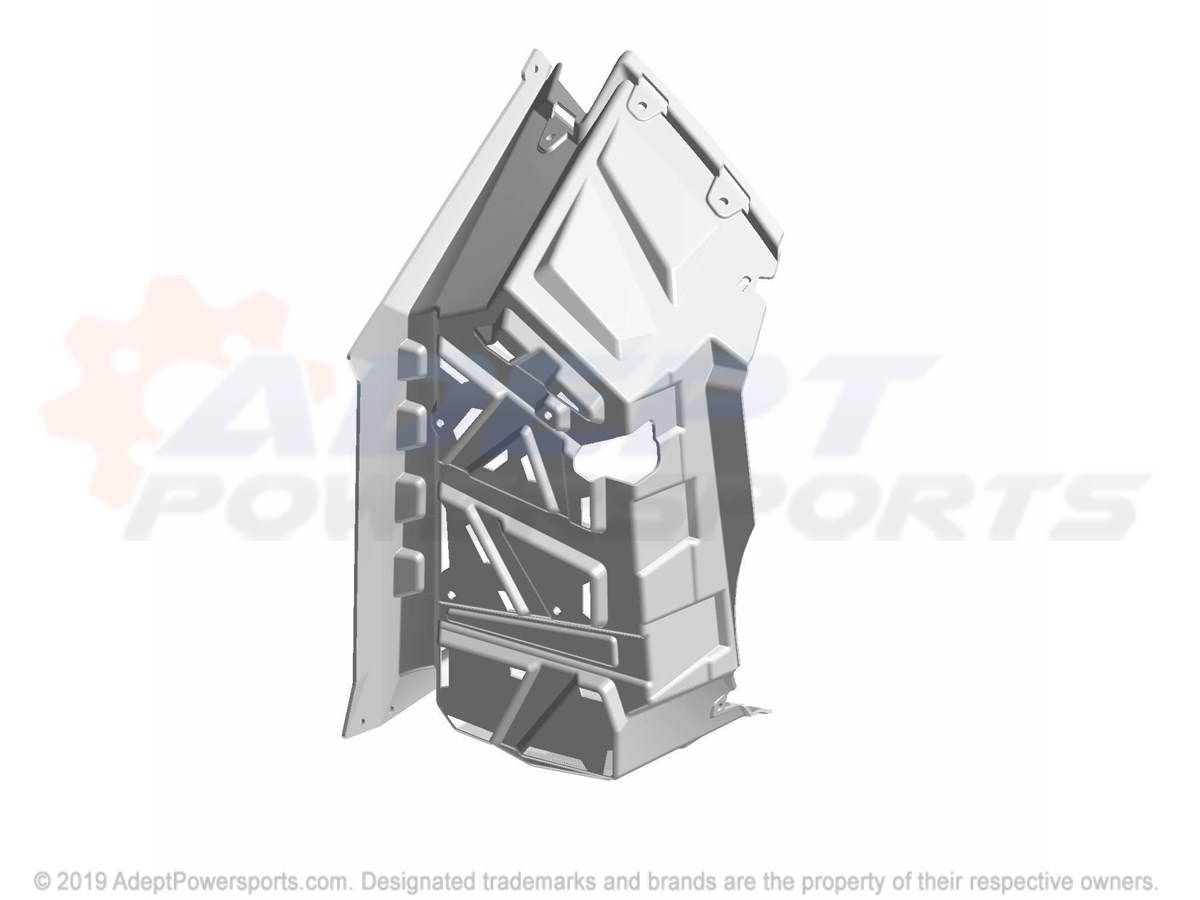

Polaris 5455977-070 Footwell-Lh, Mod, Blk

FOOTWELL-LH, MOD, BLK

Part #: 5455977-070 Required per assembly: 1
Currently Not Available
2

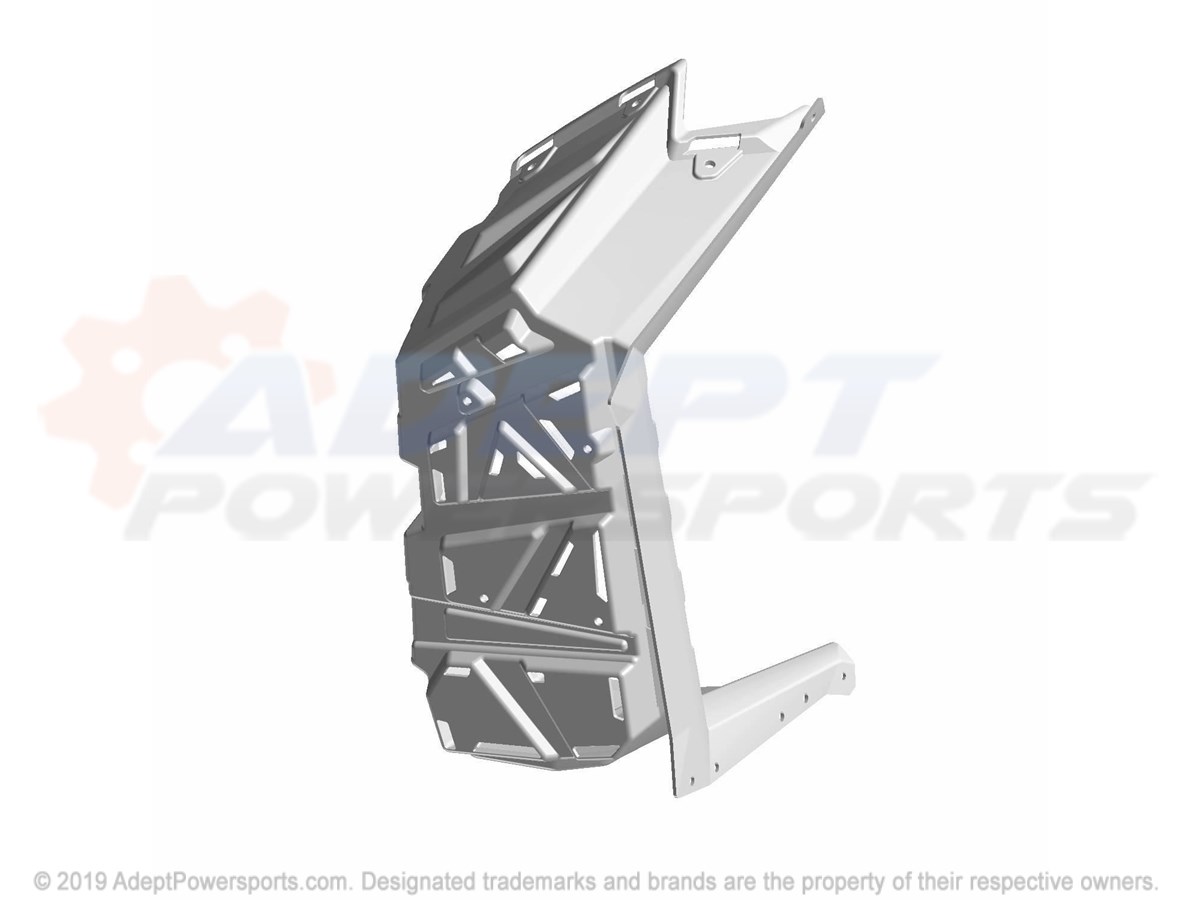

Polaris 5456613-070 Footwell-Rh, Mod, 3.0, Blk

FOOTWELL-RH, MOD, 3.0, BLK

Part #: 5456613-070 Required per assembly: 1
Currently Not Available
3
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 10
$2.99
$1.73
-
+
Add to cart
4
Polaris 7519202 Scr-Hxfl-M6x1.0X30 Rie Dgpnt

SCR-HXFL-M6X1.0X30 RIE DGPNT

Part #: 7519202 Required per assembly: 8
Currently Not Available
5
Polaris 7547274 Nut

NUT

Part #: 7547274 Required per assembly: 8 Note: Nut, Flange
Currently Not Available
6
Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 8
$2.99
$1.73
-
+
Add to cart
7
Polaris 5437600 Support, Footpad, Lh

SUPPORT, FOOTPAD, LH

Part #: 5437600 Required per assembly: 1
Currently Not Available
8
Polaris 5437601 Support, Footpad, Rh

SUPPORT, FOOTPAD, RH

Part #: 5437601 Required per assembly: 1
Currently Not Available
