OEM Parts Polaris 2020 Polaris Scrambler XP 1000 55" (R05) Lightbar

2020 Polaris Scrambler XP 1000 55" (R05) A20SGE95AK - Lightbar

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

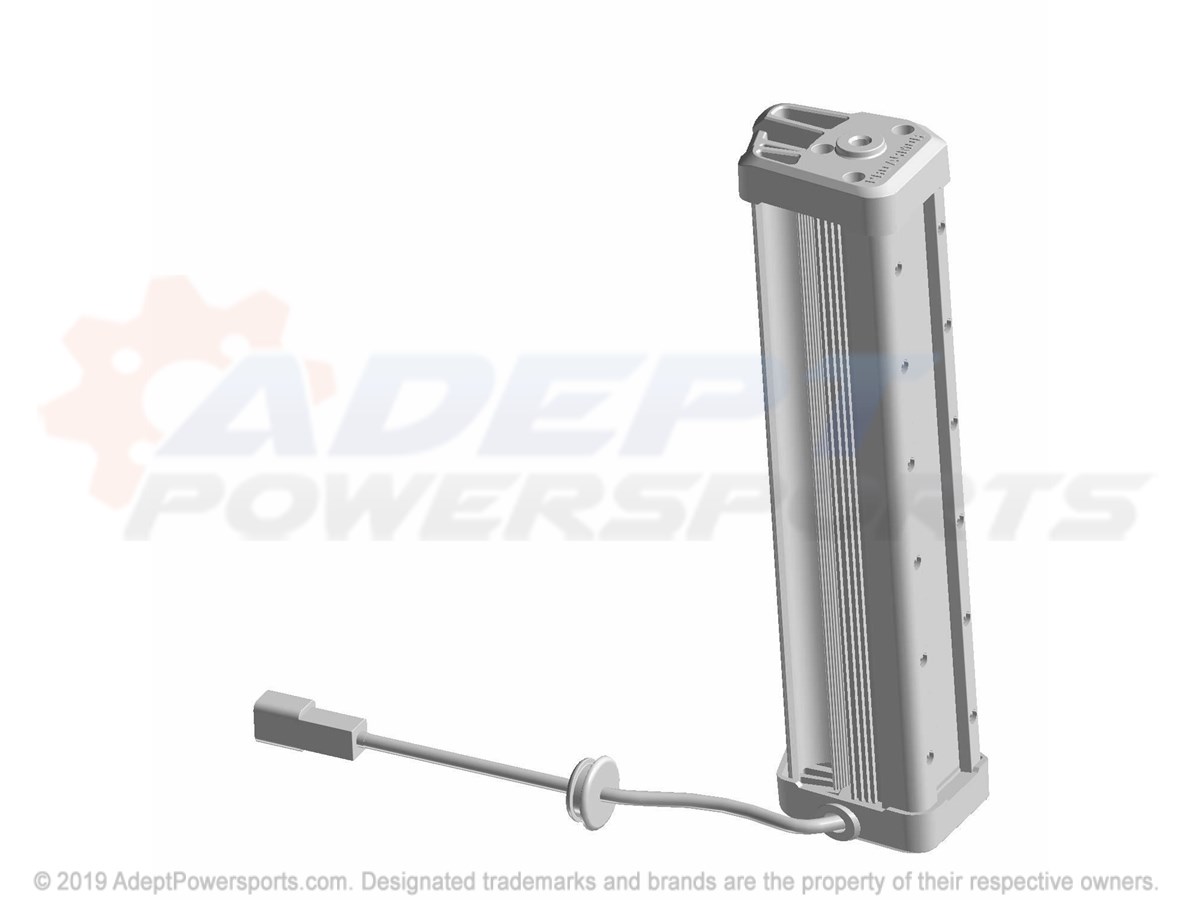

Polaris 4018280 Lightbar, Vl, 12

LIGHTBAR, VL, 12

Part #: 4018280 Required per assembly: 1
Currently Not Available
2

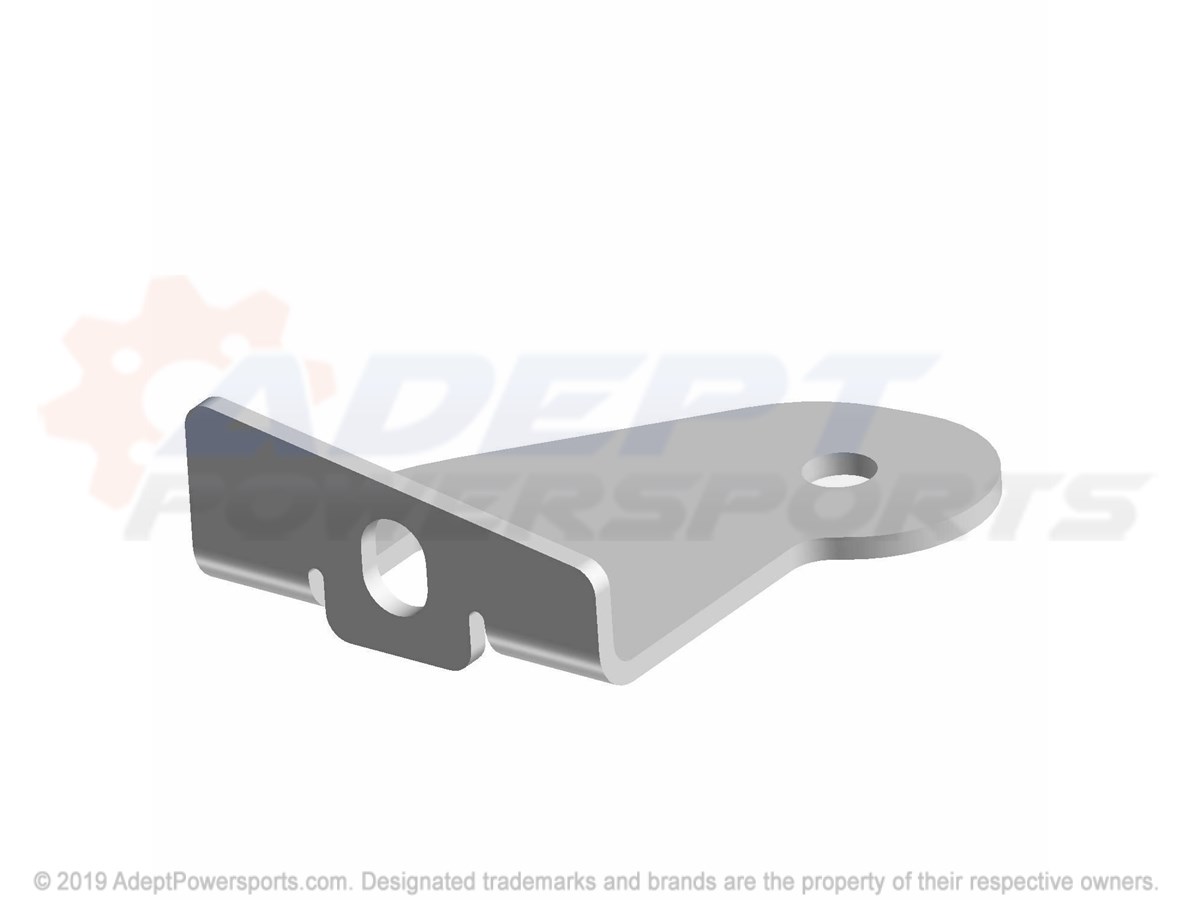

Polaris 5266939-067 Brkt-Mnt, Light, Bar, Lh, Blk

BRKT-MNT, LIGHT, BAR, LH, BLK

Part #: 5266939-067 Required per assembly: 1
Currently Not Available
3

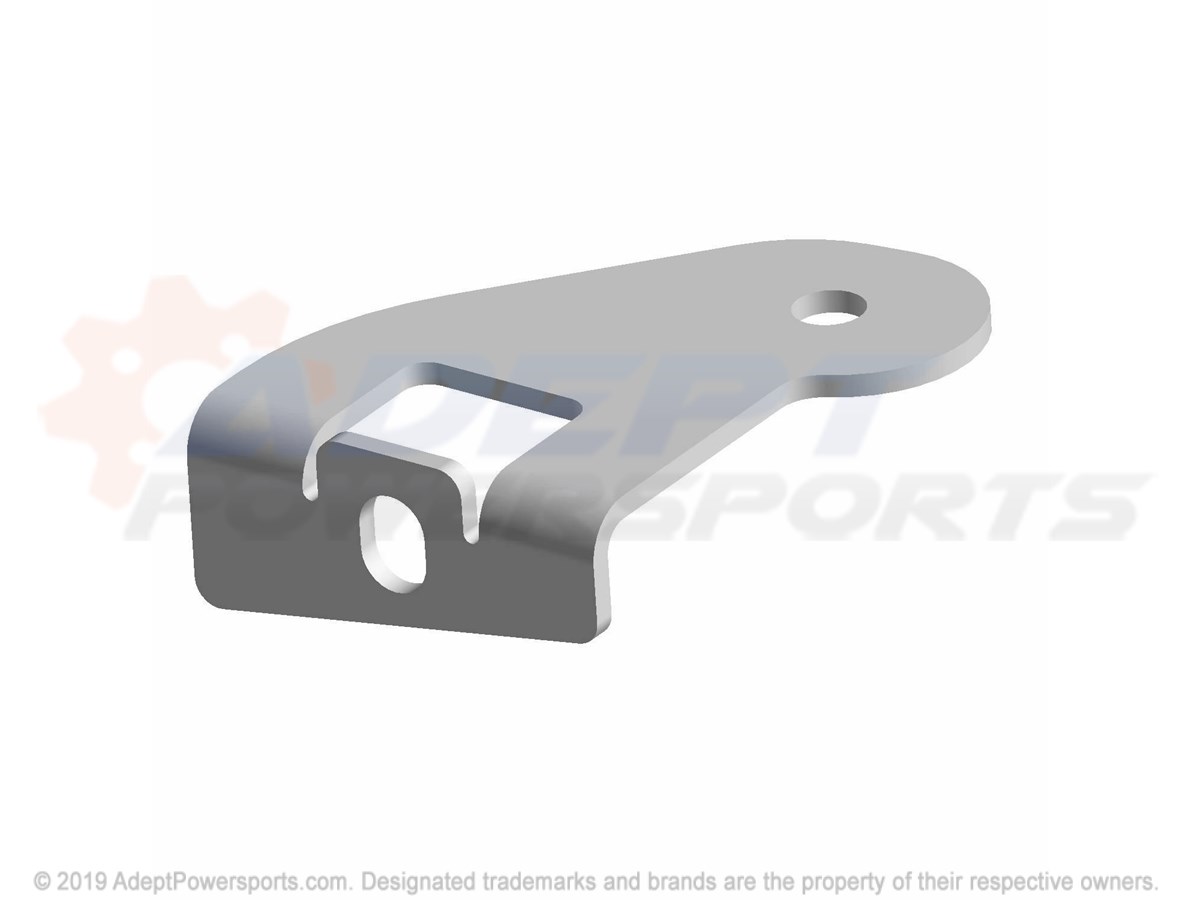

Polaris 5266940-067 Brkt-Mnt, Light, Bar, Rh, Blk

BRKT-MNT, LIGHT, BAR, RH, BLK

Part #: 5266940-067 Required per assembly: 1
Currently Not Available
4
Polaris 7519005 Scr-Hxfl-M8x1.25X16 8.8 Zpc

SCR-HXFL-M8X1.25X16 8.8 ZPC

Part #: 7519005 Required per assembly: 2
Currently Not Available
5
Polaris 7518569 Scr-Hxfl-M8x1.25X25 8.8 Zpb

SCR-HXFL-M8X1.25X25 8.8 ZPB

Part #: 7518569 Required per assembly: 2
Currently Not Available
6
Polaris 7547454 Nut, Flange

NUT, FLANGE

Part #: 7547454 Required per assembly: 2
Currently Not Available
7
Polaris 7557171 Washer-Lock, Dual, Sided

WASHER-LOCK, DUAL, SIDED

Part #: 7557171 Required per assembly: 2
Currently Not Available
8
Polaris 5416914 Plug-Hole, Rubber

PLUG-HOLE, RUBBER

Part #: 5416914 Required per assembly: 1
Currently Not Available
