OEM Parts Polaris 2020 Polaris Scrambler XP 1000 55" (R05) Handlebar And Clamps

2020 Polaris Scrambler XP 1000 55" (R05) A20SGE95AK - Handlebar And Clamps

HANDLEBAR and CLAMPS Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5413578-070 Grip, Handlebar, Black

GRIP, HANDLEBAR, BLACK

Part #: 5413578-070 Required per assembly: 2
Currently Not Available
2

TUBE-HANDLEBAR, BLK

Part #: 5341489-067 Required per assembly: 1
Currently Not Available
3

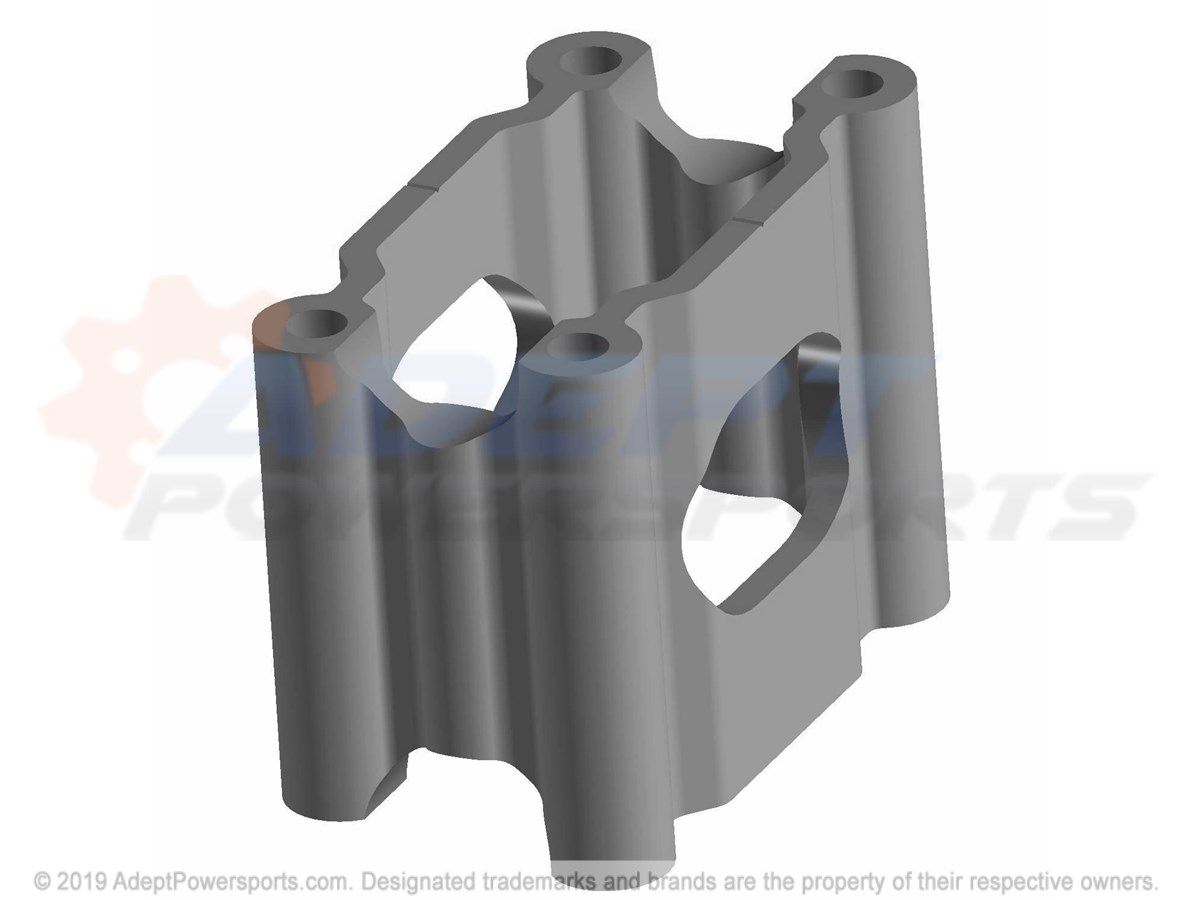

Polaris 5137110 Block-Hb, Riser, 60Mm, Rmk, Met

BLOCK-HB, RISER, 60MM, RMK, MET

Part #: 5137110 Required per assembly: 1
Currently Not Available
4

CLAMP-HANDLE, BAR, RETAINER

Part #: 5631311 Required per assembly: 4
Currently Not Available
5

SCR-TXTH-M8X1.25X45, ZOD

Part #: 7520550 Required per assembly: 8
Currently Not Available
6

WASHER-.344X.688X.063 FL-ZOD

Part #: 7556524 Required per assembly: 8
Currently Not Available
7

BRKT-POD, BLK

Part #: 5266135-067 Required per assembly: 1
Currently Not Available
8

CLIP-SCREW, #8/10, .03-.10, PANEL

Part #: 7670127 Required per assembly: 4
Currently Not Available
