Rear Caliper replacement parts for 2020 Polaris Scrambler XP 1000 55" (R05)

OEM Parts Polaris 2020 Polaris Scrambler XP 1000 55" (R05) Rear Caliper

REAR CALIPER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

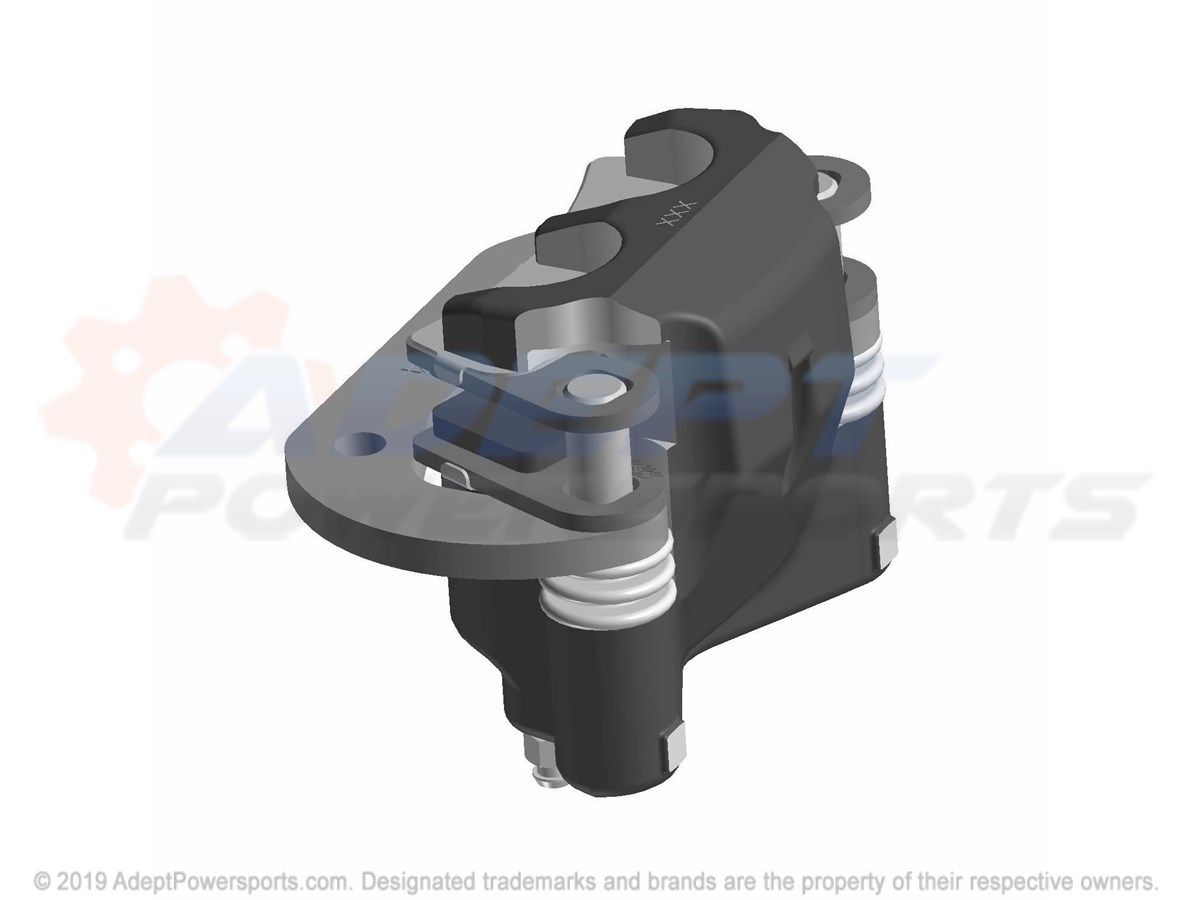

1	ASM-CLPR, BRK, WL, DB1.0, LH, 257A Part #: 1913274 Required per assembly: 1 Note: INCL. 1-10 Currently Not Available

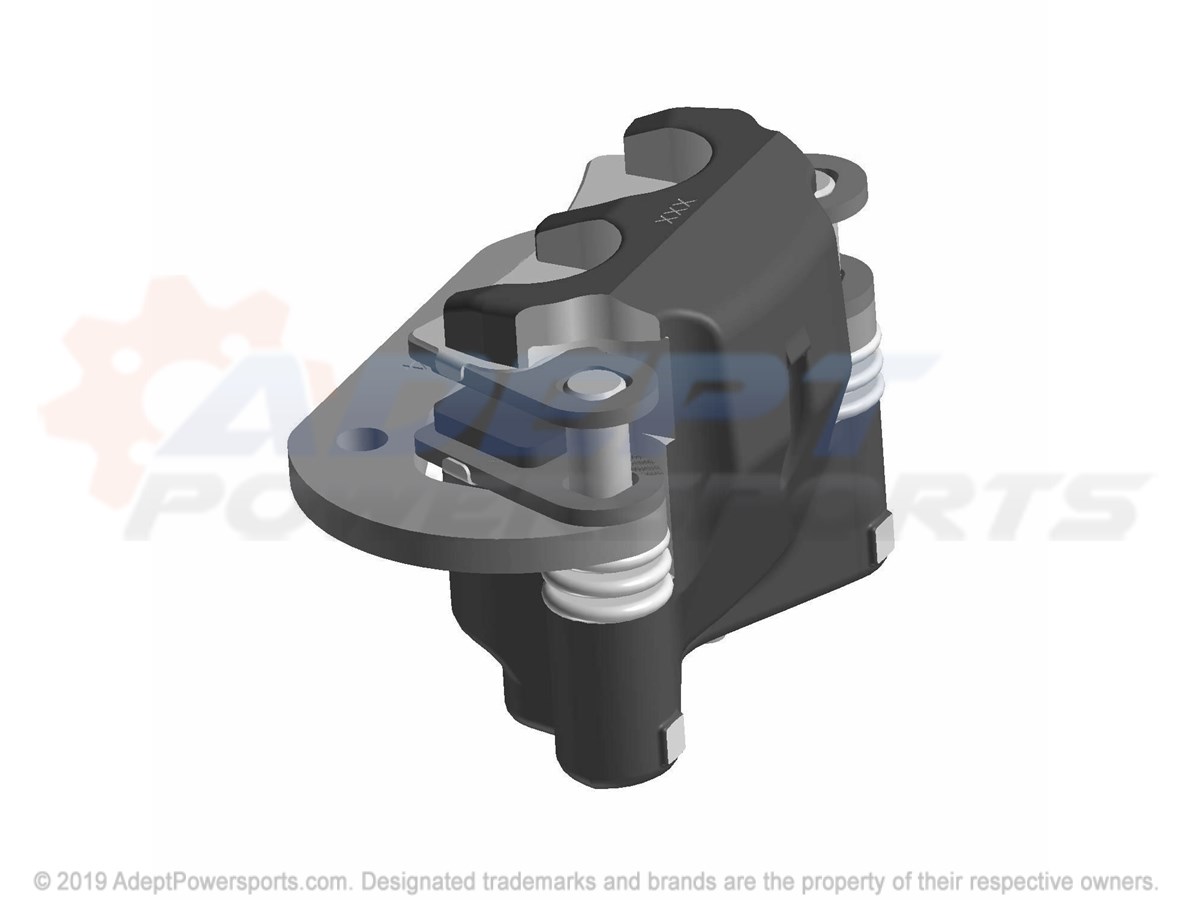

1	ASM-CLPR, BRK, WL, DB1.0, RH, 257A Part #: 1913275 Required per assembly: 1 Note: INCL. 1-10 Currently Not Available

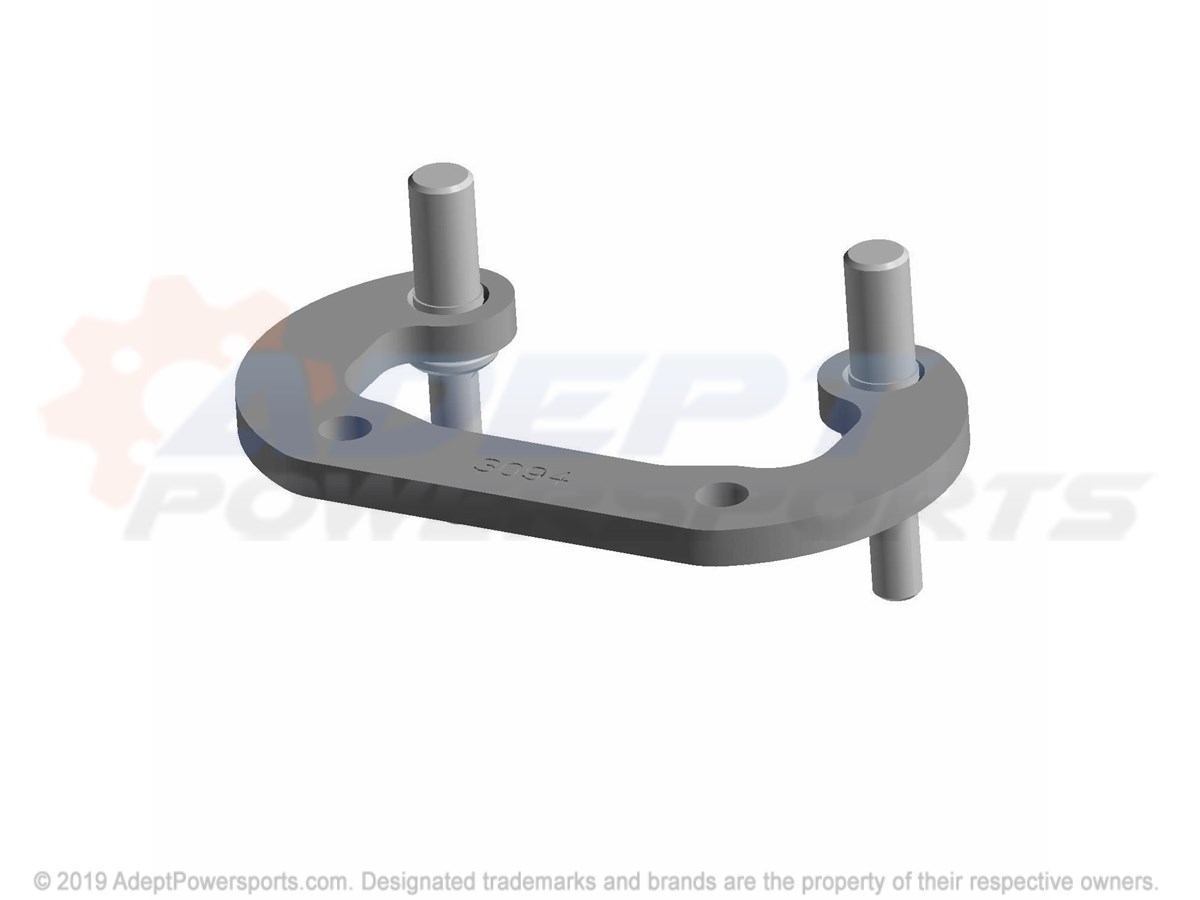

2	ASM-CLPR-MNT, 3", SB1.25", DB1.0" Part #: 1913094 Required per assembly: 1 Currently Not Available
3	PISTON, CALIPER Part #: 5134941 Required per assembly: 2 Note: Piston, Brake, Long Currently Not Available
4	KIT, BRAKE, PAD, DUAL, BORE, (INCLUDES, 4, PADS) Part #: 2203318 Required per assembly: 2 Note: INCL. 2 PADS Currently Not Available
4	K-BRAKE, HD, PAD, DB1" Part #: 2208936 Required per assembly: 2 Note: OPTIONAL Currently Not Available
5	KIT, PISTON, &, SEAL Part #: 2200463 Required per assembly: 2 Currently Not Available
6	KIT, PISTON, &, SEAL Part #: 2200463 Required per assembly: 2 Currently Not Available
7	BOOT, BUSHING Part #: 5412505 Required per assembly: 1 Currently Not Available
8	BOOT, PIN, SEAL Part #: 5412506 Required per assembly: 1 Currently Not Available
9	SCREW, BLEEDER Part #: 7081343 Required per assembly: 1 Currently Not Available
10	SCREW, SOCKET, SET Part #: 7518863 Required per assembly: 1 Currently Not Available
11	BOLT Part #: 7518760 Required per assembly: 4 Note: CALIPER MOUNTING Currently Not Available
