OEM Parts Polaris 2020 Polaris Scrambler XP 1000 55" (R05) Shock, Rear

2020 Polaris Scrambler XP 1000 55" (R05) A20SGE95AK - Shock, Rear

SHOCK, REAR Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5267152 Retainer-Spring, 2.5?

RETAINER-SPRING, 2.5?

Part #: 5267152 Required per assembly: 2
Currently Not Available
2
Polaris 5137876 Bushing-Reducer .500X.398 Zyw

BUSHING-REDUCER .500X.398 ZYW

Part #: 5137876 Required per assembly: 4
$7.99
$4.60
-
+
Add to cart
3
Polaris 5137877 Bushing-Reducer 10Mm Wide Zyw

BUSHING-REDUCER 10MM WIDE ZYW

Part #: 5137877 Required per assembly: 4
Currently Not Available
4
Polaris 5455821 Spacer-Spring, 2.5

SPACER-SPRING, 2.5

Part #: 5455821 Required per assembly: 2
Currently Not Available
5

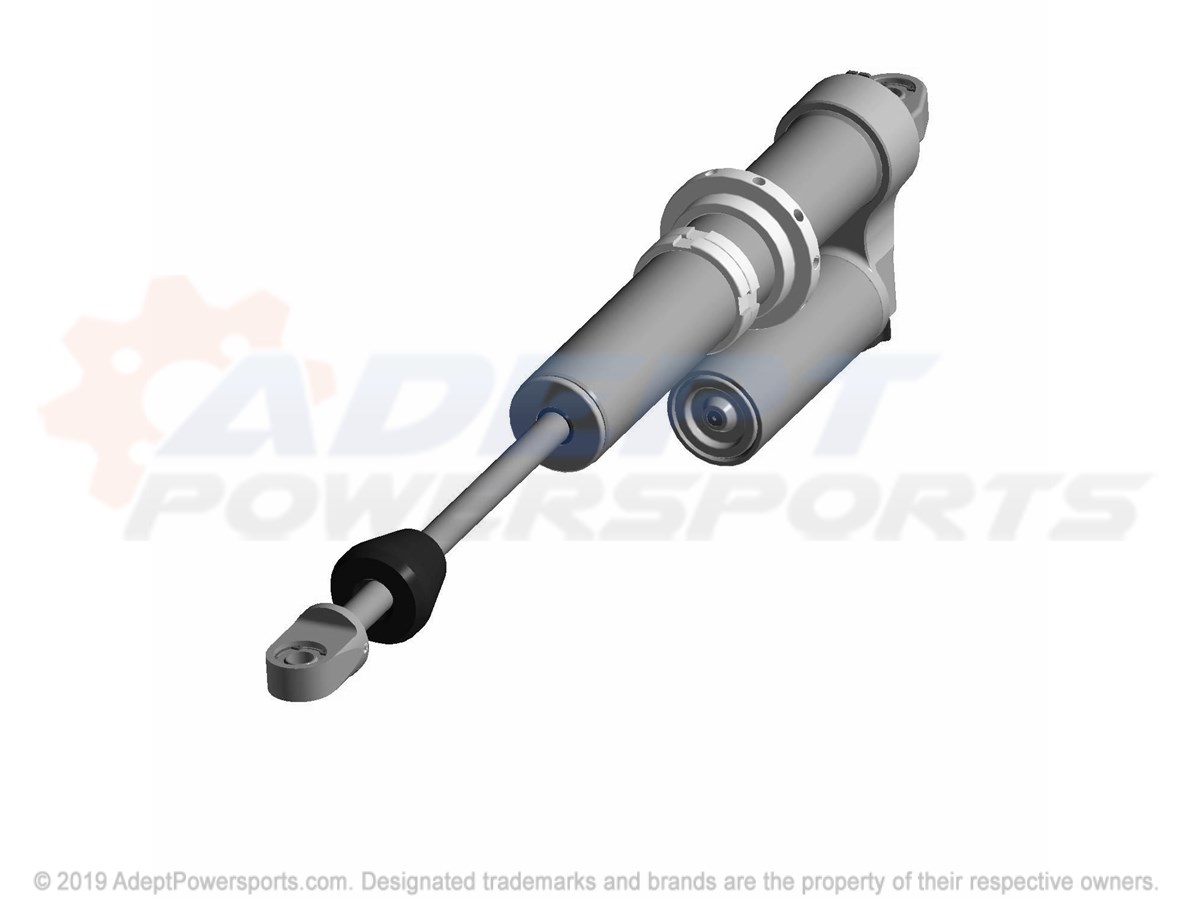

Polaris 7045179 Shk-Rr, We2.0, Wl55, Triple-Adj

SHK-RR, WE2.0, WL55, TRIPLE-ADJ

Part #: 7045179 Required per assembly: 2
Currently Not Available
6

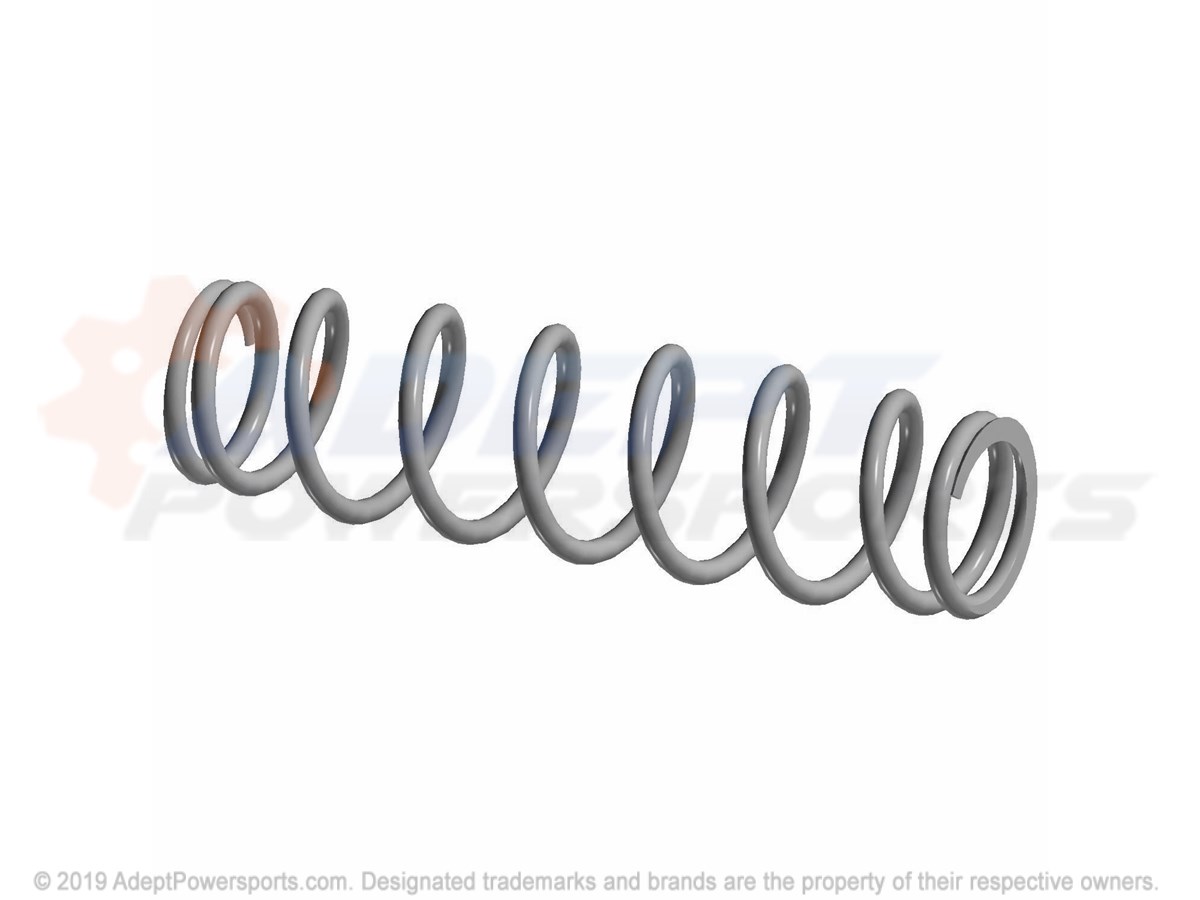

Polaris 7045173-293 Spring-Rr, 55, Prm, Trpl, Adj, T, Rd

SPRING-RR, 55, PRM, TRPL, ADJ, T, RD

Part #: 7045173-293 Required per assembly: 2
Currently Not Available
7
Polaris 7045172-293 Spring-Rr, 55, Prm, Trpl, Adj, S, Rd

SPRING-RR, 55, PRM, TRPL, ADJ, S, RD

Part #: 7045172-293 Required per assembly: 2
Currently Not Available
8
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
9
Polaris 7556153 Washer, Flat

WASHER, FLAT

Part #: 7556153 Required per assembly: 4 Note: Washer
$3.99
$2.30
-
+
Add to cart
10
Polaris 7519306 Scr-Hxfl-M10x1.25X60 10.9 Zod

SCR-HXFL-M10X1.25X60 10.9 ZOD

Part #: 7519306 Required per assembly: 4
Currently Not Available
11
Polaris 5412290 O-Ring

O-RING

Part #: 5412290 Required per assembly: 8
Currently Not Available
