Front Hub, Knuckle And Brake Disc replacement parts for 2020 Polaris Scrambler XP 1000 55" (R05)

OEM Parts Polaris 2020 Polaris Scrambler XP 1000 55" (R05) Front Hub, Knuckle And Brake Disc

FRONT HUB, KNUCKLE and BRAKE DISC Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

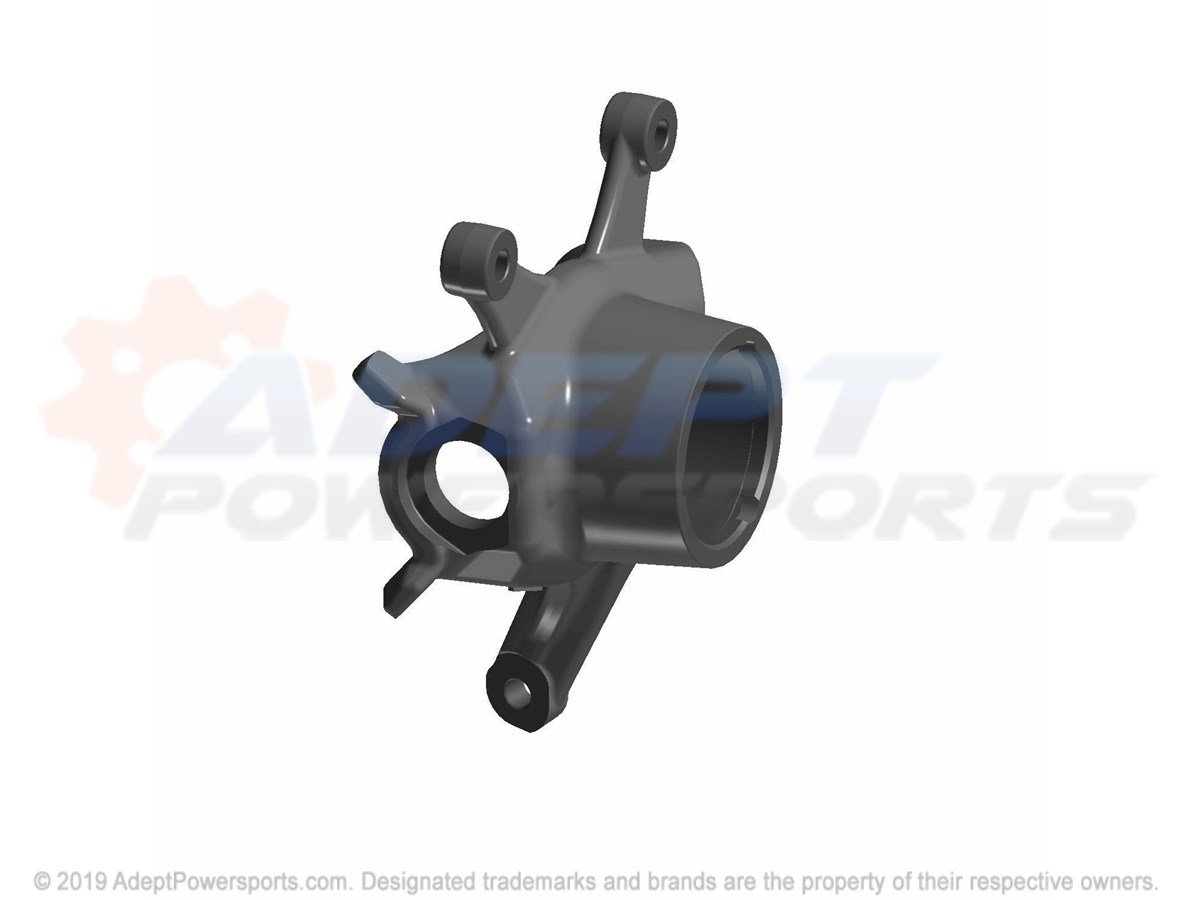

1	KNUCKLE-STEERING, MACH, LH Part #: 5142903 Required per assembly: 1 Currently Not Available

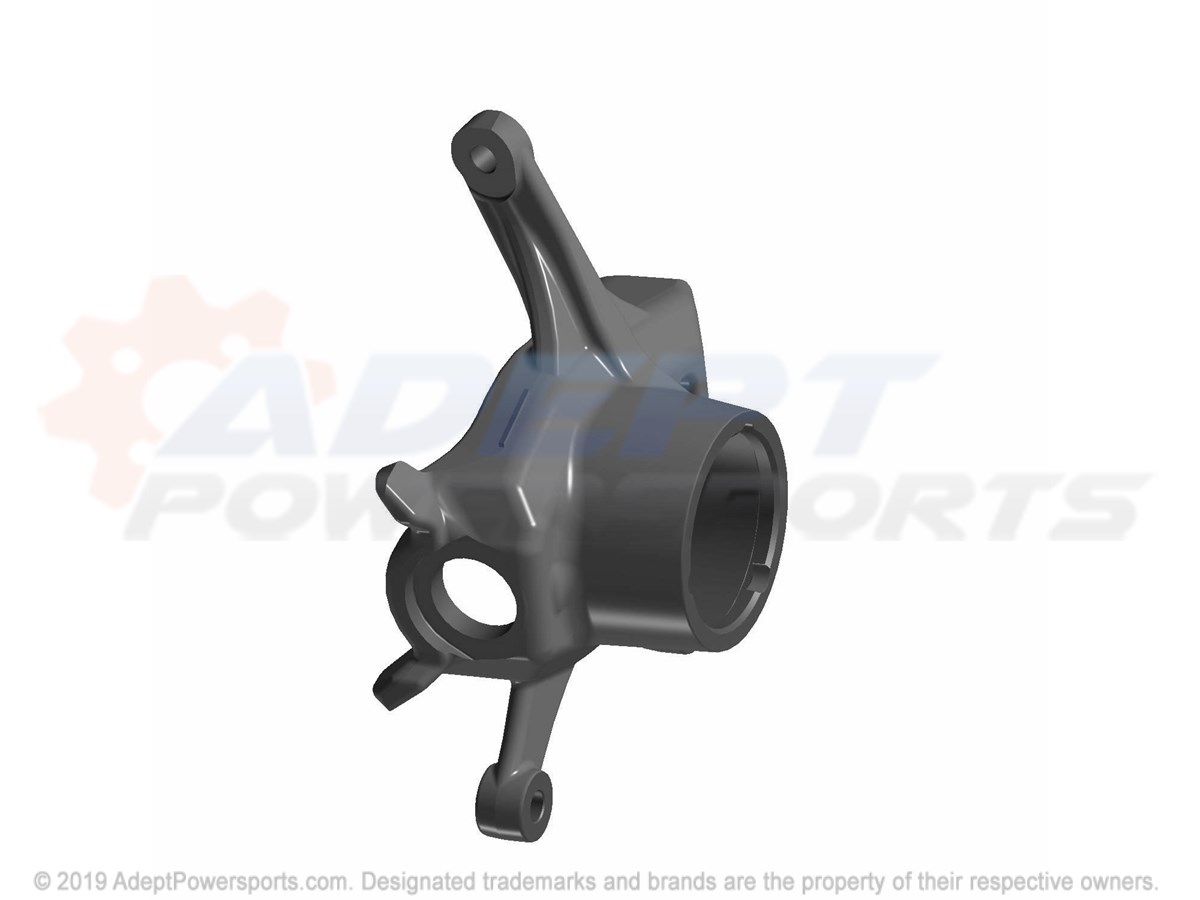

1	KNUCKLE-STEERING, MACH, RH Part #: 5142904 Required per assembly: 1 Currently Not Available
2	BEARING-BALL, SEALED, 44X72X33.1 Part #: 3514924 Required per assembly: 2 Currently Not Available
2	BEARING-BALL, SEALED, 44X72X33.1 Part #: 3515090 Required per assembly: 2 Note: OPTIONAL Currently Not Available
3	RING, RETAINING Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
4	HUB-WHEEL, MACH, BLK Part #: 5143633-458 Required per assembly: 2 Currently Not Available
5	DISC-BRAKE FRONT Part #: 5254999 Required per assembly: 2 Currently Not Available
6	SCREW Part #: 7518978 Required per assembly: 8 Currently Not Available
7	STUD, WHEEL Part #: 7519753 Required per assembly: 8 ~~$4.49~~ $2.80 - + Add to cart
8	NUT, CASTLE, [4X4] Part #: 7547337 Required per assembly: 2 Note: Nut, Castle ~~$3.99~~ $2.30 - + Add to cart
9	WASHER, CONE Part #: 7555796 Required per assembly: 4 Currently Not Available
10	PIN, COTTER Part #: 7661404 Required per assembly: 2 Currently Not Available
11	BALL-JOINT, M12X1.50, TAPERED Part #: 7061270 Required per assembly: 1 Currently Not Available
12	RING, RETAINER Part #: 7710533 Required per assembly: 4 Currently Not Available
13	WASHER-FL, 13X2.5 Part #: 7556287 Required per assembly: 4 Currently Not Available
14	NUT, NYLOK Part #: 7547334 Required per assembly: 4 Currently Not Available
