2020 Polaris Scrambler XP 1000 55" (R05) A20SGE95AK - Front A-Arm, Mounting

FRONT A-ARM, MOUNTING Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1543611 Asm-Pivot, Cap, Sealed, M10

ASM-PIVOT, CAP, SEALED, M10

Part #: 1543611 Required per assembly: 12
Currently Not Available
2
Polaris 1543922 Asm-Pivot, Cap, Sealed, M10

ASM-PIVOT, CAP, SEALED, M10

Part #: 1543922 Required per assembly: 4
Currently Not Available
3
Polaris 5141292 Shaft-Pivot, Short, M10, 43Mm

SHAFT-PIVOT, SHORT, M10, 43MM

Part #: 5141292 Required per assembly: 6
Currently Not Available
4

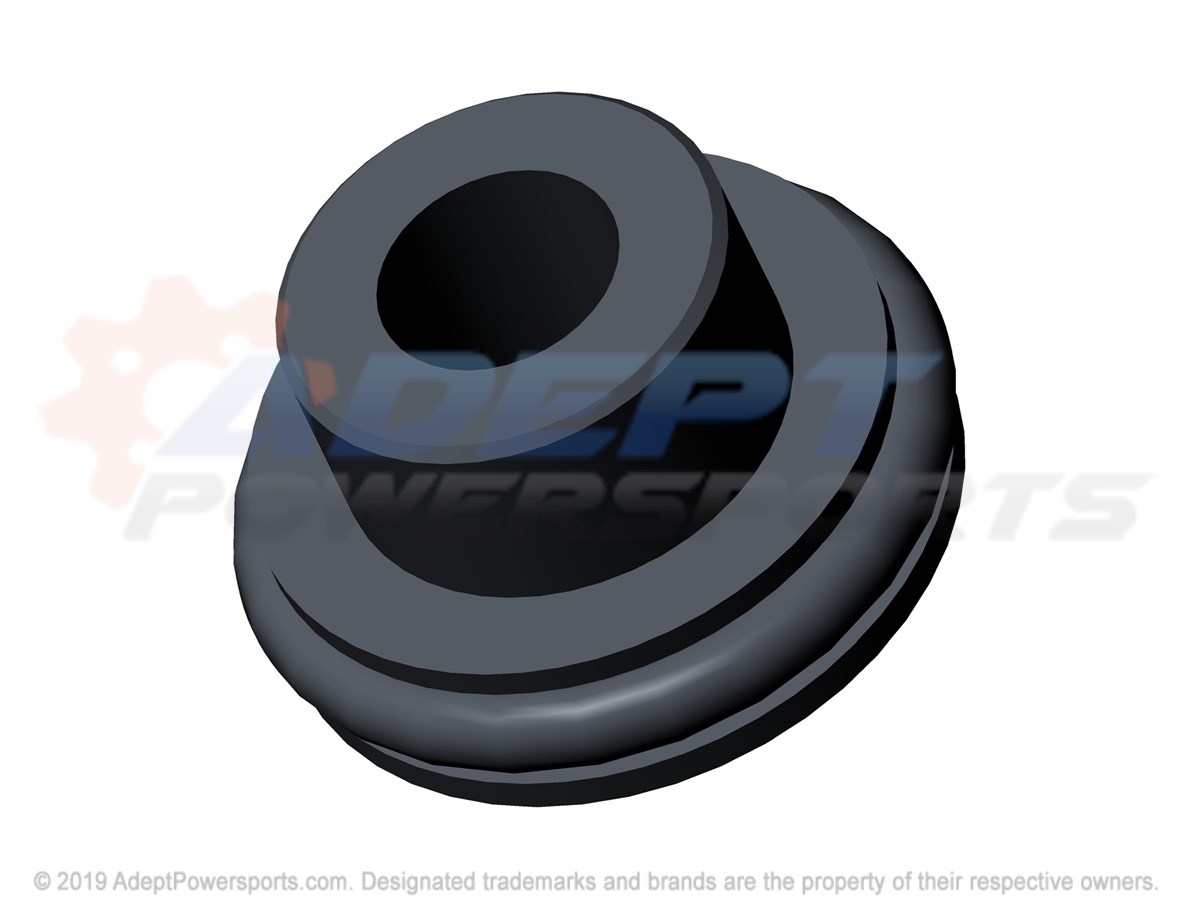

Polaris 5452233 Bushing-Standard, Susp, M10

BUSHING-STANDARD, SUSP, M10

Part #: 5452233 Required per assembly: 12
Currently Not Available
5
Polaris 5452271 Bushing-Standard, Susp, M12

BUSHING-STANDARD, SUSP, M12

Part #: 5452271 Required per assembly: 2
Currently Not Available
6
Polaris 7521024 Scr-Hxfl-M10x1.25X90 10.9 Zod

SCR-HXFL-M10X1.25X90 10.9 ZOD

Part #: 7521024 Required per assembly: 6
Currently Not Available
7
Polaris 7519306 Scr-Hxfl-M10x1.25X60 10.9 Zod

SCR-HXFL-M10X1.25X60 10.9 ZOD

Part #: 7519306 Required per assembly: 2
Currently Not Available
8
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 8 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
9
Polaris 7710869 30Mm, Spiral, Ring, Steel

30MM, SPIRAL, RING, STEEL

Part #: 7710869 Required per assembly: 2
Currently Not Available
10
Polaris 7556153 Washer, Flat

WASHER, FLAT

Part #: 7556153 Required per assembly: 8 Note: Washer
$3.99
$2.30
-
+
Add to cart
