Box, Mounting replacement parts for 2021 Polaris Ranger 1000XP PS MUD (R02)

OEM Parts Polaris 2021 Polaris Ranger 1000XP PS MUD (R02) Box, Mounting

BOX, MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-BOX, LATCH, HVAC, BLK Part #: 1024020-458 Required per assembly: 1 Currently Not Available
2	SCREW Part #: 7519650 Required per assembly: 7 Currently Not Available
3	SCREW Part #: 7517793 Required per assembly: 3 Currently Not Available
4	SCR-TXPH-#14X5/8 HI/LO CLR Part #: 7520803 Required per assembly: 13 Currently Not Available
5	RIVET Part #: 7621460 Required per assembly: 2 ~~$3.97~~ $3.16 - + Add to cart
6	NUT Part #: 7547274 Required per assembly: 2 Note: Nut, Flange Currently Not Available
7	WELD-BOX, SUPPORT, HVAC, BLK Part #: 1023332-329 Required per assembly: 1 Currently Not Available
8	BUMPER, BOX Part #: 5414343 Required per assembly: 2 ~~$5.99~~ $3.45 - + Add to cart
9	BUSHING, BOX, LATCH Part #: 5434226 Required per assembly: 6 Currently Not Available
10	HANDLE, BOX, LATCH Part #: 5450278 Required per assembly: 2 Currently Not Available
11	SHIELD-BOX, CARGO, MUD Part #: 5268148 Required per assembly: 1 Currently Not Available
12	SHOCK-BOX, DUMP, RGR, 441MM, EXT Part #: 7045663 Required per assembly: 1 Currently Not Available
13	SCREW Part #: 7519363 Required per assembly: 2 Currently Not Available
14	NUT, FLANGE Part #: 7547317 Required per assembly: 3 Currently Not Available
15	NUT, FLANGE Part #: 7547333 Required per assembly: 2 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
16	CLIP-HITCHPIN .148X3 1/16 Part #: 7661067 Required per assembly: 2 Note: Clip Currently Not Available
17	PIN, CLEVIS Part #: 7661878 Required per assembly: 2 Currently Not Available
18	SCR-HXFLG, M6X1.0X25, 10.9 Part #: 7519754 Required per assembly: 2 Currently Not Available
19	SPRING-LATCH Part #: 7044324 Required per assembly: 1 Currently Not Available
20	SPRING-LATCH Part #: 7044325 Required per assembly: 1 Currently Not Available

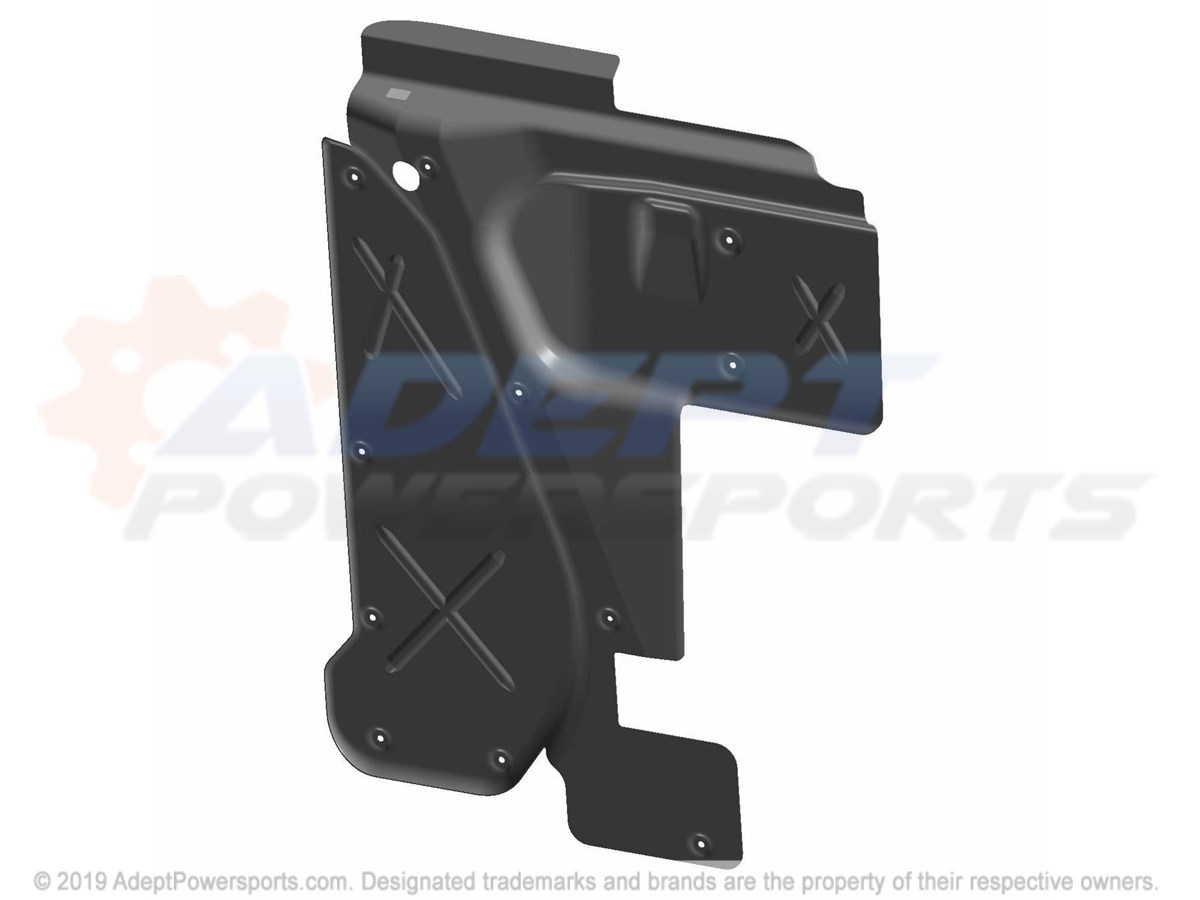

21	SHIELD-BOX, SILENCER, HVAC Part #: 5264681 Required per assembly: 1 Currently Not Available

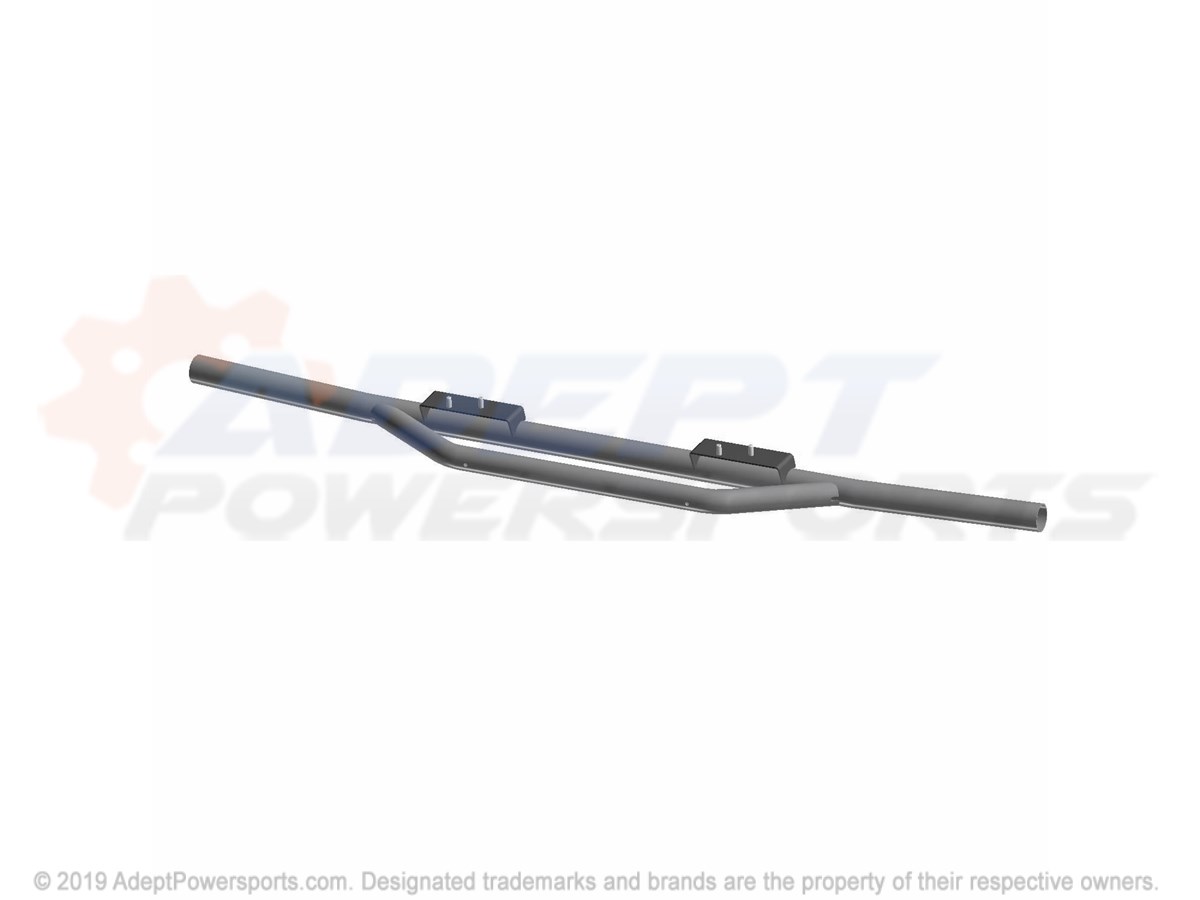

22	WELD-BUMPER, REAR, PRL, MLTD Part #: 1023593-707 Required per assembly: 1 Currently Not Available

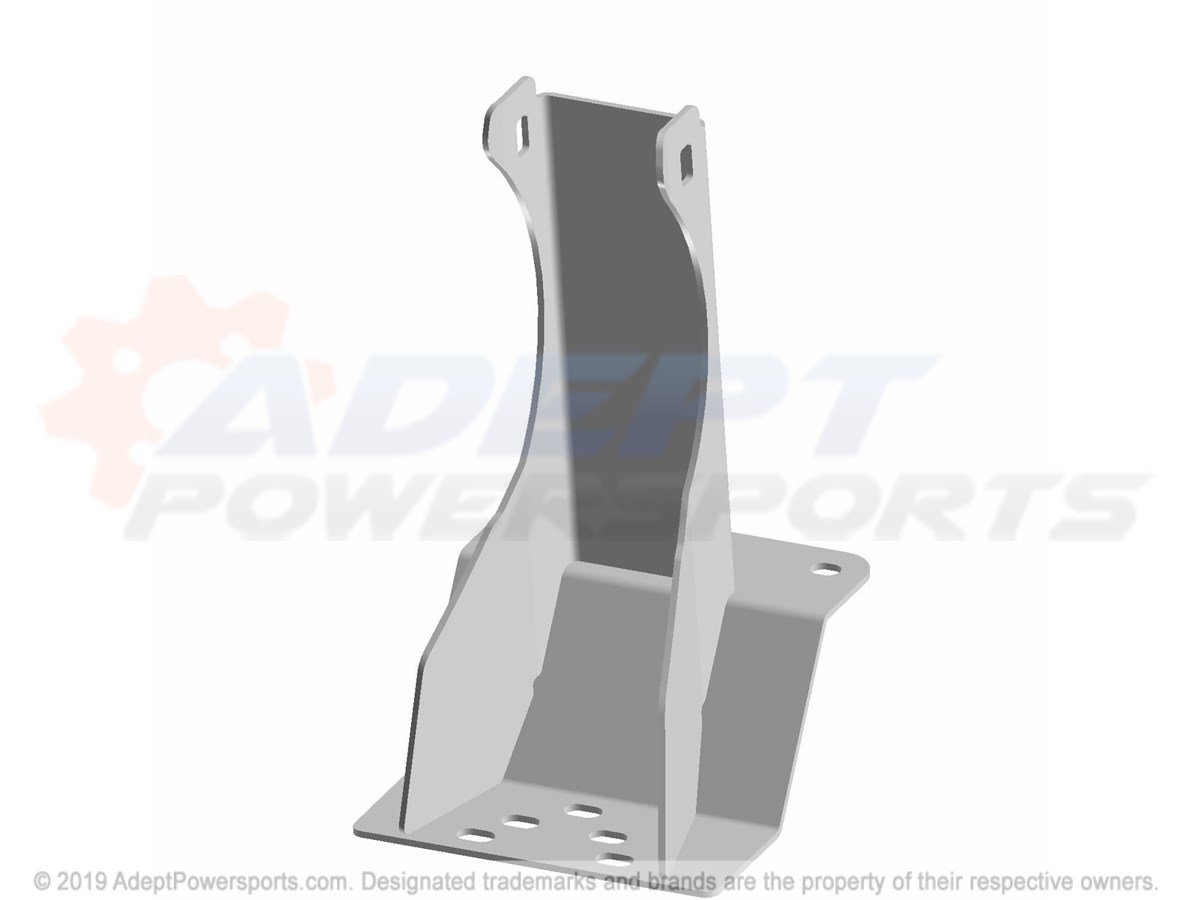

23	WELD-MNT, RR, BUMPER, PRL, MLTD Part #: 1023811-707 Required per assembly: 2 Currently Not Available
