OEM Parts Polaris 2021 Polaris Ranger 1000XP PS MUD (R02) Front Stabilizer Bar

2021 Polaris Ranger 1000XP PS MUD (R02) R21RRM99AG - Front Stabilizer Bar

FRONT STABILIZER BAR Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

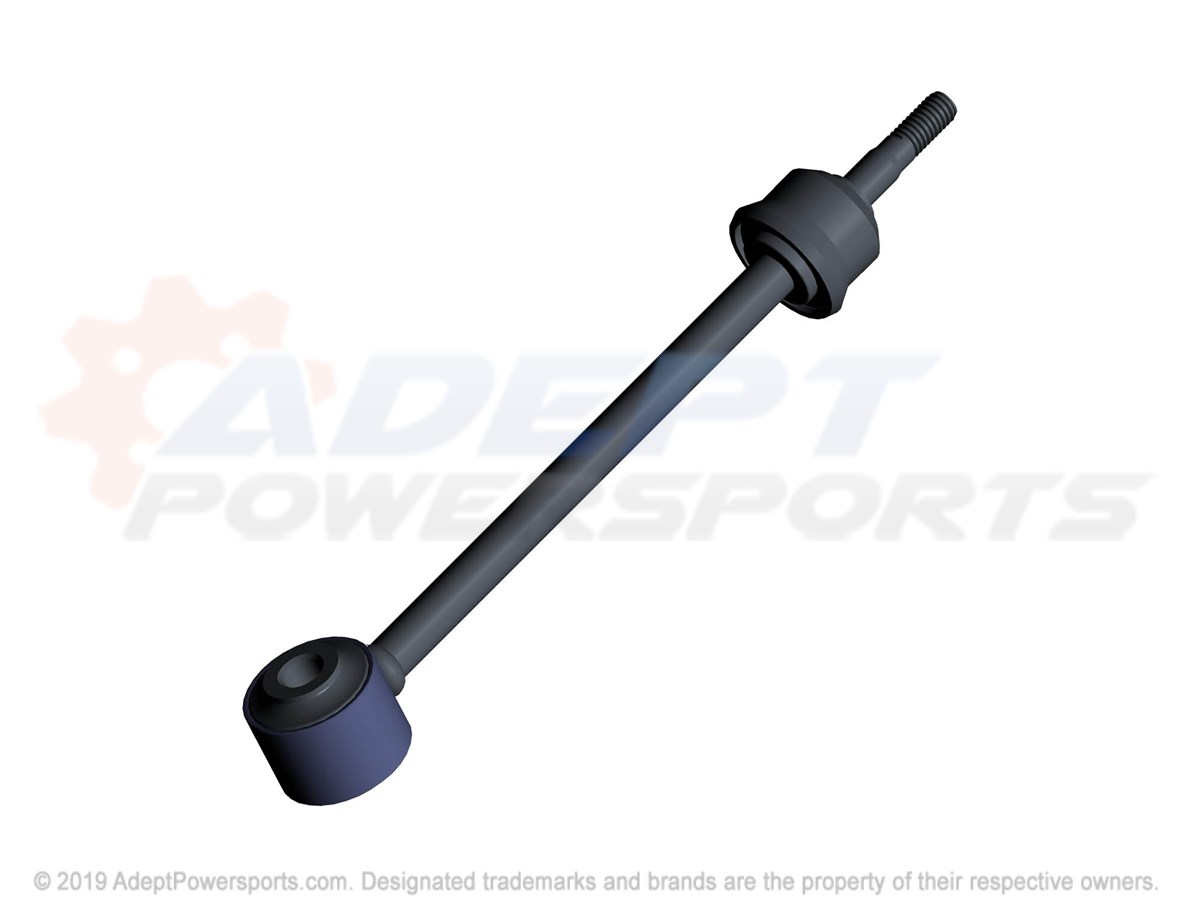

Polaris 5140916 Linkage-Bar, Torsion

LINKAGE-BAR, TORSION

Part #: 5140916 Required per assembly: 2
Currently Not Available
2

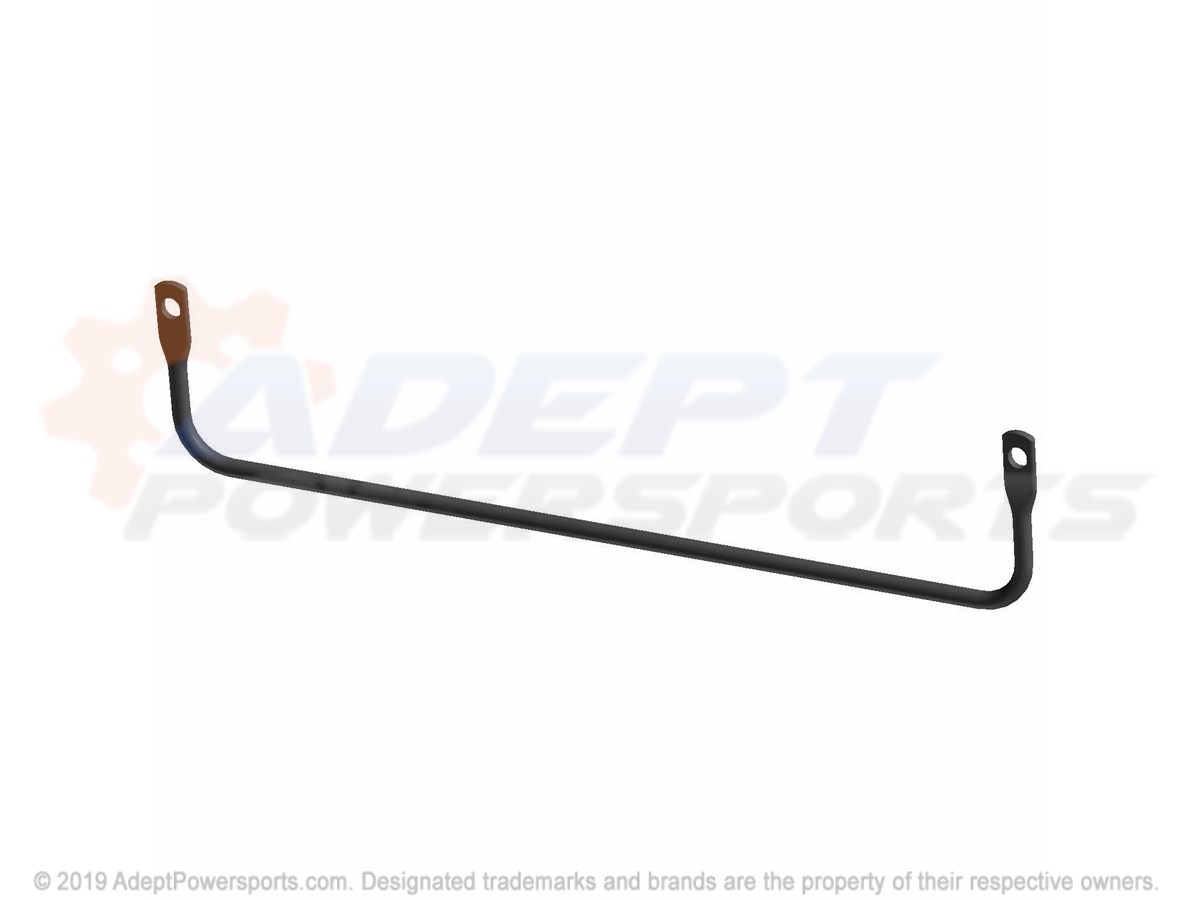

Polaris 5340150-458 Bar-Stabilzer, Front, M.Blk

BAR-STABILZER, FRONT, M.BLK

Part #: 5340150-458 Required per assembly: 1
Currently Not Available
3
Polaris 5452817 Bushing-Stabilizer

BUSHING-STABILIZER

Part #: 5452817 Required per assembly: 4
Currently Not Available
4

BRKT-BUSHING

Part #: 5270849 Required per assembly: 2 Note: FROM 12/14/2020
Currently Not Available
4

BRKT-BUSHING

Part #: 5270849 Required per assembly: 2 Note: TO 12/14/2020
Currently Not Available
5

ZERK, FITTING, THREADED

Part #: 7080433 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
6
Polaris 7520298 Scr-Rhcar-M8x1.25X25 10.9 Zb3

SCR-RHCAR-M8X1.25X25 10.9 ZB3

Part #: 7520298 Required per assembly: 4
Currently Not Available
7
Polaris 5416013 Bushing-Lnkg, Torbar, Duro80

BUSHING-LNKG, TORBAR, DURO80

Part #: 5416013 Required per assembly: 2
Currently Not Available
8
Polaris 7519306 Scr-Hxfl-M10x1.25X60 10.9 Zod

SCR-HXFL-M10X1.25X60 10.9 ZOD

Part #: 7519306 Required per assembly: 4
Currently Not Available
9

NUT, FLANGE

Part #: 7547332 Required per assembly: 4 Note: Nut, Nylok
Currently Not Available
10
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
