OEM Parts Polaris 2021 Polaris Ranger 1000XP PS MUD (R02) Dash Instuments

2021 Polaris Ranger 1000XP PS MUD (R02) R21RRM99AG - Dash Instuments

DASH INSTUMENTS Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 3286943 Asm-C4, Rzr, Rgr, Gnrl, 256K, Nas

ASM-C4, RZR, RGR, GNRL, 256K, NAS

Part #: 3286943 Required per assembly: 1
Currently Not Available
2
Polaris 4015033 Switch-Key, 3, Position, Sealed

SWITCH-KEY, 3, POSITION, SEALED

Part #: 4015033 Required per assembly: 1
Currently Not Available
3

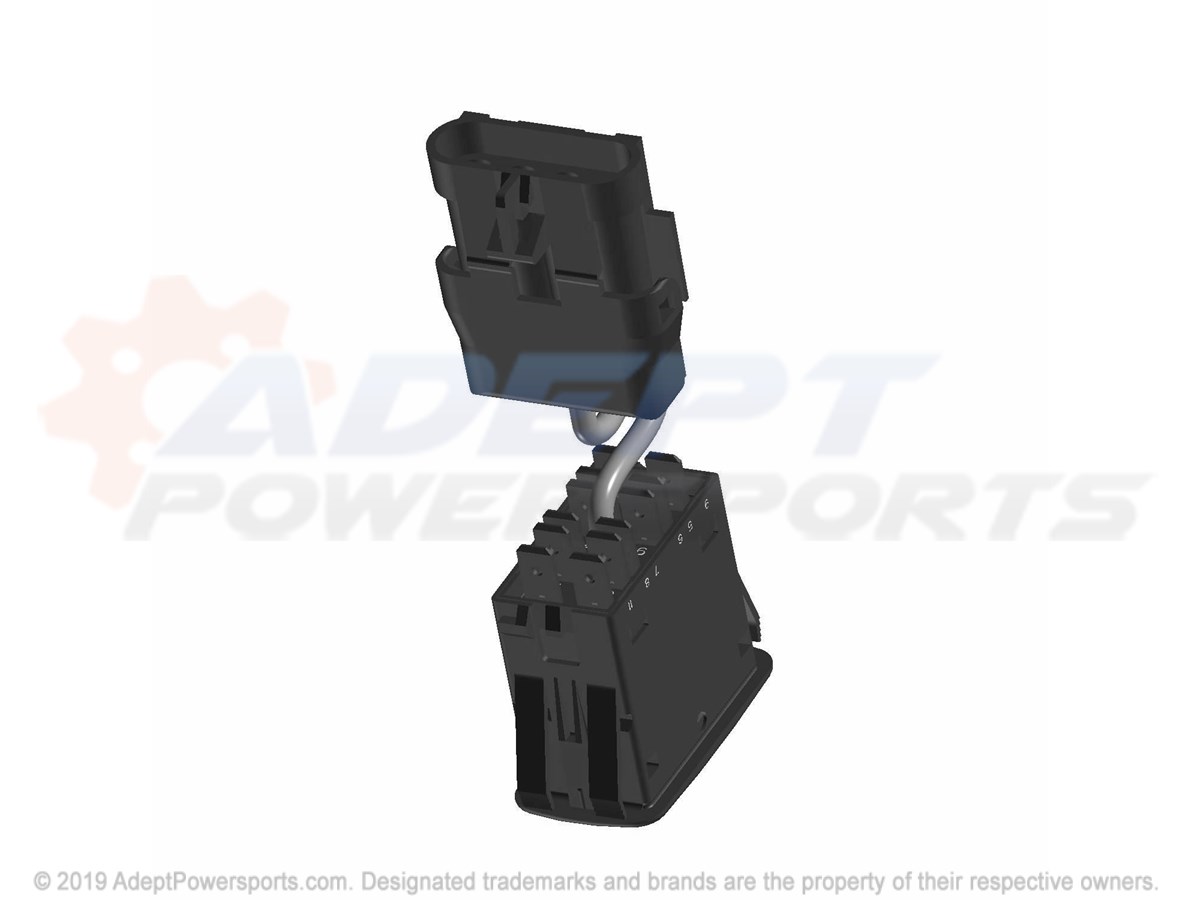

Polaris 4017200 Switch-Winch, Sealed

SWITCH-WINCH, SEALED

Part #: 4017200 Required per assembly: 1
$104.99
$54.34
-
+
Add to cart
4

SWITCH-AWD, SEALED

Part #: 4019441 Required per assembly: 1
Currently Not Available
5
Polaris 4017087 Switch-Headlight

SWITCH-HEADLIGHT

Part #: 4017087 Required per assembly: 1
Currently Not Available
6
Polaris 4012393 Receptacle, Pod, Mount, 12V

RECEPTACLE, POD, MOUNT, 12V

Part #: 4012393 Required per assembly: 2
Currently Not Available
7
Polaris 2415295 Asm-Charge, Port, Base

ASM-CHARGE, PORT, BASE

Part #: 2415295 Required per assembly: 1 Note: INCL. PLUG, CAP, AND NUT
Currently Not Available
7
Polaris 2415295 Asm-Charge, Port, Base

ASM-CHARGE, PORT, BASE

Part #: 2415295 Required per assembly: 1
Currently Not Available
8

CAP-CHARGE PORT

Part #: 5417215 Required per assembly: 1
Currently Not Available
9

NUT-CHARGE PORT

Part #: 5456622 Required per assembly: 1
Currently Not Available
