Box, Tailgate replacement parts for 2021 Polaris Ranger 1000XP PS MUD (R02)

OEM Parts Polaris 2021 Polaris Ranger 1000XP PS MUD (R02) Box, Tailgate

BOX, TAILGATE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	SPRING-LATCH, TAILGATE Part #: 7045562 Required per assembly: 2 Note: FROM 11/9/2020 Currently Not Available

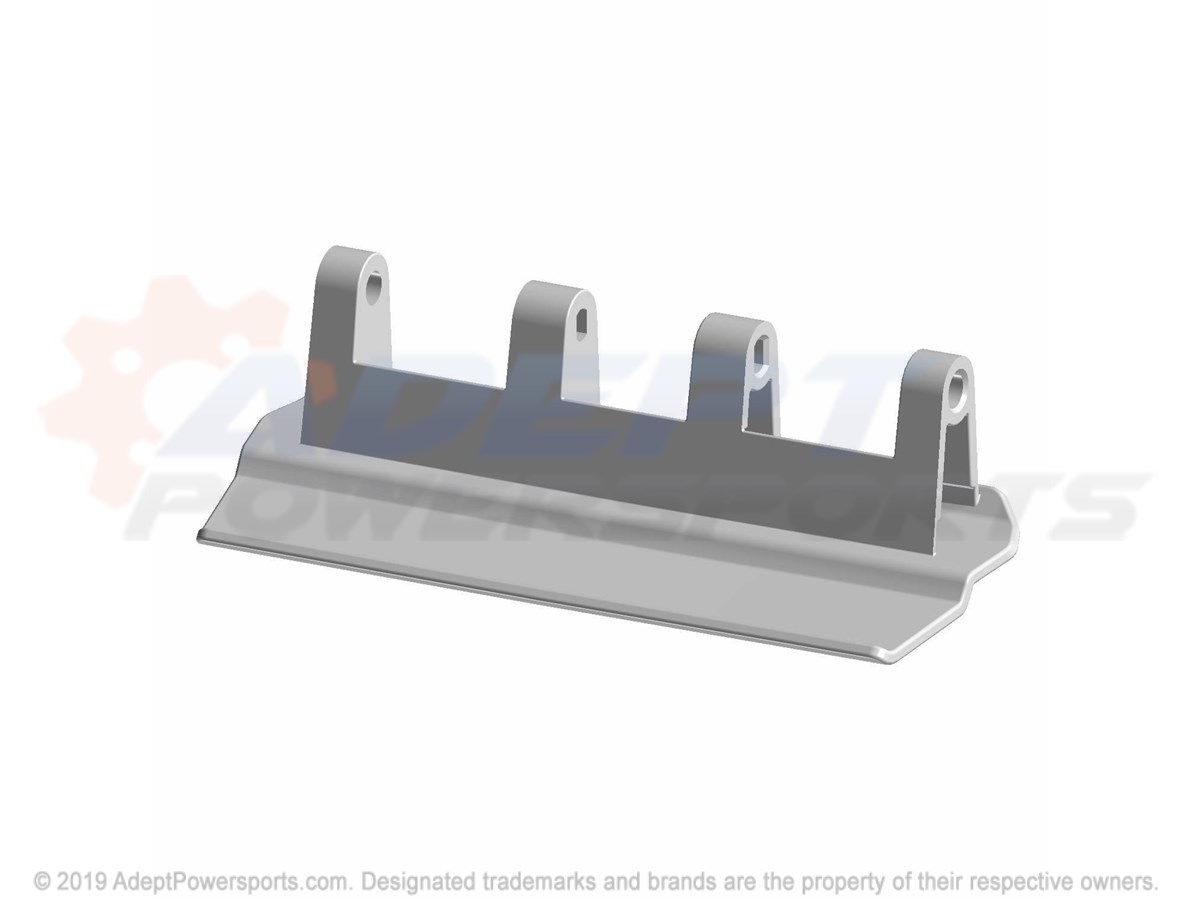

1	WELD-TAILGATE, PIVOT, M.BLK Part #: 1023286-458 Required per assembly: 1 Currently Not Available
2	BRKT-TAILGATE, SUPPORT, UPR, BLK Part #: 5270641-329 Required per assembly: 1 Currently Not Available
3	PANEL-TAILGATE, OUTER, BLK Part #: 5453779-070 Required per assembly: 1 Note: INCL. QTY 8 OF 4 Currently Not Available
4	SCREW Part #: 7518377 Required per assembly: 3 Currently Not Available
5	CAP-TAILGATE, BLK Part #: 5453781-070 Required per assembly: 1 Currently Not Available
6	ROD-TAILGATE Part #: 5143537 Required per assembly: 2 Currently Not Available
7	PANEL-TAILGATE, INNER, BLK Part #: 5453780-070 Required per assembly: 1 Currently Not Available
8	HANDLE-TAILGATE LATCH Part #: 5457283-070 Required per assembly: 1 Currently Not Available
9	SPRING-LATCH, TAILGATE Part #: 7044237 Required per assembly: 2 Note: TO 11/9/2020 Currently Not Available
10	CABLE-TAILGATE, 8MM, EYELET Part #: 7082363 Required per assembly: 2 Currently Not Available
11	SCREW Part #: 7519650 Required per assembly: 7 Currently Not Available
12	SCREW Part #: 7519731 Required per assembly: 2 Currently Not Available
13	PIN, HITCH Part #: 7661644 Required per assembly: 2 Note: Pin, Hitch ~~$1.99~~ $1.15 - + Add to cart
