OEM Parts Polaris 2021 Polaris Ranger 1000XP PS MUD (R02) Front Half Shaft

2021 Polaris Ranger 1000XP PS MUD (R02) R21RRM99AG - Front Half Shaft

FRONT HALF SHAFT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASM-HALFSHAFT, FRONT, HS

Part #: 1334351 Required per assembly: 1 Note: INCL. ALL
Currently Not Available
2

OUTER JOINT

Part #: 3236155 Required per assembly: 1
Currently Not Available
3

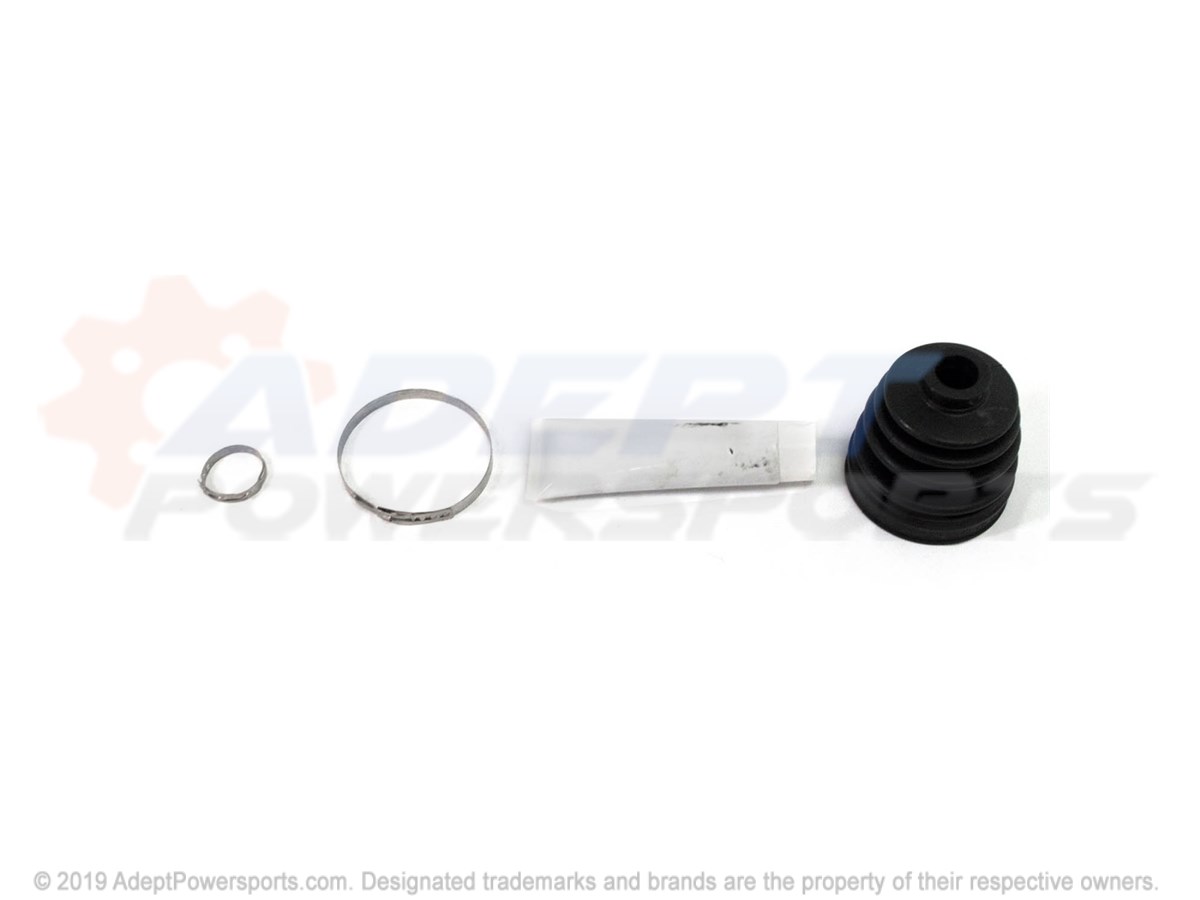

Polaris 3235776 K-Boot Outer

K-BOOT OUTER

Part #: 3235776 Required per assembly: 1
Currently Not Available
4

BOOT KIT(SP ONLY)

Part #: 3235934 Required per assembly: 1
Currently Not Available
5

INNER JOINT(SP ONLY)

Part #: 3235935 Required per assembly: 1
Currently Not Available
6

CIRCLIP(SP ONLY)

Part #: 3235936 Required per assembly: 1
Currently Not Available
7

CIRCLIP(SP ONLY)

Part #: 3235937 Required per assembly: 1
Currently Not Available
8

SHAFT-DRIVE, SERVICE

Part #: 3236189 Required per assembly: 1
Currently Not Available
