COOLING SYSTEM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, RADIATOR Part #: 1240663 Required per assembly: 1 Note: INCL. 2-5 Currently Not Available
2	CAP Part #: 1240694 Required per assembly: 1 Currently Not Available
3	ASSEMBLY, RADIATOR, CORE Part #: 1240664 Required per assembly: 1 Currently Not Available
4	FAN ASSEMBLY Part #: 2411816 Required per assembly: 1 Currently Not Available
5	BOLT Part #: 7519585 Required per assembly: 4 Currently Not Available
6	CAP, OVERFLOW, BOTTLE, W/FITTING Part #: 5437635 Required per assembly: 1 Currently Not Available
7	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap ~~$4.79~~ $2.92 - + Add to cart
8	TANK, SURGE Part #: 5439202 Required per assembly: 1 Currently Not Available
9	GASKET Part #: 5810279 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
10	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Required per assembly: 1 Currently Not Available
11	GROMMET-TANK FITTING Part #: 7052028 Required per assembly: 4 Note: Grommet Currently Not Available
12	TUBE-COOLANT, 1" Part #: 5140928 Required per assembly: 1 Currently Not Available

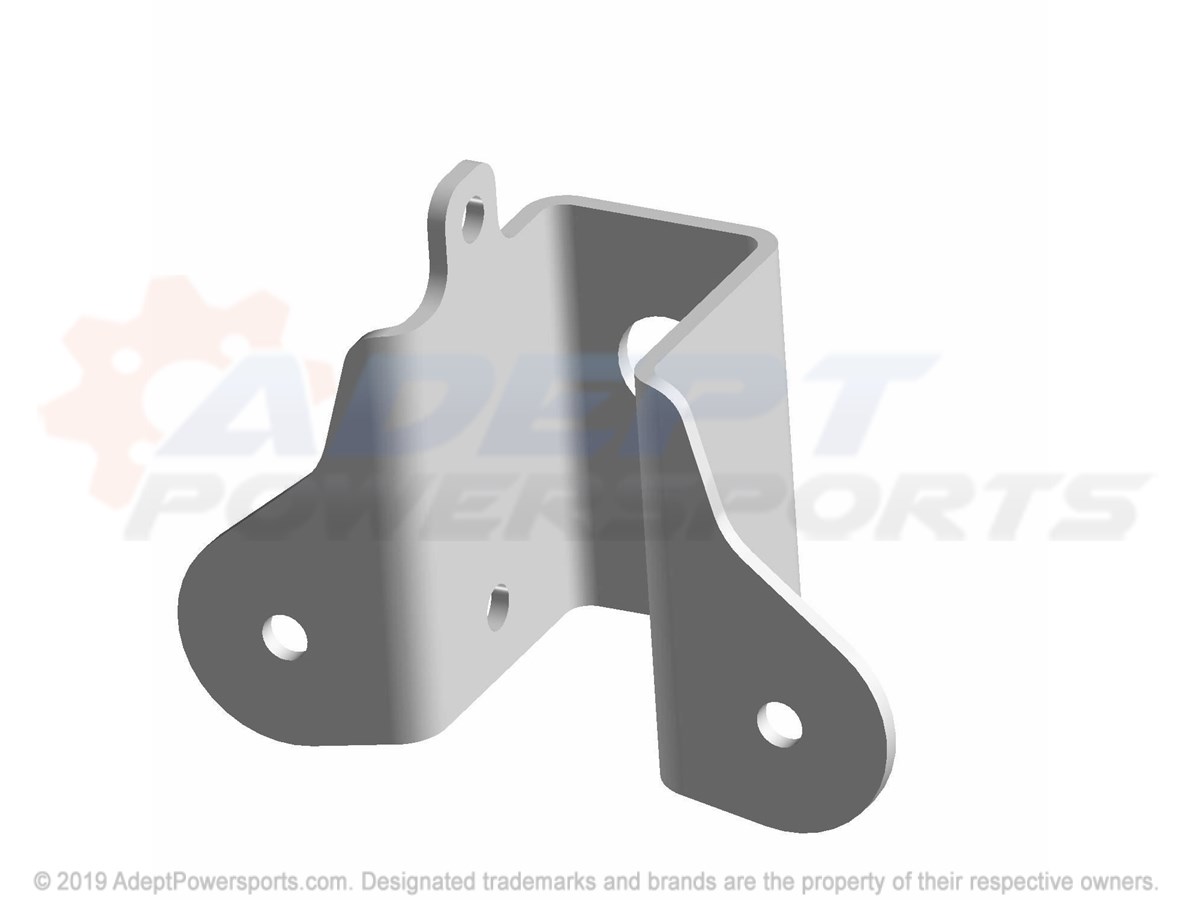

13	BRKT-RADIATOR, MNT, LWR, BLK Part #: 5269633-329 Required per assembly: 2 Currently Not Available
14	SHROUD-RADIATOR, FRONT, BLK Part #: 5457914-070 Required per assembly: 1 Currently Not Available
15	RIVET Part #: 7661855 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
16	SCREW Part #: 7519001 Required per assembly: 2 Currently Not Available
17	HOSE-UPPER, RAD Part #: 5416137 Required per assembly: 1 Currently Not Available
18	HOSE-ENG, OUT Part #: 5416140 Required per assembly: 1 Currently Not Available
19	HOSE-LOWER, RAD Part #: 5416138 Required per assembly: 1 Currently Not Available
20	HOSE-ENG, IN Part #: 5416139 Required per assembly: 1 Currently Not Available
21	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 6 Currently Not Available
22	BRKT-RADIATOR, MOUNT, BLK Part #: 5263654-329 Required per assembly: 2 Currently Not Available
23	CLAMP, HOSE Part #: 7081192 Required per assembly: 2 Currently Not Available
24	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
25	SCREW Part #: 7518158 Required per assembly: 2 Currently Not Available
26	TUBE-COOLANT, 1", UPPER Part #: 5142861 Required per assembly: 1 Currently Not Available
27	SCREW Part #: 7512026 Required per assembly: 2 Note: Screw Currently Not Available
28	CLIP-COOLANT ROUTING Part #: 5453767 Required per assembly: 2 Currently Not Available
29	CLIP-ROUTING Part #: 7081496 Required per assembly: 1 Currently Not Available
30	HOSE-POLY, CLEAR, 3/16"ODX1/8"ID Part #: 8360009-170 Required per assembly: 1 Currently Not Available
31	SCREW Part #: 7518936 Required per assembly: 4 Currently Not Available
