OEM Parts Polaris 2019 Polaris ACE 570 (R04) Pedal And Master Cylinder Mounting

2019 Polaris ACE 570 (R04) A19DAE57A4 - Pedal And Master Cylinder Mounting

PEDAL AND MASTER CYLINDER MOUNTING Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

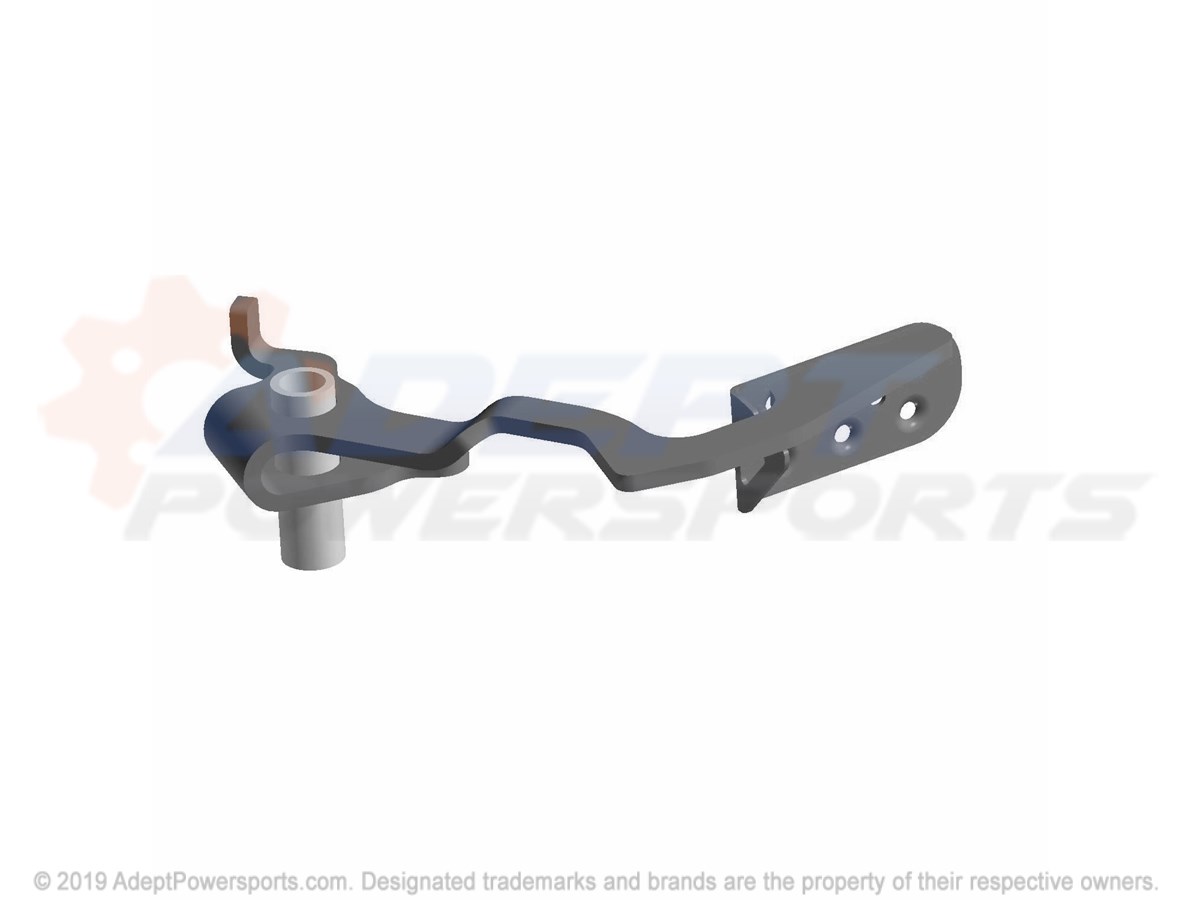

Polaris 1022796-458 Weld-Brake, M.Blk

WELD-BRAKE, M.BLK

Part #: 1022796-458 Required per assembly: 1
Currently Not Available
2

PIN-PIVOT

Part #: 5138532 Required per assembly: 1
Currently Not Available
3
Polaris 5433189 Bushing-Pedal Pivot

BUSHING-PEDAL PIVOT

Part #: 5433189 Required per assembly: 2 Note: Bushing, Pedal Pivot
Currently Not Available
4

NUT, FLANGE

Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok
Currently Not Available
5
Polaris 7556376 Washer

WASHER

Part #: 7556376 Required per assembly: 1
Currently Not Available
6
Polaris 7661900 Pin, Cotter

PIN, COTTER

Part #: 7661900 Required per assembly: 1
Currently Not Available
7

ASM-FLANGETTE, W/SCREWS, ACE

Part #: 1022855 Required per assembly: 1
Currently Not Available
8
Polaris 7661401 Cotter Pin

COTTER PIN

Part #: 7661401 Required per assembly: 1
$1.99
$1.15
-
+
Add to cart
9
Polaris 7661843 Clevis (Us Only)

CLEVIS (US ONLY)

Part #: 7661843 Required per assembly: 1 Note: Pin, Clevis
Currently Not Available
