OEM Parts Polaris 2019 Polaris ACE 570 (R04) Front Half Shaft

2019 Polaris ACE 570 (R04) A19DAE57A4 - Front Half Shaft

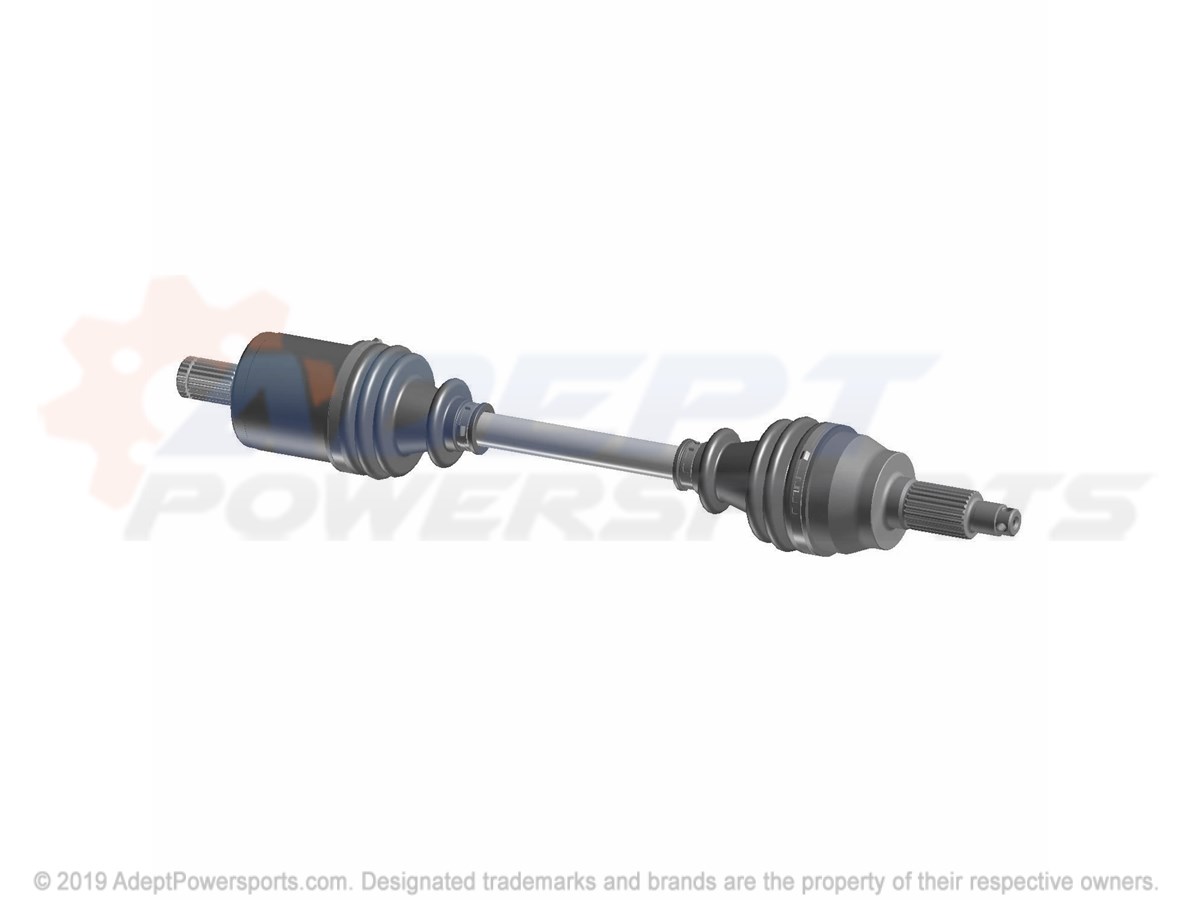

FRONT HALF SHAFT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1333675 Asm-Drive, Shaft, Ace, Front

ASM-DRIVE, SHAFT, ACE, FRONT

Part #: 1333675 Required per assembly: 2
Currently Not Available
2

JOINT, OUTER

Part #: 3236005 Required per assembly: 1 Note: INCL. BALL, INTER RACE, CAGE, BELL
Currently Not Available
3

KIT, BOOT

Part #: 3236003 Required per assembly: 1 Note: INCL. CLAMPS, BOOT, GREASE
Currently Not Available
4

BAR

Part #: 3236006 Required per assembly: 1 Note: INCL. SHAFT, CLIPS
Currently Not Available
5

BOOT KIT(SP ONLY)

Part #: 3235934 Required per assembly: 1 Note: INCL. CLAMPS, BOOT, GREASE
Currently Not Available
6

JOINT, INNER

Part #: 3236004 Required per assembly: 1 Note: INCL. CLIP, RING, RACE, BALLS, BELL
Currently Not Available
7

CIRCLIP(SP ONLY)

Part #: 3235936 Required per assembly: 1
Currently Not Available
8

CLIP-INNER JOINT

Part #: 3236015 Required per assembly: 1
Currently Not Available
