OEM Parts Polaris 2019 Polaris ACE 570 (R04) Throttle Pedal

2019 Polaris ACE 570 (R04) A19DAE57A4 - Throttle Pedal

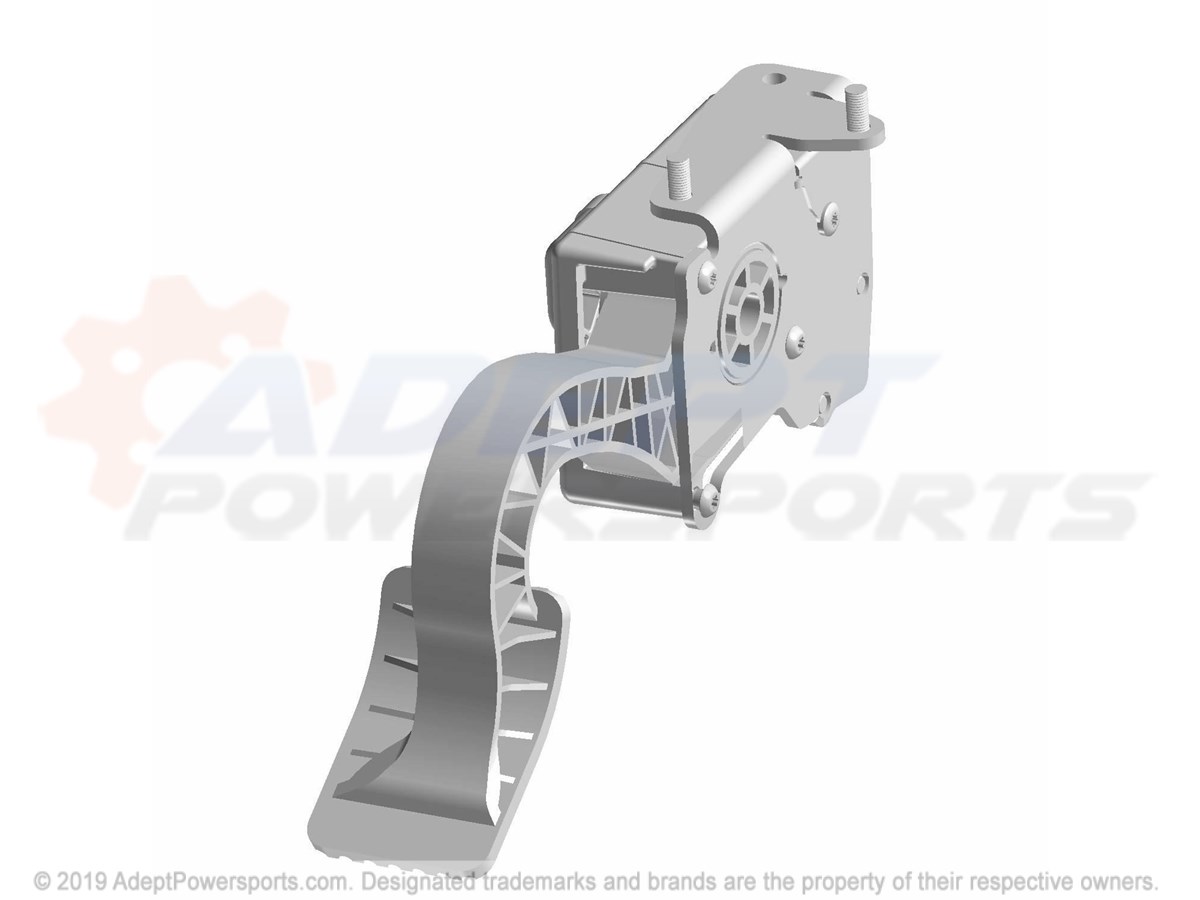

THROTTLE PEDAL Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

PEDAL-ETC, ACE

Part #: 4016489 Required per assembly: 1
Currently Not Available
2

NUT, FLANGE

Part #: 7547339 Required per assembly: 2
Currently Not Available
