OEM Parts Polaris 2019 Polaris ACE 570 (R04) Ignition

2019 Polaris ACE 570 (R04) A19DAE57A4 - Ignition

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

COIL-IGNITION, SINGLE, W/DIODE

Part #: 4015072 Required per assembly: 1
Currently Not Available
2

RIVET

Part #: 7661855 Required per assembly: 1
$2.99
$1.73
-
+
Add to cart
3

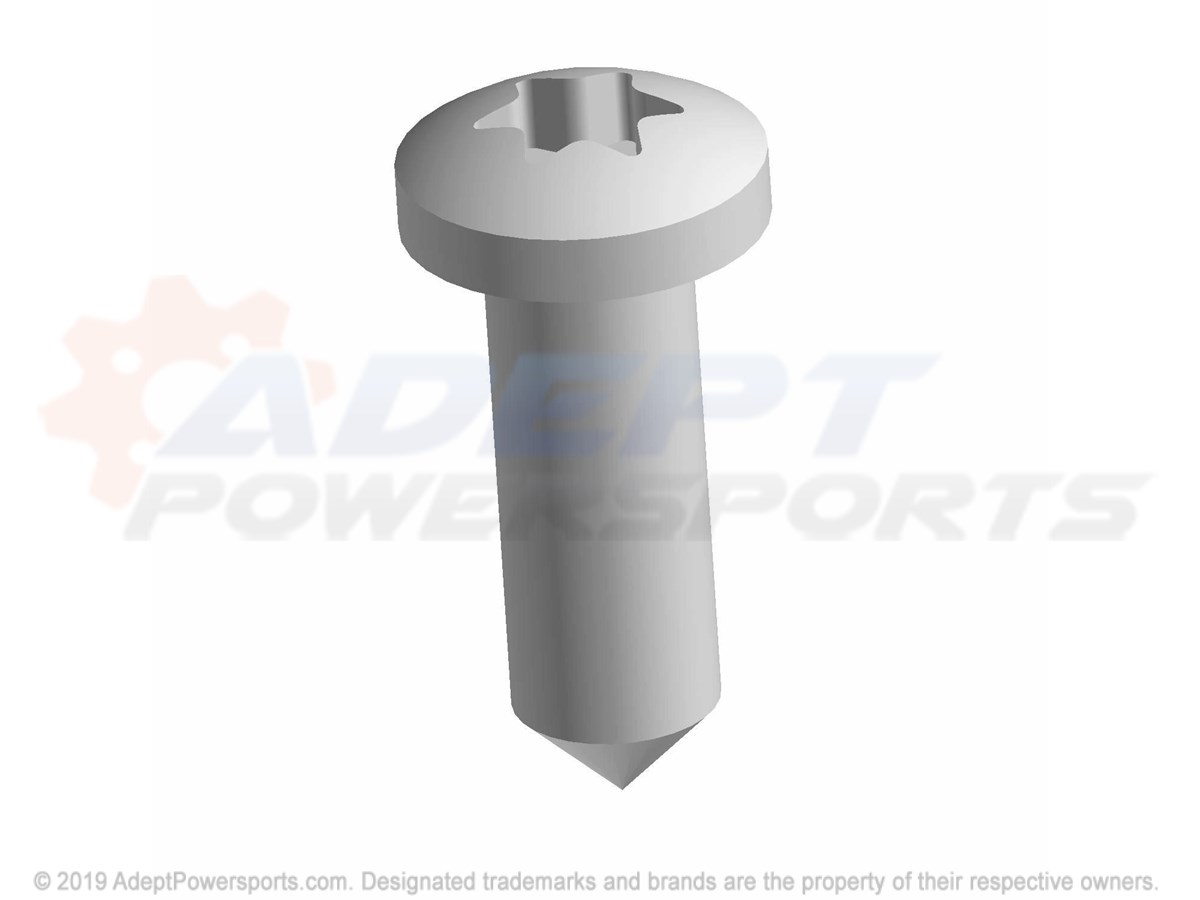

SCREW

Part #: 7518529 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
4

SCREW

Part #: 7519091 Required per assembly: 4
Currently Not Available
5

WIRE-SPARKPLUG, PTO

Part #: 4014795 Required per assembly: 1
Currently Not Available
6

ECM

Part #: 4014125 Required per assembly: 1
Currently Not Available
7

SPARK PLUG-10 MM

Part #: 3022662 Required per assembly: 1 Note: NGK MR7F
$9.99
$6.31
-
+
Add to cart
8

MNT-ECM REAR BLK

Part #: 5438708-070 Required per assembly: 1
Currently Not Available
9

COVER-ECM

Part #: 5438786 Required per assembly: 1
Currently Not Available
