Battery replacement parts for 2019 Polaris ACE 570 (R04)

OEM Parts Polaris 2019 Polaris ACE 570 (R04) Battery

BATTERY Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SOLENOID, STARTER, C1100, W/WASHER Part #: 4014471 Required per assembly: 1 Currently Not Available
2	SCREW Part #: 7518529 Required per assembly: 5 $2.99 $1.73 - + Add to cart
3	KIT, BATTERY, BOLT Part #: 2202213 Required per assembly: 1 Currently Not Available
4	BATTERY Part #: 4140006 Required per assembly: 1 Note: Sold in multiples of 2 only Currently Not Available
4	BATTERY-SEALED, 32, AH, 500, CCA Part #: 4015955 Required per assembly: 1 Note: OPT Currently Not Available
5	TUBE-BATTERY VENT 305MM Part #: 5435030 Required per assembly: 1 Currently Not Available
6	BRKT-BATTERY STRAP Part #: 5264056 Required per assembly: 1 Currently Not Available
7	PAD, RACK, MOUNT Part #: 5810455 Required per assembly: 1 $2.99 $1.73 - + Add to cart
8	CABLE-BATT, 6GA, BK, BAT/CHASS/TB Part #: 4015545 Required per assembly: 1 Currently Not Available
9	CABLE-BATT, 6GA, RD, BATT/SOL/TB Part #: 4015546 Required per assembly: 1 Currently Not Available
9	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 13 Note: Cable Tie Currently Not Available
10	CABLE-BATT, 6GA, BK, FLAT, FLAT, M6 Part #: 4014423-725 Required per assembly: 1 Currently Not Available
11	STUD Part #: 7519333 Required per assembly: 1 Currently Not Available
12	NUT Part #: 7547274 Required per assembly: 3 Note: Nut, Flange Currently Not Available
13	REGULATOR-3PH, 50A, SERIES, HISPD Part #: 4016868 Required per assembly: 1 Currently Not Available

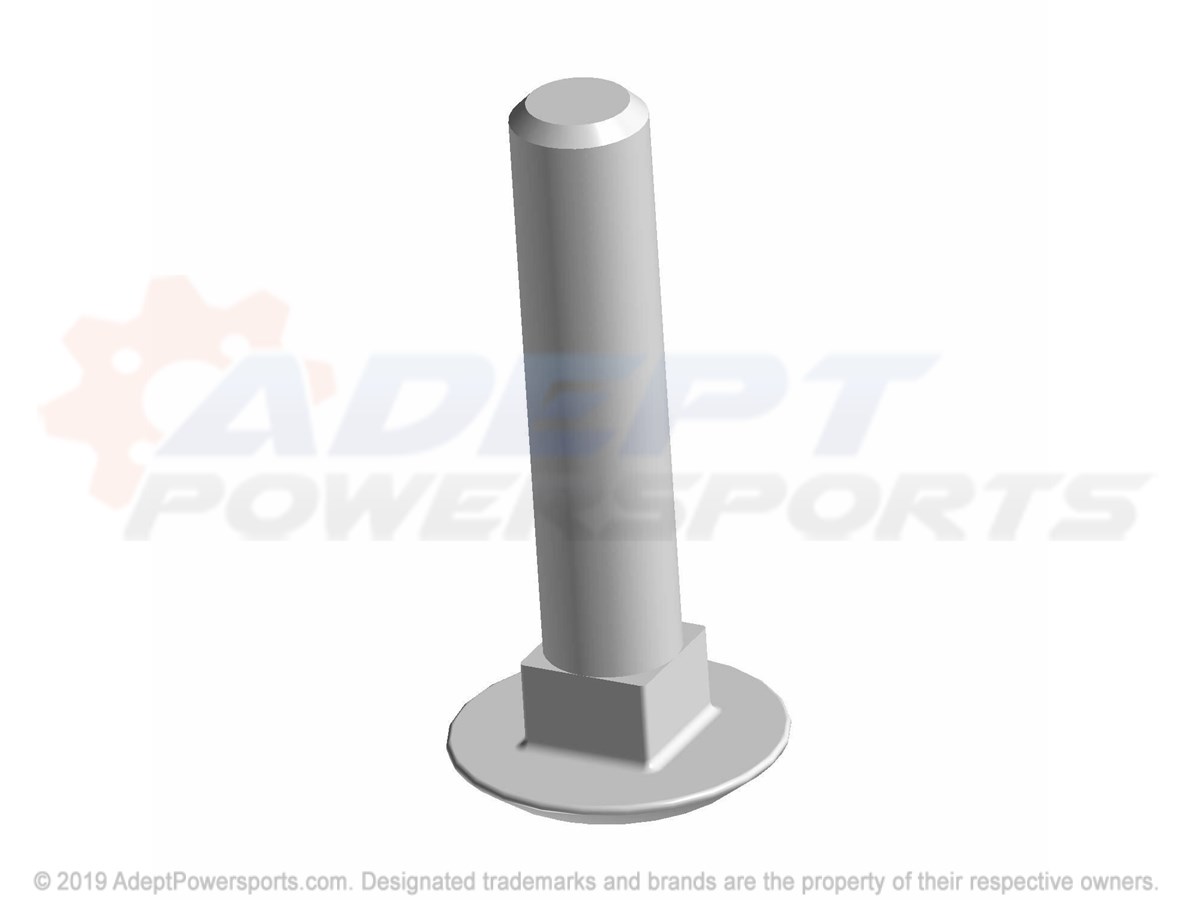

14	M6X1.0X30 CARRIAGE CL8.8 ZC CL Part #: 7520559 Required per assembly: 2 Currently Not Available
15	CABLE-BATT, 6GA, RD, FLAT, FLAT, M6 Part #: 4014424-830 Required per assembly: 1 Note: INCL. 22 Currently Not Available
16	BLOCK-TERMINAL, 3, POST, TALL Part #: 4015778 Required per assembly: 1 Currently Not Available
17	COVER-TERMINAL, BLOCK, 3, POST Part #: 4014659 Required per assembly: 1 Currently Not Available
18	NUT, METRIC Part #: 7546703 Required per assembly: 4 $1.99 $1.15 - + Add to cart
19	NUTS-10-32 KEPS Part #: 7547341 Required per assembly: 6 Currently Not Available

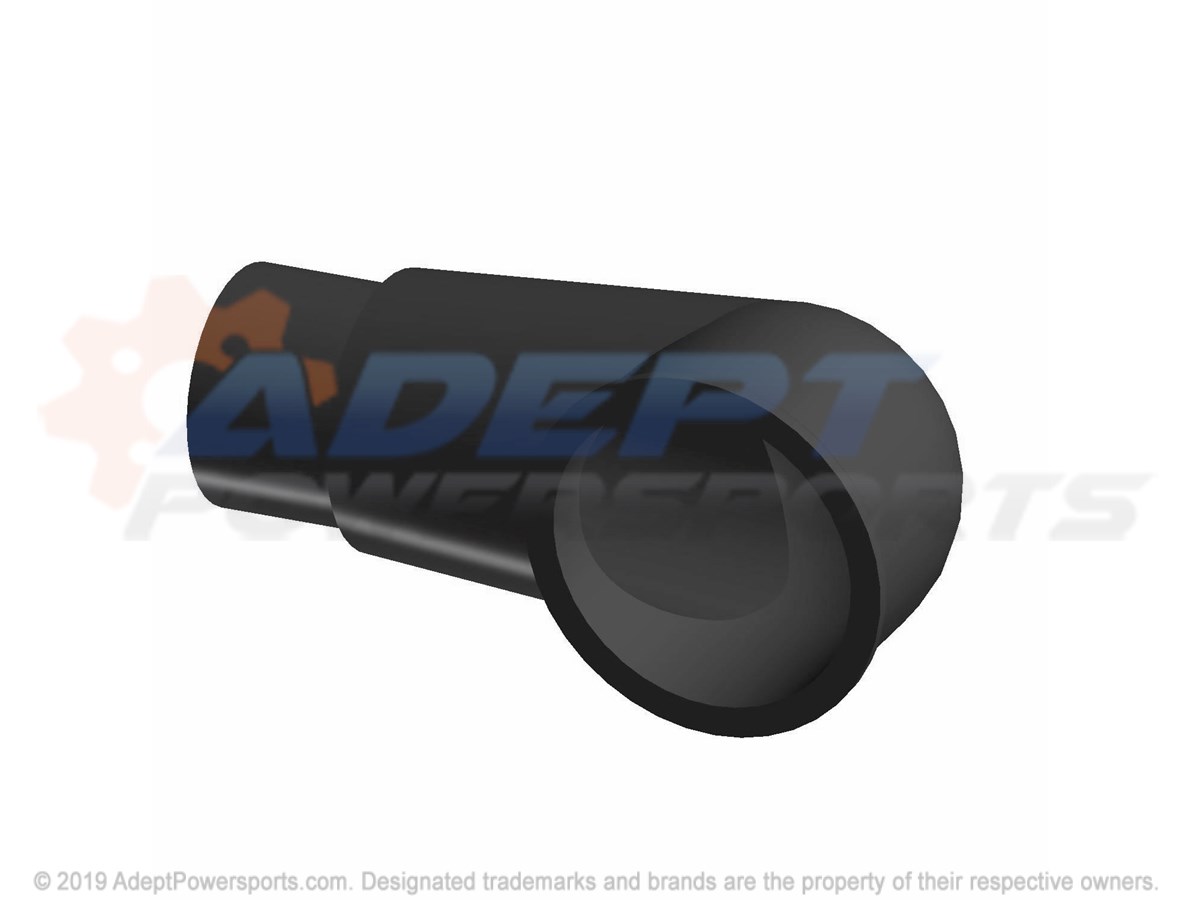

20	BOOT-BATTERY, RED Part #: 4014836 Required per assembly: 1 Currently Not Available
21	BOOT-BATTERY, RED Part #: 4014994 Required per assembly: 1 Currently Not Available
22	INSUL.CABLE SOL. Part #: 5410346 Required per assembly: 2 Currently Not Available
23	WASHER Part #: 7555748 Required per assembly: 2 Currently Not Available
24	RETAINER, BOLT Part #: 7670154 Required per assembly: 2 Currently Not Available
